2012 MAZDA MODEL 3 4-DOOR engine

Black plate (507,1)
qEngine Number
MZR 2.0, MZR 2.5
Forward
SKYACTIV-G 2.0
Forward
MZR 2.3 DISI Turbo
Forward
Identification Numbers
10-3
Mazda3_8BY6-EA-11F_Edition3 Page507
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (508,1)
Specifications
qEngine
Item Specification
MZR 2.0 SKYACTIV-G 2.0
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 83.1 mm (3.44 × 3.27 in) 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,999 ml (1,999 cc, 122.0 cu in) 1,998 ml (1,998 cc, 121.9 cu in)
Compression ratio 10.0 12.0
Item Specification
MZR 2.3 DISI Turbo MZR 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,261 ml (2,261 cc, 138.0 cu in) 2,488 ml (2,488 cc, 151.8 cu in)
Compression ratio 9.5 9.7
q Electrical System
Item Classification
MZR 2.0 SKYACTIV-G 2.0
Battery 12V-40AH/5HR, 12V-52AH/5HR 12V-48AH/5HR, 12V-52AH/5HR
Spark-plug number NGK ILTR5A13G NGK DILKAR7F8
DENSO FC20HPR8
Spark-plug gap 1.25 ―1.35 mm (0.049 ―0.053 in) 0.75 ―0.85 mm (0.030 ―0.033 in)
Item Classification
MZR 2.3 DISI Turbo MZR 2.5
Battery 12V-48AH/5HR, 12V-52AH/5HR 12V-40AH/5HR, 12V-48AH/5HR,
12V-52AH/5HR
Spark-plug number NGK SILTR6A7G NGKILTR5A13G
Spark-plug gap 0.60―0.70 mm (0.024 ―0.027 in) 1.25 ―1.35 mm (0.049 ―0.053 in)
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
10-4
Specifications
Mazda3_8BY6-EA-11F_Edition3 Page508
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (509,1)
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-19.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid 5-speed transaxle
Mazda Genuine ATF M-V
6-speed transaxle Mazda Genuine ATF FZ
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil MZR 2.0
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
SKYACTIV-G 2.0
With oil filter
replacement4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter
replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
MZR 2.3 DISI Turbo
With oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
MZR 2.5 With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant
SKYACTIV-G 2.0Manual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic transaxle 8.2 L (8.7 US qt, 7.2 Imp qt)
Except SKYACTIV-G 2.0 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual
transaxle oil MZR 2.0
2.77 L (2.93 US qt, 2.44 Imp qt)
SKYACTIV-G 2.0 1.65 L (1.74 US qt, 1.45 Imp qt)
MZR 2.3 DISI Turbo 2.5 L (2.6 US qt, 2.2 Imp qt)
MZR 2.5 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic
transaxle fluid 5-speed transaxle
8.14 L (8.60 US qt, 7.16 Imp qt)
6-speed transaxle 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank MZR 2.0, SKYACTIV-G 2.0
55.0 L (14.5 US gal, 12.1 Imp gal)
MZR 2.3 DISI Turbo, MZR 2.5 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
10-5
Mazda3_8BY6-EA-11F_Edition3 Page509
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (522,1)
A
Accessory Socket ............................ 6-114
Adaptive Front Lighting System
(AFS) ................................................ 5-68
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-20
Auxiliary key .............................. 3-20
Locking, unlocking with request
switch ........................................... 3-9
Opening the liftgate/trunk lid ..... 3-11
Operational range ......................... 3-7
Remote control function ............. 3-16
Service ......................................... 3-7
Warning and beep sounds .......... 3-21
When warning indicator/beep is
activated ..................................... 3-24
Air Bag Systems ............................... 2-44
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-8
Appearance Care ............................... 8-63
Audio System ................................... 6-16 Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-59
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-61
Automatic Transaxle Driving tips ................................ 5-20
Fluid ........................................... 8-26
Manual shift mode ..................... 5-16
Shift-lock override ..................... 5-15
Shift-lock system ....................... 5-15
Transaxle ranges ........................ 5-14
B
BatteryEmergency starting .................... 7-18
Maintenance ............................... 8-33
Specifications ............................. 10-4
Beep Sounds Blind spot monitoring system
warning ...................................... 5-63
Ignition key reminder ................. 5-63
Lights-on reminder ..................... 5-63
Seat belt warning ........................ 5-63
Tire inflation pressure warning ... 5-63
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Blind Spot Monitoring
(BSM) System .................................. 5-37 BSM OFF indicator light ........... 5-39
BSM OFF switch ....................... 5-40
Care of radar sensors .................. 5-40
Warning light/beep ..................... 5-39
Bluetooth® Audio ............................ 6-62
Bluetooth® Hands-Free .................... 6-72 Basic Bluetooth® Hands-Free
operation .................................... 6-76
Convenient use of the hands-free
system ........................................ 6-81
Hands-free setting ...................... 6-87
Mazda Bluetooth® Hands-Free
customer service ......................... 6-94
Safety certification ..................... 6-94
When Bluetooth® Hands-Free cannot
be used ....................................... 6-93
Body Lubrication .............................. 8-28
Boost Gauge ..................................... 5-45
Bottle Holder ................................... 6-110
Brake/Clutch Fluid ........................................... 8-24
11-2
Index
Mazda3_8BY6-EA-11F_Edition3 Page522
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (523,1)
B
BrakesAnti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-44
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-113
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-112
Center Pocket .................................. 6-111
Child Restraint
Child restraint precautions ......... 2-26
Child-restraint system installation
position ...................................... 2-31
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-39
Child Safety Locks for Rear Doors ... 3-37
Climate Control System ...................... 6-2 Gas specifications .................... 10-10
Clock ................................................. 6-98
Cruise Control ................................... 5-22
Cup Holder ...................................... 6-109
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-45
Daytime Running Lights ................... 5-69
D
Defroster Mirror ......................................... 5-76
Rear window .............................. 5-75
Dimensions ....................................... 10-6
Door Locks ....................................... 3-32
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-20
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-28 DSC OFF indicator light ............ 5-29
DSC OFF switch ........................ 5-29
TCS/DSC indicator light ............ 5-29
E
Emergency Starting ........................... 7-18Flooded engine ........................... 7-18
Jump-starting .............................. 7-19
Push-starting .............................. 7-24
Emergency Towing ........................... 7-25
Emission Control System .................... 4-4
Engine Coolant ....................................... 8-22
Exhaust gas .................................. 4-5
Hood release .............................. 3-50
Oil .............................................. 8-19
Overheating ................................ 7-16
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Index
11-3
Mazda3_8BY6-EA-11F_Edition3 Page523
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

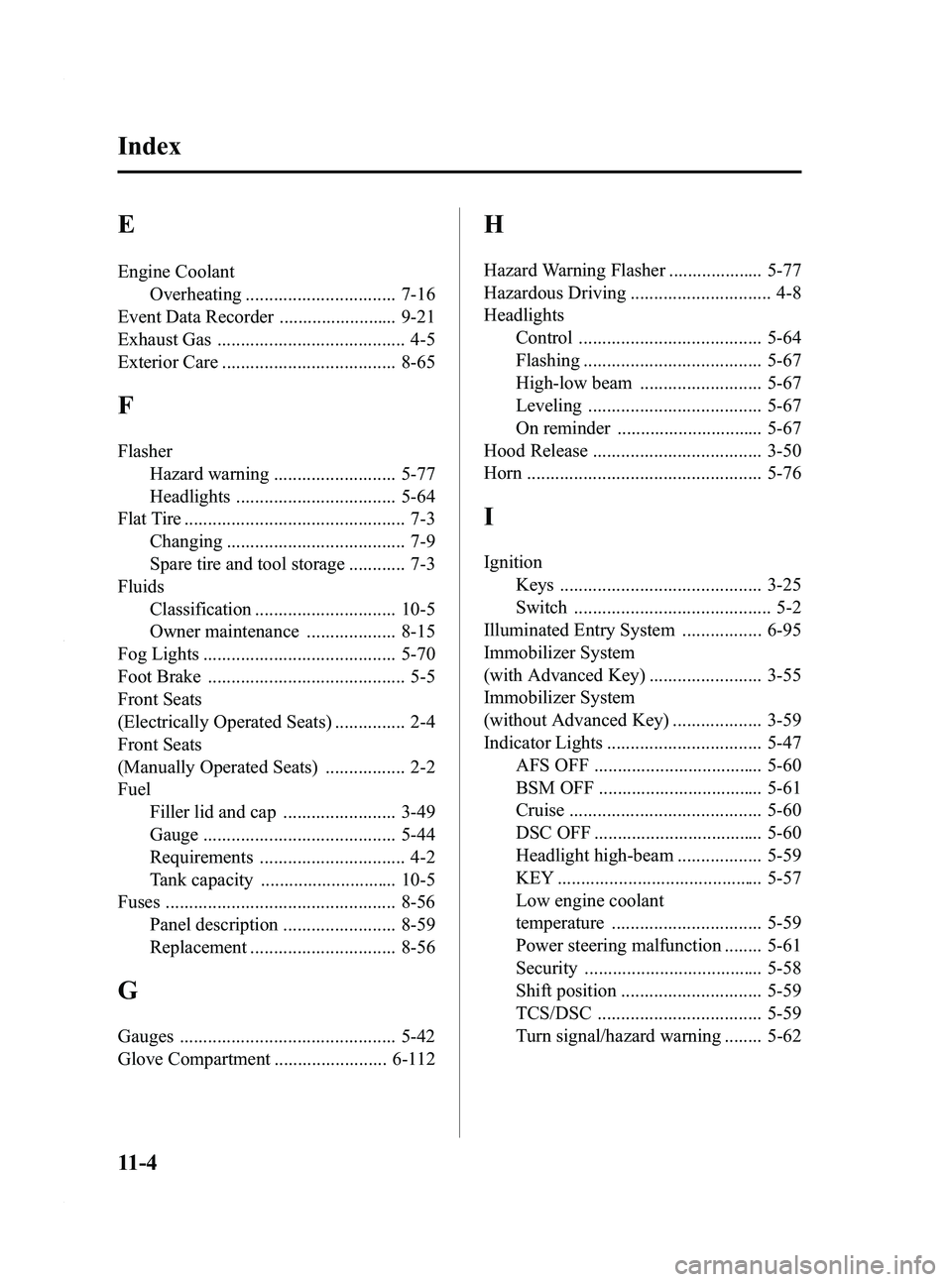

Black plate (524,1)
E
Engine CoolantOverheating ................................ 7-16
Event Data Recorder ......................... 9-21
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-65
F
Flasher Hazard warning .......................... 5-77
Headlights .................................. 5-64
Flat Tire ............................................... 7-3 Changing ...................................... 7-9
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-5
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-70
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-49
Gauge ......................................... 5-44
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-56 Panel description ........................ 8-59
Replacement ............................... 8-56
G
Gauges .............................................. 5-42
Glove Compartment ........................ 6-112
H
Hazard Warning Flasher .................... 5-77
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-64
Flashing ...................................... 5-67
High-low beam .......................... 5-67
Leveling ..................................... 5-67
On reminder ............................... 5-67
Hood Release .................................... 3-50
Horn .................................................. 5-76
I
Ignition Keys ........................................... 3-25
Switch .......................................... 5-2
Illuminated Entry System ................. 6-95
Immobilizer System
(with Advanced Key) ........................ 3-55
Immobilizer System
(without Advanced Key) ................... 3-59
Indicator Lights ................................. 5-47 AFS OFF .................................... 5-60
BSM OFF ................................... 5-61
Cruise ......................................... 5-60
DSC OFF .................................... 5-60
Headlight high-beam .................. 5-59
KEY ............................................ 5-57
Low engine coolant
temperature ................................ 5-59
Power steering malfunction ........ 5-61
Security ...................................... 5-58
Shift position .............................. 5-59
TCS/DSC ................................... 5-59
Turn signal/hazard warning ........ 5-62
11-4
Index
Mazda3_8BY6-EA-11F_Edition3 Page524
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (526,1)
P
Paint Damage .................................... 8-63
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Personalization Features ................. 10-12
Power Door Locks ............................ 3-33
Power Steering .................................. 5-21Fluid ........................................... 8-25
Power steering malfunction indicator
light ............................................ 5-21
Power Windows ................................ 3-46
Push-Starting ..................................... 7-24
R
Rear Coat Hooks ............................. 6-114
Rear Door Child Safety Locks .......... 3-37
Rear Seat ............................................. 2-7
Rear Window Defroster .................... 5-75
Rear Window Washer ....................... 5-75
Rear Window Wiper .......................... 5-75
Rearview Mirror ................................ 3-67
Recreational Towing ......................... 7-28
Registering Your Vehicle in A Foreign
Country ............................................. 9-18
Rocking the Vehicle ............................ 4-9
S
Safety Defects, Reporting ................. 9-43
Seat Belt System 3-point type ................................ 2-18
Automatic locking ...................... 2-17
Emergency locking .................... 2-16
Extender ..................................... 2-23
Pregnant women ........................ 2-16
Pretensioner and load limiting .... 2-20
Seat belt precautions .................. 2-14
Seat belt reminder ....................... 2-25
S
Seats
Front seat
(Electrically operated seats) ......... 2-4
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-7
Seat warmer ................................ 2-12
Security System Immobilizer system
(with advanced key) ................... 3-55
Immobilizer system
(without advanced key) .............. 3-59
Theft-deterrent system ............... 3-63
Service Publications .......................... 9-45
Shopping Bag Hook ........................ 6-113
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-43
Starting the Engine .............................. 5-3
Steering Wheel .................................. 3-66 Horn ........................................... 5-76
Storage Compartments .................... 6-111 Cargo securing loops ................ 6-113
Center console .......................... 6-112
Center pocket ........................... 6-111
Glove compartment .................. 6-112
Overhead console ..................... 6-111
Rear coat hooks ........................ 6-114
Shopping bag hook .................. 6-113
Sunshade ........................................... 3-54
Sunvisors .......................................... 6-95
T
Tachometer ........................................ 5-44
Temporary Spare Tire ....................... 8-41
Theft-Deterrent System ..................... 3-63
11-6
Index
Mazda3_8BY6-EA-11F_Edition3 Page526
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (527,1)
T
TiedownHook .......................................... 7-26
Tire Information ................................ 9-24
Tire Pressure Monitoring System ...... 5-31 System error activation .............. 5-35
Tire pressure monitoring system
warning light .............................. 5-33
Tires and wheels ......................... 5-35
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-38
Replacement ............................... 8-40
Rotation ...................................... 8-39
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ........................... 10-11
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-22
Tool ..................................................... 7-3
Towing Description ................................. 7-25
Emergency towing ..................... 7-25
Recreational towing ................... 7-28
Trailer towing ............................. 4-15
Traction Control System (TCS) ........ 5-27 TCS/DSC indicator light ............ 5-28
Trailer Towing .................................. 4-15
Trip Meter ......................................... 5-43
Trunk Lid .......................................... 3-42 Inside trunk release lever ............ 3-44
Trunk Light ....................................... 3-43
Turn and Lane-Change Signals ......... 5-69
V
Vanity Mirrors ................................... 6-95
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-47 ABS ............................................ 5-50
Air bag system ........................... 5-53
Automatic transaxle ................... 5-54
Brake system .............................. 5-49
Charging system ......................... 5-51
Check engine .............................. 5-52
Check fuel cap ........................... 5-53
Door-ajar .................................... 5-54
Engine oil pressure ..................... 5-51
Front seat belt pretensioner
system ........................................ 5-53
High engine coolant
temperature ................................ 5-52
KEY ............................................ 5-57
Low fuel ..................................... 5-53
Low washer fluid level ............... 5-54
Malfunction ................................ 5-50
Seat belt ...................................... 5-54
Tire pressure monitoring
system ........................................ 5-55
Warranty ............................................ 9-15
Washer Fluid ..................................... 8-27
Weights ............................................. 10-8
Wheel Replacement .......................... 8-41
Windows Power windows .......................... 3-46
Windshield Washer ........................... 5-74
Windshield Wipers ............................ 5-71 Blades replacement .................... 8-29
Winter Driving .................................... 4-9
Index
11-7
Mazda3_8BY6-EA-11F_Edition3 Page527
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F
