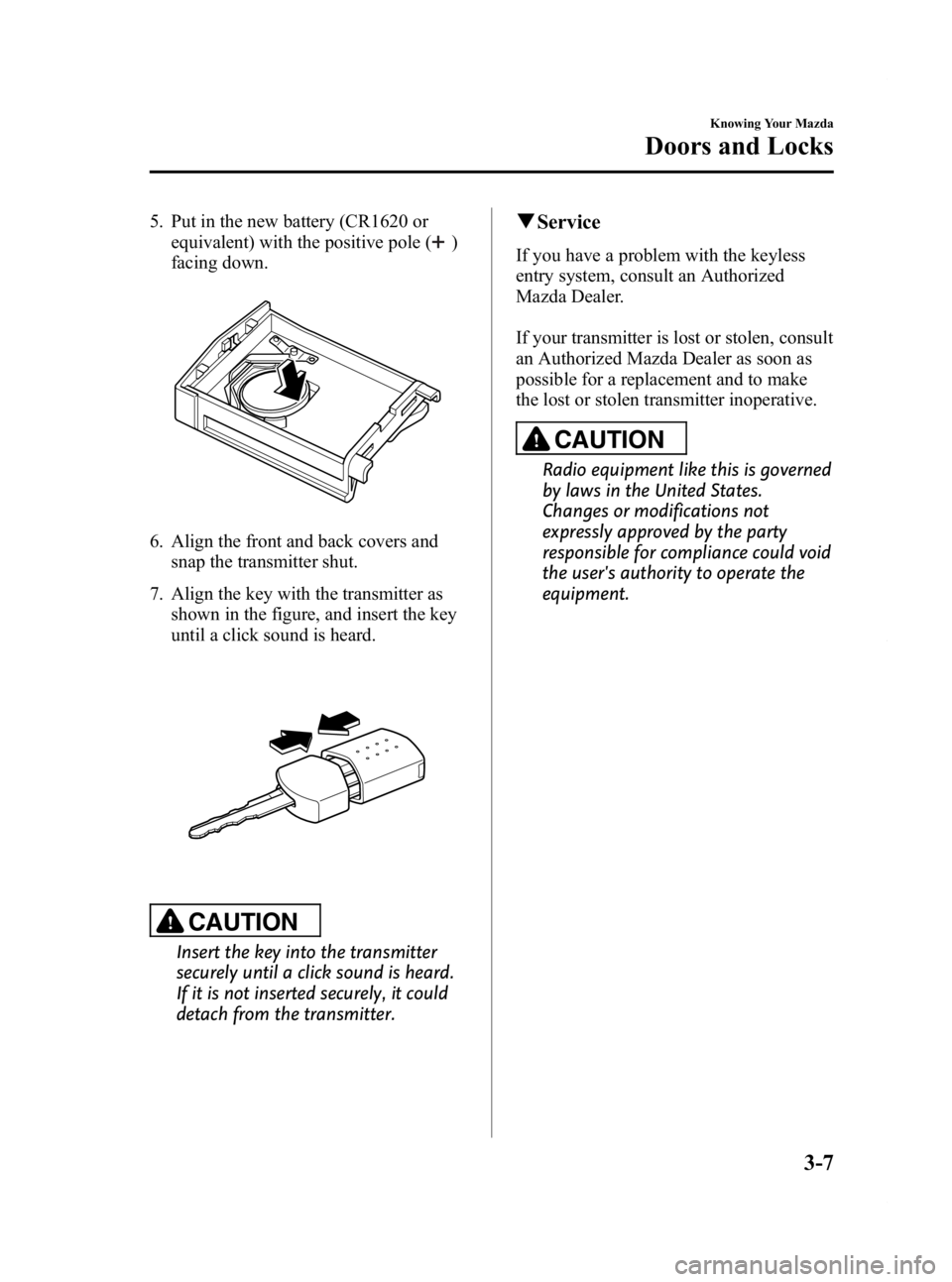

5. Put in the new battery (CR1620 orequivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and snap the transmitter shut.
7. Align the key with the transmitter as shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, consult
an Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Knowing Your Mazda
Doors and Locks
3-7
