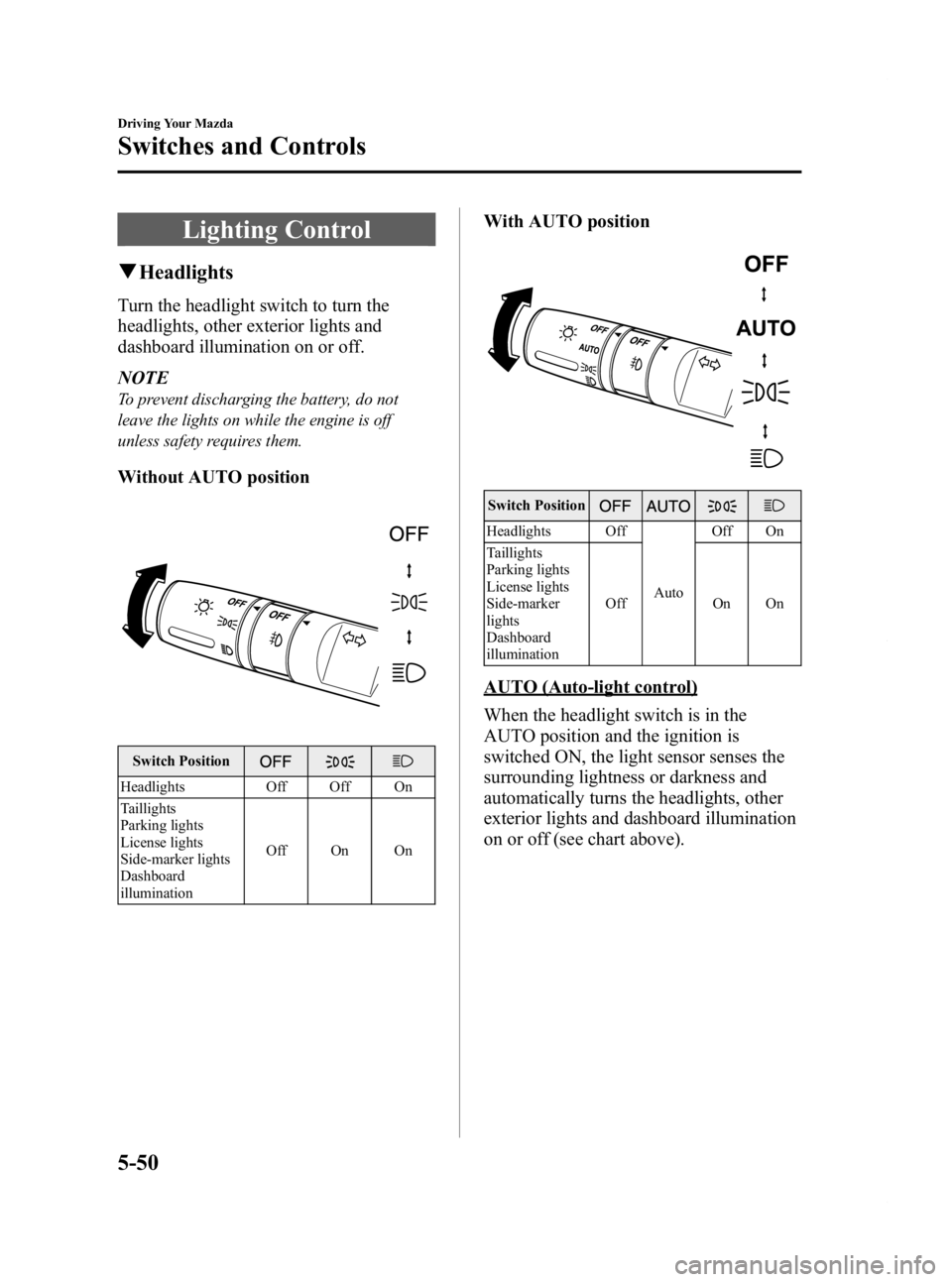

Lighting Control
qHeadlights
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
NOTE
To prevent discharging the battery, do not
leave the lights on while the engine is off
unless safety requires them.
Without AUTO position
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard
illumination Off On On
With AUTO position
Switch Position
Headlights Off
AutoOff On
Taillights
Parking lights
License lights
Side-marker
lights
Dashboard
illumination Off On On
AUTO (Auto-light control)
When the headlight switch is in the
AUTO position and the ignition is
switched ON, the light sensor senses the
surrounding lightness or darkness and
automatically turns the headlights, other
exterior lights and dashboard illumination
on or off (see chart above).
5-50
Driving Your Mazda
Switches and Controls
Mazda2_8CC7-EA-11H_Edition2 Page158
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (159,1)
CAUTION
ØDo not shade the light sensor by
adhering a sticker or a label on
the windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
ØThe light sensor also works as a
rain sensor for the auto-wiper
control. Keep hands and scrapers
clear of the windshield when the
wiper lever is in the AUTO position
and the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically. If you are going to
clean the windshield, be sure the
wipers are turned off completely
― this is particularly important
when clearing ice and snow ―
when it is particularly tempting to
leave the engine running. NOTE
lThe headlights, other exterior lights and
dashboard illumination may not turn off
immediately even if the surrounding area
becomes well-lit because the light sensor
determines that it is nighttime if the
surrounding area is continuously dark for
several minutes such as inside long tunnels,
traffic jams inside tunnels, or in indoor
parking lots.
In this case, the light turns off if the light
switch is turned to the OFF position.
lThe dashboard illumination can be
adjusted by rotating the knob in the
instrument cluster. Also, the day/night mode
can be changed by pressing the knob. To
adjust the brightness of the dashboard
illumination: Refer to Dashboard
Illumination on page 5-32.
lThe sensitivity of the AUTO lights may be
changed by an Authorized Mazda Dealer.
Refer to Personalization Features on page
10-7.
q
Lights-On Reminder
If lights are on and the ignition is
switched to ACC or the ignition is
switched off, or the key is removed from
the ignition switch, a continuous beep
sound will be heard when the driver's
door is opened.
NOTE
When the ignition is switched to ACC or the
ignition is switched off, the “Ignition Key
Reminder” (page 5-3) overrides the lights-on
reminder.
Driving Your Mazda
Switches and Controls
5-51
Mazda2_8CC7-EA-11H_Edition2 Page159
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (161,1)
Turn and Lane-Change
Signals
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turnLeft turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
Driving Your Mazda
Switches and Controls
5-53íSome models.
Mazda2_8CC7-EA-11H_Edition2 Page161
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (172,1)
qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda2_8CC7-EA-11H_Edition2 Page172
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (278,1)
Fuse block (Left side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 TCM ――
2 ILLUMI 7.5 A Dashboard illumination
3 CIGAR 15 A Accessory Socket
4 MIRROR 7.5 A Power control mirror
5 M.DEF 7.5 A Mirror defroster
í
6 S.WARM ――
7 A/C 7.5 A Air conditioner
8 F.WIP 20 A Front window wiper and washer
9 R.WIP 10 A Rear window wiper and washer
10 STARTER ――
11 METER 2 ――
12 ENG 10 A Engine control system
13 METER 10 A Instrument cluster
14 SAS 10 A Air bag
15 AUDIO 3 ――
16 P/W 30 A Power windows
8-44
Maintenance and Care
íSome models.
Owner Maintenance
Mazda2_8CC7-EA-11H_Edition2 Page278
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (285,1)

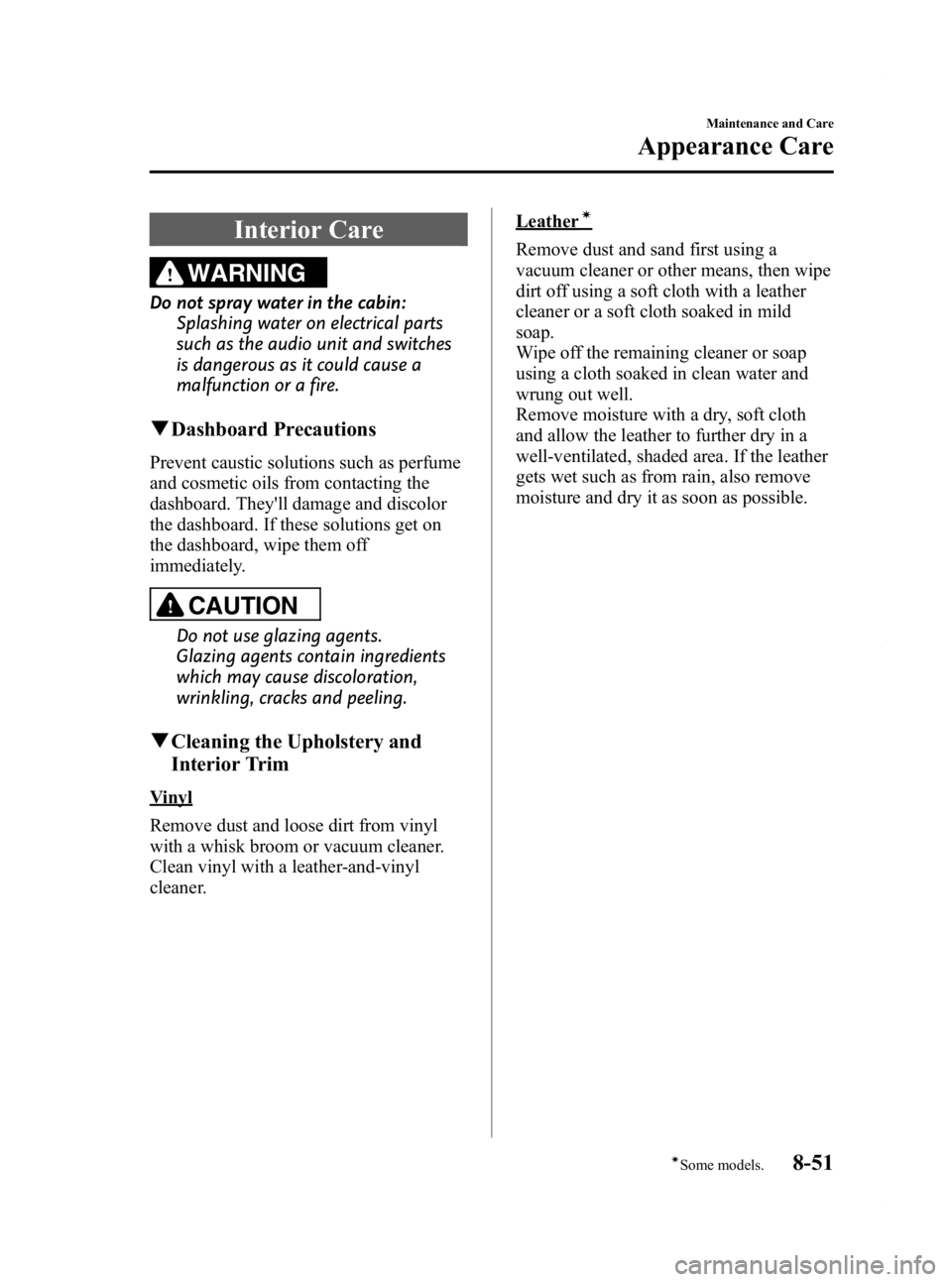

Interior Care
WARNING
Do not spray water in the cabin:Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fire.
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Remove dust and sand first using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild
soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
Maintenance and Care
Appearance Care
8-51íSome models.
Mazda2_8CC7-EA-11H_Edition2 Page285
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (334,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Label
10-2
Identification Numbers
Mazda2_8CC7-EA-11H_Edition2 Page334
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H
