2012 LINCOLN MKX check engine

Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
MOTORCRAFT PART NUMBERS
Component 3.7L V6 engine
Air filter element FA-1884
Battery BXT-65-650
Oil filter FL-500-S
Spark plugs SP-520
1
Cabin air filter FP65
Windshield wiper bladeWW-2601-PF (driver side)
WW-2001-PF (passenger side)
WW-1401-PF (rear)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
Maintenance and Specifications
326
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

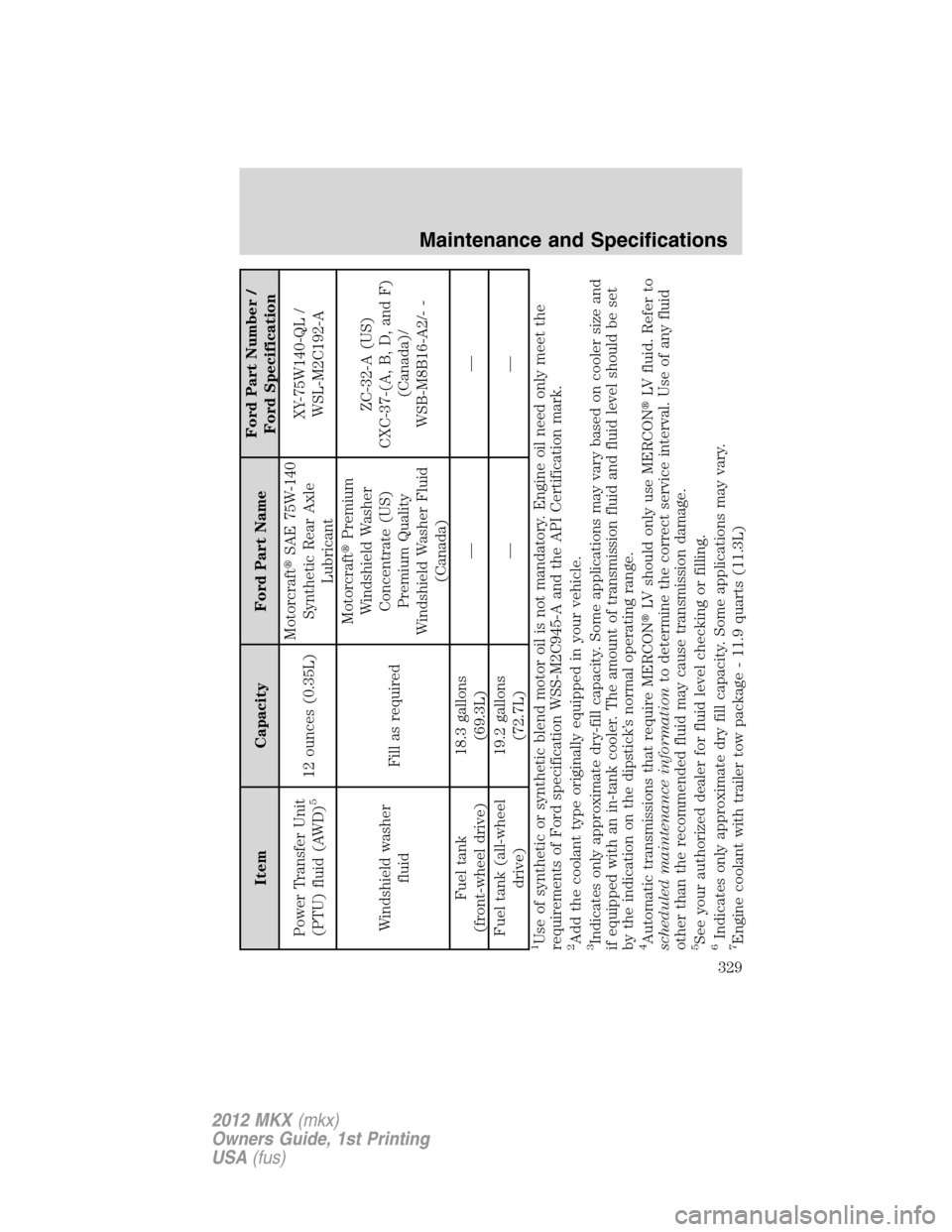

Item Capacity Ford Part NameFord Part Number /
Ford Specification
Power Transfer Unit
(PTU) fluid (AWD)
5
12 ounces (0.35L)MotorcraftSAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada)/
WSB-M8B16-A2/- -
Fuel tank
(front-wheel drive)18.3 gallons
(69.3L)——
Fuel tank (all-wheel
drive)19.2 gallons
(72.7L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5See your authorized dealer for fluid level checking or filling.6Indicates only approximate dry fill capacity. Some applications may vary.7Engine coolant with trailer tow package - 11.9 quarts (11.3L)
Maintenance and Specifications
329
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
Maintenance and Specifications
332
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oilAs indicated by the message center: do not
exceed one year or 10,000 miles (16,000 km)
Engine coolant,
initial change6 years or 100,000 miles (160,000 km)
(whichever comes first)
Engine coolant, after
initial changeEvery 3 years or 50,000 miles (80,000 km)
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance
342
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and
window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
Scheduled Maintenance
343
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................66
Adaptive Cruise Control .............70
AdvanceTrac ..............................219
Airbag supplemental restraint
system ........................146, 154, 157
and child safety seats ............148
description ..............146, 154, 157
disposal ....................................160
driver airbag ............148, 155, 158
indicator light .........154, 156, 160
operation .................148, 155, 158
passenger airbag .....148, 155, 158
side airbag ...............................154
Air cleaner filter .......323–324, 326
Air conditioning ..........................40
All Wheel Drive (AWD),
driving off road .........................247
Antifreeze
(see Engine coolant) ................303
Anti-lock brake system
(see Brakes) ..............................217
Anti-theft system ..............114, 117
arming the system ..........114, 117
disarming a triggered
system .....................................117
Automatic transmission
driving an automatic
overdrive .................................227
fluid, adding ............................321
fluid, checking ........................321
fluid, refill capacities ..............327
fluid, specification ..................327
Selectshift (SST) ....................228
Auxiliary powerpoint ..................63
Axle
lubricant specifications ..........327B
Battery .......................................301
acid, treating emergencies .....301
jumping a disabled battery ....272
maintenance-free ....................301
replacement, specifications ...326
servicing ..................................301
Belt-Minder.............................141
Blind Spot Information
System .......................................241
Blind spot mirror ......................239
Booster seats .............................174
Brakes ........................................217
anti-lock ...................................217
anti-lock brake system (ABS)
warning light ...........................218
fluid, checking and adding ....321
fluid, refill capacities ..............327
fluid, specifications .................327
lubricant specifications ..........327
parking ....................................219
shift interlock ..........................226
Bulbs ............................................52
C
Capacities for refilling fluids ....327
Cargo management system ........91
Cargo net .....................................91
Cell phone use ..............................9
Changing a tire .................265, 268
Child safety seats ......................165
attaching with tether straps ..171
in front seat ............................165
in rear seat ..............................165
LATCH .....................................169
recommendations ...................163
Index
358
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Child safety seats - booster
seats ...........................................174
Cleaning your vehicle
engine compartment ..............287
instrument panel ....................289
interior .....................................290
plastic parts ............................288
safety belts ..............................290
washing ....................................286
waxing .....................................286
wheels ......................................287
wiper blades ............................288
Climate control (see Air
conditioning or Heating) ............40
Collision Warning System .........236
Console ........................................63
overhead ....................................62
Controls
power seat ...............................121
steering column ........................78
Convertible
cleaning ...................................289
Coolant
checking and adding ..............303
refill capacities ................306, 327
specifications ..........................327
Cross Traffic Alert ....................241
Cruise control
(see Speed control) ....................68
Cupholder(s) .............................129
Customer Assistance ................254
Ford Extended Service
Plan ..................................335, 338
Getting assistance outside
the U.S. and Canada ..............282
Getting roadside
assistance ................................254Getting the service you
need .........................................278
Ordering additional owner’s
literature .................................284
Utilizing the
Mediation/Arbitration
Program ...................................282
D
Daytime running lamps
(see Lamps) ................................47
Dipstick
automatic transmission
fluid ..........................................321
engine oil .................................297
Driving under special
conditions ..................230, 248, 251
sand .........................................250
snow and ice ...........................252
through water .................250, 253
E
Electronic message
center ...........................................18
Emergencies, roadside
jump-starting ..........................272
running out of fuel .........272, 313
Emission control system ..........317
Engine ........................................330
cleaning ...................................287
coolant .....................................303
fail-safe cooling .......................307
idle speed control ...................301
lubrication specifications .......327
refill capacities ........................327
service points ..................295–296
Index
359
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Engine block heater .................215
Engine oil ..................................297
checking and adding ..............297
dipstick ....................................297
filter, specifications ........299, 326
recommendations ...................299
refill capacities ........................327
specifications ..........................327
Event data recording ....................7
Exhaust fumes ..........................215
F
Fail safe cooling ........................307
Fleet MyKey programming ........94
Floor mats .............................85–86
Fluid capacities .........................327
Fog lamps ....................................47
Four-Wheel Drive vehicles
driving off road .......................248
Fuel ............................................308
calculating fuel economy .......314
cap ...........................................310
capacity ...................................327
choosing the right fuel ...........312
detergent in fuel .....................313
filler funnel .............................313
filling your vehicle
with fuel ..................308, 310, 315
filter, specifications ........308, 326
fuel pump shut-off ..................256
improving fuel economy ........314
octane rating ...................312, 330
quality ......................................312
running out of fuel .........272, 313
safety information relating
to automotive fuels ................308Fuses ..................................256–257
G
Garage door opener ....................81
Gas cap (see Fuel cap) ............310
Gas mileage
(see Fuel economy) .................314
Gauges .........................................17
H
Hazard flashers .........................255
Headlamps ...................................45
aiming ........................................49
autolamp system .......................46
bulb specifications ....................52
daytime running lights .............47
flash to pass ..............................47
high beam .................................47
replacing bulbs .........................53
turning on and off ....................45
Head restraints .................119, 126
Heating
heating and air conditioning
system .......................................40
Hill start assist ..........................229
Homelink wireless control
system ..........................................81
Hood ..........................................294
I
Ignition ...............................211, 330
Illuminated visor mirror .............62
Infant seats
(see Safety seats) .....................165
Inspection/maintenance (I/M)
testing ........................................319
Index
360
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
