4. Press the ‘FM’ tab repeatedly to
switch between FM1 or FM2 mode.
5. On these screens you may select between ‘Show Options’ and ‘Show
Presets’. Press ‘Show Options’ to access:
•Scan:Press for a brief sampling of all listenable stations. Press again
to disable and remain on the current selection.
•Scan Presets:Press for a brief sampling of all the stations held in the
memory presets.
•
Autoset Presets:The autoset feature allows you to set strong radio
stations without losing your original preset stations. This feature is helpful
on trips when traveling between cities with different radio stations.
To enable, select AUTOSET PRESETS and the six strongest stations in
your current area will be set as presets. To return to your original presets,
press AUTOSET PRESETS again and the feature will disable.
•Rear Zone:Press to access the functionality of the Family
Entertainment System (if equipped).
•RDS:In FM mode, this feature allows you to receive text information
from RDS-equipped FM radio stations. In FM mode, press RDS to
activate/deactivate. RDS must be activated in order to access PTY and
SET PTY.
Note:When RDS is active, the visualizer is not displayed.
•Set PTY:In FM mode, press to select a program type, which, once
selected, will be displayed above the SET PTY button. Once PTY has
been programmed, press SEEK or SCAN to initiate a search up or
down the frequency. The search will stop when the desired program
type has been reached.
Note:The system will scan the frequency band three times for the
chosen program type. If the program type is unavailable in your
reception range, the system will return to the previous station.
6. Press SHOW PRESETS to view the preset stations. To set or change a
preset station, press and hold any of the memory presets buttons (1–6)
or any of the soft key memory preset buttons on the screen while on the
desired station. The new station will replace the previous one recorded.
Entertainment Systems
42
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Satellite radio (SAT) if activated
Once the Satellite Radio feature is activated, your system will have
additional features.
1. Ensure that the system is on.
2. Press the RADIO hard button.
3. Select the ‘SAT’ tab on the touchscreen to enter satellite radio mode
(if activated).
4. Press ‘Show Options’ to select from:
Sat 123:You will be able to access
three different Satellite Radio
modes, SAT1, SAT2 and SAT3.
Scan:Press to hear a brief sampling of satellite radio channels within
the currently selected genre. Press again to stop.
Scan Presets:Press to hear a brief sampling of all preset channels.
Channel Guide:Press to display a list of satellite radio channels sorted
by genre and also to skip or lock out certain channels. Select the desired
genre and choose a channel by pressing the channel name button. You
can then choose to ‘Skip’ or ‘Lock’ a certain channel. A ‘skipped’ channel
will not be accessible using the tune knob, scan or seek functions. (To
access the skipped channel, select ‘Direct Tune’ and enter the channel
number.) A ‘locked’ channel can only be accessed by entering the
‘Channel Guide’ and then entering the PIN.
Note:The PIN can be reset by simultaneously pressing and holding
presets 1 and 5 while on the PIN entry screen. After approximately five
seconds, the system will transition to the Channel Guide screen
indicating that the PIN is reset. Once you have reset the PIN, the system
will then allow you to set a new PIN.
Direct Tune:Press to enter a specific channel using the keypad and go
directly to that channel.
Set Genre:Press to choose from a list of possible satellite radio genres.
Once a genre is chosen and you press SEEK, it will only seek within the
selected genre.
Entertainment Systems
43
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

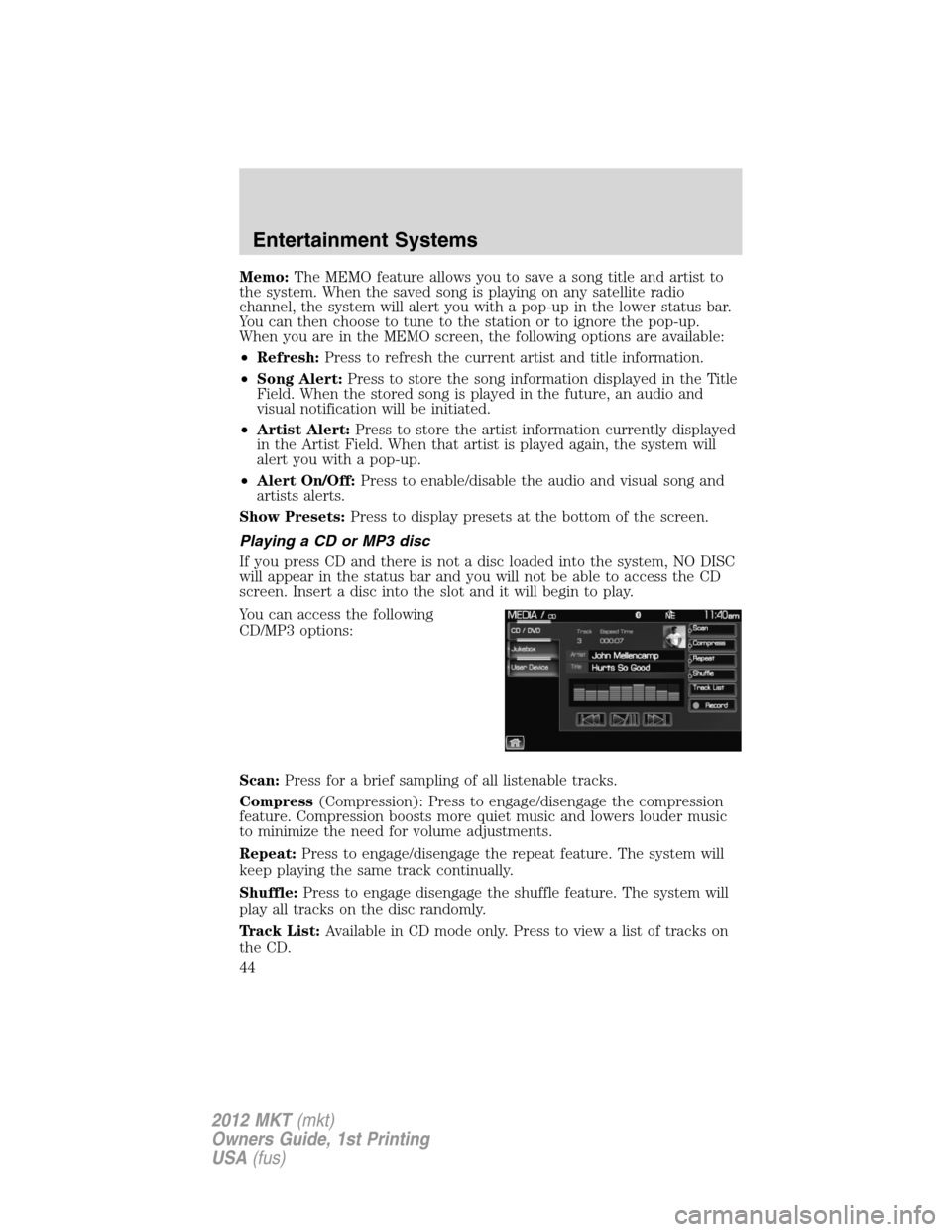

Memo:The MEMO feature allows you to save a song title and artist to
the system. When the saved song is playing on any satellite radio
channel, the system will alert you with a pop-up in the lower status bar.
You can then choose to tune to the station or to ignore the pop-up.
When you are in the MEMO screen, the following options are available:
•Refresh:Press to refresh the current artist and title information.
•Song Alert:Press to store the song information displayed in the Title
Field. When the stored song is played in the future, an audio and
visual notification will be initiated.
•Artist Alert:Press to store the artist information currently displayed
in the Artist Field. When that artist is played again, the system will
alert you with a pop-up.
•Alert On/Off:Press to enable/disable the audio and visual song and
artists alerts.
Show Presets:Press to display presets at the bottom of the screen.
Playing a CD or MP3 disc
If you press CD and there is not a disc loaded into the system, NO DISC
will appear in the status bar and you will not be able to access the CD
screen. Insert a disc into the slot and it will begin to play.
You can access the following
CD/MP3 options:
Scan:Press for a brief sampling of all listenable tracks.
Compress(Compression): Press to engage/disengage the compression
feature. Compression boosts more quiet music and lowers louder music
to minimize the need for volume adjustments.
Repeat:Press to engage/disengage the repeat feature. The system will
keep playing the same track continually.
Shuffle:Press to engage disengage the shuffle feature. The system will
play all tracks on the disc randomly.
Track List:Available in CD mode only. Press to view a list of tracks on
the CD.
Entertainment Systems
44
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

/(Play/Pause) : Press to play or pause the DVD.
: Press to access the next chapter. Press and hold to advance
within the current chapter.
(Stop): Press to stop the current track.
Title:Goes to the main title screen stored on the disc.
Menu:Goes to the main menu of the disc.
Cursor controls:Use these controls to navigate to the desired menu
selections.
Search:Press to select and go to a specific title or chapter using the
keypad.
Settings:Allows you to adjust the certain settings of the DVD player,
such as:
•Video Display Settings:Press to adjust the brightness and contrast.
You can also choose to return to the default settings by pressing
‘Restore Default’.
•Audio Language:Press to select which language you would like the
DVD to display.
•Subtitle Display:Press to turn subtitles on/off.
•Subtitle Language:Press to select in which language you would like
the subtitles to appear.
•Aspect Ratio:Press to select from wide, full, normal and cinema
display.
•Angle Mark Notification:Some DVD discs may have more viewing
angles from which to select. Once you have made your selection, press
ENTER to confirm. This is disc dependent feature.
Note:Some of the above settings are DVD dependent and
availability/operation will vary among DVDs.
Dolbynoise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation. “Dolby” and the double-D symbol
are registered trademarks of DolbyLaboratories Licensing Corporation.
Entertainment Systems
46
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

During DVD play, you can also
touch the screen to access the
‘virtual remote’ which will allow you
to ‘Move controls’ on the screen as
well as use the cursor controls,
‘Enter’ and ‘Return’ to navigate and
make selections within the menus.
Jukebox
Your mobile media system has a Jukebox which allows you to save
desired tracks or CDs to the hard drive for later access. The hard drive
can store up to 10 GB* (164 hours; approximately 2,472 tracks) of
music. The system contains a Gracenotemedia database that allows for
display of song title, album title, and album cover art. After saving music
to the hard drive, you can access and play your music by specific tracks,
artists, albums or genres. You can even choose to create and access your
own playlists.
*Note:1 GB equals one billion bytes (1,000,000,000B).
Recording (saving) music to your jukebox
1. Ensure that the system is on.
2. Insert a CD into the system. The CD tab will appear.
3. Select ‘Record’ on the
touchscreen.
Entertainment Systems
47
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

DSP(Digital Signal Processing):
Depending on your option package,
you may either select from ‘Stereo’
or ‘Surround Sound’.
Or, you may choose to optimize the
sound quality for ‘All Seats’, ‘Driver
Seat’ or ‘Rear Seat’.
Visualizer:Press to turn the audio
visualizer display on or off.
Note:Turning the visualizer setting
to off will not remove the visualizer
on the home screen. You will need
to select a different view in order to
remove the visualizer.
THX Demo (if equipped):Select
this tab to activate the THX audio
demonstration. You may press “X” to
stop the demonstration.
Entertainment Systems
55
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

NOT OBLIGATED TO PROVIDE YOU WITH ANY ENHANCED OR
ADDITIONAL DATA TYPES THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO DISCONTINUE ITS
ONLINE SERVICES AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS THAT WILL BE OBTAINED
BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY
LOST PROFITS OR LOST REVENUES FOR ANY REASON
WHATSOEVER.
Gracenote 2007
System limitations
Cold temperature start:When operating the system below 32°F (0°C),
the display screen requires a 2–3 minutes warm-up time to achieve
maximum brightness.
Cleaning the touchscreen
Clean the touchscreen with a clean soft cloth such as one used for
cleaning glasses. If dirt or finger prints are still visible, apply a small
amount of alcohol to the cloth. Do not pour/spray alcohol onto the
touchscreen. Do not use detergent or any type of solvent to clean the
touchscreen.
Frequently asked questions (FAQs)
How do I turn off the system?
Press and hold the volume control for at least three seconds.
How do I recover after accidental language re-set?
1. Press the MENU hard button.
2. Select the ‘Feedback settings’/Retour/Reaccion tab on the touchscreen.
3. Press the ‘English’/Anglais/Ingles button to reset language to English.
4. Press the ‘Spanish’/Espanol/Espanol button to reset language to
Spanish.
5. Press the ‘French’/Francais/Frances button to reset language to
French.
Or, you can also turn vehicle off to restart system. Then from the
DISCLAIMER screen, select the desired language before pressing ‘Agree’.
Entertainment Systems
58
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

The auxiliary input jack provides a
way to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music
device to the audio system.
If your vehicle is equipped with a navigation system, refer toAuxiliary
input jacksection in theAudio Featureschapter of yourNavigation
Systemsupplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or
SYNC LINE IN appears in the display.
You should hear audio from your portable music player although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
Entertainment Systems
60
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
