2012 Lexus IS350C glove box

361
3
Interior features
3-6. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
Glove box
Auxiliary box (if equipped)
Cup holders
Console box

362
3-6. Using the storage features
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
■Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is in IGNI-
TION ON mode.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. (  P. 5 1 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

453
4-3. Do-it-yourself maintenance
4
Maintenance and care

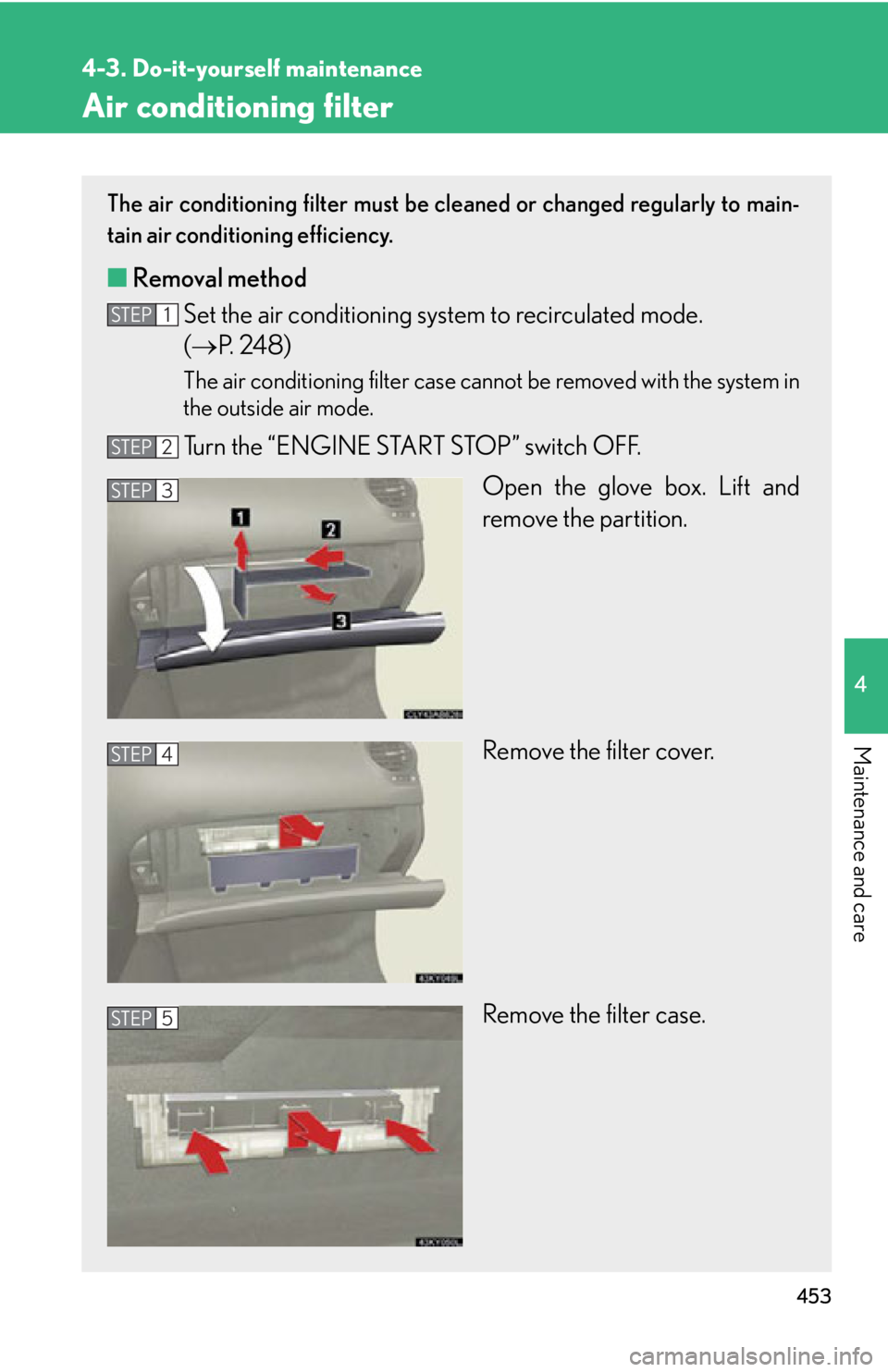

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Set the air conditio ning system to recirculated mode.
( P. 2 4 8 )
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, multipor t fuel injection sys-
tem/sequential multip ort fuel injection
system, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights, smart access system
with push-button start, occupant
detection system
9ACC7. 5 A
Audio, clock, air conditioning system,
navigation system, outside rear view
mirrors, smart access system with
push-button start, glove box light,
console box light

622
Alphabetical index
Floor mat ................................................. 380
FluidBrake.......................................................... 431
Washer ................................................... 436
Fog lights Switch ....................................................... 185
Wattage.................................................. 577
Foot well lights .......................................359
Front fog lights Switch ....................................................... 185
Wattage.................................................. 577
Front passenger occupant classification system ............................119
Front passenger's seat belt
reminder light...................................... 497
Front seats Adjustment............................................... 55
Driving position memory.................... 61
Seat position memory ........................ 65
Front turn signal lights Switch ........................................................ 162
Wattage.................................................. 577 Fuel
Capacity ................................................ 563
Fuel gauge .............................................. 166
Fuel pump shut off system ............ 494
Information ........................................... 578
Refueling ................................................... 95
Fuel door ..................................................... 95
Fuel filler door ........................................... 95
Fuel pump shut off system................. 494
Fuses .......................................................... 458
Garage door opener .......................... 384
Gauges .......................................................166
Glove box ................................................ 362
Glove box light ...................................... 362
Hands-free system for mobile phone* ............................. 328
Hazard lights Switch ...................................................... 486
Head restraints Adjusting .................................................. 67
Headlight aim ......................................... 474
Headlight cleaner...................................194F
G
H
