2012 Lexus IS250 seat memory

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ...................................................... 28
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 33
Wireless remote control .............. 45
Doors.................................................... 48
Trunk..................................................... 52
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 56
Driving position memory ............ 58
Head restraints................................. 62
Seat belts ............................................ 65
Steering wheel (manually adjustable type)............................. 72
Steering wheel (power-adjustable type)............ 73 Anti-glare inside rear view
mirror ................................................ 75
Outside rear view mirrors ........... 77
1-4. Opening and closing the windows and moon roof
Power windows............................... 80
Moon roof .......................................... 83
1-5. Refueling Opening the fuel tank cap........... 87
1-6. Theft deterrent system Engine immobilizer system ......... 90
Alarm.................................................... 92
Theft prevention labels (U.S.A.) ............................................. 95
1-7. Safety information Correct driving posture ............... 96
SRS airbags ....................................... 98
Front passenger occupant classification system .................. 109
Child restraint sy stems ................. 114
Installing child restraints .............. 118
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control
• Rear view monitor system • Audio/video system
• Rear window and outside rear view
mirror defogging
• Intuitive parking assist

Before driving1
27
1-1. Key informationKeys .............................................. 28
1-2. Opening, closing and locking the doors and
trunk
Smart access system with push-button start ................... 33
Wireless remote control ......... 45
Doors ........................................... 48
Trunk ............................................. 52
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ................................... 56
Driving position memory ....... 58
Head restraints .......................... 62
Seat belts ..................................... 65
Steering wheel (manually adjustable type) ...................... 72
Steering wheel (power-adjustable type) ....... 73
Anti-glare inside rear view mirror ......................................... 75
Outside rear view mirrors ...... 77 1-4. Opening and closing the
windows and moon roof
Power windows .......................... 80
Moon roof ................................... 83
1-5. Refueling Opening the fuel tank cap ..... 87
1-6. Theft deterrent system Engine immobilizer system........................................ 90
Alarm............................................ 92
Theft prevention labels (U.S.A.)...................................... 95
1-7. Safety information Correct driving posture ......... 96
SRS airbags ................................ 98
Front passenger occupant classification system............ 109
Child restraint systems .......... 114
Installing child restraints........ 118

58
1-3. Adjustable components (seats, mirrors, steering wheel)
Driving position memory (driver’s seat)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Switch to IGNITION ON mode.
Adjust the driver’s seat, steeri ng wheel, and outside rear view
mirrors to the desired positions.
Push the “SET” button, then
within 3 seconds push button
“1”, “2” or “3” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3

: If equipped

59
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Linking driving position memory with door unlock operationRecord your driving position to butto n “1”, “2” or “3” before performing
the following.
Carry only the key (including the card key
) to which you want to link the
driving position. If 2 or more keys are in the vehi cle, the driving position
cannot be linked properly.

: If equipped

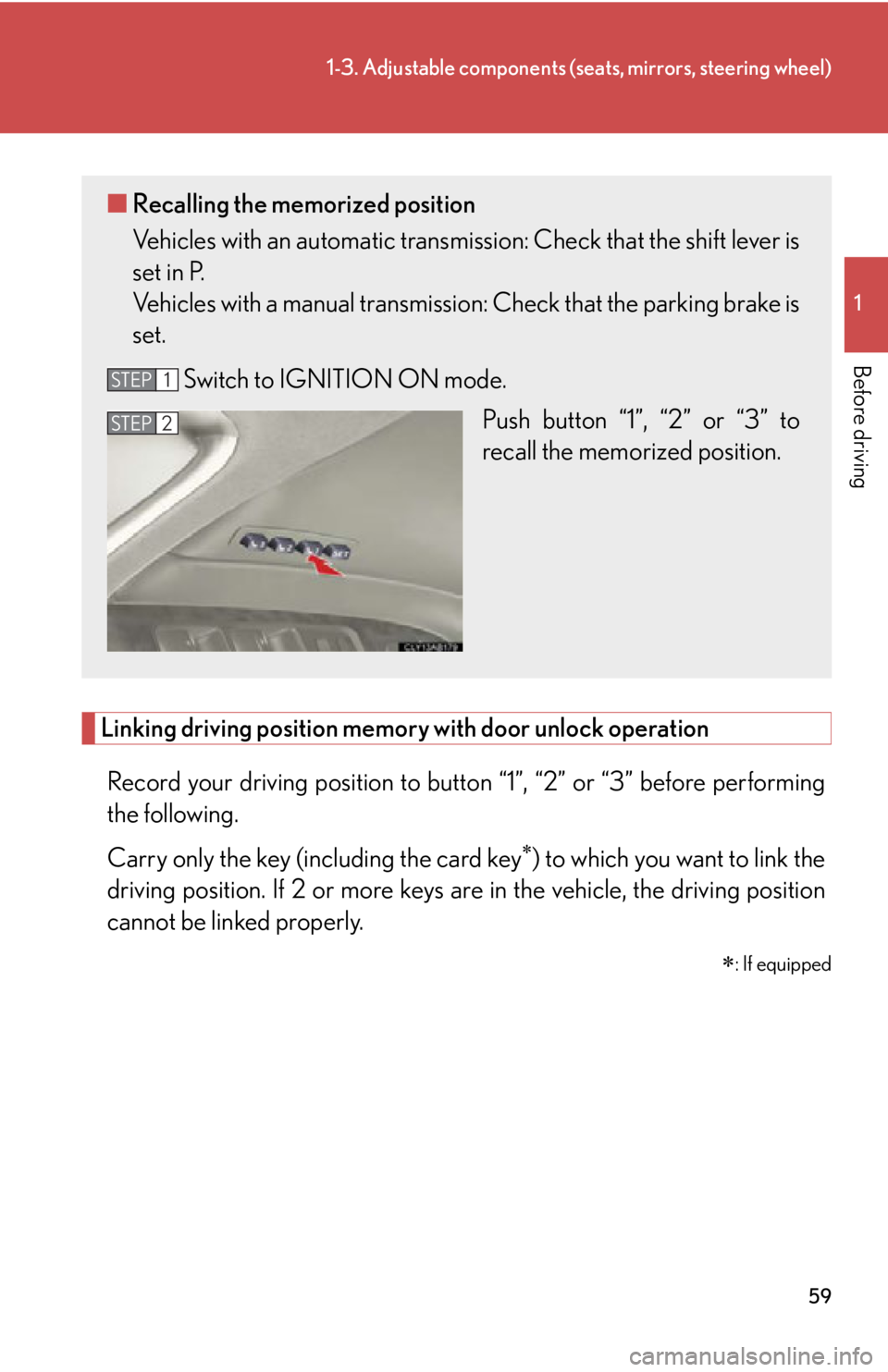

■Recalling the memorized position
Vehicles with an automatic transmis sion: Check that the shift lever is
set in P.
Vehicles with a manual transmissi on: Check that the parking brake is
set.
Switch to IGNITION ON mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2

61
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch OFF and close the driver's door.
Using the wireless remote control: While pushing the “SET” button, press on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memory after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver's door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2

74
1-3. Adjustable components (seats, mirrors, steering wheel)
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be ente red to memory and recalled automatically
by the driving position memory. ( P. 5 8 )
■Customization that can be configured at Lexus dealer
It is possible to deactivate the auto tilt-away function.
(Customizable featuresP. 5 5 3 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

77
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Outside rear view mirrors
■The mirrors can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (P. 2 2 4 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entere d to memory and adjusted with the touch
of a button. ( P. 5 8 )
Mirror angle can be adjusted using the switch.
Select a mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

78
1-3. Adjustable components (seats, mirrors, steering wheel)
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automa tically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirr or is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( P. 7 5 )
■Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer. In the following cases, the rain clearing
effect will be reduced temporarily, but wi ll return after 1 or 2 days' exposure to
direct sunlight.
●After wiping dirt off the mirrors
●When the mirrors fog up
●After waxing your vehicle in an automatic car wash
●After your vehicle has been parked for a long period in underground parking
lots, etc. where there is no direct sunlight
