IS350/250_U
3-6. Using the storage featuresList of storage features............... 329
• Glove box ................................... 330
• Console boxes .......................... 330
• Overhead console ................... 332
• Cup holders................................. 332
•Bottle holders/door pockets ............................... 334
• Auxiliary box .............................. 335
3-7. Other interior features Sun visors......................................... 336
Vanity mirrors................................ 337
Clock ................................................ 338
Satellite switches .......................... 339
Ashtrays ........................................... 342
Cigarette lighter ........................... 343
Power outlet ................................... 344
Seat heaters.................................... 345
Seat heaters and ventilators .................................... 348
Armrest ............................................. 351
Rear sunshade ............................... 352
Trunk storage extension ........... 354
Coat hooks .................................... 355
Floor mat.......................................... 356
Trunk features................................ 357
Garage door opener................. 360
Compass.......................................... 366
Safety Connect ............................. 370 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 378
Cleaning and protecting the vehicle interior .................... 382
4-2. Maintenance Maintenance requirements.............................. 385
General maintenance ................ 387
Emission inspection and maintenance (I/M)
programs ..................................... 390
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 391
Hood ................................................. 394
Positioning a floor jack............... 395
Engine compartment.................. 397
Tires .................................................... 412
Tire inflation pressure................. 424
Wheels ............................................. 428
Air conditioning filter................. 430
Electronic key battery ................ 433
Checking and replacing fuses ................................................ 435
Headlight aim ................................ 449
Light bulbs........................................ 451
4Maintenance and care

IS350/250_U
13
C
Automatic transmission
Manual transmission
Seat heater switches ∗
Seat heater/ventilator switches
∗
P. 345
P. 348
Automatic transmission shift lever P. 146
Shift lock override button P. 503
Cigarette lighter ∗
Ashtray
∗
Auxiliary box
∗
P. 343
P. 342
P. 335
Manual transmission shift lever P. 152
Parking brake lever P. 155
Cigarette lighter ∗
Ashtray
∗
Auxiliary box
∗
P. 343
P. 342
P. 335
Seat heater switches ∗
Seat heater/ventilator switches
∗
P. 345
P. 348
∗: If equipped

Interior features3
215
IS350/250_U
3-5. Using the interior lightsInterior lights list .................... 325
• Interior lights ........................ 327
• Personal lights ...................... 327
3-6. Using the storage features List of storage features ......... 329
• Glove box ............................. 330
• Console boxes .................... 330
• Overhead console ............. 332
• Cup holders ......................... 332
• Bottle holders/door pockets........................ 334
• Auxiliary box........................ 335 3-7. Other interior features
Sun visors ................................. 336
Vanity mirrors ......................... 337
Clock ......................................... 338
Satellite switches ................... 339
Ashtrays.................................... 342
Cigarette lighter .................... 343
Power outlet ............................ 344
Seat heaters ............................ 345
Seat heaters and ventilators ............................. 348
Armrest ..................................... 351
Rear sunshade ........................ 352
Trunk storage extension ...... 354
Coat hooks .............................. 355
Floor mat .................................. 356
Trunk features ......................... 357
Garage door opener ............ 360
Compass .................................. 366
Safety Connect ...................... 370

222
3-1. Using the air conditioning system and defogger
IS350/250_URear outlets
Direct air flow to the left or right,
up or down
Turn the knob fully to the outside
of the vehicle to close the vent
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●Immediately after is pressed, the fan may stop for a while until warm or
cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if recirculated air mode is used for an extended
period.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in accor-
dance with the temperature setting and the inside temperature.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■When outside air temperature approaches 32° F (0°C)
The air conditioning system may not operate even when is pressed.
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.

345
3-7. Other interior features
3
Interior features
IS350/250_U
Seat heaters∗
∗: If equipped
Vehicles with an automatic transmissionHeats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.Front
passenger’s
seat
Driver’s
seat

346
3-7. Other interior features
IS350/250_U
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
Vehicles with a manual transmissionHeats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.Front
passenger’s
seat
Driver’s
seat

347
3-7. Other interior features
3
Interior features
IS350/250_U
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is off.

348
3-7. Other interior features
IS350/250_U

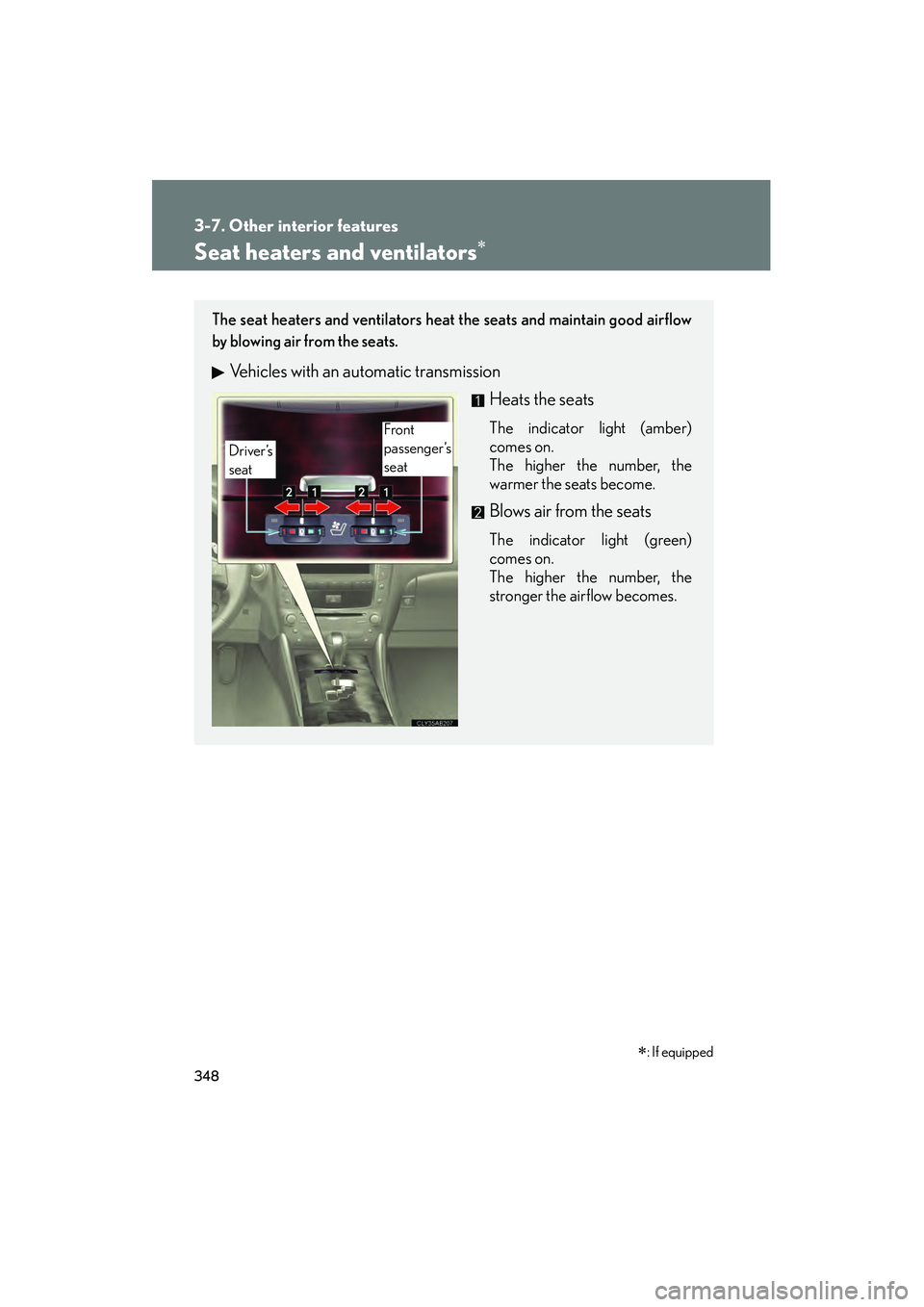

Seat heaters and ventilators∗
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
Vehicles with an automatic transmissionHeats the seats
The indicator light (amber)
comes on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
Driver’s
seat
Front
passenger’s
seat
∗: If equipped
