2012 Lexus IS220d manual transmission

1
2
3
4
5
6
IS250/220d/200d_EE
3
2-1. Driving procedures
Driving the vehicle ............. 142
Engine (ignition) switch ..... 153
Automatic transmission...... 158
Manual transmission .......... 165
Turn signal lever ................ 167
Parking brake ..................... 168
Horn ................................... 170
2-2. Instrument cluster
Gauges and meters ............. 171
Indicators and warning lights ....
177
Multi-information display .. 181
2-3. Operating the lights and
windshield wipers
Headlight switch ................ 186
Fog light switch.................. 190
Windshield wipers and
washer .............................. 191
Headlight cleaner switch .... 1972-4. Using other driving systems
Cruise control ..................... 198
Dynamic radar cruise
control .............................. 202
Lexus parking assist-sensor 217
Driving assist systems ........ 223
PCS (Pre-Crash Safety
system) ............................. 229
2-5. Driving information
Cargo and luggage ............. 237
Winter driving tips ............. 239
Trailer towing..................... 242
3-1. Using the air conditioning
system and defogger
Automatic air
conditioning system ......... 254
Power heater....................... 262
Rear window and outside
rear view mirror
defoggers .......................... 264
Windshield wiper de-icer ... 265
2When driving
3Interior features

IS250/220d/200d_EE
13
Automatic transmission
Manual transmission
Seat heater switches 
Seat heater/ventilator switches

P. 371
P. 374
Automatic transmission shift lever P. 158
Shift lock override button
P. 514Cigarette lighter 
Ashtray

Auxiliary box

P. 369
P. 368
P. 361
Manual transmission shift lever P. 165
Parking brake lever P. 168
Cigarette lighter 
Ashtray

Auxiliary box

P. 369
P. 368
P. 361
Seat heater switches 
Seat heater/ventilator switches

P. 371
P. 374
C
: If

IS250/220d/200d_EE
21
Automatic transmission
Manual transmission
Seat heater switches 
Seat heater/ventilator switches

P. 371
P. 374
Automatic transmission shift lever P. 158
Shift lock override button
P. 514
Cigarette lighter 
Ashtray

Auxiliary box

P. 369
P. 368
P. 361
Manual transmission shift lever P. 165
Parking brake lever P. 168
Cigarette lighter 
Ashtray

Auxiliary box

P. 369
P. 368
P. 361
Seat heater switches 
Seat heater/ventilator switches

P. 371
P. 374
C
: If

67
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS250/220d/200d_EE
Your preferred driving position (the position of the driver's seat, steer-
ing wheel and outside rear view mirrors) can be memorized and
recalled with the touch of a button. It is also possible to set this func-
tion to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
Entering a position to memory
Switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear
view mirrors to the desired positions.
Push the “SET” button, then
within 3 seconds push button
“1”, “2” or “3” until the sig-
nal beeps.
If the selected button has
already been preset, the pre-
viously recorded position
will be overwritten.
Recalling the memorized position
Vehicles with an automatic transmission: Check that the shift
lever is set in P.
Vehicles with a manual transmission: Check that the parking
brake is set.
Switch to IGNITION ON mode.
Push button “1”, “2” or “3”
to recall the memorized posi-
tion.
STEP1
STEP2
STEP3
STEP1
STEP2
: If equipped

2When driving
141
2-1. Driving procedures
Driving the vehicle........... 142
Engine (ignition) switch... 153
Automatic transmission ... 158
Manual transmission ........ 165
Turn signal lever .............. 167
Parking brake ................... 168
Horn ................................. 170
2-2. Instrument cluster
Gauges and meters ........... 171
Indicators and warning
lights .............................. 177
Multi-information display 1812-3. Operating the lights and wind-
shield wipers
Headlight switch .............. 186
Fog light switch ............... 190
Windshield wipers and
washer ............................ 191
Headlight cleaner switch . 197
2-4. Using other driving
systems
Cruise control .................. 198
Dynamic radar cruise
control ............................ 202
Lexus parking
assist-sensor ................... 217
Driving assist systems ..... 223
PCS (Pre-Crash Safety
system)........................... 229
2-5. Driving information
Cargo and luggage ........... 237
Winter driving tips ........... 239
Trailer towing .................. 242

142
IS250/220d/200d_EE

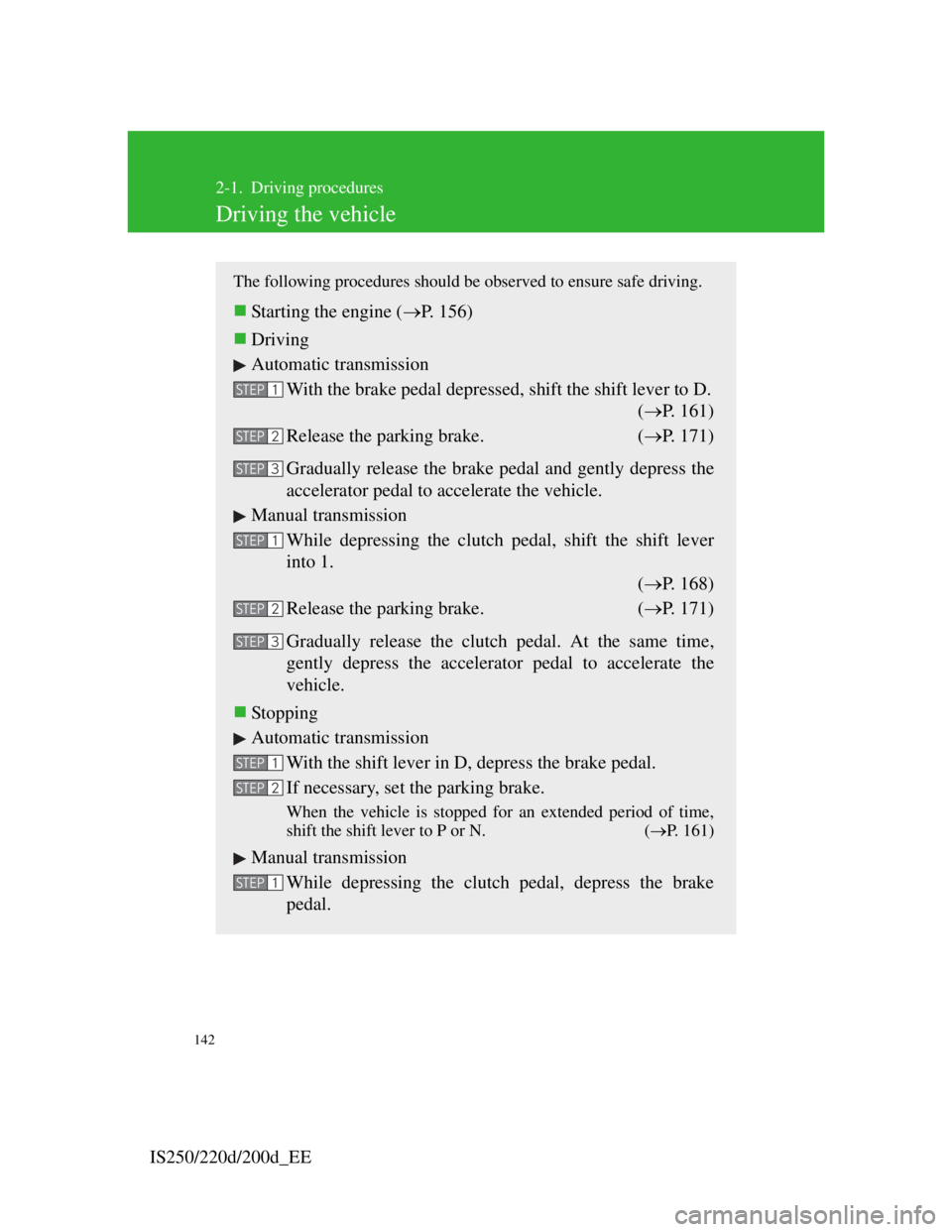

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driving.
Starting the engine (P. 156)
Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D.
(P. 161)
Release the parking brake. (P. 171)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever
into 1.
(P. 168)
Release the parking brake. (P. 171)
Gradually release the clutch pedal. At the same time,
gently depress the accelerator pedal to accelerate the
vehicle.
Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time,
shift the shift lever to P or N. (P. 161)
Manual transmission
While depressing the clutch pedal, depress the brake
pedal.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1

143
2-1. Driving procedures
2
When driving
IS250/220d/200d_EE
Starting on a steep uphill
Automatic transmission
Firmly set the parking brake and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever into 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
Parking the vehicle
Automatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 171)
Shift the shift lever to P. (P. 161)
Press the “ENGINE START STOP” switch to stop the
engine.
Lock the door, making sure that you have the electronic
key on your person.
Manual transmission
While depressing the clutch pedal, depress the brake
pedal.
Set the parking brake. (P. 171)
Shift the shift lever into N. (P. 168)
Press the “ENGINE START STOP” switch to stop the
i
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

147
2-1. Driving procedures
2
When driving
IS250/220d/200d_EE
CAUTION
On vehicles with an automatic transmission, do not shift the shift lever to
P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to D (vehicles with an automatic transmission)
or 1 (vehicles with a manual transmission) while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult
to steer and brake, so you should pull over and stop the vehicle as soon as
it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 5 3 1
Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (P. 161)
When stopped on an inclined surface, use the brake pedal and parking
brake to prevent the vehicle from rolling backward or forward and causing
an accident.
Do not adjust the position of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents
that may result in death or serious injury.
Always check that all passengers' arms, heads or other parts of their bod-
ies are not outside the vehicle, as this may result in death or serious injury.
