2012 Lexus IS F navigation

230
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

280
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable pl ayer) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the Bluetooth® audio systemP. 2 8 3
Operating a Bluetooth® enabled portable playerP. 2 8 8
Setting up a Bluetooth® enabled portable playerP. 2 9 2
Bluetooth® audio system setupP. 2 9 8

299
3
Interior features
3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 3 0 3
Making a phone callP. 3 1 1
Setting a mobile phoneP. 3 1 5
Security and system setupP. 3 2 0
Using the phone bookP. 3 2 4

442
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, VDIM, shift lock system,
multiport fuel injection system/
sequential multiport fuel injection sys-
tem, smart access system with push-
button start
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO. 310 AAudio system
7GAUGE7. 5 AMeters and gauges
8IGN10 A
SRS airbag system, stop lights, steer-
ing lock system, fuel system, front pas-
senger occupant classification system
9ACC7. 5 A
Clock, air conditioning system, audio
system, navigation system, display,
outside rear view mirrors, smart
access system with push-button start,
glove box light, console box light

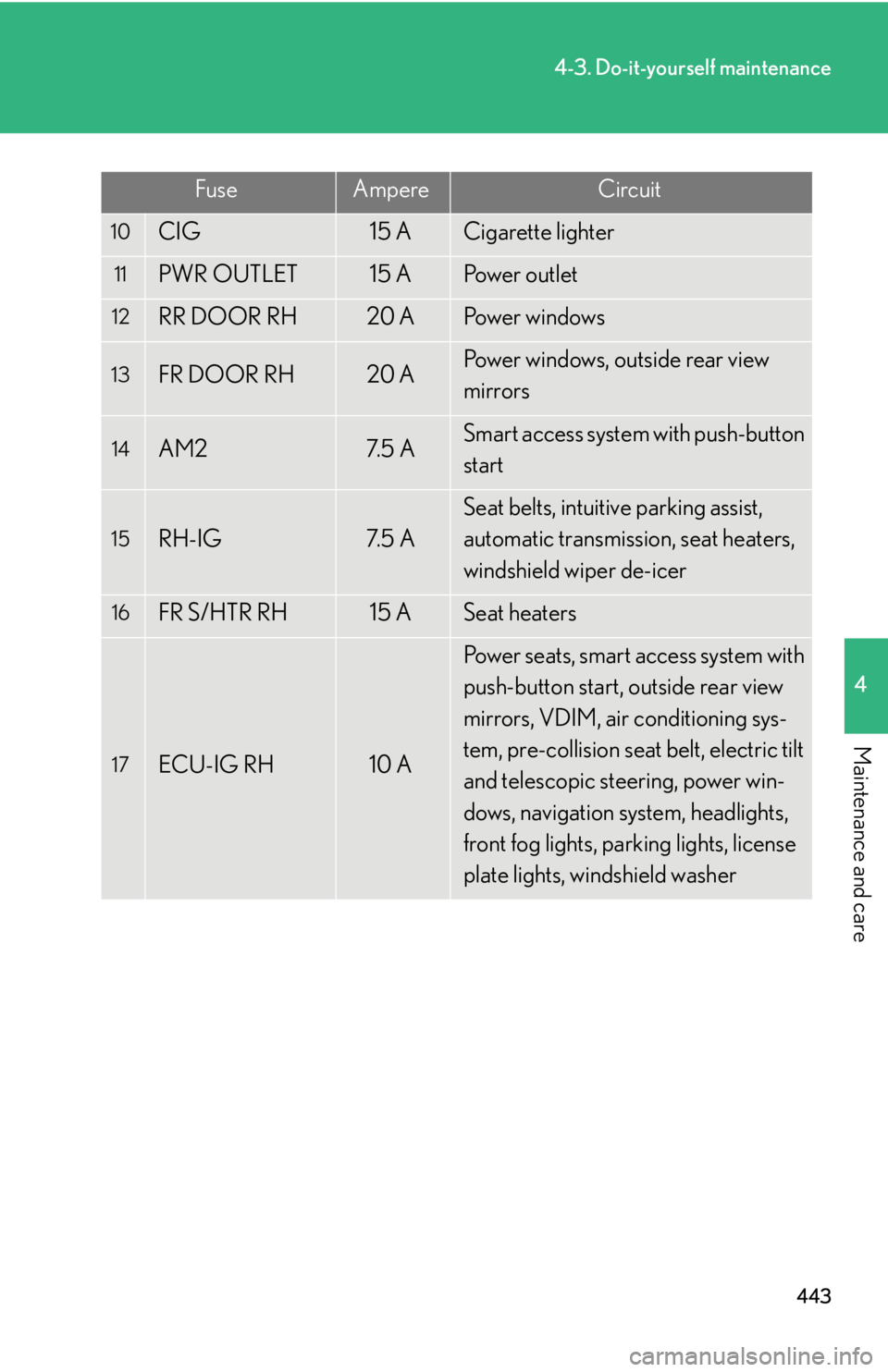

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heaters,
windshield wiper de-icer
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system, headlights,
front fog lights, parking lights, license
plate lights, windshield washer
FuseAmpereCircuit

494
5-2. Steps to take in an emergency
CAUTION
■When using the compact spare tire
●Remember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
●Do not use the compact spare tire as a rear tire. If you have a flat rear tire, replace
a front tire with the compact spare tire firs t and then replace the flat rear tire with
the tire removed from the front.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration an d braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the spare tire is installed
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●VDIM
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Dynamic radar cruise control (if equipped)
●Cruise control (if equipped)
●PCS (if equipped)
●LSD
●Automatic headlight leveling system

Index
559
Abbreviation list .................... 560
Alphabetical index ................. 562
What to do if... ....................... 573
For vehicles with a navigation system, refer to the “Naviga-
tion System Owner’s Manual ” for information regarding
the equipment listed below.
• Navigation system
• Audio/video system
• Air conditioning
• Rear window and outside rear view mirror defogging
• Climate control
• Rear view monitor system
• Intuitive parking assist

563
Alphabetical index
BrakeFluid .......................................................... 404
Parking brake ........................................148
Brake assist ............................................... 197
Care Exterior ................................................... 378
Interior.......................................................381
Seat belts ............................................... 382
Cargo capacity ....................................... 210
Cargo hooks .......................................... 356
CD changer* ........................................... 241
CD player* ............................................... 241
Chains ......................................................... 214
Child restraint system Booster seats, definition.......................111
Booster seats, installation .................. 117
Convertible seats, definition ..............111
Convertible seats, installation ......... 117
Front passenger occupant classification system .......................106
Infant seats, definition ............................111
Infant seats, installation........................ 117
Installing CRS with lower anchorages ...........................................116
Installing CRS with seat belts .......... 117
Installing CRS with top straps ......... 121
Child safety Airbag precautions ............................. 101
Battery precautions ............. 408, 504
Child restraint system ...........................111
Child-protectors.................................... 47
How your child should wear the seat belt...........................................67 Installing child restraints..................... 115
Moon roof precautions...................... 82
Power window lock switch .............. 76
Power window precautions ............ 78
Removed electronic key battery
precautions....................................... 430
Seat belt comfort guide .....................65
Seat belt extender precautions......69
Seat belt precautions ..........................68
Seat heater precautions................. 350
Trunk precautions................................. 52
Child-protectors ...................................... 47
Cigarette lighter.................................... 347
Cleaning Exterior....................................................378
Interior ...................................................... 381
Seat belts ................................................382
Clock ......................................................... 342
Coat hooks ..............................................354
Compass ..................................................365
Condenser ..............................................404
Console box ...........................................335
Cooling system Engine overheating.......................... 505
Cornering assist sensors ......................191
Cruise control Cruise control........................................173
Dynamic radar cruise control........ 177
Cup holders ............................................ 337
Curtain shield airbags............................ 94
Customizable features ...................... 538
C
*: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.
