2012 Lexus HS250h light

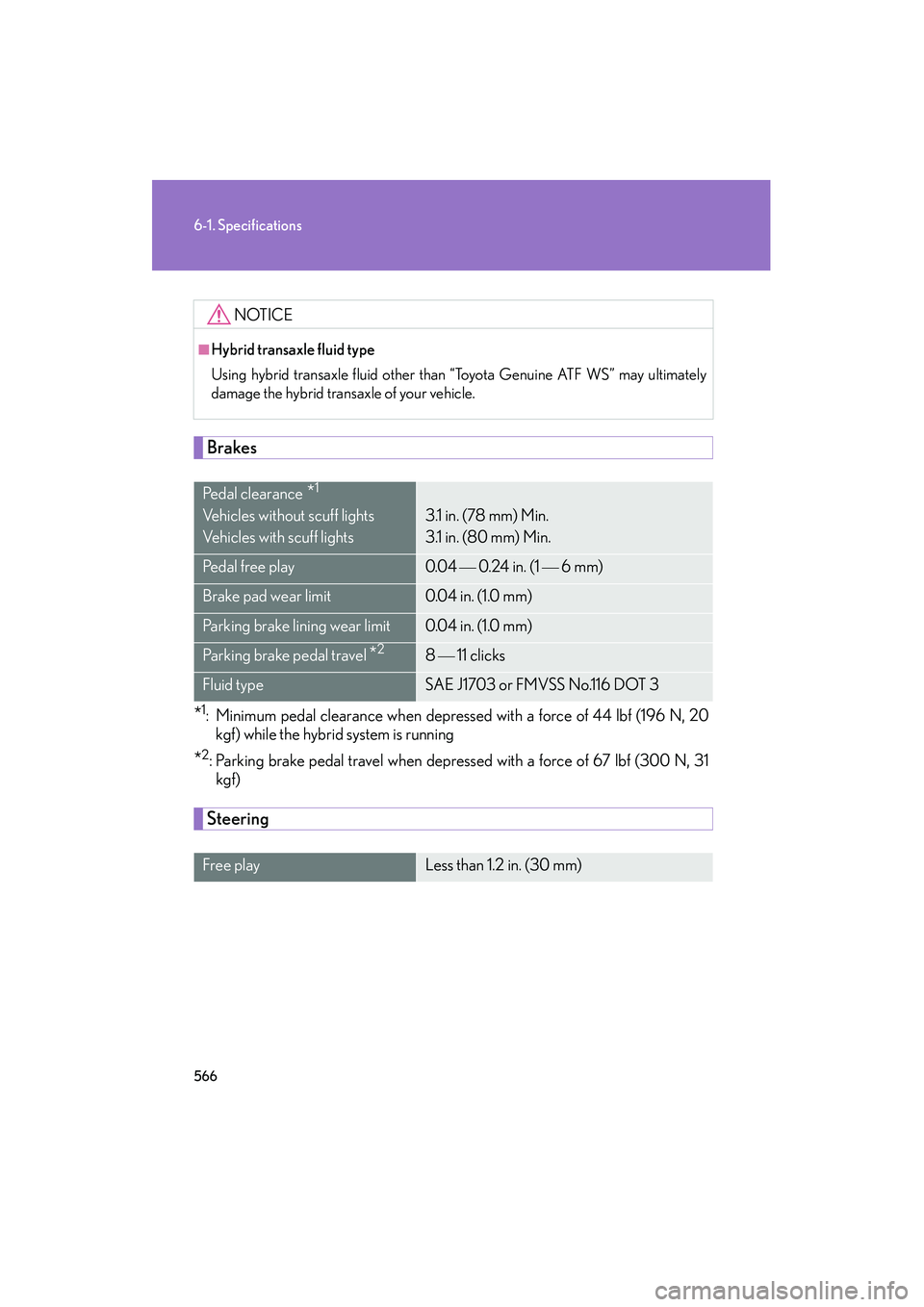

566
6-1. Specifications
HS250h_U_75050U
Brakes
*1: Minimum pedal clearance when depressed with a force of 44 lbf (196 N, 20
kgf) while the hybrid system is running
*2: Parking brake pedal travel when depressed with a force of 67 lbf (300 N, 31kgf)
Steering
NOTICE
■Hybrid transaxle fluid type
Using hybrid transaxle fluid other than “Toyota Genuine ATF WS” may ultimately
damage the hybrid transaxle of your vehicle.
Pe d a l c l e a r a n c e *1
Vehicles without scuff lights
Vehicles with scuff lights3.1 in. (78 mm) Min.
3.1 in. (80 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *28  11 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)

568
6-1. Specifications
HS250h_U_75050U
Light bulbs
A: HB3 halogen bulbs
B: Double end bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H11 halogen bulbs
F: Single end bulbs
Light BulbsBulb No.WTy p e
Exterior
LED headlights
High beam
Halogen headlights
High beam
Low beam
9005
9005
H1160
6055A
A E
Front side marker lightsW5W5C
Front turn signal lights3457NA28 /8F
Parking lightsW5W5C
Front fog lightsH1155E
Rear turn signal lightsWY21W21D
Back-up lightsW16W16C
License plate lightsW5W5C
Outer foot lights5C
Interior
Vanity lights8C
Front interior lights/Personal lights8C
Rear interior light8B
Tr u n k l i g h t3.8C
Door courtesy lights5C

570
6-1. Specifications
HS250h_U_75050U
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no lower
than 87.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoli ne that contains MMT. If fuel contain-
ing MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument panel may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
●Use only gasoline containing a maximum
of 10% ethanol.
DO NOT use any flex-fuel or gasoline that
could contain more than 10% ethanol,
including from any pump labeled E15, E30,
E50, E85 (which are only some examples
of fuel containing more than 10% ethanol).DO NOT use gasoline
containing more than
10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

581
6-1. Specifications
6
Vehicle specifications
HS250h_U_75050U
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of an asymmetrical
tire that has a particular side that must always
face outward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated parallel cords
Ti r e r e l a t e d t e r mMeaning

588
6-2. Customization
HS250h_U_75050U
Wi re le ss
remote con-
trol
(
→P. 5 8 )
Wireless remote
controlOnOff———O
Unlocking oper-
ation
Driver’s
door
unlocked
in one step,
all doors
unlocked
in two
steps
All doors
unlocked
in one step
O—OO
Panic functionOnOff———O
Trunk unlocking
operationPress and
hold
(short)
One short press———O
Press twice———O
Press and
hold
(long)
———O
Off———O
Automatic
light control
system
(
→P. 1 9 1 )
Ti m e e l a p s e d
before the head-
lights turn off30 sec- onds
Off
O—OO
60 sec-
onds
90 sec- onds
Light sensor
sensitivityStandard-2 to 2O—OO
ItemFunctionDefault settingCustom-
ized
setting

589
6-2. Customization
6
Vehicle specifications
HS250h_U_75050U
Lights
(→ P. 1 9 1 )Daytime run-
ning light systemOnOff*O—OO
Illumination
(
→P. 3 74 )
Ti m e e l a p s e d
before the inte-
rior lights turn off
15 seconds
Off
O—OO
7. 5 s e c -
onds
30 sec-onds
Operation after
the “POWER”
switch is turned
off
OnOff———O
Operation when
the doors are
unlocked
OnOff———O
Activate on
approach of per-
son carrying
smart key
OnOff———O
Ti m e e l a p s e d
before the exte-
rior lights turn off
15 seconds
Off
O—OO
7. 5 s e c -
onds
30 sec-onds
Footwell lightingOnOff———O
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustom-
ized
setting

590
6-2. Customization
HS250h_U_75050U
Illumination
(
→P. 3 74 )
Outer foot lights
activate on
approach of per-
son carrying
smart key
OnOff———O
Outer foot lights
operation when
the doors are
unlocked
OnOff———O
Remote touch
lightOnOff———O
Meter
(→ P. 1 6 9 )
Sensitivity of the
ambient light
sensor used for
dimming the
meter lights etc.
Standard-2 to 2O——O
Sensitivity of the
ambient light
sensor used for
brightening the
meter lights etc.
Standard-2 to 2O——O
Automatic
air condi-
tioning sys-
tem
(→ P. 266)
Switching
between outside
air and recircu-
lated air mode
linked to
“A U T O ” s w i t c h
operation
AutoManualO——O
ItemFunctionDefault
settingCustom-
ized
setting

591
6-2. Customization
6
Vehicle specifications
HS250h_U_75050U
Automatic
air condi-
tioning sys-
tem
(→ P. 2 6 6 )A/C Auto switch
operationAutoManualO——O
Tu r n i n g o n t h e
windshield
defogger acti-
vates the A/C
OnOff———O
Eco drive
mode
(
→P. 1 6 2 )
Heating/cooling
operation mini-
mized in Eco
drive mode
OnOff———O
Front seats
(
→P. 6 8 )
Driver’s seat
movement when
exiting the vehi-
cle (on some
models)
Pa r t i a l
Off
O—OO
Full
Eco Driving
Indicator
Light
(
→P. 1 7 7 )
Activating Eco
Driving Indica-
tor Light
OnOff—OOO
Po w e r w i n -
dows
(
→P. 9 0 )
Mechanical key
linked operationOffOn———O
Wireless remote
control linked
operation
Off
On
(Open only)
———O
Buzzer sounds if
operated using
wireless remote
OnOff———O
ItemFunctionDefault settingCustom-
ized
setting
