231
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)

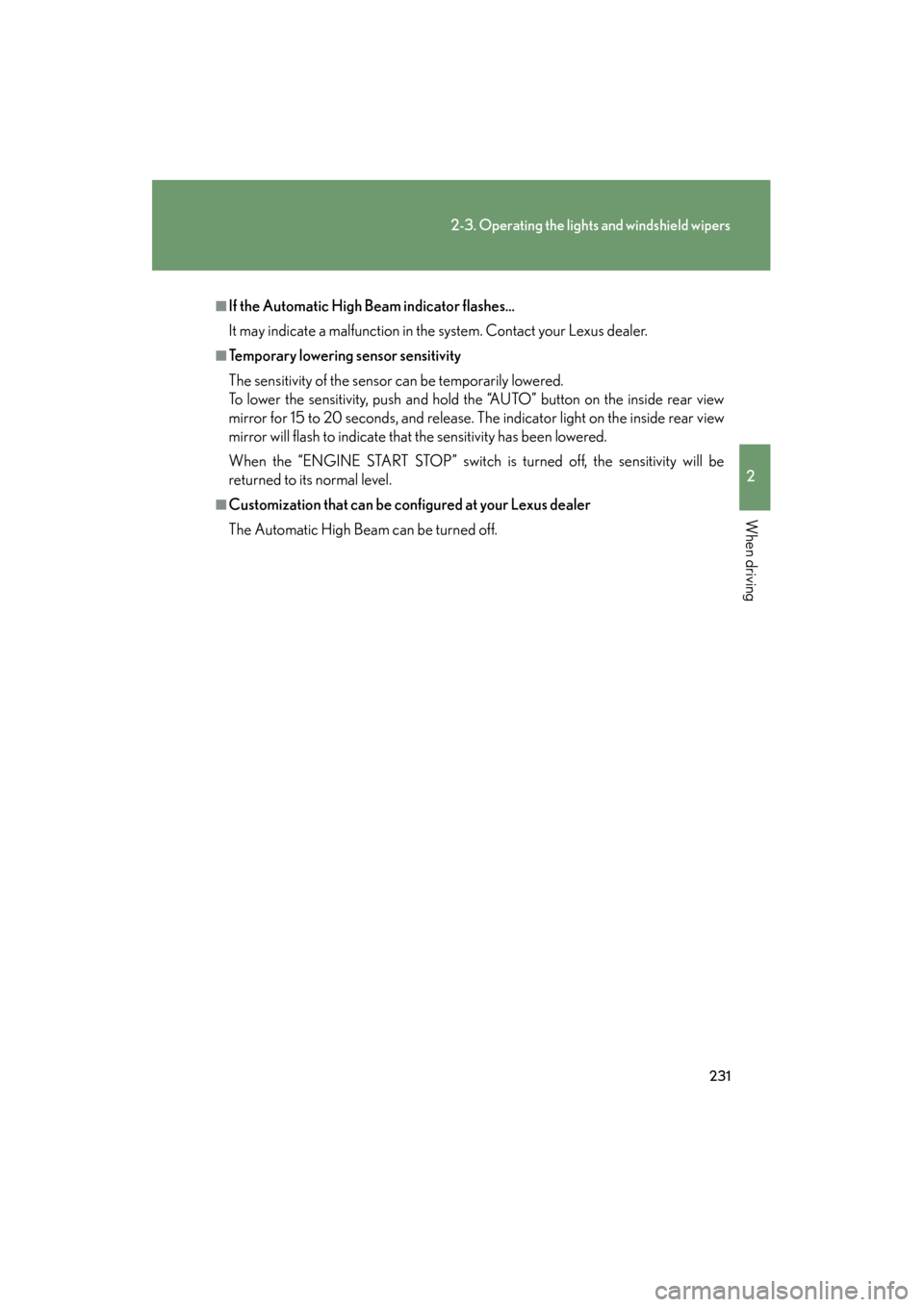

■If the Automatic High Beam indicator flashes...
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold the “AUTO” button on the inside rear view
mirror for 15 to 20 seconds, and release. The indicator light on the inside rear view
mirror will flash to indicate that the sensitivity has been lowered.
When the “ENGINE START STOP” switch is turned off, the sensitivity will be
returned to its normal level.
■Customization that can be configured at your Lexus dealer
The Automatic High Beam can be turned off.

239
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)
■The windshield wipers and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Rain drop sensor
●If the wiper switch is turned to the “AUTO” position while the “ENGINE START
STOP” switch is in IGNITION ON mode, the wipers will operate once to show
that “AUTO” mode is activated.
●If the temperature of the rain drop sensor is 194 °F (90 °C) or higher, or 5 °F
(-15 °C) or lower, the automatic operation may not occur. In this case, operate
the wipers in any mode other than “AUTO”.
Washer/wiper dual operation
The wipers operate automati-
cally. (After operating several
times, the wipers operate one
more time after a short delay to
prevent dripping.)
Vehicles with the headlight
cleaners: If the headlights are
on, the headlight cleaners will
operate once.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

244
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
■The rear window wiper and washer can be operated when
●The “ENGINE START STOP” switch is in IGNITION ON mode.
●The glass hatch is closed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.

245
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60J00U)
Headlight cleaner switch∗
∗: If equipped
■The headlight cleaners can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the headlight
switch is turned on.
■Windshield washer linked operation
When the windshield washer is operated with the “ENGINE START STOP” switch
in IGNITION ON mode and the headlights on, the headlight cleaners will operate
once. ( →P. 2 3 6 )
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

253
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■Changing the vehicle- to-vehicle distance
Pressing the button changes the
vehicle-to-vehicle distance as
follows:
Long
Medium
Short
The vehicle-to-vehicle distance
is set automatically to long
mode when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
If a vehicle is running ahead of
you, the preceding vehicle mark
will be also displayed.
■Vehicle-to-vehicle distance settings
Select a distance from the table below. Note that the distances
shown correspond to a vehicle sp eed of 50 mph (80 km/h). Vehi-
cle-to-vehicle distance increases/decreases in accordance with
vehicle speed.
Preceding vehicle mark
Distance optionsVehicle-to-vehicle distance
LongApproximately 160 ft. (50 m)
MediumApproximately 130 ft. (40 m)
ShortApproximately 100 ft. (30 m)

258
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
Selecting conventional constant speed control mode
Constant speed control mode differs from vehicle-to-vehicle distance
control mode. When constant speed co ntrol mode is selected, your vehi-
cle will maintain a set speed regardless of whether or not there are other
vehicles in the lane ahead.
Press the “ON-OFF” button to activate the cruise control.
Cruise control indicator will come on.
Press the button again to deactivate the cruise control.
Switch to constant speed control mode.
(Push the lever forward and hold for approximately one second.)
Cruise control indicator will come on.
When in constant speed control mode, to return to vehicle-to-vehicle dis-
tance control mode, push the lever forward again and hold for approximately
one second.
After the desired speed has been set, it is not possible to return to vehicle-to-
vehicle distance control mode.
If the “ENGINE START STOP” switch is turned to IGNITION ON mode
again, the vehicle is automatically returns to vehicle-to-vehicle distance con-
trol mode.
Adjusting the speed setting: →P. 2 5 2
Canceling and resuming the speed setting: →P. 2 5 3

282
2-4. Using other driving systems
GX460_U.S.A. (OM60J00U)
■The rear view monitor can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Displayed areaThe area covered by the camera is limited.
Objects which that are close to either corner
of the bumper or under the bumper cannot
be seen on the screen.
The area displayed on the screen may vary
depending on vehicle orientation or road
conditions.
Corners of bumper

289
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■The wide view front & side monitor can be operated when
●The “ENGINE START STOP” switch is in IGNITION ON mode.
●The vehicle speed is less than approximately 6 mph (10km/h).
■Automatic system cancelation
In the following situations, the system is canceled automatically.
●When the vehicle speed exceeds approximately 7 mph (12 km/h).
●When the shift lever is in P or R.
■When the outside rear view mirrors have been folded
The side monitor screen can be displayed even if the outside rear view mirrors have
been folded. In this case, there will be a slight difference between the image dis-
played when the outside rear view mirrors are extended and when the outside rear
view mirrors have been folded.
If the side monitor is displayed while the outside rear view mirrors are folded, you
cannot check the area near the front edge of the vehicle as the base of the outside
rear view mirrors will be in the way.
