2012 Lexus GS450h navigation

13
1. NAVIGATION OPERATION
1
QUICK GUIDE
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
No.NameFunctionPage
Audio side
screen
Select this side of the screen to display the au-
dio screen. The audio side screen can be
switched to the fuel consumption screen. (For
details about switching the screen, see
“HOME SCREEN SETTINGS*” on page
64.)
64
Navigation side
screen
Select this side of the screen to display the
current position when a destination has al-
ready been set. When a destination has not
been set, the navigation menu screen is dis-
played.
24, 26
Climate screenThe climate screen can be set to be displayed
or hidden.64

14
1. NAVIGATION OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
3. REGISTERING HOME
Press the “MENU” button on the
Remote Touch.
Select “Navi” and press the Re-
mote Touch knob.
Select “Destination” and press the
Remote Touch knob.Select “Home” and press the Re-
mote Touch knob.
If a home address has not been regis-
tered, it can be registered it by select-
ing “Home”.
Select “Yes” and press the Re-
mote Touch knob.
There are 10 (11 when “UK” is se-
lected) different methods to
search your home. (See “DESTI-
NATION SEARCH” on page 78.)
1
2
3
4
5
6

15
1. NAVIGATION OPERATION
1
QUICK GUIDE
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
Select “Enter” and press the Re-
mote Touch knob.
Registration of home is complete.
Home can also be registered by select-
ing “Memory point” on the navigation
menu screen. (See “REGISTERING
HOME” on page 124.)
The name, location, telephone number
and icon can be changed. (See “EDIT-
ING HOME” on page 125.)
The registered points can be used on
the “Destination” screen. (See “DES-
TINATION SEARCH BY HOME”
on page 81.)
7

16
1. NAVIGATION OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42

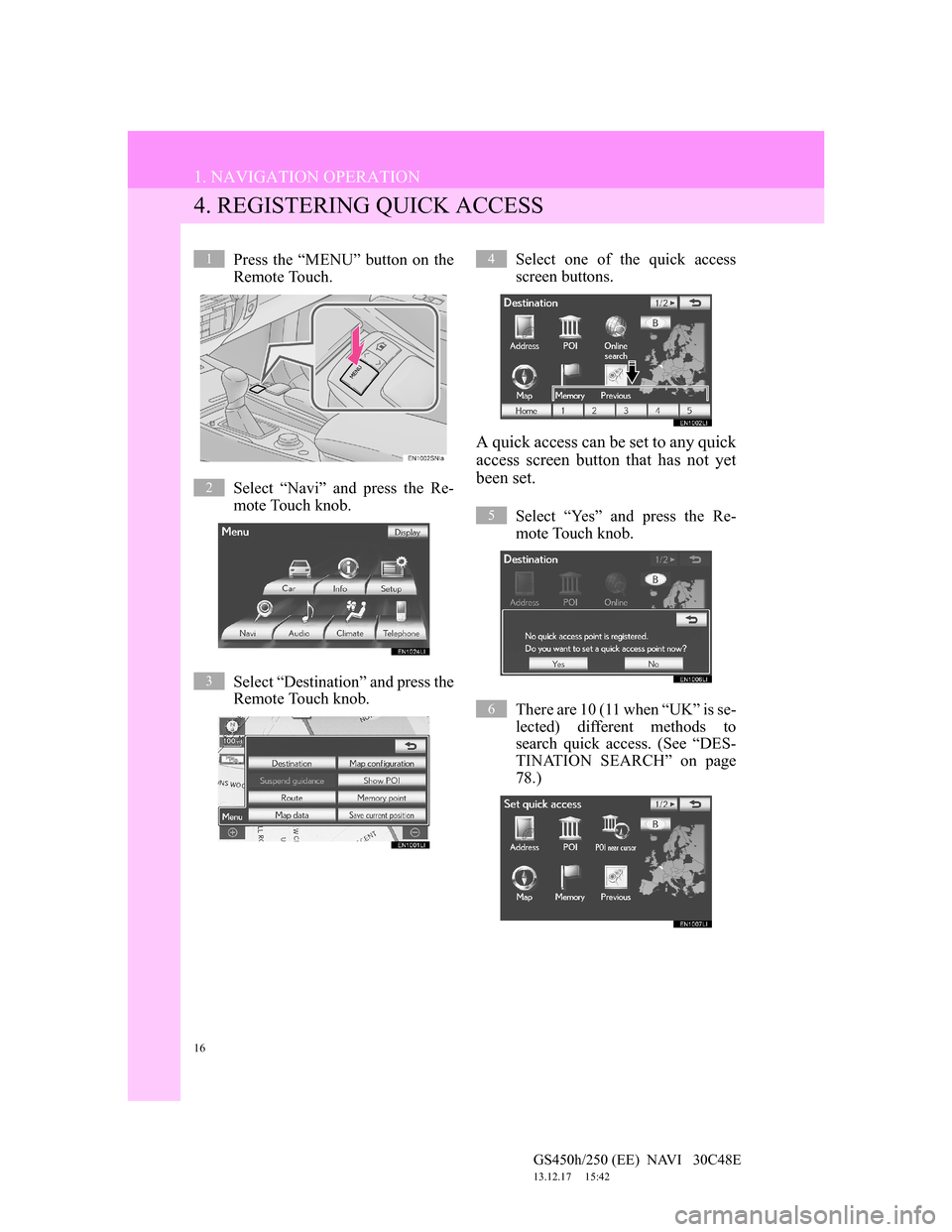

4. REGISTERING QUICK ACCESS
Press the “MENU” button on the
Remote Touch.
Select “Navi” and press the Re-
mote Touch knob.
Select “Destination” and press the
Remote Touch knob.Select one of the quick access
screen buttons.
A quick access can be set to any quick
access screen button that has not yet
been set.
Select “Yes” and press the Re-
mote Touch knob.
There are 10 (11 when “UK” is se-
lected) different methods to
search quick access. (See “DES-
TINATION SEARCH” on page
78.)
1
2
3
4
5
6

17
1. NAVIGATION OPERATION
1
QUICK GUIDE
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
Select “Enter” and press the Re-
mote Touch knob.
Registration of quick access is com-
plete.
Quick access can also be registered by
selecting “Memory point” on the nav-
igation menu screen. (See “REGIS-
TERING QUICK ACCESS” on page
127.)
The name, location, telephone number
and icon can be changed. (See “EDIT-
ING QUICK ACCESS” on page 128.)
The registered points can be used on
the “Destination” screen. (See “DES-
TINATION SEARCH BY QUICK
ACCESS” on page 81.)
7

18
1. NAVIGATION OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
5. OPERATION FLOW: GUIDING THE ROUTE
Press the “MENU” button on the
Remote Touch.
Select “Navi” and press the Re-
mote Touch knob.
Select “Destination” and press the
Remote Touch knob.There are 13 (14 when “UK” is
selected) different methods to
search destinations. (See “DES-
TINATION SEARCH” on page
78.)
Page 1
Page 2
Select “Enter” and press the Re-
mote Touch knob.
The navigation system performs a
search for the route.
1
2
3
4
5

19
1. NAVIGATION OPERATION
1
QUICK GUIDE
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
Select “Start” and press the Re-
mote Touch knob, and start driv-
ing.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page
99.)
Guidance to the destination is dis-
played on the screen and can be heard
via voice guidance.
6

20
1. NAVIGATION OPERATION
GS450h/250 (EE) NAVI 30C48E
13.12.17 15:42
6. SETTING HOME AS THE DESTINATION
Press the “MENU” button on the
Remote Touch.
Select “Navi” and press the Re-
mote Touch knob.
Select “Destination” and press the
Remote Touch knob.Select “Home” and press the Re-
mote Touch knob.
“Home” can be used if your home ad-
dress has been registered. (To register
home, see “REGISTERING HOME”
on page 124.)
Select “Enter” and press the Re-
mote Touch knob.
The navigation system performs a
search for the route.
1
2
3
4
5
