GS350/250_EE (OM30C36E)
4-1. Before driving
Driving the vehicle ............ 186
Cargo and luggage............. 197
Trailer towing .................... 198
4-2. Driving procedures
Engine (ignition) switch .... 207
Automatic transmission..... 214
Turn signal lever ............... 222
Parking brake .................... 224
Horn .................................. 227
4-3. Operating the lights and wipers
Headlight switch ............... 228
Automatic High Beam ...... 233
Fog light switch................. 239
Windshield wipers and
washer................................241
Headlight cleaner switch ... 248
4-4. Refueling
Opening the fuel tank cap . 2494-5. Using the driving support
Cruise control .................... 254
Dynamic radar cruise con-
trol.....................................258
LKA (Lane-Keeping
Assist)...............................274
Lexus (parking assist-sen-
sor)....................................284
Lexus (parking assist moni-
tor)....................................297
Driving mode select switch 326
Driving assist systems ....... 331
Hill-start assist control ...... 339
PCS (Pre-Crash Safety sys-
tem)....................................341
BSM (Blind Spot Monitor) 352
4-6. Driving tips
Winter driving tips ............ 359
4Driving

901-2. Theft deterrent system
GS350/250_EE (OM30C36E)
Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
The alarm will still be set even when the intrusion sensor and tilt sensor are
canceled.
After the intrusion sensor and tilt sensor are canceled, pressing the engine
switch or unlocking the doors using the entry function, wireless remote con-
trol or mechanical key will re-enable the intrusion sensor and tilt sensor.
The intrusion sensor and tilt sensor will automatically be re-enabled when
the alarm system is deactivated.
Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
Places with extreme vibrations or noises, or situations in which the vehicle
is subject to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
A window or the moon roof is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

911-2. Theft deterrent system
1
GS350/250_EE (OM30C36E)
For safety and security
Tilt sensor detection considerations (if equipped)
The sensor may trigger the alarm in the following situations:
The vehicle is transported by a ferry, trailer, train, etc.
The vehicle is parked in a parking garage.
The vehicle is inside a car wash that moves the vehicle.
Any of the tires loses air pressure.
The vehicle is jacked up.
An earthquake occurs or the road caves in.
NOTICE
To ensure the intrusion sensor function correctly
Installing accessories other than genuine Lexus parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the detec-
tion performance.
To ensure that the sensors operate prop-
erly, do not touch or cover them.
Do not spray air fresheners or other
products directly into the sensor holes.

185
4Driving
GS350/250_EE (OM30C36E)
4-1. Before driving
Driving the vehicle............ 186
Cargo and luggage ............ 197
Trailer towing.................... 198
4-2. Driving procedures
Engine (ignition) switch.... 207
Automatic transmission .... 214
Turn signal lever ............... 222
Parking brake .................... 224
Horn .................................. 227
4-3. Operating the lights
and wipers
Headlight switch............... 228
Automatic High Beam ...... 233
Fog light switch ................ 239
Windshield wipers
and washer ...................... 241
Headlight cleaner switch ... 2484-4. Refueling
Opening the fuel tank cap . 249
4-5. Using the driving support
systems
Cruise control ................... 254
Dynamic radar cruise
control ............................. 258
LKA
(Lane-Keeping Assist) .... 274
Lexus
parking assist-sensor....... 284
Lexus
parking assist monitor..... 297
Driving mode select switch326
Driving assist systems ...... 331
Hill-start assist control ...... 339
PCS (Pre-Crash Safety
system)............................ 341
BSM (Blind Spot Monitor) 352
4-6. Driving tips
Winter driving tips ............ 359

1894-1. Before driving
4
Driving
GS350/250_EE (OM30C36E)

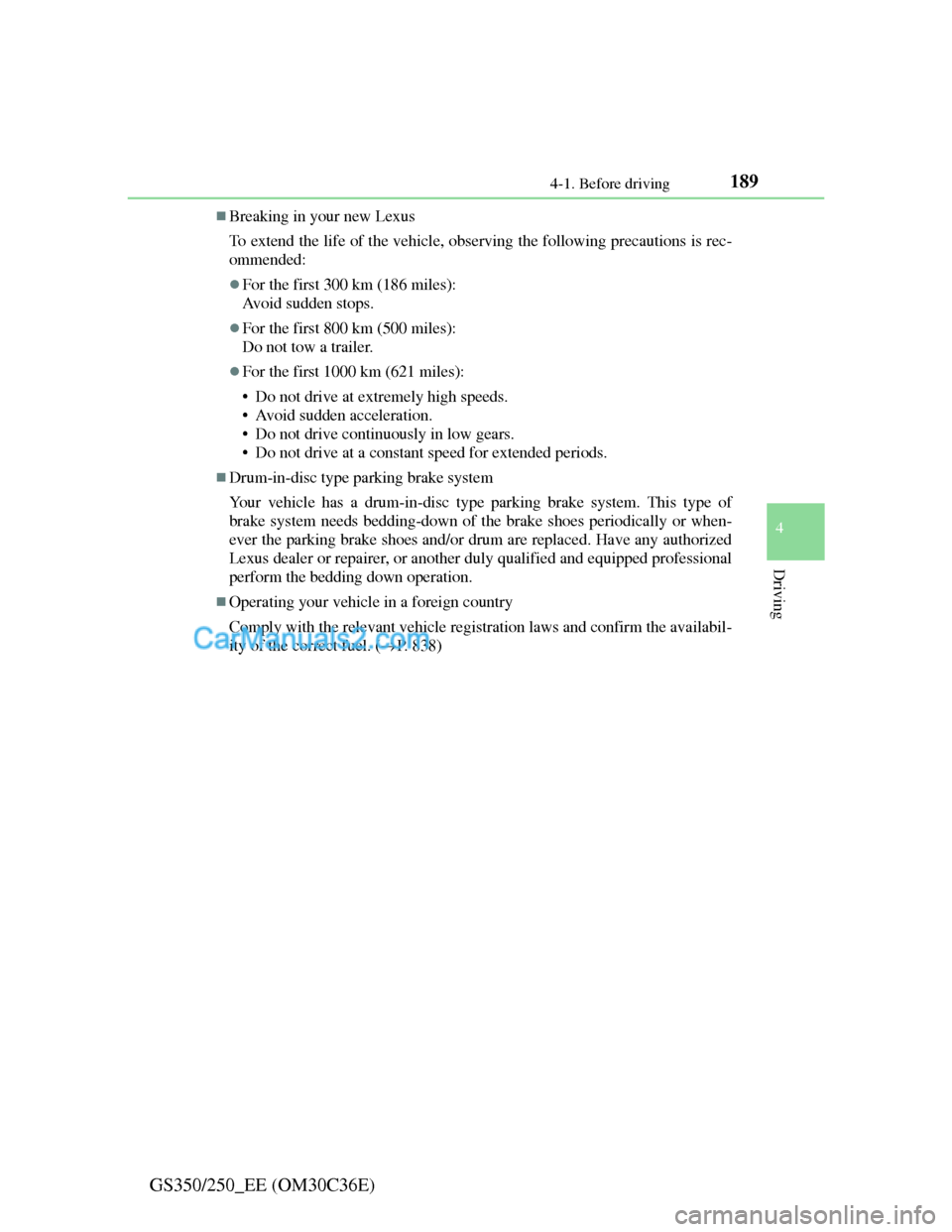

Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is rec-
ommended:
For the first 300 km (186 miles):
Avoid sudden stops.
For the first 800 km (500 miles):
Do not tow a trailer.
For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of
brake system needs bedding-down of the brake shoes periodically or when-
ever the parking brake shoes and/or drum are replaced. Have any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional
perform the bedding down operation.
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availabil-
ity of the correct fuel. (P. 838)

1994-1. Before driving
4
Driving
GS350/250_EE (OM30C36E)
Trailer towing
Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle
Mass), MPAC (Maximum Permissible Axle Capacity), and per-
missible draw bar load before towing. (P. 836)
Towing hitch/bracket
Lexus recommends the use of the Lexus hitch/bracket for your
vehicle. Other products of a suitable nature and comparable qual-
ity may also be used.
To prevent an accident
The handling of the vehicle will feel different when towing a
trailer. Beware of the 3 most common causes of towing-related
accidents: driver error, excessive speed, and overloading.
The strain of towing a trailer will have a negative impact on the
running performance, handling, fuel consumption and endurance
of your vehicle. Use the vehicle features in the correct manner and
operate the vehicle with care for safer driving and optimal comfort.
Damage and/or malfunctions that occur as a result of towing per-
formed for commercial purposes are not covered by the Lexus war-
ranty.
Ask your local authorized Lexus dealer or repairer, or another duly
qualified and equipped professional for further details before tow-
ing, as there are additional legal requirements in some countries.

2004-1. Before driving
GS350/250_EE (OM30C36E)
Total trailer weight and permissible drawbar load
Total trailer weight
Weight of the trailer itself plus
the trailer load should be within
the maximum towing capacity.
Exceeding this weight is dan-
gerous. (P. 836)
When the total trailer weight is
greater than the vehicle weight,
we recommend the use of a fric-
tion stabilizer (sway control
device).
Permissible drawbar load
Allocate the trailer load so that
the drawbar load is greater than
25 kg (55.1 lb.) or 4% of the
towing capacity. Do not let the
drawbar load exceed the indi-
cated weight. (P. 836)
Important points regarding trailer loads
1
2

2014-1. Before driving
4
Driving
GS350/250_EE (OM30C36E)
Information tag (manufacturer’s label)
Gross vehicle mass
The combined weight of the
driver, passengers, towing hitch,
total curb mass and drawbar
load should not exceed the gross
vehicle mass by more than 100
kg (220.5 lb.). Exceeding this
weight is dangerous.
Maximum permissible rear
axle capacity
The weight borne by the rear
axle should not exceed the max-
imum permissible axle capacity
by 15% or more. Exceeding this
weight is dangerous.
The values for towing capacity
were derived from testing con-
ducted at sea level. Take note
that engine output and towing
capacity will be reduced at high
altitudes.
1
2
CAUTION
When the gross vehicle mass limit or maximum permissible axle capacity is
exceeded
Do not exceed the established speed limit for towing a trailer in built-up
areas or 100 km/h (62 mph), whichever is the lower.
