NOTICE
Camera sensor (P. 274)
Observe the following to ensure that the LKA system functions correctly.
Keep the windshield clean at all times.
Performance could be affected if the windshield is dirty, or if raindrops,
condensation or ice are adhering to the windshield.
When adjusting the rear view mirror, make sure that it does not block the
camera lens.
Do not attach window tinting to the windshield.
Do not install an antenna in front of the camera lens.
If the windshield is fogged up, use the windshield defogger to remove fog
from the windshield.
When it is cold, using the heater with air blowing to the feet may allow the
upper part of the windshield to fog up. This will have a negative effect on
the images.
Do not place anything on the dashboard.
The camera sensor may recognize the image reflected on the windshield
as lane markers by mistake.
Do not scratch the camera lens, or let it get dirty.
When cleaning the inside of the windshield, be careful not to get any glass
cleaner etc. on the lens. Also, do not touch the lens.
For lens repair, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Do not change the installation position or direction of the camera sensor
or remove it. The direction of the camera sensor is precisely adjusted.
Do not subject the camera sensor to strong impact or force, and do not dis-
assemble the camera sensor.
Do not attach a sticker or other items to
the windshield near the camera sensor.
Do not install or place anything near the
camera.

2844-5. Using the driving support
GS350/250_EE (OM30C36E)
Lexus parking assist-sensor
Types of sensors
: If equipped
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a garage is measured by the sensors
and communicated via the multi-information display, Remote
Touch screen and a buzzer. Always check the surrounding area
when using this system.
Front center sensors
Front corner sensors
Rear corner sensors
Rear center sensors1
2
3
4

2854-5. Using the driving support
4
Driving
GS350/250_EE (OM30C36E)
Lexus parking assist-sensor switch
Turns the Lexus parking
assist-sensor on/off
When on, the indicator light
comes on and the buzzer sounds
to inform the driver that the sys-
tem is operational.

2864-5. Using the driving support
GS350/250_EE (OM30C36E)When the sensors detect an obstacle, a graphic is shown on the
multi-information display and Remote Touch screen depending on
the position and distance to the obstacle.
Multi-information display
Front corner sensor detec-
tion
Front center sensor detec-
tion
Rear corner sensor detection
Rear center sensor detection
Display
1
2
3
4

2884-5. Using the driving support
GS350/250_EE (OM30C36E)
Front center sensor
Sensor detection display, obstacle distance
Approximate
distance to obsta-
cleMulti-
information
display
Remote Touch screen
8-inch
display
8-inch
display
(insert
display)
12.3-inch
display
100 cm (3.3 ft.) to
50 cm (1.6 ft.)
(continuous)(continuous)(blinking
slowly)(continuous)
50 cm (1.6 ft.) to
37.5 cm (1.2 ft.)
(continuous)(continuous)(blinking)(continuous)
37.5 cm (1.2 ft.)
to
30 cm (1.0 ft.)
(continuous)(continuous)(blinking
rapidly)(continuous)
Less than
30 cm (1.0 ft.)
(blinking)(continuous)(continuous)(continuous)

2894-5. Using the driving support
4
Driving
GS350/250_EE (OM30C36E)
Corner sensors
Approximate
distance to obsta-
cleMulti-
information
display
Remote Touch screen
8-inch
display
8-inch
display
(insert
display)
12.3-inch
display
60 cm (2.0 ft.) to
45 cm (1.5 ft.)
(continuous)(continuous)(blinking)(continuous)
45 cm (1.5 ft.) to
30 cm (1.0 ft.)
(continuous)(continuous)(blinking
rapidly)(continuous)
Less than
30 cm (1.0 ft.)
(blinking)(continuous)(continuous)(continuous)

2904-5. Using the driving support
GS350/250_EE (OM30C36E)

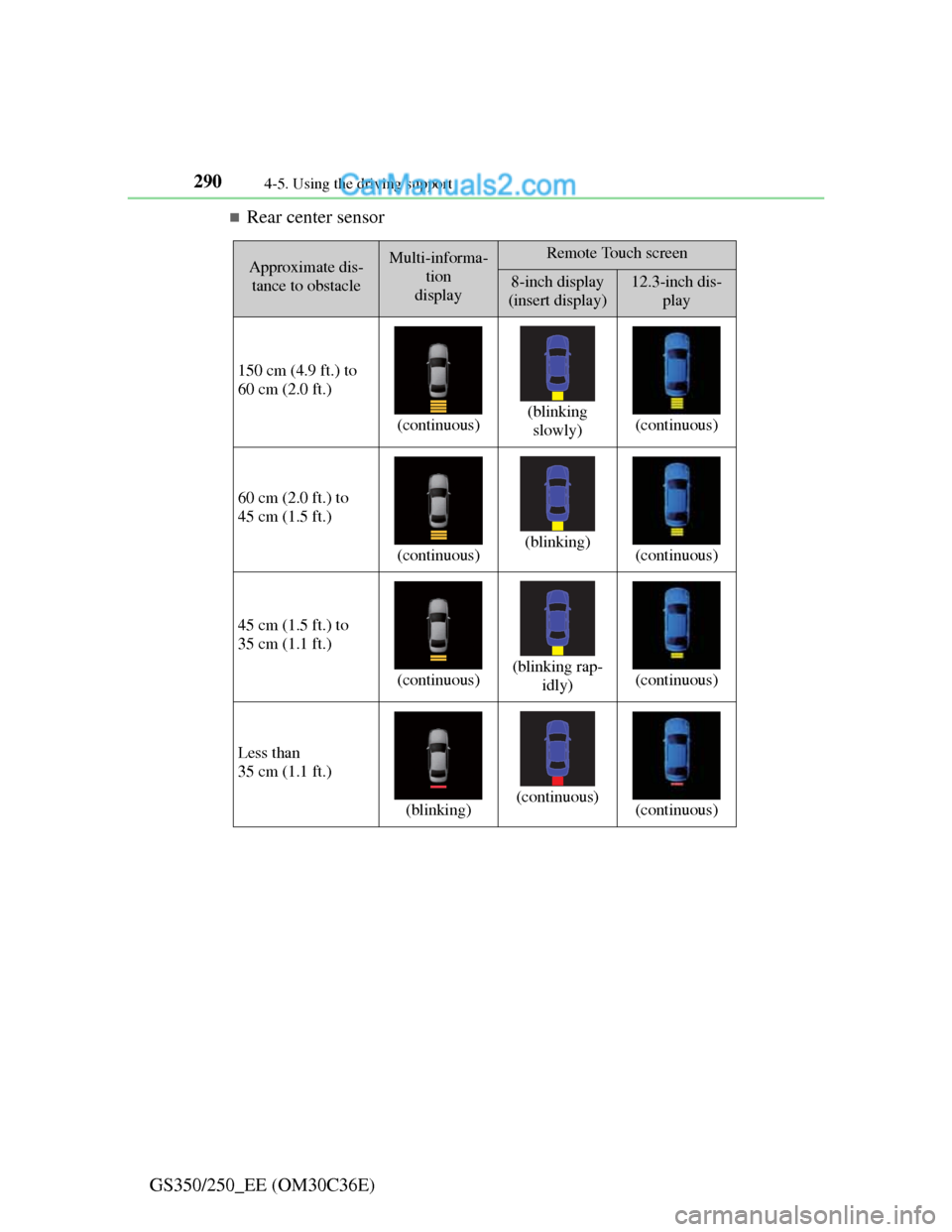

Rear center sensor
Approximate dis-
tance to obstacleMulti-informa-
tion
displayRemote Touch screen
8-inch display
(insert display)12.3-inch dis-
play
150 cm (4.9 ft.) to
60 cm (2.0 ft.)
(continuous)(blinking
slowly)(continuous)
60 cm (2.0 ft.) to
45 cm (1.5 ft.)
(continuous)(blinking)(continuous)
45 cm (1.5 ft.) to
35 cm (1.1 ft.)
(continuous)(blinking rap-
idly)(continuous)
Less than
35 cm (1.1 ft.)
(blinking)(continuous)(continuous)

2914-5. Using the driving support
4
Driving
GS350/250_EE (OM30C36E)
Buzzer operation and distance to an obstacle
A buzzer sounds when the corner sensors and rear center sensors
are operating.
The buzzer beeps faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the
obstacle, the buzzer sounds continuously:
• Front center sensors: Approximately 30 cm (1.0 ft.)
• Corner sensors: Approximately 30 cm (1.0 ft.)
• Rear center sensors: Approximately 35 cm (1.1 ft.)
When 2 or more obstacles are detected simultaneously, the
buzzer system responds to the nearest obstacle. If one or both
come within the above distances, the beep will repeat a long
tone, followed by fast beeps.
Approximately 100 cm (3.3
ft.)
Approximately 150 cm (4.9
ft.)
Approximately 60 cm (2.0 ft.)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
