2012 Lexus ES350 display

365
4-2. Maintenance
4
Maintenance and care
ES350_U
■Reset the maintenance data (USA only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedures described below:Turn the “ENGINE START STOP” switch OFF with the trip meter A read-
ing shown. ( →P. 1 3 8 )
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to the IGNITION ON mode. Continue to press and hold
the button until the trip meter displays “000000”.
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus dealer will promptly take care of it.
CAUTION
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. ( →P. 3 8 7 )
STEP1
STEP2

389
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
CAUTION
■When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

When trouble arises5
429
ES350_U
5-1. Essential informationEmergency flashers.............. 430
If your vehicle needs to be towed ....................................... 431
If you think something is wrong ...................................... 437
Fuel pump shut off system .................................... 438 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................. 439
If a warning message is displayed................................ 449
If you have a flat tire................. 461
If the engine will not start .... 470
If the shift lever cannot be shifted from P ....................... 472
If you lose your keys .............. 473
If the electronic key does not operate properly........... 474
If the vehicle battery is discharged ............................. 477
If your vehicle overheats ..... 480
If the vehicle becomes stuck........................................ 483
If your vehicle has to be stopped in an
emergency ............................ 484

5
When trouble arises
449
5-2. Steps to take in an emergency
ES350_U
If a warning message is displayed
Stop the vehicle immediately.The following warnings indicate the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(U.S.A)
(Canada) (Flashing)
Indicates an abnormal engine oil pressure.A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning message turns on again after performing the fol-
lowing actions, contact your Lexus dealer.

5
When trouble arises
451
5-2. Steps to take in an emergency
ES350_U
Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates intuitive parking assist malfunction.A buzzer also sounds.
The malfunctioning assist-sensor is shown flashing on
the display.
(Flashing and then con-
tinuously on)
(Flashing)or
(Flashing)
(If equipped)Indicates a malfunction in the radar cruise control
system. A buzzer also sounds.
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.

5
When trouble arises
457
5-2. Steps to take in an emergency
ES350_U
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance closes.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed

5
When trouble arises
459
5-2. Steps to take in an emergency
ES350_U
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once3 times
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
Con-
tinuousCon-
tinuous
(Displayed alternately)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever out of P,
the “ENGINE
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area.
• Shift the shift lever to P.
•Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( →P. 4 0 7 )

511
6
Vehicle specifications
ES350_U

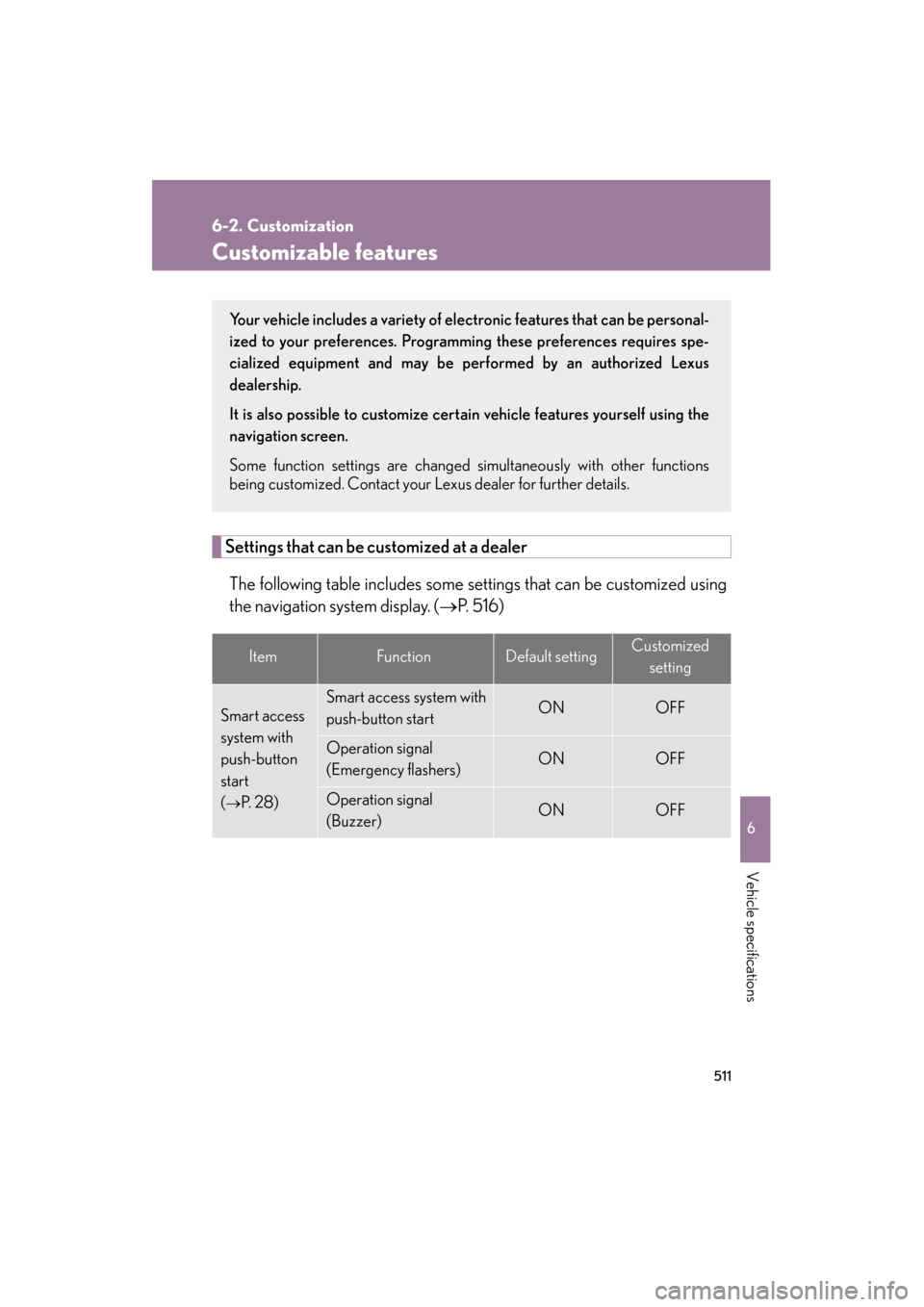

6-2. Customization
Customizable features
Settings that can be customized at a dealerThe following table includes some settings that can be customized using
the navigation system display. ( →P. 5 1 6 )
ItemFunctionDefault settingCustomized
setting
Smart access
system with
push-button
start
(
→P. 2 8 )
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Your vehicle includes a variety of electr onic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
It is also possible to customize cert ain vehicle features yourself using the
navigation screen.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
