1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
ES350_U
Steering wheel
Auto tilt awayWhen the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Tu r n i n g t h e “ E N G I N E S T A R T
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position while the
“ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Up
Down
Away from the driver
Toward the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

68
1-3. Adjustable components (seats, mirrors, steering wheel)
ES350_U
Outside rear view mirrors
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (→P. 2 1 3 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→ P. 5 1 )
Mirror angle can be adjusted using the switch when the “ENGINE START
STOP” switch is in ACCESSORY or IGNITION ON mode.
Select a mirror to adjust
(L: left or R: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

71
1-4. Opening and closing the windows and moon roof
1
Before driving
ES350_U
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 4 74 )
●The power windows can be closed using the entry function. ( →P. 2 8 )
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is oper ating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door.
●After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the “ENGINE START
STOP” switch is turned to IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
STEP1
STEP2STEP2
STEP3

75
1-4. Opening and closing the windows and moon roof
1
Before driving
ES350_U
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock moon roof operation (standard type)
●The moon roof can be opened and closed using the mechanical key. (→P. 4 74 )
●The moon roof can be closed using the entry function. ( →P. 2 9 )
■Operating the moon roof after turnin g the “ENGINE START STOP” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■To reduce moon roof wind noise (standard type)
Drive with the moon roof opened to slightly before the fully open position as driving
with the moon roof opened fully will cause wind noise.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when th e moon roof is opened.

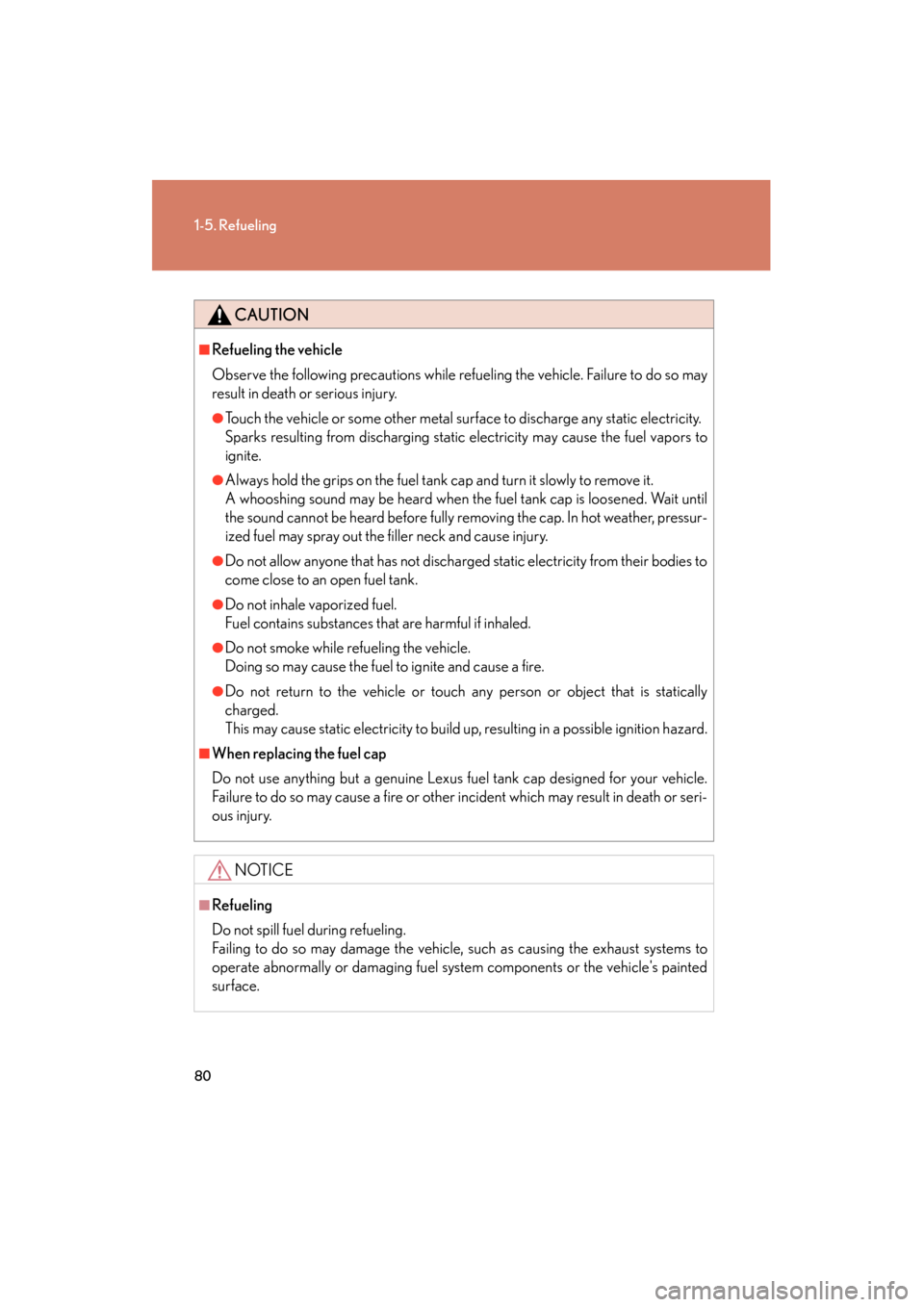

80
1-5. Refueling
ES350_U
CAUTION
■Refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.

81
1
Before driving
ES350_U
1-6. Theft deterrent system
Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

When driving2
119
ES350_U
2-1. Driving proceduresDriving the vehicle.................. 120
Engine (ignition) switch ......... 128
Automatic Transmission ........ 132
Turn signal lever ....................... 135
Parking brake ........................... 136
Horn ............................................ 137
2-2. Instrument cluster Gauges and meters ................ 138
Indicators and warning lights ......................................... 140
Multi-information display ..... 144 2-3. Operating the lights and
windshield wipers
Headlight switch ..................... 149
Fog light switch ........................ 154
Windshield wipers and washer ..................................... 156
2-4. Using other driving systems
Cruise control.......................... 160
Dynamic radar cruise control ..................................... 164
Intuitive parking assist ............ 176
Driving assist systems ............ 182
PCS (Pre-Collision System) ....... 187
2-5. Driving information Cargo and luggage ................ 192
Vehicle load limits ................... 195
Winter driving tips .................. 196
Trailer towing .......................... 202
Dinghy towing......................... 203

128
2-1. Driving procedures
ES350_U
Engine (ignition) switch
Performing the following operations when carrying the electronic key on
your person starts the engine or changes “ENGINE START STOP” switch
modes.
■ Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
The engine can be started from
any “ENGINE START STOP”
switch mode.
STEP1
STEP2
STEP3
STEP4
