2012 KIA PICANTO headrest

I5
Index
Hazard warning flasher ..................................................4-69
Hazardous driving conditions ........................................5-47
Headlight escort function................................................4-70
Headlight leveling device................................................4-76
Headlight welcome function ..........................................4-70
Headrest ....................................................................3-5, 3-9
Heating and air conditioning ..........................................4-85
Highway driving ............................................................5-50
Hill-start assist control (HAC) ........................................5-42
Hood................................................................................4-26
Horn ................................................................................4-37
How to use this manual ....................................................1-2
Idle stop and go (ISG) system ........................................5-12
Immobilizer system ..........................................................4-4
Indicators and warnings ..................................................4-56
Indicator symbols on the instrument cluster ....................1-5
Inside rearview mirror ....................................................4-38
Instrument cluster ..........................................................4-42
Fuel gauge ................................................................4-44
Odometer ..................................................................4-46
Speedometer ..............................................................4-44
Tachometer ................................................................4-44 Trip computer ............................................................4-45
Warning and indicators ............................................4-56
Instrument panel overview................................................2-3
Interior care ....................................................................7-75
Interior features ............................................................4-104 Ashtray ....................................................................4-104
Cigarette lighter ......................................................4-104
Clothes hanger ........................................................4-108
Cup holder ..............................................................4-105
Digital clock ............................................................4-107
Floor mat anchor(s) ················································4-109
Power outlet ............................................................4-106
Sunvisor ..................................................................4-105
Vanity mirror lamp ..................................................4-106
Interior light ....................................................................4-81
Interior overview ..............................................................2-2
Jack and tools....................................................................6-8
Jump starting ....................................................................6-5
Key positions ....................................................................5-4
Keys ..................................................................................4-3
H
I
K
J

Index
6
I
Label
Air bag warning label................................................3-61
Tire sidewall labeling ................................................7-47
Tire specification and pressure label ..........................8-7
Vehicle certification label............................................8-6
Light bulbs ......................................................................7-62
Lighting ..........................................................................4-70 Battery saver function ..............................................4-70
Daytime running light ..............................................4-70
Headlight escort function ..........................................4-70
Headlight welcome function ....................................4-70
LPG system....................................................................5-14
Lubricants and capacities ................................................8-4 Maintenance Explanation of scheduled maintenance items ..........7-19
Maintenance services ..................................................7-3
Maintenance under severe usage conditions ............7-17 Normal maintenance schedule ....................................7-7
Owner maintenance ....................................................7-4
Scheduled maintenance service ..................................7-6
Tire maintenance ......................................................7-46
Maintenance services ........................................................7-3 Manual climate control system ......................................4-84
Air conditioning ........................................................4-89
Climate control air filter............................................4-91
Heating and air conditioning ....................................4-85
Manual heating and air conditioning ..............................4-95
Manual transaxle ............................................................5-24
Memory fuse ..................................................................7-53
Mirrors ............................................................................4-38 Day/night rearview mirror ........................................4-38
Inside rearview mirror ..............................................4-38
Outside rearview mirror ............................................4-38
Moonroof, see sunroof ....................................................4-31
Multi fuse ........................................................................7-54
Neck restraints, see headrest ....................................3-5, 3-9
Odometer ........................................................................4-46
Oil (Engine) ....................................................................7-22
Outside rearview mirror ..................................................4-38
Overheats ..........................................................................6-7
Owner maintenance ..........................................................7-4
O
M
N
L

I7
Index
Parking brake inspect ......................................................7-30
Parking brake ..................................................................5-34
Passenger's front air bag ................................................3-46
Power brakes ..................................................................5-33
Power outlet ..................................................................4-106
Power steering (Electronic) ............................................4-35
Power window lock button ............................................4-24
Pre-tensioner seat belt ....................................................3-22
Push starting......................................................................6-6
Rear seat............................................................................3-9
Rear parking assist system ..............................................4-66Recommended cold tire inflation pressures....................7-41
Recommended lubricants and capacities ..........................8-4
Recommended SAE viscosity number........................8-5
Remote keyless entry ......................................................4-10
Road warning ....................................................................6-2
Rocking the vehicle ........................................................5-47 Scheduled maintenance service ........................................7-6
Maintenance under severe usage conditions ............7-17Normal maintenance schedule ....................................7-7
Seat belts ........................................................................3-15 Pre-tensioner seat belt ..............................................3-22
Lap belt......................................................................3-20
Lap/shoulder belt ......................................................3-18
Seat belt warning ......................................................3-16
Seatback pocket ................................................................3-8
Seats ..................................................................................3-2 Headrest ..............................................................3-5, 3-9
Folding the rear seat ..................................................3-10
Front seat adjustment - manual ..................................3-4
Rear seat ......................................................................3-9
Seatback pocket ..........................................................3-8
Shift lock system ............................................................5-30
Side air bag ....................................................................3-51
Smart key ..........................................................................4-9
Smooth cornering............................................................5-48
Snow tires........................................................................5-51Spare tire Removing and storing the spare tire ..........................6-9
P
R
S

Safety features of your vehicle
2
3
Driver’s seat
(1) Forward and rearward
(2) Seatback angle(3) Seat cushion height*
(4) Seat warmer*(5) Headrest
Front passenger’s seat
(6) Forward and rearward
(7) Seatback angle
(8) Seat warmer*
(9) Walk-in seat (for 3 door vehicle only)(10) Headrest Rear seat (11) Headrest*
(12) Seatback folding*
* : if equipped
SEATS
OTA030001R/OTA032001L

35
Safety features of your vehicle
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up on theseatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Seat cushion height (for driver’s seat)
To change the height of the seat cushion,
push the lever that is located on the out-
side of the seat cushion upwards or
downwards.
• To lower the seat cushion, push thelever down several times.
To raise the seat cushion, pull the lever up several times. Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
OPA039052OTA030003L/HOTA030004L/H

Safety features of your vehicle
6
3
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower theheadrest to the desired position (3).
Removal and installation
To remove the headrest, raise it as far as
it can go then press the release button (1)
whilst pulling upward (2).
To reinstall the headrest, put the head- rest poles (3) into the holes whilst press-
ing the release button (1). Then adjust it
to the appropriate height.
OTA030006L
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
WARNING
For maximum effectiveness in case of an accident, the headrest
should be adjusted so the middleof the headrest is at the same
height as the centre of gravity of
an occupant's head. Generally,
the centre of gravity of most peo-ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
Do not operate the vehicle with the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
Do not adjust the headrest posi- tion of the driver's seat whilst the
vehicle is in motion.
OTA030005L

37
Safety features of your vehicle

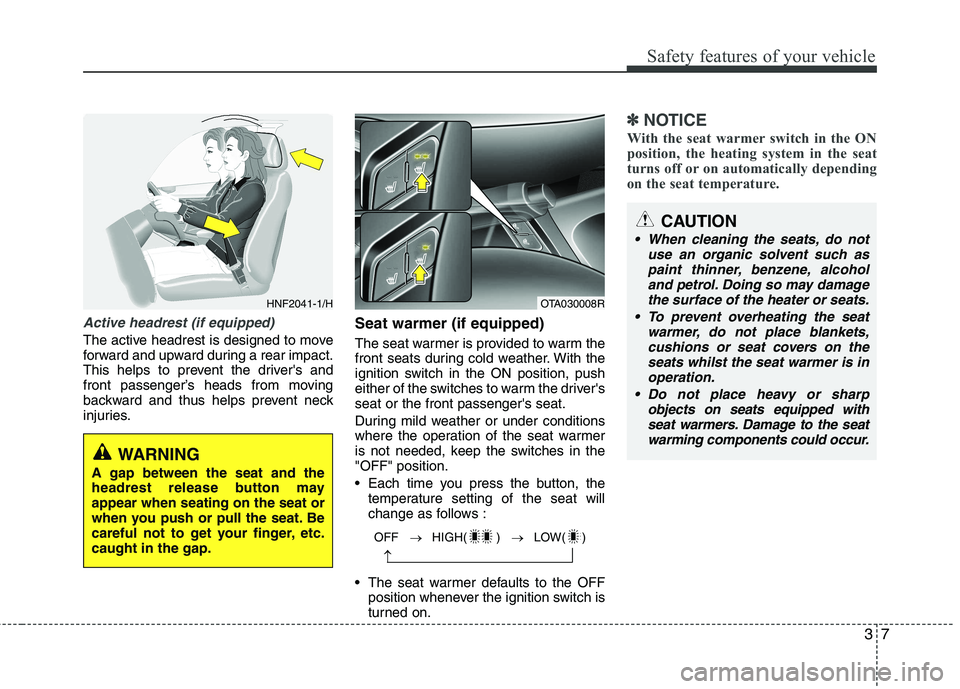

Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and
front passenger’s heads from moving
backward and thus helps prevent neck
injuries.Seat warmer (if equipped)
The seat warmer is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
either of the switches to warm the driver'sseat or the front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the"OFF" position.
Each time you press the button, the
temperature setting of the seat will
change as follows :
The seat warmer defaults to the OFF position whenever the ignition switch is
turned on.
✽✽ NOTICE
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.
OFF HIGH( ) LOW( )

HNF2041-1/HOTA030008R
WARNING
A gap between the seat and the
headrest release button mayappear when seating on the seat or
when you push or pull the seat. Be
careful not to get your finger, etc.caught in the gap.
CAUTION
When cleaning the seats, do not use an organic solvent such aspaint thinner, benzene, alcohol and petrol. Doing so may damage
the surface of the heater or seats.
To prevent overheating the seat warmer, do not place blankets,cushions or seat covers on theseats whilst the seat warmer is in
operation.
Do not place heavy or sharp objects on seats equipped withseat warmers. Damage to the seat warming components could occur.

39
Safety features of your vehicle
Passenger seat under tray (if equipped)
To open the tray, pull up the lever and pull
out the tray forward. Rear seat adjustment Headrest (if equipped)
The rear seat is equipped with headrests
for the occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a colli-sion.
OPA039053
WARNING
whilst driving, be sure to position
them in the tray so that they donot make noise or cause a poten-
tial safety hazard when the vehi-
cle is moving.
Always keep the tray closed whilst driving. Do not place many
items in the tray that the tray can
not close securely.
CAUTION
To avoid possible theft, do not leave
valuables in the tray.
The tray can be used to store smallitems required by the driver or pas-
sengers.
WARNING - Flammable materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the tray.
These items may catch fire and/or
explode if the vehicle is exposed to
hot temperatures for extended peri-ods.
OTA030010/H
