2012 KIA Optima headrest

I5
Index
Fuses ··················\
··················\
··················\
··················\
······7-45Fuse/relay panel description ··················\
··················\
····7-50
Instrument panel fuse ··················\
··················\
··············7-46
Multi fuse ··················\
··················\
··················\
··············7-48
Memory fuse··················\
··················\
··················\
··········7-47
Gauge Engine temperature gauge ··················\
··················\
·······4-51
Fuel gauge ··················\
··················\
··················\
·············4-50
Glass antenna ··················\
··················\
··················\
·········4-120
Glassroof, see Panorama sunroof ··················\
················4-30
Glove box··················\
··················\
··················\
···············4-113
Hazard warning flasher ··················\
··················\
··············4-74
Hazardous driving conditions ··················\
··················\
····5-43
Headlight escort function··················\
··················\
···········4-80
Headlight leveling device ··················\
··················\
··········4-80
Headrest ··················\
··················\
··················\
············3-8, 3-15
Highway driving ··················\
··················\
··················\
······5-46
Hill-start assist control (HAC) ··················\
··················\
···5-32
Homelink mirror, see the electric chromic mirror (ECM) with homelink system and compass ··················\
··········4-39
Hood··················\
··················\
··················\
··················\
·······4-25
Horn ··················\
··················\
··················\
··················\
·······4-37
How to use this manual ··················\
··················\
···············1-2 Ignition key interlock system ··················\
··················\
····5-20
Immobilizer system ··················\
··················\
··················\
···4-3
Indicator symbols on the instrument cluster ··················\
·1-5
Indicators and warnings ··················\
··················\
·············4-58
Inside rearview mirror ··················\
··················\
···············4-39
Instrument cluster ··················\
··················\
··················\
····4-48
Engine temperature gauge ··················\
··················\
·······4-51
Fuel gauge ··················\
··················\
··················\
·············4-50
Instrument panel illumination ··················\
··················\
·4-49
Odometer ··················\
··················\
··················\
···············4-52
Speedometer ··················\
··················\
··················\
··········4-49
Tachometer ··················\
··················\
··················\
············4-49
Trip computer ··················\
··················\
··················\
········4-51
Distance to service··············\
··················\
··················\
·····4-55
Vehicle option ··················\
··················\
··················\
········4-57
Warning and indicators ··················\
··················\
············4-58
Instrument panel illumination··················\
··················\
····4-49
Instrument panel overview··················\
··················\
···········2-3
Interior care··················\
··················\
··················\
··············7-61
Interior features··················\
··················\
··················\
······4-116 Clothes hanger ··················\
··················\
··················\
·····4-119
Cup holder ··················\
··················\
··················\
···········4-116
Digital clock ··················\
··················\
··················\
········4-118
Floor mat anchor(s) ··················\
··················\
···············4-118
Power outlet ··················\
··················\
··················\
·········4-117
Sunvisor ··················\
··················\
··················\
···············4-116I
G
H

Index
6I
Interior light ··················\
··················\
··················\
·············4-88
Interior overview··················\
··················\
··················\
········2-2
Interlock system ··················\
··················\
··················\
·······5-20
Jack and tools··················\
··················\
··················\
·············6-7
Jump starting··················\
··················\
··················\
··············6-4
Key positions ··················\
··················\
··················\
·············5-4
Keys ··················\
··················\
··················\
··················\
·········4-2
LabelAir bag warning label ··················\
··················\
··············3-66
Tire sidewall labeling ··················\
··················\
··············7-37
Tire specification and pressure label ··················\
···········8-7
Vehicle certification label ··················\
··················\
··········8-6
Latch system, see lower anchor system··················\
·······3-37
Lighting··················\
··················\
··················\
··················\
··4-80 Battery saver function··················\
··················\
··············4-80
Headlight escort function ··················\
··················\
········4-80
Headlight leveling device ··················\
··················\
········4-80
Lower anchor system ··················\
··················\
·················3-37\
Lubricants and capacities··················\
··················\
·············8-4
Lumbar support ··················\
··················\
··················\
··3-5, 3-7 Maintenance
Explanation of scheduled maintenance items ·············7-12
Maintenance services·············\
··················\
··················\
····7-3
Maintenance under severe usage conditions ···············7-11
Owner maintenance ··················\
··················\
··················\
·7-5
Tire maintenance ··················\
··················\
··················\
···7-44
Maintenance services ··················\
··················\
··················\
·7-3
Manual climate control system··················\
··················\
··4-92 Air conditioning ··················\
··················\
··················\
····4-97
Climate control air filter ··················\
··················\
········4-100
Heating and air conditioning ··················\
··················\
···4-93
Manual transaxle··················\
··················\
··················\
······5-12
Memory fuse ··················\
··················\
··················\
············7-47
Mirrors ··················\
··················\
··················\
··················\
···4-39 Day/night rearview mirror ··················\
··················\
·······4-39
Electric chromic mirror (ECM) with homelink system
and compass ··················\
··················\
··················\
··········4-39
Inside rearview mirror ··················\
··················\
·············4-39
Outside rearview mirror ··················\
··················\
··········4-46
Moonroof, see panorama sunroof ··················\
················4-30
Multi fuse ··················\
··················\
··················\
·················7-48\
Neck restraints, see headrest ··················\
················3-8, 3-15
J
K
L
M
N

I7
Index
Occupant detection system ··················\
··················\
········3-46
Odometer ··················\
··················\
··················\
·················4-52\
Oil (Engine) ··················\
··················\
··················\
·············7-15
Outside rearview mirror··················\
··················\
·············4-46
Overheats ··················\
··················\
··················\
··················\
·6-6
Owner maintenance ··················\
··················\
··················\
···7-5
Paddle shifter ··················\
··················\
··················\
···········5-19
Panorama sunroof ··················\
··················\
··················\
····4-30
Parking brake ··················\
··················\
··················\
···········5-24
Parking brake inspect··················\
··················\
·················7-14\
Passenger's front air bag ··················\
··················\
············3-52
Power brakes ··················\
··················\
··················\
············5-23
Power outlet ··················\
··················\
··················\
···········4-117
Power window lock button ··················\
··················\
········4-24
Pre-tensioner seat belt··················\
··················\
················3-24
Push starting··················\
··················\
··················\
···············6-5
Rear parking assist system··················\
··················\
·········4-75
Rear seat··················\
··················\
··················\
··················\
·3-13
Rearview camera··················\
··················\
··················\
······4-78
Recommended cold tire inflation pressures ··················\
7-31Recommended lubricants and capacities ··················\
·······8-4
Recommended SAE viscosity number ··················\
··········8-5
Remote keyless entry ··················\
··················\
··················\
·4-7
Road warning ··················\
··················\
··················\
·············6-2
Rocking the vehicle ··················\
··················\
··················\
·5-43
Seat belts ··················\
··················\
··················\
··················\
3-18
Driver's 3-point system with emergency locking retractor ··················\
··················\
··················\
··············3-21
Front passenger and rear seat 3-point system with combination locking retractor ··················\
················3-23
Pre-tensioner seat belt ··················\
··················\
·············3-24
Seat belt warning ··················\
··················\
··················\
···3-19
Seat warmer ··················\
··················\
··················\
······3-9, 3-16
Seatback pocket ··················\
··················\
··················\
·······3-12
Seats ··················\
··················\
··················\
··················\
·········3-2 Armrest ··················\
··················\
··················\
··················\
3-17
Headrest················\
··················\
··················\
············3-8, 3-15
Folding the rear seat ··················\
··················\
················3-13
Front seat adjustment - manual ··················\
··················\
·3-4
Front seat adjustment - power ··················\
··················\
···3-6
Lumbar support ··················\
··················\
··················\
3-5, 3-7
Rear seat ··················\
··················\
··················\
················3-13
Seatback pocket ··················\
··················\
··················\
·····3-12
Climate control seat ··················\
··················\
·················3-11\
Seat warmer··················\
··················\
··················\
····3-9, 3-16
O
P
R
S

Safety features of your vehicle
23
Driver’s seat
(1) Seat adjustment, forward / backward
(2)Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support
(5) Driver position memory system*
(6) Seat warmer switch*
(7) Headrest
Front passenger’s seat
(8) Seat adjustment, forward / backward
(9) Seatback recliner
(10) Seat warmer switch*
(11) Headrest
Rear seat
(12) Seat warmer*
(13) Armrest
(14) Headrest
(15) Seat-back folding lever
* : if equipped
SEAT
OTF030001N

Safety features of your vehicle
83
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.Forward and backward adjustment
The headrest may be adjusted forward to
3 different positions by pulling the head-
rest forward to the desired detent. To
adjust the headrest to it’s furthest back-
wards position, pull it fully forward to the
farthest position and release it. Adjust the
headrest so that it properly supports the
head and neck.
WARNING
For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
Do not operate the vehicle with the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
Do not adjust the headrest posi- tion of the driver's seat while the
vehicle is in motion.
OTF030012OMG038400

39
Safety features of your vehicle
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling the headrest upward (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
Seat warmer (if equipped)
The seat warmer is provided to warm the
front seats during cold weather. While the
engine is running, push either of the
switches to warm the driver's seat or the
front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.
OTF030010OTF030011
OTF030013N
OTF030045N

Safety features of your vehicle
12
3
Active headrest
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and
front passenger’s head from moving
backward and thus helps prevent neck
injuries.Seatback pocket (if equipped)
The seatback pocket is provided on the
back of the front passenger’s seatback.
HNF2041-1OTF030016
WARNING- Seatback
pocket
Do not put heavy or sharp objects
in the seatback pocket. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
WARNING
A gap between the seat and the
headrest release button may
appear when seating on the seat or
when you push or pull the seat. Be
careful not to get your finger, etc.
caught in the gap.
WARNING
Passengers should use extreme
caution when using the climate
control seat to warm due to the
possibility of excess heating or
burns. The occupants must be able
to feel if the seat is becoming too
warm and to turn the seat warmer
off. In particular, the driver must
exercise extreme care for the fol-
lowing types of passengers:
1. Infants, children, elderly or dis-
abled persons, or hospital outpa-
tients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)

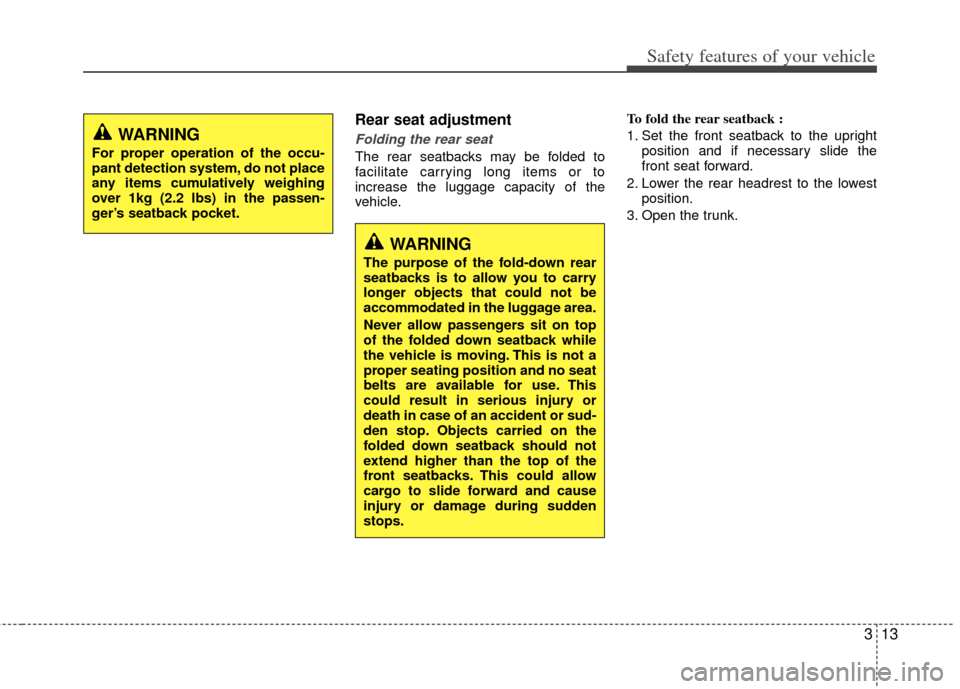

313
Safety features of your vehicle
Rear seat adjustment
Folding the rear seat
The rear seatbacks may be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.To fold the rear seatback :
1. Set the front seatback to the upright
position and if necessary slide the
front seat forward.
2. Lower the rear headrest to the lowest position.
3. Open the trunk.
WARNING
For proper operation of the occu-
pant detection system, do not place
any items cumulatively weighing
over 1kg (2.2 lbs) in the passen-
ger’s seatback pocket.
WARNING
The purpose of the fold-down rear
seatbacks is to allow you to carry
longer objects that could not be
accommodated in the luggage area.
Never allow passengers sit on top
of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This
could result in serious injury or
death in case of an accident or sud-
den stop. Objects carried on the
folded down seatback should not
extend higher than the top of the
front seatbacks. This could allow
cargo to slide forward and cause
injury or damage during sudden
stops.
