2012 KIA Optima Hybrid headrest

Safety features of your vehicle
23
Driver’s seat
(1) Seat adjustment, forward / backward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support
(5) Driver position memory system*
(6) Seat warmer switch*
(7) Headrest
Front passenger’s seat
(8) Seat adjustment, forward / backward
(9) Seatback recliner
(10) Seat warmer switch*
(11) Headrest
Rear seat
(12) Seat warmer*
(13) Headrest
(14) Armrest
* : if equipped
SEAT
OTFH030001N

Safety features of your vehicle
83
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a collision.For maximum effectiveness in case of an
accident, the headrest should be adjust-
ed so the middle of the headrest is at the
same height of the center of gravity of an
occupant's head. Generally, the center of
gravity of most people's head is similar
with the height of the top of their eyes.
Also, adjust the headrest as close to your
head as possible.
For this reason, the use of a cushion that
holds the body away from the seatback is
not recommended.
Forward and backward adjustment
The headrest may be adjusted forward to
4 different positions by pulling the head-
rest forward to the desired detent. To
adjust the headrest to it’s furthest back-
wards position, pull it fully forward to the
farthest position and release it. Adjust the
headrest so that it properly supports the
head and neck.
OMG038400
WARNING - Headrest
removal/adjustment
Do not operate the vehicle with
the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in motion.
Driver may lose control of the
vehicle.
OTF030012

39
Safety features of your vehicle
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal and installation
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling the headrest up (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
Seat warmer (if equipped)
The seat warmers are provided to warm
the front seats during cold weather. With
the ignition switch in the ON position,
push either of the switches to warm the
driver's seat or the front passenger's
seat.
OTF030010OTF030011
OTF030013N
OTF030045N

Safety features of your vehicle
12
3
Active headrest
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and
front passenger’s head from moving
backward and thus helps prevent neck
injuries.Seatback pocket
The seatback pocket is provided on the
back of the front passenger’s seatback.
HNF2041-1OTF030016
WARNING - Seatback
pocket
Do not put heavy or sharp objects
in the seatback pocket. An occu-
pant could contact such objects in
a crash. Heavy objects in the front
passenger seatback could also
interfere with the airbag sensing
system.

313
Safety features of your vehicle

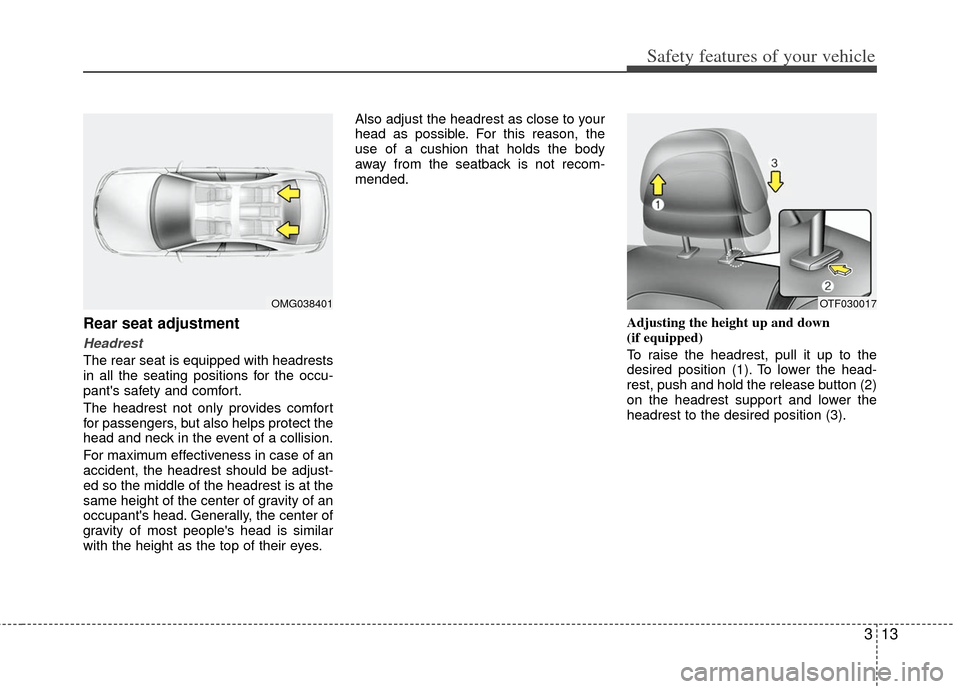

Rear seat adjustment
Headrest
The rear seat is equipped with headrests
in all the seating positions for the occu-
pant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps protect the
head and neck in the event of a collision.
For maximum effectiveness in case of an
accident, the headrest should be adjust-
ed so the middle of the headrest is at the
same height of the center of gravity of an
occupant's head. Generally, the center of
gravity of most people's head is similar
with the height as the top of their eyes.Also adjust the headrest as close to your
head as possible. For this reason, the
use of a cushion that holds the body
away from the seatback is not recom-
mended.
Adjusting the height up and down
(if equipped)
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
OMG038401OTF030017

Safety features of your vehicle
14
3
Removal and installation
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling the headrest upward (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height and ensure that
it locks in position.
Make sure the headrest locks in position
after adjusting.Seat warmer (if equipped)
The seat warmer is provided to warm the
rear seats during cold weather. With the
ignition switch in the ON position, push
either of the switches to warm the seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.
✽ ✽
NOTICE
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.
OTF030018OTF030025

331
Safety features of your vehicle
1. Route the child restraint seat tetherstrap over the seatback.
For vehicles with adjustable headrest,
route the tether strap under the head-
rest and between the headrest posts,
otherwise route the tether strap over
the top of the seatback.
2. Connect the tether strap hook to the appropriate child restraint hook holder
and tighten to secure the child restraint
seat. Check that the child restraint system is
secure by pushing and pulling it in differ-
ent directions. Incorrectly fitted child
restraints may swing, twist, tip or sepa-
rate causing death or serious injury.Securing a child restraint seat with
child seat lower anchor system
Some child seat manufacturers make
child restraint seats that are labeled as
LATCH or LATCH-compatible child
restraint seats. LATCH stands for "Lower
Anchors and Tethers for Children". These
seats include two rigid or webbing
mounted attachments that connect to
two LATCH anchors at specific seating
positions in your vehicle. This type of
child restraint seat eliminates the need to
use seat belts to attach the child seat in
the rear seats.
WARNING - Tether strap
Never mount more than one child
restraint to a single tether or to a
single lower anchorage point. The
increased load caused by multiple
seats may cause the tethers or
anchorage points to break.
OTF030030NB230D01NF

I5
Index
GaugeEngine temperature gauge ··················\
··················\
·······4-50
Fuel gauge ··················\
··················\
··················\
·············4-49
Glass antenna ··················\
··················\
··················\
·········4-117
Glove box··················\
··················\
··················\
···············4-111
Hazard warning flasher ··················\
··················\
··············4-80
Hazardous driving conditions ··················\
··················\
··· 5-33
Headrest ··················\
··················\
··················\
············3-8, 3-13
HEV powertrain ··················\
··················\
··················\
·········1-5
Highway driving ··················\
··················\
··················\
······5-36
Homelink mirror, see the Electric chromic mirror (ECM) with homeLink system ··················\
··················\
············4-37
Hood··················\
··················\
··················\
··················\
·······4-24
Horn ··················\
··················\
··················\
··················\
·······4-35
How to use this manual ··················\
··················\
···············1-2
Hybrid Kia Hybrid system ··················\
··················\
··················\
···H2
State of charge (SOC) ··················\
··················\
················H3
Optima hev energy flow ··················\
··················\
···H4, 4-53
The componets of hybrid vehicle ··················\
················H8
The air intake of hybrid battery ··················\
·················H13
The READY indicator ··················\
··················\
·············4-52
The ECO level display mode ··················\
··················\
·····H2 The EV MODE··················\
··················\
··················\
······4-62
The service indicator ··················\
··················\
···············4-62
The ECO GUIDE ··················\
··················\
··················\
··4-51
Indicator symbols on the instrument cluster ··················\
·1-6
Indicators and warnings ··················\
··················\
·············4-61
Inside rearview mirror ··················\
··················\
···············4-37
Instrument cluster ··················\
··················\
··················\
····4-47 Engine temperature gauge ··················\
··················\
·······4-50
Fuel gauge ··················\
··················\
··················\
·············4-49
Instrument panel illumination ··················\
··················\
·4-48
Odometer ··················\
··················\
··················\
···············4-48
Speedometer ··················\
··················\
··················\
··········4-48
Trip computer ··················\
··················\
··················\
········4-52
Warning and indicators ··················\
··················\
············4-61
Instrument panel fuse··················\
··················\
·················7-52\
Instrument panel illumination··················\
··················\
····4-48
Instrument panel overview··················\
··················\
···········2-3
Interior care··················\
··················\
··················\
··············7-66
Interior features··················\
··················\
··················\
······4-113 Aux, USB and iPod port··················\
··················\
········4-119
Clothes hanger ··················\
··················\
··················\
·····4-115
Cup holder ··················\
··················\
··················\
···········4-113
Digital clock ··················\
··················\
··················\
········4-115
Floor mat anchor(s) ··················\
··················\
···············4-116
Power outlet ··················\
··················\
··················\
········ 4-114
Sunvisor ··················\
··················\
··················\
···············4-113
