2012 JEEP WRANGLER fuse

Cavity CartridgeFuseMini
Fuse Description
J9 40 Amp Green PZEV Sec Motor/Flex
Fuel
J10 30 Amp Pink Headlamp Wash
Relay/Manifold
Tuning Valve
J11 30 Amp Pink Sway Bar
J12 30 Amp Pink Rear Blower Motor/
Radiator Fan
J13 60 Amp Yellow Ignition Off Draw
(IOD) – Main
J14 40 Amp Green Rear Defroster
J15 40 Amp Green Front Blower
J17 40 Amp Green Starter SolenoidCavity Cartridge
FuseMini
Fuse Description
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp
Blue Center High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp
Feed
M2 20 Amp
Yellow Relay Trailer Lighting
(Stoplamp)
550 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
M3 20 Amp
Yellow Frt/Rear Axle Locker
Relay
M4 — —
M5 25 Amp
Natural Power Inverter – If
Equipped
M6 20 Amp
Yellow Power Outlet #1/Rain
Sensor
M7 20 Amp
Yellow Power Outlet #2
(BATT/ACC SELECT)
M8 20 Amp
Yellow Front Heated Seat
M9 20 Amp
Yellow Rear Heated Seat – If
EquippedCavity Cartridge
FuseMini
Fuse Description
M10 15 Amp
Blue Ignition Off Draw –
Vehicle Entertainment
System, Satellite Digi-
tal Audio Receiver
(SDARS), DVD,
Hands-Free Module,
RADIO, Antenna,
Universal Garage
Door Opener, Vanity
Lamp
M11 10 Amp
Red (Ignition Off Draw)
Climate Control Sys-
tem, Underhood
Lamp
M12 30 Amp
Green Amplifier
7
MAINTAINING YOUR VEHICLE 551

Cavity CartridgeFuseMini
Fuse Description
M13 20 Amp YellowIgnition Off Draw –
Cabin Compartment
Node, Wireless Con-
trol Module, SIREN,
Multifunction Control
Switch
M14 20 Amp YellowTrailer Tow (Export
Only)
M15 20 Amp YellowClimate Control Sys-
tem, Rear View Mir-
ror, Cabin Compart-
ment Node, Transfer
Case Switch, Multi-
Function Control
Switch, Tire Pressure
Monitor, Glow Plug
Module – Export Die-
sel OnlyCavity Cartridge
FuseMini
Fuse Description
M16 10 Amp
Red Airbag Module
M17 15 Amp
Blue Left Tail/License/
Park Lamp
M18 15 Amp
Blue Right Tail/Park/Run
Lamp
M19 25 Amp
Natural Auto Shut Down
(ASD #1 and #2)
M20 15 Amp
Blue Cabin Compartment
Node Interior Light,
Switch Bank
M21 20 Amp
Yellow Auto Shut Down
(ASD #3)
M22 10 Amp
Red Right Horn (HI/
LOW)
M23 10 Amp
Red Left Horn (HI/LOW)
552 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
M24 25 Amp NaturalRear Wiper
M25 20 Amp YellowFuel Pump, Diesel
Lift Pump – Export
Only
M26 10 Amp RedPower Window
Switch, Driver Win-
dow Switch
M27 10 Amp RedIgnition Switch Feed,
Wireless Module
M28 10 Amp RedPowertrain Control
Module
M29 10 Amp RedPowertrain
M30 15 Amp BlueWiper Motor Frt,
J1962 Diagnostic FeedCavity Cartridge
FuseMini
Fuse Description
M31 20 Amp
Yellow Backup Lamps
M32 10 Amp
Red Airbag Controller, TT
EUROPE
M33 10 Amp
Red Powertrain Controller
M34 10 Amp
Red Park Assist, Climate
Control System,
Headlamp Wash,
Compass
M35 10 Amp
Red Heated Mirrors
M36 20 Amp
Yellow Power Outlet
7
MAINTAINING YOUR VEHICLE 553

Cavity CartridgeFuseMini
Fuse Description
M37 10 Amp RedAnti-Lock Brake Sys-
tem, Electronic Stabil-
ity Control, Stop
Lamp Switch, Fuel
Pump Relay
M38 25 Amp NaturalLock/Unlock Motors
CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may:
•Remove Cartridge fuse #J13 in the Power Distribution
Center (PDC) labeled Ignition-Off Draw (IOD) and
store it in a safe location within the PDC.
•Or, disconnect the negative cable from the battery.
554 MAINTAINING YOUR VEHICLE

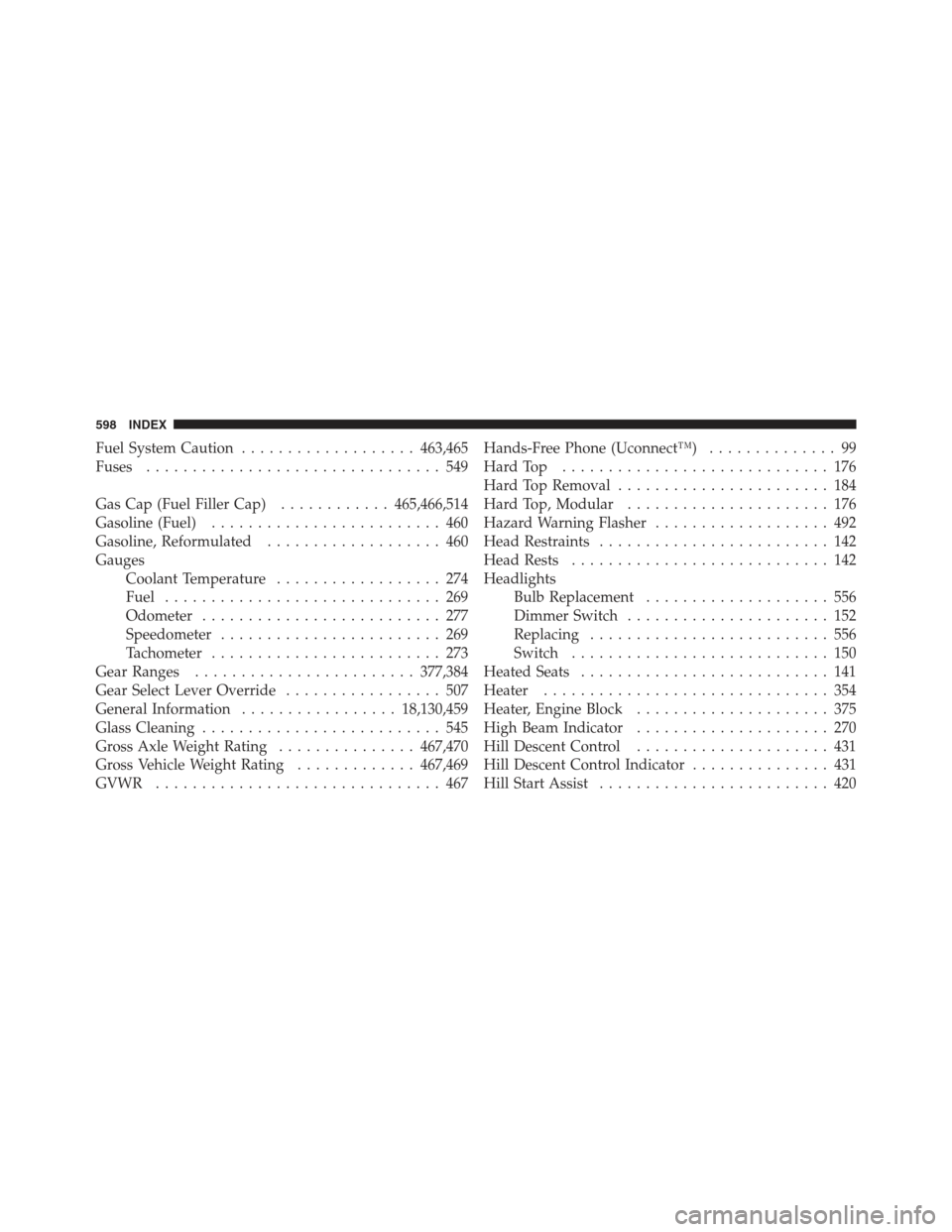

Fuel System Caution................... 463,465
