2012 JEEP LIBERTY Owners Manual

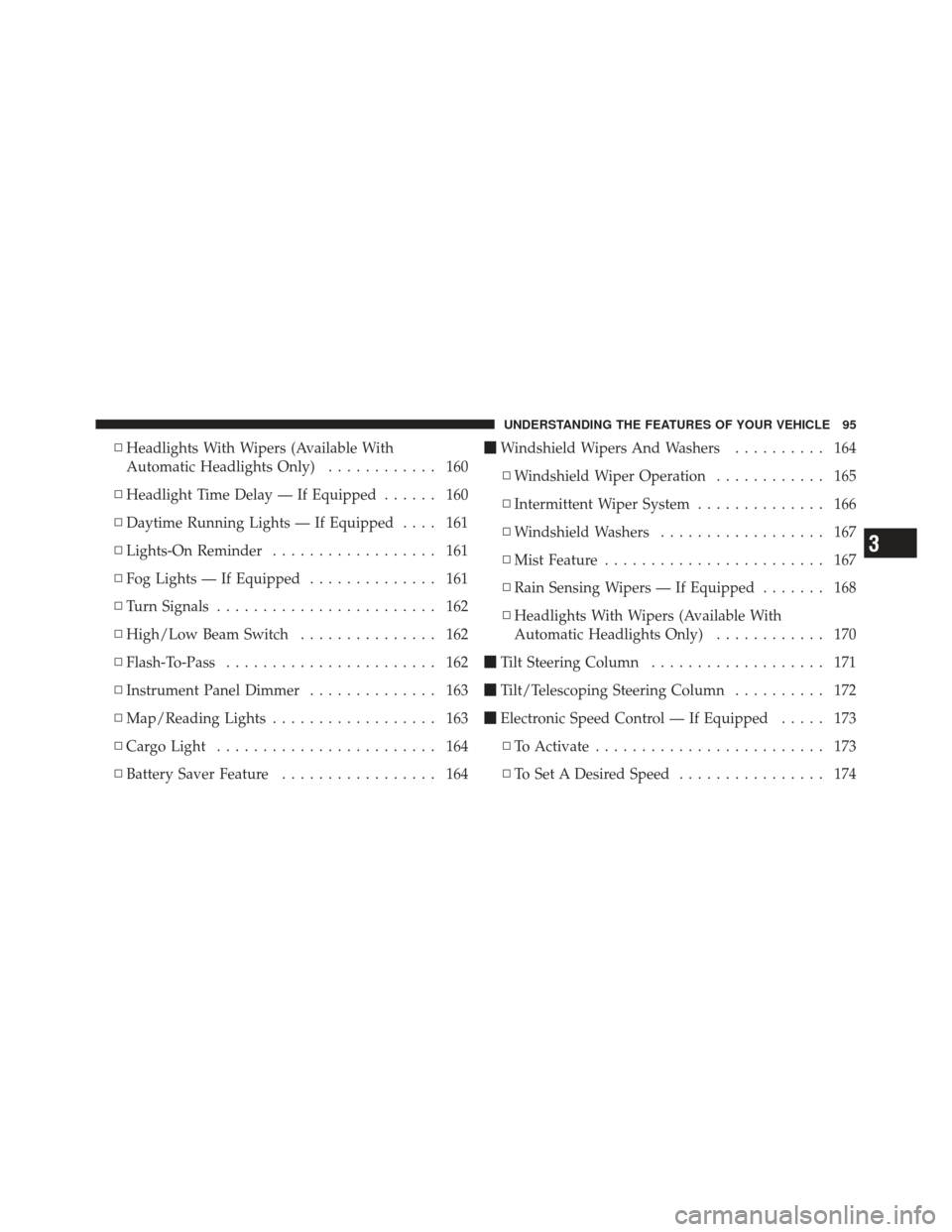

▫Headlights With Wipers (Available With
Automatic Headlights Only) ............ 160
▫ Headlight Time Delay — If Equipped ...... 160
▫ Daytime Running Lights — If Equipped .... 161
▫ Lights-On Reminder .................. 161
▫ Fog Lights — If Equipped .............. 161
▫ Turn Signals ........................ 162
▫ High/Low Beam Switch ............... 162
▫ Flash-To-Pass ....................... 162
▫ Instrument Panel Dimmer .............. 163
▫ Map/Reading Lights .................. 163
▫ Cargo Light ........................ 164
▫ Battery Saver Feature ................. 164
Windshield Wipers And Washers .......... 164
▫ Windshield Wiper Operation ............ 165
▫ Intermittent Wiper System .............. 166
▫ Windshield Washers .................. 167
▫ Mist Feature ........................ 167
▫ Rain Sensing Wipers — If Equipped ....... 168
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 170
 Tilt Steering Column ................... 171
 Tilt/Telescoping Steering Column .......... 172
 Electronic Speed Control — If Equipped ..... 173
▫ To Activate ......................... 173
▫ To Set A Desired Speed ................ 174
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

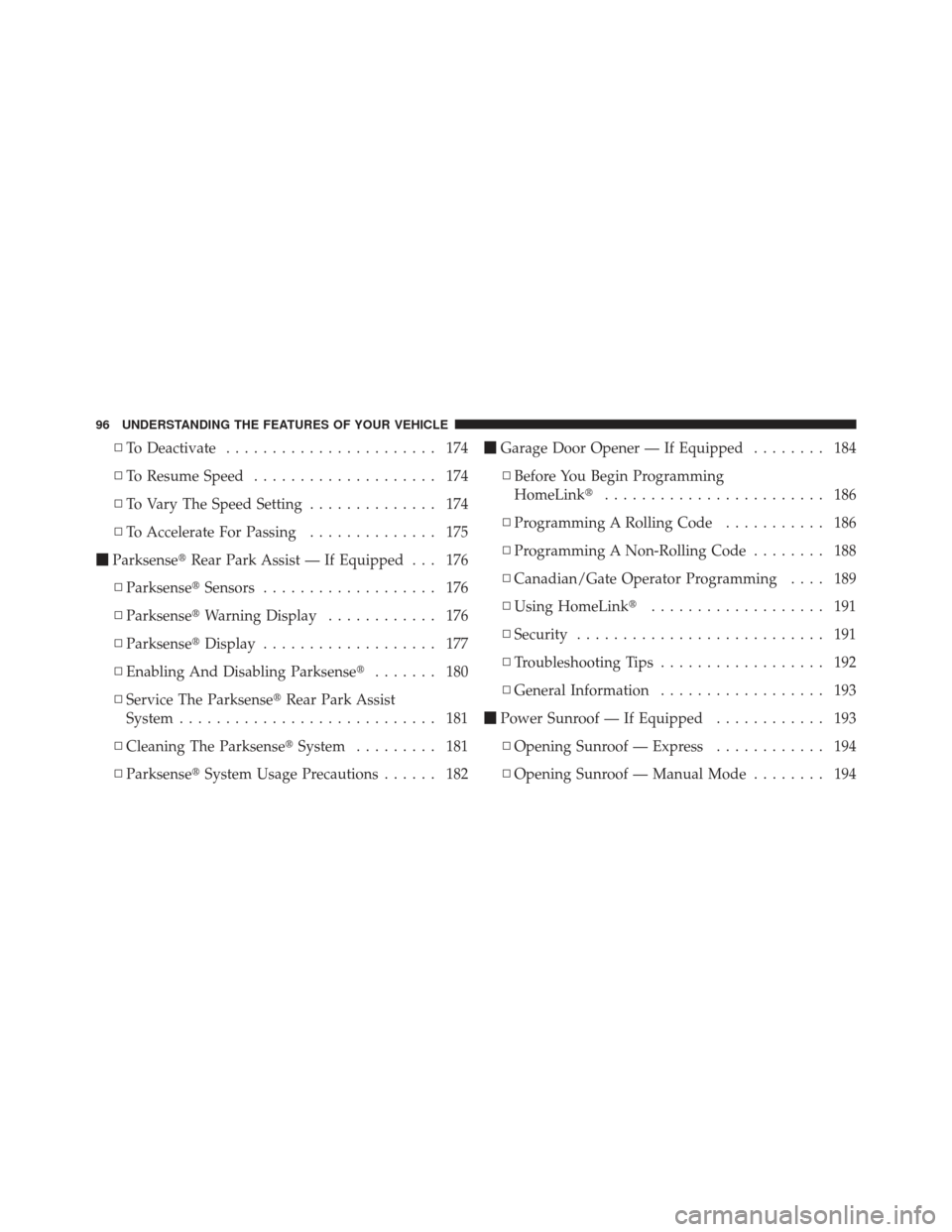

▫To Deactivate ....................... 174
▫ To Resume Speed .................... 174
▫ To Vary The Speed Setting .............. 174
▫ To Accelerate For Passing .............. 175
 Parksense Rear Park Assist — If Equipped . . . 176
▫ Parksense Sensors................... 176
▫ Parksense Warning Display ............ 176
▫ Parksense Display................... 177
▫ Enabling And Disabling Parksense ....... 180
▫ Service The Parksense Rear Park Assist
System ............................ 181
▫ Cleaning The Parksense System......... 181
▫ Parksense System Usage Precautions ...... 182
Garage Door Opener — If Equipped ........ 184
▫ Before You Begin Programming
HomeLink ........................ 186
▫ Programming A Rolling Code ........... 186
▫ Programming A Non-Rolling Code ........ 188
▫ Canadian/Gate Operator Programming .... 189
▫ Using HomeLink ................... 191
▫ Security ........................... 191
▫ Troubleshooting Tips .................. 192
▫ General Information .................. 193
 Power Sunroof — If Equipped ............ 193
▫ Opening Sunroof — Express ............ 194
▫ Opening Sunroof — Manual Mode ........ 194
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

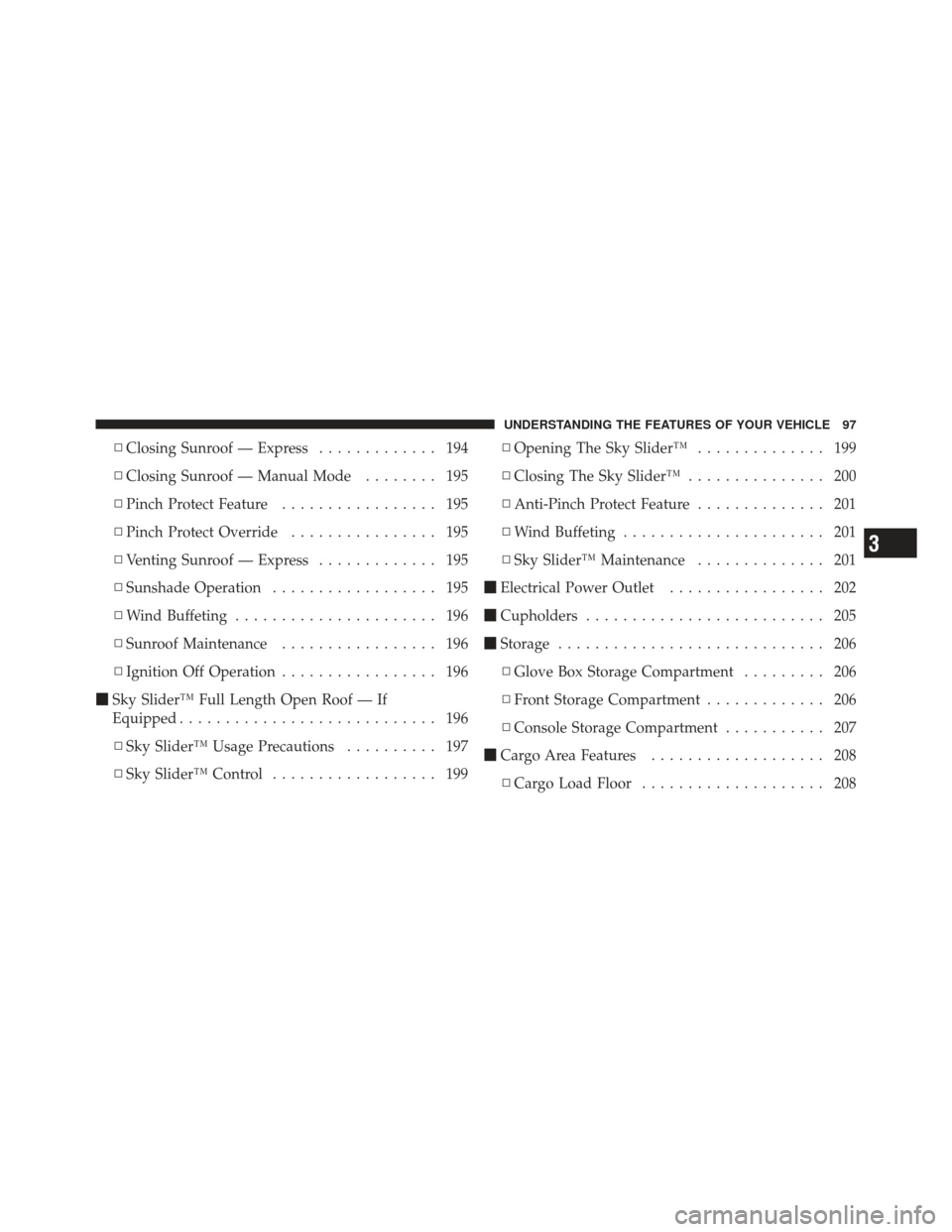

▫Closing Sunroof — Express ............. 194
▫ Closing Sunroof — Manual Mode ........ 195
▫ Pinch Protect Feature ................. 195
▫ Pinch Protect Override ................ 195
▫ Venting Sunroof — Express ............. 195
▫ Sunshade Operation .................. 195
▫ Wind Buffeting ...................... 196
▫ Sunroof Maintenance ................. 196
▫ Ignition Off Operation ................. 196
 Sky Slider™ Full Length Open Roof — If
Equipped ............................ 196
▫ Sky Slider™ Usage Precautions .......... 197
▫ Sky Slider™ Control .................. 199 ▫
Opening The Sky Slider™ .............. 199
▫ Closing The Sky Slider™ ............... 200
▫ Anti-Pinch Protect Feature .............. 201
▫ Wind Buffeting ...................... 201
▫ Sky Slider™ Maintenance .............. 201
 Electrical Power Outlet ................. 202
 Cupholders .......................... 205
 Storage ............................. 206
▫ Glove Box Storage Compartment ......... 206
▫ Front Storage Compartment ............. 206
▫ Console Storage Compartment ........... 207
 Cargo Area Features ................... 208
▫ Cargo Load Floor .................... 208
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

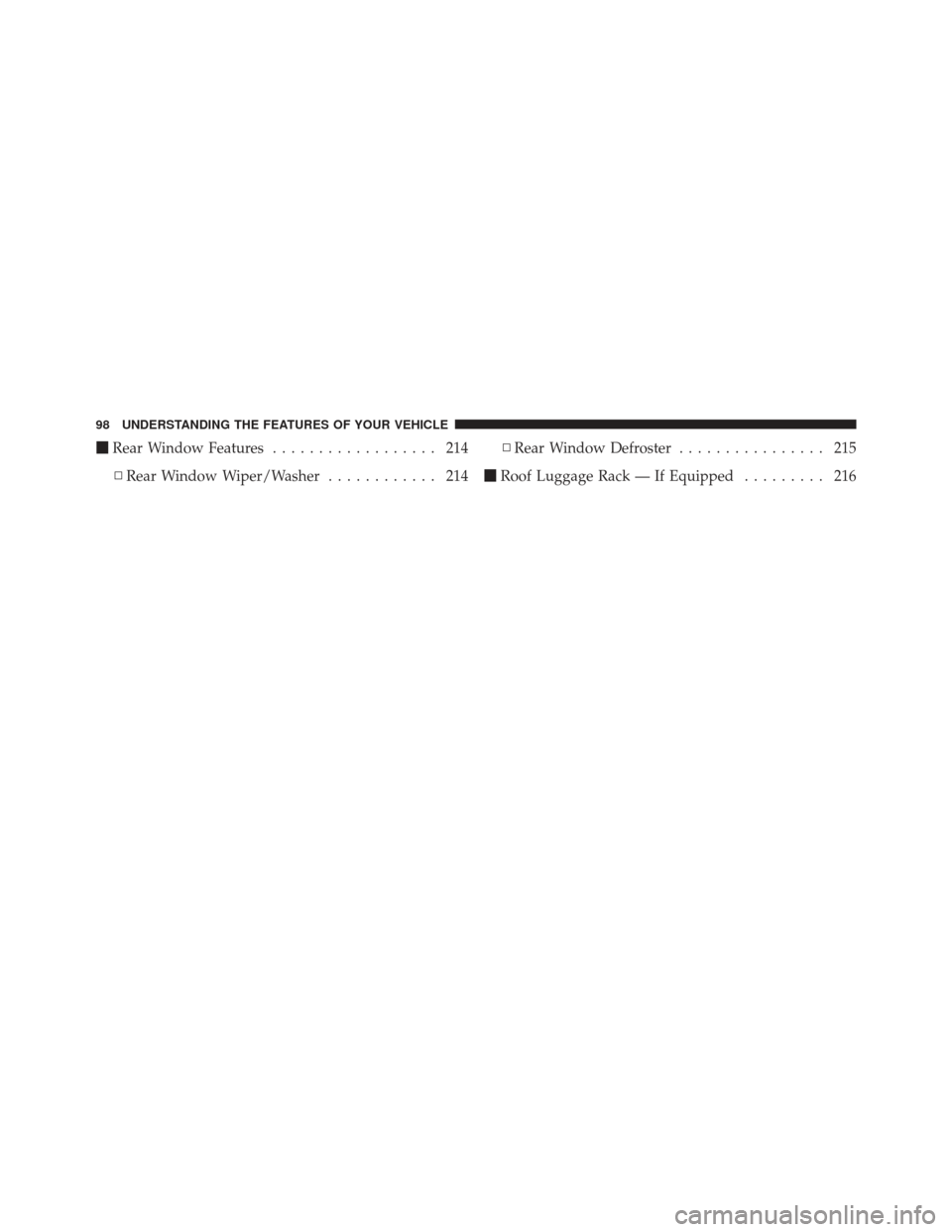

Rear Window Features .................. 214
▫ Rear Window Wiper/Washer ............ 214▫
Rear Window Defroster ................ 215
 Roof Luggage Rack — If Equipped ......... 216
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

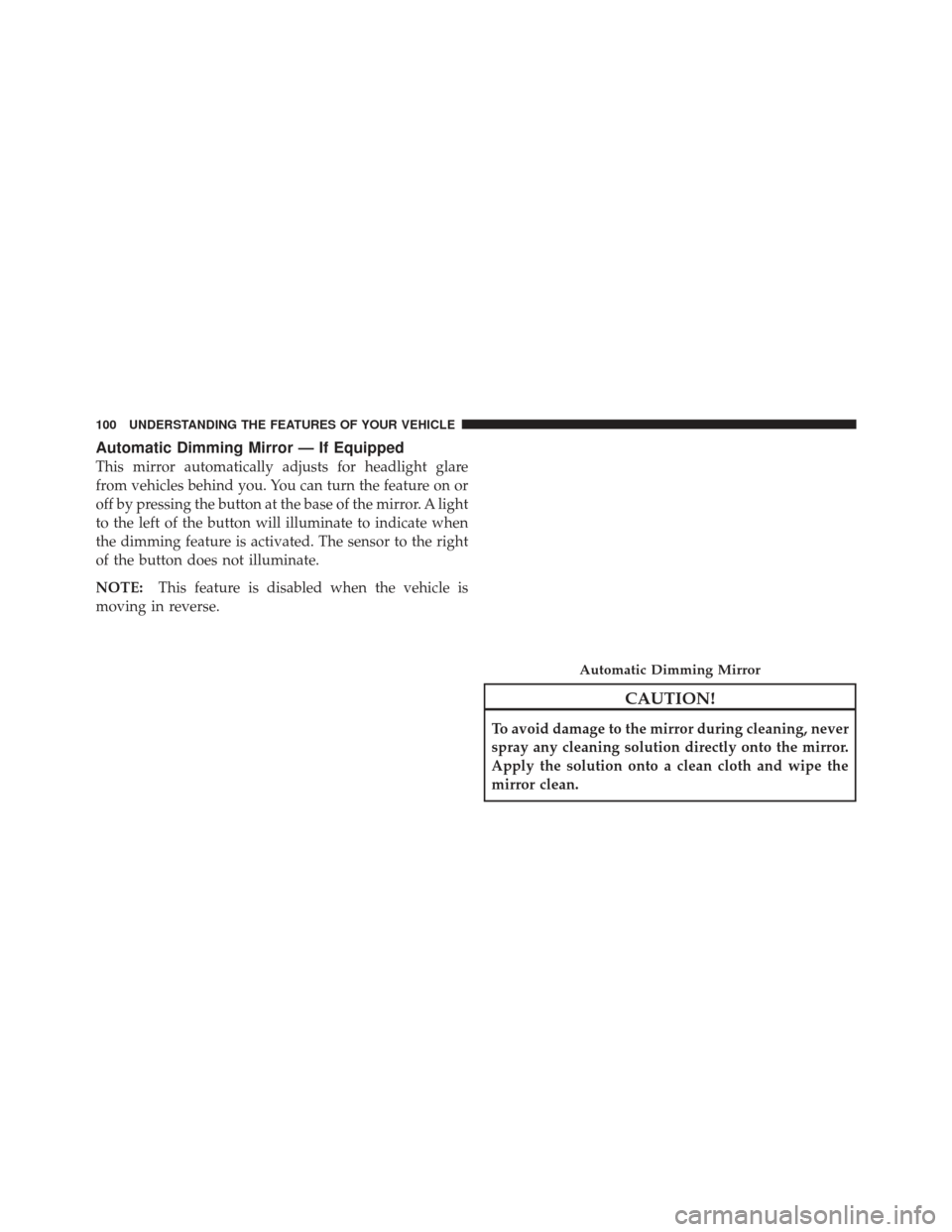

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Power Mirrors
The power mirror switch is located on the driver’s door
trim panel.
Power Mirror Switch
1 — Mirror Direction Control
2 — Left and Right Mirror Select
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

Models With Express Window Feature
Press and release the mirror select button marked L (left)
or R (right) and then press one of the four arrow buttons
to move the mirror in the direction the arrow is pointing.
The selection will time out after 30 seconds of inactivity
to guard against accidentally moving a mirror position
following an adjustment.
NOTE:For vehicles equipped with Driver Memory
Seat, you can use your Remote Keyless Entry (RKE)
transmitter or the memory switch on the instrument
panel to return the power mirrors to pre-programmed
positions. Refer to “Driver Memory Seat” in “Under-
standing The Features Of Your Vehicle” for further
information.
Models Without Express Window Feature
Press the mirror select button marked L (left) or R (right)
and then press one of the four arrow buttons to move the
mirror in the direction the arrow is pointing.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features of Your Vehicle” for further
information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover will turn off the light.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
