Ambient LightThe overhead console is equipped with an
ambient light feature. This light casts illumina-
tion for improved visibility of the floor center
console and PRNDL area.
Multifunction LeverThe multifunction lever is located on the left
side of the steering column.
Turn SignalsMove the multifunction lever up or down and
the arrows on each side of the instrument
cluster flash to show proper operation of the
front and rear turn signal lights.
NOTE:
If either light remains on and does not flash,
or there is a very fast flash rate, check for a
defective outside light bulb. If an indicator
fails to light when the lever is moved, it
would suggest that the indicator bulb is
defective.
Lane Change AssistTap the lever up or down once, without moving
beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn
off.
Flash-To-PassYou can signal another vehicle with your head-
lights by partially pulling the multifunction lever
toward the steering wheel. This will cause the
high beam headlights to turn on until the lever
is released.
High/Low Beam SwitchPush the multifunction lever toward the instru-
ment panel to switch the headlights to high
beam. Pulling the multifunction back toward the
steering wheel will turn the low beams back on,
or shut the high beams off.
Ambient Light
Multifunction Lever
11 0

than 30 mph (48 km/h), see your authorized
dealer as soon as possible to have the problem
diagnosed and corrected.
NOTE:
•The “ESC Off Indicator Light” and the
“ESC Activation/Malfunction Indicator
Light” come on momentarily each time
the ignition switch is turned to ON/RUN.
• Each time the ignition is turned to ON/
RUN, the ESC system will be ON, even if it
was turned off previously.
• The ESC system will make buzzing or
clicking sounds when it is active. This is
normal; the sounds will stop when ESC
becomes inactive following the maneuver
that caused the ESC activation.
5. TOW/HAUL Indicator Light — If
Equipped This light will illuminate when the
TOW/HAUL button has been se-
lected. The TOW/HAUL button is
located in the center of the instru-
ment panel (below the climate
controls). 6. Turn Signal Indicator
The arrows will flash with the exterior turn
signals when the turn signal lever is op-
erated. A tone will chime, and an EVIC
message will appear if the turn signals are left
on for more than 1 mile (1.6 km).
NOTE:
Check for an inoperative outside light bulb if
either indicator flashes at a rapid rate.
7. High Beam Indicator Indicates that headlights are on high
beam.
8. Front Fog Light Indicator — If Equipped This indicator will illuminate when the
front fog lights are on.
9. Hill Descent Control Indicator Light — If
Equipped The symbol indicates the status of
the Hill Decent Control (HDC) fea-
ture. The lamp will be on solid
when HDC is armed. HDC can
only be armed when the transfer
case is in the “4WD Low” position and the vehicle speed is less then 30 mph
(48 km/h). If these conditions are not met while
attempting to use the HDC feature, the HDC
indicator lamp will flash on/off.
10. Electronic Vehicle Information Center
(EVIC) Display/Odometer Display
The odometer display shows the total distance
the vehicle has been driven.
When the appropriate conditions exist, this
display shows the Electronic Vehicle Informa-
tion Center (EVIC) messages. Refer to “Elec-
tronic Vehicle Information Center”.
11. Tire Pressure Monitoring Telltale Light
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recom-
mended by the vehicle manufac-
turer on the vehicle placard or tire
inflation pressure label. (If your vehicle has tires
of a different size than the size indicated on the
vehicle placard or tire inflation pressure label,
you should determine the proper tire inflation
pressure for those tires.)
160

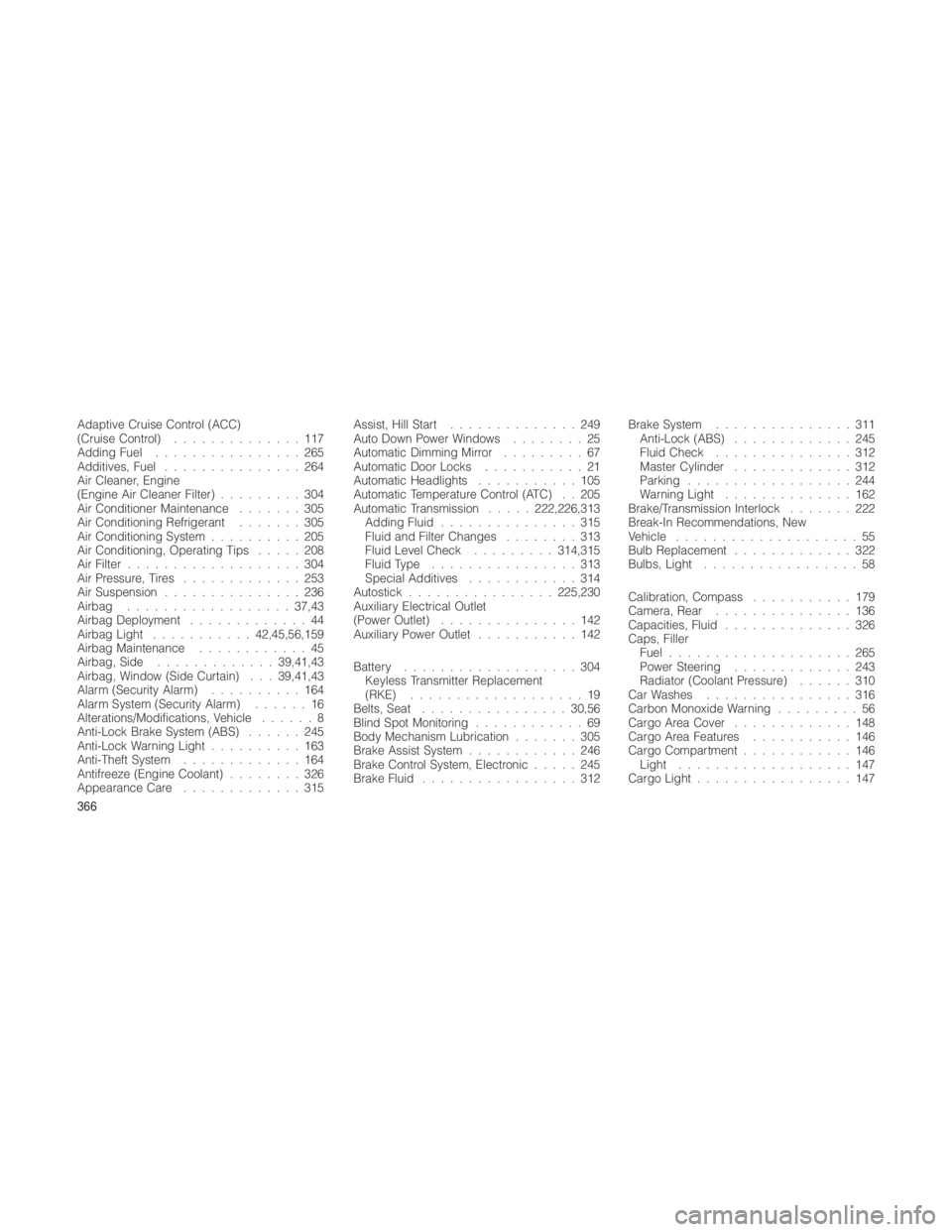

Adaptive Cruise Control (ACC)
(Cruise Control)..............117
Adding Fuel ................265
Additives, Fuel ...............264
Air Cleaner, Engine
(Engine Air Cleaner Filter) .........304
Air Conditioner Maintenance .......305
Air Conditioning Refrigerant .......305
Air Conditioning System ..........205
Air Conditioning, Operating Tips .....208
Air Filter ...................304
Air Pressure, Tires .............253
Air Suspension ...............236
Airbag .................. 37,43
Airbag Deployment .............44
Airbag Light ........... 42,45,56,159
Airbag Maintenance ............45
Airbag, Side ............. 39,41,43
Airbag, Window (Side Curtain) . . . 39,41,43
Alarm (Security Alarm) ..........164
Alarm System (Security Alarm) ......16
Alterations/Modifications, Vehicle ......8
Anti-Lock Brake System (ABS) ......245
Anti-Lock Warning Light ..........163
Anti-Theft System .............164
Antifreeze (Engine Coolant) ........326
Appearance Care .............315 Assist, Hill Start
..............249
Auto Down Power Windows ........25
Automatic Dimming Mirror .........67
Automatic Door Locks ...........21
Automatic Headlights ...........105
Automatic Temperature Control (ATC) . . 205
Automatic Transmission .....222,226,313
Adding Fluid ...............315
Fluid and Filter Changes ........313
Fluid Level Check .........314,315
Fluid Type ................313
Special Additives ............314
Autostick ................ 225,230
Auxiliary Electrical Outlet
(Power Outlet) ...............142
Auxiliary Power Outlet ...........142
Battery ...................304
Keyless Transmitter Replacement
(RKE) ...................19
Belts, Seat ................ 30,56
Blind Spot Monitoring ............69
Body Mechanism Lubrication .......305
Brake Assist System ............246
Brake Control System, Electronic .....245
Brake Fluid .................312 Brake System
...............311
Anti-Lock
(ABS) .............245
Fluid Check ...............312
Master Cylinder .............312
Parking ..................244
Warning Light ..............162
Brake/Transmission Interlock .......222
Break-In Recommendations, New
Vehicle ....................55
Bulb Replacement .............322
Bulbs, Light .................58
Calibration, Compass ...........179
Camera, Rear ...............136
Capacities, Fluid ..............326
Caps, Filler Fuel ....................265
Power Steering .............243
Radiator (Coolant Pressure) ......310
Car Washes ................316
Carbon Monoxide Warning .........56
Cargo Area Cover .............148
Cargo Area Features ...........146
Cargo Compartment ............146
Light ...................147
Cargo Light .................147
366

Gas Cap (Fuel Filler Cap)....265,266,301
Gasoline (Fuel) ...............262
Conserving ................173
Gasoline, Clean Air ............263
Gauges Coolant Temperature ..........164
Fuel ....................163
Speedometer ..............163
Tachometer ...............159
Gear Ranges ............. 222,226
Gear Select Lever Override ........290
General Information ........15,20,262
Glass Cleaning ...............318
Gross Axle Weight Rating .........267
Gross Vehicle Weight Rating .......267
Hands-Free Phone (Uconnect™) .....74
Hazard Warning Flasher .........282
Headlights .................322
Bulb Replacement ...........323
Cleaning .................317
On With Wipers .............106
Replacing ................323
Heated Mirrors ...............68
High Beam Indicator ...........160
Hill Descent Control ............250 Hill Descent Control Indicator
......160
Hill Start Assist ...............249
Holder, Cup ................144
Hood Release ...............104
Ignition ....................13
Key ................... 12,13
Ignition Key Removal ............13
Illuminated Entry ..............17
Immobilizer (Sentry Key) ..........14
Infant Restraint .............. 47,49
Inflation Pressure Tires ..........253
Information Center, Vehicle ........164
Inside Rearview Mirror ...........67
Instrument Cluster .............159
Instrument Panel and Controls ......157
Instrument Panel Lens Cleaning .....318
Integrated Power Module (Fuses) ....318
Interior Appearance Care .........317
Intermittent Wipers (Delay Wipers) ....111
Introduction ..................4
Jack Location ...............283
Jack Operation ............ 283,284
Jacking Instructions ............284
Jump Starting ...............287 Key-In
Reminder
..............14
Key, Programming .............15
Key, Replacement ..............15
Key, Sentry (Immobilizer) ..........14
Keyless Enter-N-Go ........22,176,216
Keyless Entry System ............17
Keyless Go ............... 12,176
Keys .....................12
Lap/Shoulder Belts .............30
LATCH (Lower Anchors and Tether for
CHildren) ...................51
Latches ...................58
Lead Free Gasoline ............262
Leaks, Fluid .................58
Liftgate ....................26
Liftgate Flipper Glass ............27
Liftgate Window Wiper/Washer ......149
Light Bulbs ..................58
Lights .................. 58,105
Airbag ............. 42,45,56,159
Anti-Lock .................163
Automatic Headlights ..........105
Back-Up .................324
Brake Assist Warning ..........251
Brake Warning ..............162
369

Bulb Replacement...........322
Cargo ..................147
Center Mounted Stop ..........325
Daytime Running ............107
Dimmer Switch, Headlight .......105
Electronic Stability Program (ESP)
Indicator .................251
Exterior ..................58
Fog ............... 108,160,323
Fuses ...................318
Hazard Warning Flasher ........282
Headlights ............. 322,323
Headlights On With Wipers .......106
High Beam Indicator ..........160
Hill Descent Control Indicator .....160
Illuminated Entry .............17
Low Fuel .................170
Malfunction Indicator
(Check Engine) .............159
Map Reading ..............109
Reading ............... 109,138
Rear Fog .................164
Rear Servicing ..............324
Rear Tail .................324
Seat Belt Reminder ...........162
Security Alarm (Theft Alarm) ......164
Service ..................322 Service Engine Soon
(Malfunction Indicator)
.........159
Side Marker ...............324
SmartBeams ...............106
Tire Pressure Monitoring (TPMS) ....160
Tow/Haul Indicator ...........160
Traction Control .............251
Turn Signal ......... 58,105,323,324
Vanity Mirror ................69
Locks .....................20
Automatic Door ..............21
Child Protection ..............21
Door ....................20
Power Door ................21
Steering Wheel ..............14
Lower Anchors and Tether for CHildren
(LATCH) ...................51
Lubrication, Body .............305
Maintenance Free Battery .........304
Maintenance Procedures .........301
Maintenance Schedule ........332,344
Malfunction Indicator Light
(Check Engine) ..............159
Memory Feature (Memory Seat) .....101
Memory Seat ................101 Memory Seats and Radio
.........101
Methanol .................. 263
Methanol Fuel ...............263
Mini-Trip Computer ............174
Mirrors ....................67
Automatic Dimming ............67
Electric Powered .............68
Electric Remote ..............68
Exterior Folding ..............68
Heated ...................68
Outside ..................67
Power Folding ...............68
Rearview ..................67
Vanity ...................69
Mode Fuel Saver ................173
Modifications/Alterations, Vehicle ......8
Monitor, Tire Pressure System ......257
Mopar Parts ................301
Multi-Displacement Engine System . . . 244
Multi-Function Control Lever .......105
New Vehicle Break-In Period ........55
Occupant Restraints .........29,41,44
Occupant Restraints (Sedan) ....39,41,43
370
