2012 JEEP GRAND CHEROKEE display

NOTE:
Significant changes in driving style or ve-
hicle loading will greatly affect the actual
drivable distance of the vehicle, regardless
of the DTE displayed value.
When the DTE value is less than 30 miles
(48 km) estimated driving distance, the DTE
display will change to a “LOW FUEL” message.
This display will continue until the vehicle runs
out of fuel. Adding a significant amount of fuel
to the vehicle will turn off the “LOW FUEL”
message and a new DTE value will display.
Miles Per Gallon (MPG) Or 100L/Km
This display shows the instantaneous MPG or
100L/Km in bar graph form while driving. This
will monitor the gas mileage in real-time as you
drive and can be used to modify driving habits
in order to increase fuel economy.Adaptive Cruise ControlPress and release the UP or DOWN button until
ACC(if equipped with Adaptive Cruise Con-
trol) is highlighted in the EVIC. Status of the
ACC is displayed in the menu line also. Press
and release the SELECT (right arrow) button to
display the following information:
• If equipped with ACC, one of several mes-
sages will be displayed giving a dynamic
update of the status of the feature as the
driver changes feature status or following
conditions change. If ACC is active and a
warning or other feature is in the EVIC main
display, the ACC status will be displayed in
place of the EVIC odometer line.
Press and release the BACK button to return to
the main menu.
Vehicle SpeedPress and release the UP or DOWN button until
“Vehicle Speed” displays highlighted in the
EVIC and press the SELECT button. Press the
SELECT button to display the current speed in
mph or km/h. Pressing the SELECT button a
second time will toggle the unit of measure
between mph or km/h. NOTE:
Changing the unit of measure in the Vehicle
Speed menu will not change the unit of
measure in the EVIC.
Trip InfoPress and release the UP or DOWN button until
“Trip Info” displays highlighted in the EVIC and
press the SELECT button. Press and release
the UP/DOWN buttons until one of the following
Trip functions displays in the EVIC:
•
Trip A
• Trip B
• Elapsed Time
Trip A
Shows the total distance traveled for Trip A
since the last reset.
Trip B
Shows the total distance traveled for Trip B
since the last reset.
174

Elapsed Time
Shows the total elapsed time of travel since the
last reset when the ignition switch is in the ACC
position. Elapsed time will increment when the
ignition switch is in the ON or START position.
To Reset The Display
Reset will only occur while a resettable function
is being displayed. Press and release the SE-
LECT button once to clear the resettable func-
tion being displayed.
UnitsPress and release the UP or DOWN button until
“Units” displays highlighted in the EVIC and
press the SELECT button. The EVIC, odometer,
and navigation system (if equipped) can be
changed between English and Metric units of
measure. To make your selection, scroll up or
down until the preferred setting is highlighted,
then press and release the SELECT button until
a check-mark appears next to the setting,
showing that the setting has been selected.
Vehicle Info
(Customer Information Features)
Press and release the UP or DOWN button until
“Vehicle Info” displays highlighted in the EVIC
and press the SELECT button. Press the UP
and DOWN button to scroll through the avail-
able information displays, then press SELECT
to display any one of the following choices.
•Oil Temp (If Equipped)
Displays the actual oil temperature.
• Oil Pressure (If Equipped)
Displays the actual oil pressure.
• Coolant Temp
Displays the actual coolant temperature.
• Trans Temperature
Displays the actual transmission temperature
when the shift lever is in the Drive position. •
Engine Hours
Displays the number of hours of engine opera-
tion.
Tire PSI or Tire KPA
Press and release the UP or DOWN button until
“Tire PSI” or “Tire KPA” displays highlighted in
the EVIC and press the SELECT button. Press
and release the UP/DOWN buttons until one of
the following System Status messages displays
in the EVIC:
• System OK
• System Warnings Displayed (will display all
currently active System Warnings)
175

•Tire Pressure Monitor System (shows the
current pressure of all four road tires). For
additional information, refer to “Tire Pressure
Monitor System” in “Starting And Operating”. NOTE:
•
Tires heat up during normal driving con-
ditions. Heat will cause the tire pressure
to increase from 2 to 6 psi (14 to 41 KPA)
during normal driving conditions. Refer to
“Tires-General Information/Tire Inflation
Pressures” in “Starting And Operating”
for additional information.
• Your system can be set to display pres-
sure units in PSI, KPA.
Keyless Enter-N-Go Display — If
Equipped
When the ENGINE START/STOP button is
pressed to change ignition switch positions, the
Keyless Enter-N-Go icon momentarily appears
in the lower right corner of the EVIC display
showing the new ignition switch position.
Refer to “Keyless Enter-N-Go” in “Starting And
Operating” for more information.
NOTE:
Under certain conditions, the display may be
superseded by another display of higher pri-
ority. But when the ignition switch position is
changed, the display always re-appears.
Compass / Temperature DisplayThe compass readings indicate the direction
the vehicle is facing. The EVIC will display one
of eight compass readings and the outside
temperature.
NOTE:
The system will display the last known out-
side temperature when starting the vehicle
and may need to be driven several minutes
before the updated temperature is dis-
played. Engine temperature can also affect
the displayed temperature; therefore, tem-
perature readings are not updated when the
vehicle is not moving.
Tire Pressure Display
176

Automatic Compass Calibration
This compass is self-calibrating, which elimi-
nates the need to manually reset the compass.
When the vehicle is new, the compass may
appear erratic and the EVIC will display CAL
until the compass is calibrated. You may also
calibrate the compass by completing one or
more 360–degree turns (in an area free from
large metal or metallic objects) until the CAL
indicator displayed in the EVIC turns off. The
compass will now function normally.NOTE:
A good calibration requires a level surface
and an environment free from large metallic
objects such as buildings, bridges, under-
ground cables, railroad tracks, etc.
Compass Variance
Compass Variance is the difference between
Magnetic North and Geographic North. To
compensate for the differences the variance
should be set for the zone where the vehicle is
driven, per the zone map. Once properly set,
the compass will automatically compensate forthe differences, and provide the most accurate
compass heading. For the most accurate com-
pass performance, the compass must be set
using the following steps.
NOTE:
Keep magnetic materials away from the top
of the instrument panel, such as iPod’s,
Mobile Phones, Laptops and Radar Detec-
tors. This is where the compass module is
located, and it can cause interference with
the compass sensor, and it may give false
readings.
177

1. Turn the ignition switch ON.
2. Press the UP or DOWN button until the
System Setup (Customer-Programmable Fea-
tures) menu is reached, then press the SELECT
button.
3. Press the DOWN button until the “Compass
Variance” message is displayed in the EVIC,
then press the SELECT button. The last vari-
ance zone number displays in the EVIC.
4. Press and release the SELECT button until
the proper variance zone is selected, accord-
ing to the map.
5. Press and release the BACK button to exit.
Manual Compass Calibration
If the compass appears erratic and the CAL
indicator does not appear in the EVIC display,
you must put the compass into the Calibration
Mode manually, as follows:
NOTE:
For the most accurate compass perfor-
mance, the compass variance must be set
before performing the manual compass cali-
bration. The variance should be set for thezone where the vehicle is driven, per the
zone map. For further information, refer to
“Compass Variance.”
1. Turn ON the ignition switch.
2. Press the UP or DOWN button until the
Setup (Customer-Programmable Features)
menu is reached, then press the SELECT but-
ton.
3. Press the DOWN button until “Calibrate
Compass” is displayed in the EVIC.
4. Press and release the SELECT button to
start the calibration. The “CAL” indicator will be
displayed in the EVIC.
5. Complete one or more 360–degree turns (in
an area free from large metal or metallic ob-
jects) until the “CAL” indicator turns off. The
compass will now function normally.
Customer-Programmable Features
(System Setup)
Personal Settings allows you to set and recall
features when the transmission is in PARK. If
the transmission is out of PARK or the vehicle
begins moving, a warning message
SETUPNOT AVAILABLE,
is followed in three seconds
by, VEHICLE NOT IN PARK.
Press and release the UP or DOWN button until
Setup displays in the EVIC.
Use the UP or DOWN button to display one of
the following choices.
Select Language
When in this display you may select one of five
languages for all display nomenclature, includ-
ing the trip functions and the navigation system
(if equipped). Press the UP or DOWN button
while in this display and scroll through the
language choices. Press the SELECT button to
select English, Spanish (Español), French
(Français), Italian (Italiano), German (Deutsch),
and Dutch (Nederlands). Then, as you con-
tinue, the information will display in the se-
lected language.
Nav–Turn By Turn
When this feature is selected, the navigation
system utilizes voice commands, guiding
through the drive route, mile by mile, turn-by-
turn until the final destination is reached. To
make your selection, press and release the
SELECT button until a check-mark appears
179

next to the feature showing the system has
been activated or the check-mark is removed
showing the system has been deactivated.
Forward Collision Warning — If Equipped
The Forward Collision Warning (FCW) feature
can be can be set to Far, set to Near or turned
Off. The default status of FCW is the Far setting.
This means the system will warn you of a
possible collision with the vehicle in front of you
when you are farther away. This gives you the
most reaction time. To change the setting for
more dynamic driving select the Near setting.
This warns you of a possible collision with the
vehicle in front of you when you are much
closer. This allows for a more dynamic driving
experience. To change FCW status press and
release the SELECT button until a check-mark
appears next to the feature showing the system
has been activated or the check-mark is re-
moved showing the system has been deacti-
vated.
For further information, refer to ”Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle.”Park Assist System
The Rear Park Assist system will scan for
objects behind the vehicle when the transmis-
sion is in the REVERSE position and the vehicle
speed is less than 11 mph (18 km/h). The
system can be enabled with Sound Only,
Sound and Display, or turned OFF through the
EVIC. To make your selection, scroll up or down
until the preferred setting is highlighted, then
press and release the SELECT button until a
check-mark appears next to the setting, show-
ing that the setting has been selected. Refer to
“Rear Park Assist System” in “Understanding
The Features Of Your Vehicle” for system func-
tion and operating information.
Blind Spot Alert — If Equipped
There are three selections when operating
Blind Spot Alert. By pressing and releasing the
SELECT button once, the Blind Spot Alert fea-
ture can be activated in “Blind Spot: Lights
Only” mode. When this mode is selected the
Blind Spot Monitor (BSM) system is activated
and will only show a visual alert in the outside
mirrors. By pressing and releasing the SELECT
button a second time “Blind Spot: Lights/CHM”
mode is activated. In this mode the Blind SpotMonitor (BSM) will show a visual alert in the
outside mirrors as well as an audible alert when
the turn signal is on. When “Blind Spot: Off” is
selected the Blind Spot Monitor (BSM) system
is deactivated.
NOTE:
If your vehicle has experienced any damage
in the area where the sensor is located, even
if the fascia is not damaged, the sensor may
have become misaligned. Take your vehicle
to an authorized dealer to verify sensor
alignment. Having a sensor that is mis-
aligned will result in the BSM not operating
to specification.
Auto Unlock Doors
When this feature is selected, all doors will
unlock when the vehicle is stopped and the
transmission is in the PARK or NEUTRAL posi-
tion and the driver’s door is opened. To make
your selection, press and release the SELECT
button until a check-mark appears next to the
feature showing the system has been acti-
vated, or the check-mark is removed showing
the system has been deactivated.
180

front vehicle door will cancel this feature. To
make your selection, scroll up or down until the
preferred setting is highlighted, then press and
release the SELECT button until a check-mark
appears next to the setting, showing that the
setting has been selected.
Illuminated Approach
When this feature is selected, the headlights
will activate and remain on for 0, 30, 60, or
90 seconds when the doors are unlocked with
the RKE transmitter. To make your selection,
scroll up or down until the preferred setting is
highlighted, then press and release the SE-
LECT button until a check-mark appears next
to the setting, showing that the setting has
been selected.
Hill Start Assist (HSA)
When this feature is selected, the HSA system
is active. Refer to “Electronic Brake Control
System” in “Starting And Operating” for system
function and operating information. To make
your selection, press and release the SELECT
button until a check-mark appears next to the
feature showing the system has been activated
or the check-mark is removed showing the
system has been deactivated.Keyless Enter-N-Go (Passive Entry)
This feature allows you to lock and unlock the
vehicle’s door(s) without having to press the
RKE transmitter lock or unlock buttons. To
make your selection, press and release the
SELECT button until a check-mark appears
next to the feature showing the system has
been activated or the check-mark is removed
showing the system has been deactivated.
Refer to “Keyless Enter-N-Go” in “Things To
Know Before Starting Your Vehicle”.
Display Units of Measure In:
The EVIC, odometer, and Uconnect™ gps (if
equipped) can be changed between English
and Metric units of measure. To make your
selection, press and release the SELECT but-
ton until “ENGLISH” or “METRIC” appears.
Display Fuel Saver — If Equipped
The “ECO” message is located in the
Compass/Temperature display; this message
can be turned on or off. To make your selection,
press and release the SELECT button until a
check-mark appears next to the setting, show-
ing that the setting has been selected.
Calibrate Compass
Refer to “Compass Display” for more informa-
tion.
Compass Variance
Refer to “Compass Display” for more informa-
tion.
SOUND SYSTEMSRefer to your Sound Systems Booklet.
iPod/USB/MP3 CONTROL — IF
EQUIPPED
NOTE:
This section is for sales code RES and
REQ/REL/RET radios only with Uconnect™.
For sales code RBZ/RHB, RHR, RHP, RHW or
RB2 touch-screen radio iPod/USB/MP3
control feature, refer to the separate RBZ/
RHB, RHR, RHP, RHW or RB2 User’s Manual.
iPod/USB/MP3 control is available only if
equipped as an option with these radios.
This feature allows an iPod
or external USB
device to be plugged into the USB port, lo-
cated in the center console or glove compart-
ment.
183

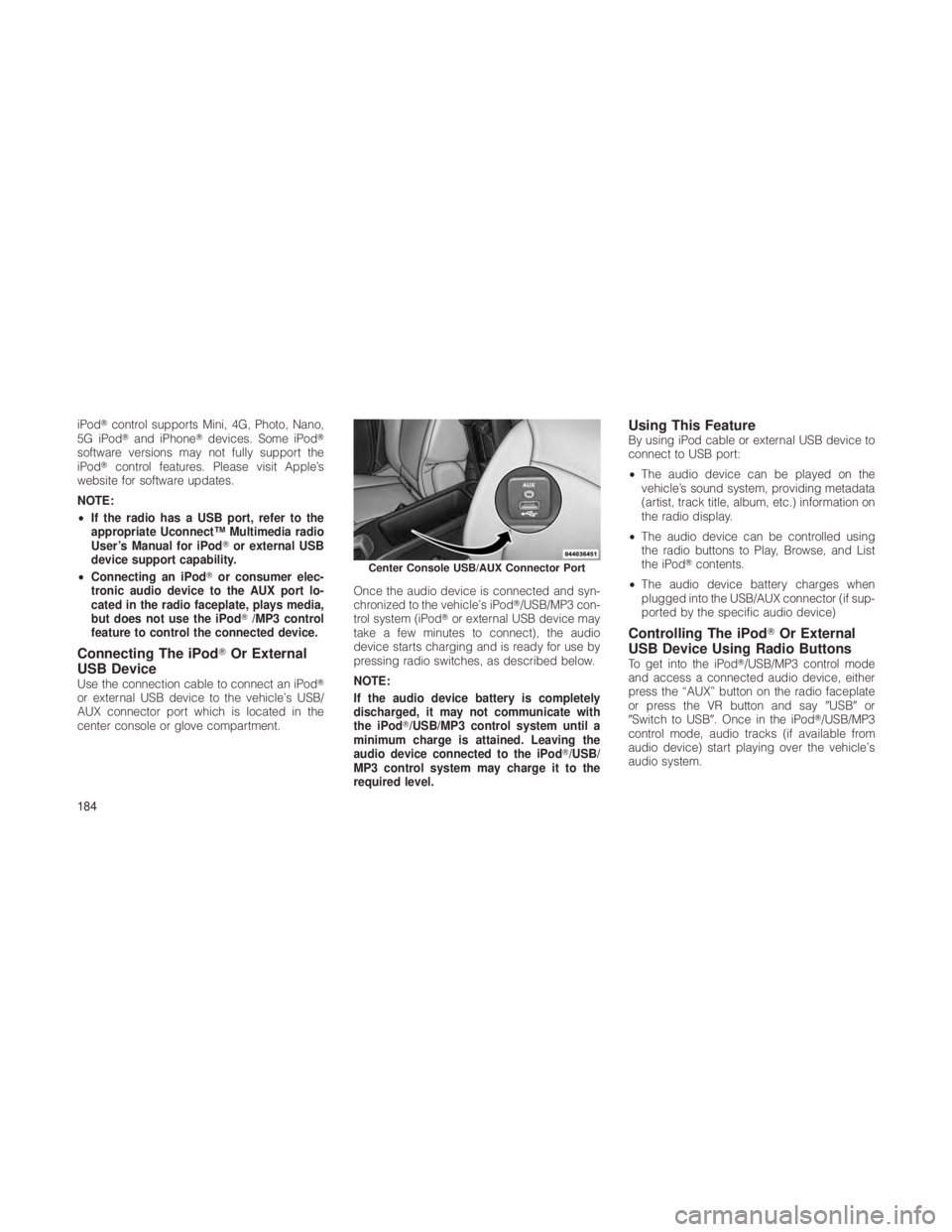

iPodcontrol supports Mini, 4G, Photo, Nano,
5G iPod and iPhone devices. Some iPod
software versions may not fully support the
iPod control features. Please visit Apple’s
website for software updates.
NOTE:
• If the radio has a USB port, refer to the
appropriate Uconnect™ Multimedia radio
User’s Manual for iPod or external USB
device support capability.
• Connecting an iPod or consumer elec-
tronic audio device to the AUX port lo-
cated in the radio faceplate, plays media,
but does not use the iPod /MP3 control
feature to control the connected device.
Connecting The iPod Or External
USB Device
Use the connection cable to connect an iPod
or external USB device to the vehicle’s USB/
AUX connector port which is located in the
center console or glove compartment. Once the audio device is connected and syn-
chronized to the vehicle’s iPod
/USB/MP3 con-
trol system (iPod or external USB device may
take a few minutes to connect), the audio
device starts charging and is ready for use by
pressing radio switches, as described below.
NOTE:
If the audio device battery is completely
discharged, it may not communicate with
the iPod/USB/MP3 control system until a
minimum charge is attained. Leaving the
audio device connected to the iPod/USB/
MP3 control system may charge it to the
required level.
Using This FeatureBy using iPod cable or external USB device to
connect to USB port:
• The audio device can be played on the
vehicle’s sound system, providing metadata
(artist, track title, album, etc.) information on
the radio display.
• The audio device can be controlled using
the radio buttons to Play, Browse, and List
the iPod contents.
• The audio device battery charges when
plugged into the USB/AUX connector (if sup-
ported by the specific audio device)
Controlling The iPod Or External
USB Device Using Radio Buttons
To get into the iPod/USB/MP3 control mode
and access a connected audio device, either
press the “AUX” button on the radio faceplate
or press the VR button and say USBor
Switch to USB. Once in the iPod/USB/MP3
control mode, audio tracks (if available from
audio device) start playing over the vehicle’s
audio system.
Center Console USB/AUX Connector Port
184
