2012 INFINITI M-HEV set clock

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 14 B
0-8Illustrated table of contents
JVC0141X
1. Side ventilator (P.4-33)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-42)
4. Rear window and outside mirrordefroster switch (P.2-36)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped) 6. Clock (P.2-48)
7. Center multi-function control panel
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-10) —
Bluetooth
®Hands-Free Phone Sys-
tem (P.4-89, P.4-99)
— Audio system (P.4-48)
8. Automatic climate control system (P.4-33)/Forest Air
®system* (P.4-33)
9. Center ventilator (P.4-33)
10. Audio system (P.4-48)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-23)
14. Parking brake —Parking (P.5-17)
15. Push-button ignition switch (P.5-9)
16. Climate controlled seat switch (if so equipped) (P.2-45)/Seat heater switch
(if so equipped) (P.2-44)
17. Drive mode select switch (P.5-17)
18. Cigarette lighter and ashtray (P.2-49)
19. Glove box lid release handle (P.2-52)
20. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner ’s Manual.

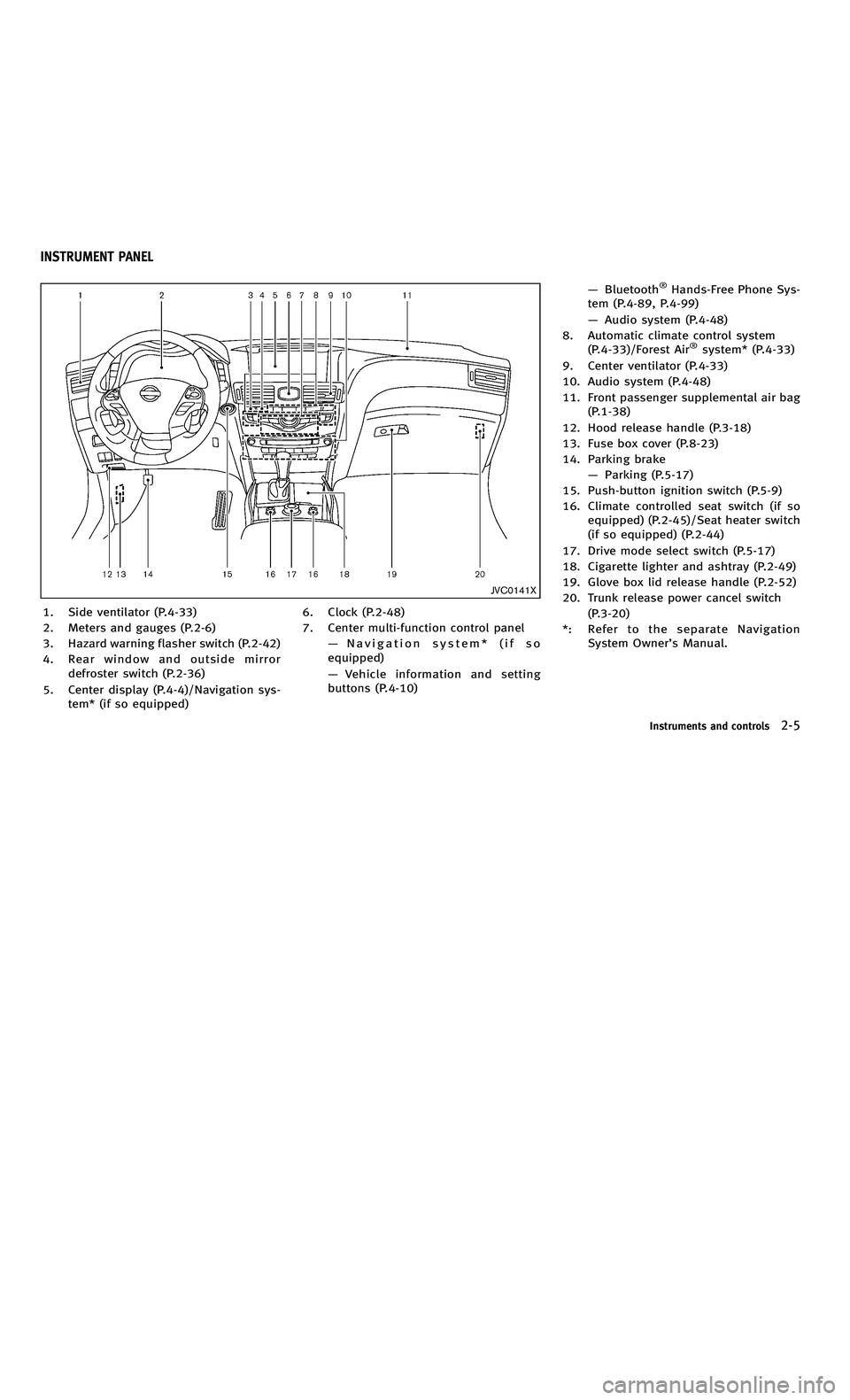

INSTRUMENT PANEL
0-8Illustrated table of contents
JVC0141X
1. Side ventilator (P.4-33)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-42)
4. Rear window and outside mirror
defroster switch (P.2-36)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped) 6. Clock (P.2-48)
7. Center multi-function control panel
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-10) —
Bluetooth
®Hands-Free Phone Sys-
tem (P.4-89, P.4-99)
— Audio system (P.4-48)
8. Automatic climate control system (P.4-33)/Forest Air
®system* (P.4-33)
9. Center ventilator (P.4-33)
10. Audio system (P.4-48)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-23)
14. Parking brake —Parking (P.5-17)
15. Push-button ignition switch (P.5-9)
16. Climate controlled seat switch (if so equipped) (P.2-45)/Seat heater switch
(if so equipped) (P.2-44)
17. Drive mode select switch (P.5-17)
18. Cigarette lighter and ashtray (P.2-49)
19. Glove box lid release handle (P.2-52)
20. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner ’s Manual.
INSTRUMENT PANEL

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 45 A
JVC0141X
1. Side ventilator (P.4-33)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-42)
4. Rear window and outside mirrordefroster switch (P.2-36)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped) 6. Clock (P.2-48)
7. Center multi-function control panel
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-10) —
Bluetooth
®Hands-Free Phone Sys-
tem (P.4-89, P.4-99)
— Audio system (P.4-48)
8. Automatic climate control system (P.4-33)/Forest Air
®system* (P.4-33)
9. Center ventilator (P.4-33)
10. Audio system (P.4-48)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-23)
14. Parking brake —Parking (P.5-17)
15. Push-button ignition switch (P.5-9)
16. Climate controlled seat switch (if so equipped) (P.2-45)/Seat heater switch
(if so equipped) (P.2-44)
17. Drive mode select switch (P.5-17)
18. Cigarette lighter and ashtray (P.2-49)
19. Glove box lid release handle (P.2-52)
20. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner ’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL
JVC0141X
1. Side ventilator (P.4-33)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-42)
4. Rear window and outside mirror
defroster switch (P.2-36)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped) 6. Clock (P.2-48)
7. Center multi-function control panel
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-10) —
Bluetooth
®Hands-Free Phone Sys-
tem (P.4-89, P.4-99)
— Audio system (P.4-48)
8. Automatic climate control system (P.4-33)/Forest Air
®system* (P.4-33)
9. Center ventilator (P.4-33)
10. Audio system (P.4-48)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-23)
14. Parking brake —Parking (P.5-17)
15. Push-button ignition switch (P.5-9)
16. Climate controlled seat switch (if so equipped) (P.2-45)/Seat heater switch
(if so equipped) (P.2-44)
17. Drive mode select switch (P.5-17)
18. Cigarette lighter and ashtray (P.2-49)
19. Glove box lid release handle (P.2-52)
20. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner ’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 66 B
2-48Instruments and controls
Push the VDC OFF switch again or restart
the hybrid system to turn on the system.
(See“Vehicle Dynamic Control (VDC) sys-
tem ”in the “5. Starting and driving ”
section.)
SIC4338
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button ”in the “4. Monitor, climate, audio, phone and voice recognition systems
”
section.
CLOCK
2-48Instruments and controls
Push the VDC OFF switch again or restart
the hybrid system to turn on the system.
(See “Vehicle Dynamic Control (VDC) sys-
tem ”in the “5. Starting and driving ”
section.)
SIC4338
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button ”in the “4. Monitor, climate, audio, phone and voice recognition systems
”
section.
CLOCK

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 102 B
4-20Monitor, climate, audio, phone and voice recognition systems
following items.
.Display
. Clock
SAA2486
Display settings (models with na-
vigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting
the “Others ”key, and then selecting the
“ Display ”key.
Display Adjustment:
To adjust the display settings, select the
“ Display Adjustment ”key. The following
settings are available.
. Display
To turn off the screen, push the ENTER
button and turn the “Display ”indicator off. The other method is to push and hold the
“
OFF
”button for more than 2 seconds.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the “
OFF”button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness ”or
“ Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color ”
key, refer to the separate Navigation
System Owner ’s Manual.
Color Theme:
Choose the theme color of the menu screen
from “Black ”, “Brown ”or “Silver” .
4-20Monitor, climate, audio, phone and voice recognition systems
following items.
.Display
. Clock
SAA2486
Display settings (models with na-
vigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting
the “Others ”key, and then selecting the
“ Display ”key.
Display Adjustment:
To adjust the display settings, select the
“ Display Adjustment ”key. The following
settings are available.
. Display
To turn off the screen, push the ENTER
button and turn the “Display ”indicator off. The other method is to push and hold the
“
OFF
”button for more than 2 seconds.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the “
OFF”button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness ”or
“ Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color ”
key, refer to the separate Navigation
System Owner ’s Manual.
Color Theme:
Choose the theme color of the menu screen
from “Black ”, “Brown ”or “Silver” .

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 104 A
SAA2487
Clock settings (models with navi-
gation system)
The display as illustrated will appear when
pushing the SETTING button and selecting
the“Others ”key, and then selecting the
“ Clock ”key.
The clock settings display cannot be
operated while driving. Stop the vehicle
in a safe place and apply the parking brake
before setting the clock.
On-screen Clock:
When this item is turned to ON, a clock is
always displayed in the upper right corner
of the screen. This clock will indicate the time almost
exactly because it is always adjusted by
the GPS system.
Clock Format (24h):
When this item is turned to ON, the 24-
hour clock is displayed. When this item is
not turned to ON, the 12-hour clock is
displayed.
Offset (hour)/(min):
Adjust the time by increasing or decreasing
per hour or per minute.
Daylight Saving Time:
Turn this item to ON for daylight saving
time application.
Time Zone:
Choose the time zone from the following
.
Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
SAA3007
Models with navigation system
SAA3014
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-23
SAA2487
Clock settings (models with navi-
gation system)
The display as illustrated will appear when
pushing the SETTING button and selecting
the “Others ”key, and then selecting the
“ Clock ”key.
The clock settings display cannot be
operated while driving. Stop the vehicle
in a safe place and apply the parking brake
before setting the clock.
On-screen Clock:
When this item is turned to ON, a clock is
always displayed in the upper right corner
of the screen. This clock will indicate the time almost
exactly because it is always adjusted by
the GPS system.
Clock Format (24h):
When this item is turned to ON, the 24-
hour clock is displayed. When this item is
not turned to ON, the 12-hour clock is
displayed.
Offset (hour)/(min):
Adjust the time by increasing or decreasing
per hour or per minute.
Daylight Saving Time:
Turn this item to ON for daylight saving
time application.
Time Zone:
Choose the time zone from the following
.
Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
SAA3007
Models with navigation system
SAA3014
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-23
