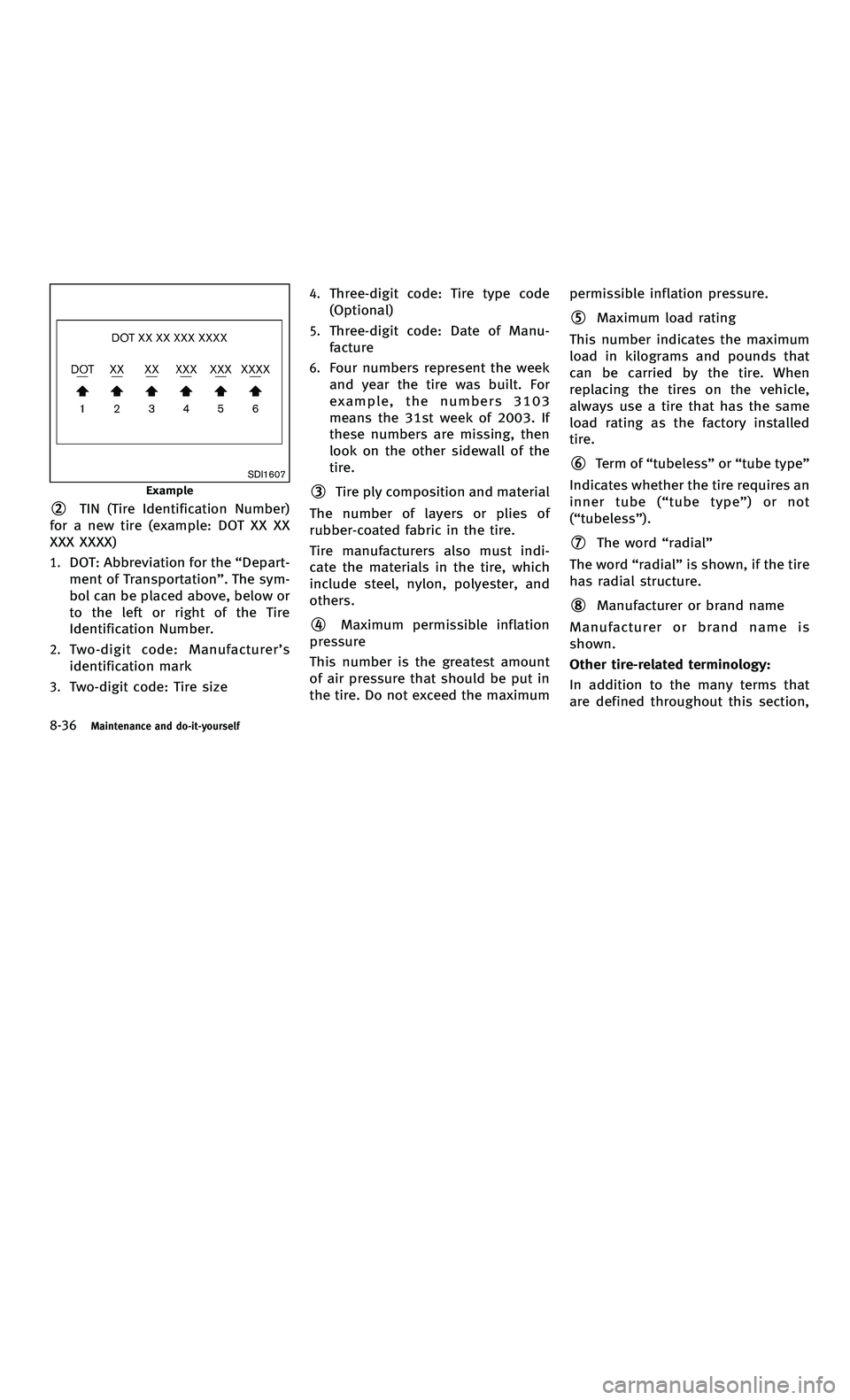

8-36Maintenance and do-it-yourself
SDI1607
Example
*2TIN (Tire Identification Number)
for a new tire (example: DOT XX XX
XXX XXXX)
1.DOT: Abbreviation for the “Depart-
ment of Transportation ”. The sym-
bol can be placed above, below or
to the left or right of the Tire
Identification Number.
2.Two-digit code: Manufacturer ’s
identification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code
(Optional)
5.Three-digit code: Date of Manu-
facture
6.Four numbers represent the week
and year the tire was built. For
example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing, then
look on the other sidewall of the
tire.
*3Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indi-
cate the materials in the tire, which
include steel, nylon, polyester, and
others.
*4Maximum permissible inflation
pressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum permissible inflation pressure.
*5Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
*6Term of “tubeless ”or “tube type ”
Indicates whether the tire requires an
inner tube ( “tube type ”)ornot
( “ tubeless ”).
*7The word “radial ”
The word “radial ”is shown, if the tire
has radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that
are defined throughout this section,
8-36Maintenance and do-it-yourself
SDI1607
Example
*2TIN (Tire Identification Number)
for a new tire (example: DOT XX XX
XXX XXXX)
1.DOT: Abbreviation for the “Depart-
ment of Transportation ”. The sym-
bol can be placed above, below or
to the left or right of the Tire
Identification Number.
2.Two-digit code: Manufacturer ’s
identification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code
(Optional)
5.Three-digit code: Date of Manu-
facture
6.Four numbers represent the week
and year the tire was built. For
example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing, then
look on the other sidewall of the
tire.
*3Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indi-
cate the materials in the tire, which
include steel, nylon, polyester, and
others.
*4Maximum permissible inflation
pressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum permissible inflation pressure.
*5Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
*6Term of “tubeless ”or “tube type ”
Indicates whether the tire requires an
inner tube ( “tube type ”)ornot
( “ tubeless ”).
*7The word “radial ”
The word “radial ”is shown, if the tire
has radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that
are defined throughout this section,

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 246 A
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.
TYPES OF TIRES
WARNING
.When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed the maximum speed rating of the tire.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information ”(US) or “Tire Safety Infor-
mation ”(Canada) in the Warranty In-
formation Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and
may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires. Skid and traction capabilities of
studded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires.
Maintenance and do-it-yourself8-37
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.
TYPES OF TIRES
WARNING
.
When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed the maximum speed rating of the tire.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information ”(US) or “Tire Safety Infor-
mation ”(Canada) in the Warranty In-
formation Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and
may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires. Skid and traction capabilities of
studded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires.
Maintenance and do-it-yourself8-37

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 246 B
8-38Maintenance and do-it-yourself
TIRE CHAINS
Use of tire chains may be prohibited
according to location. Check the local laws
before installing tire chains. When instal-
ling tire chains, make sure they are the
proper size for the tires on your vehicle and
are installed according to the chain man-
ufacturer’s suggestions. Use only SAE
Class S chains. Class“S ” chains are used
on vehicles with restricted tire to vehicle
clearance. Vehicles that can use Class “S ”
chains are designed to meet the SAE
standard minimum clearances between
the tire and the closest vehicle suspension
or body component required to accommo-
date the use of a winter traction device (tire
chains or cables). The minimum clearances
are determined using the factory equipped
tire size. Other types may damage your
vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the
tire chain must be secured or removed to
prevent the possibility of whipping action
damage to the fenders or underbody. If
possible, avoid fully loading your vehicle
when using tire chains. In addition, drive at
a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling and performance may be adversely af-
fected.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
Never install tire chains on a TEMPORARY
USE ONLY spare tire.
Do not use tire chains on dry roads. Driving
with tire chains in such conditions can
cause damage to the various mechanisms
of the vehicle due to some overstress.
SDI1662
CHANGING WHEELS AND TIRES
Tire rotation
INFINITI recommends rotating the
tires every 7,500 miles (12,000 km).
(See
“Flat tire ”in the “6. In case of
emergency ”section for tire replacing
procedures.)
As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
8-38Maintenance and do-it-yourself
TIRE CHAINS
Use of tire chains may be prohibited
according to location. Check the local laws
before installing tire chains. When instal-
ling tire chains, make sure they are the
proper size for the tires on your vehicle and
are installed according to the chain man-
ufacturer ’s suggestions. Use only SAE
Class S chains. Class“S ” chains are used
on vehicles with restricted tire to vehicle
clearance. Vehicles that can use Class “S ”
chains are designed to meet the SAE
standard minimum clearances between
the tire and the closest vehicle suspension
or body component required to accommo-
date the use of a winter traction device (tire
chains or cables). The minimum clearances
are determined using the factory equipped
tire size. Other types may damage your
vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the
tire chain must be secured or removed to
prevent the possibility of whipping action
damage to the fenders or underbody. If
possible, avoid fully loading your vehicle
when using tire chains. In addition, drive at
a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling and performance may be adversely af-
fected.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
Never install tire chains on a TEMPORARY
USE ONLY spare tire.
Do not use tire chains on dry roads. Driving
with tire chains in such conditions can
cause damage to the various mechanisms
of the vehicle due to some overstress.
SDI1662
CHANGING WHEELS AND TIRES
Tire rotation
INFINITI recommends rotating the
tires every 7,500 miles (12,000 km).
(See
“Flat tire ”in the “6. In case of
emergency ”section for tire replacing
procedures.)
As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 247 A
Wheel nut tightening torque:80 ft-lb (108 N·m)
The wheel nuts must be kept tigh-
tened to the specification at all
times. It is recommended that wheel
nuts be tightened to the specifica-
tion at each tire rotation interval.
WARNING
. After rotating the tires, check and
adjust the tire pressure.
. Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).
. Do not include the T-type spare
tire or any other small size spare
tire in the tire rotation.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in the Warranty Information Booklet.SDI1663
1.Wear indicator
2.Wear indicator location mark
Tire wear and damage
WARNING
.
Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
Maintenance and do-it-yourself8-39
Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tigh-
tened to the specification at all
times. It is recommended that wheel
nuts be tightened to the specifica-
tion at each tire rotation interval.
WARNING
. After rotating the tires, check and
adjust the tire pressure.
. Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).
. Do not include the T-type spare
tire or any other small size spare
tire in the tire rotation.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in the Warranty Information Booklet.SDI1663
1.Wear indicator
2.Wear indicator location mark
Tire wear and damage
WARNING
.
Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
Maintenance and do-it-yourself8-39

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 247 B
8-40Maintenance and do-it-yourself
.The original tires have built-in
tread wear indicators. When wear
indicators are visible, the tire(s)
should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare tire
may result in serious personal
injury. If it is necessary to repair
the spare tire, contact an INFINITI
retailer.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in
the Warranty Information Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“ Specifications ”in the “9. Technical and
consumer information ”section for recom-
mended types and sizes of tires and
wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of tires
of different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-tire
clearance, tire chain clearance, speed-
ometer calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result in
serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer- ence with the brake discs/drums. Such
interference can lead to decreased brak-
ing efficiency and/or early brake pad/
shoe wear. See
“Wheels and tires ”in the
“ 9. Technical and consumer information ”
section of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information ”(US) or “Tire Safety Infor-
8-40Maintenance and do-it-yourself
. The original tires have built-in
tread wear indicators. When wear
indicators are visible, the tire(s)
should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare tire
may result in serious personal
injury. If it is necessary to repair
the spare tire, contact an INFINITI
retailer.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in
the Warranty Information Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“ Specifications ”in the “9. Technical and
consumer information ”section for recom-
mended types and sizes of tires and
wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of tires
of different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-tire
clearance, tire chain clearance, speed-
ometer calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result in
serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer- ence with the brake discs/drums. Such
interference can lead to decreased brak-
ing efficiency and/or early brake pad/
shoe wear. See
“Wheels and tires ”in the
“ 9. Technical and consumer information ”
section of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information ”(US) or “Tire Safety Infor-

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 248 A
mation”(Canada) in the Warranty In-
formation Booklet.
Wheel balance
Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to “Important Tire Safety Information ”
(US) or “Tire Safety Information ”(Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheels
See “Cleaning exterior ”in the “7. Appear-
ance and care ”section for details about
care of the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire)
Observe the following precautions if the T-
type spare tire must be used, otherwise
your vehicle could be damaged or involved in an accident.
WARNING
.
The T-type spare tire should be used for
emergency use. It should be replaced
with the standard tire at the first
opportunity to avoid possible tire or
differential damage.
. Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
. Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire at
60 psi (420 kPa, 4.2 bar). Always keep
the pressure of the full size spare tire (if
so equipped) at the recommended pres-
sure for standard tires, as indicated on
the Tire and Loading Information label.
For Tire and Loading Information label
location, see “Tire and Loading Informa-
tion label ”in the index of this manual.
. With the TEMPORARY USE ONLY spare
tire installed do not drive your vehicle at
speeds faster than 50 MPH (80 km/h). .
When driving on roads covered with
snow or ice, the TEMPORARY USE ONLY
spare tire should be used on the front
wheels and original tire used on the rear
wheels (drive wheels). Use tire chains
only on the two rear original tires.
. Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than
the standard tire. Replace the spare tire
as soon as the tread wear indicators
appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire at
the same time.
CAUTION
.Do not use tire chains on a TEMPORARY
USE ONLY spare tire. Tire chains will not
fit properly and may cause damage to
the vehicle.
. Because the TEMPORARY USE ONLY
spare tire is smaller than the original
tire, ground clearance is reduced. To
avoid damage to the vehicle, do not
drive over obstacles. Also do not drive
Maintenance and do-it-yourself8-41
mation ”(Canada) in the Warranty In-
formation Booklet.
Wheel balance
Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to “Important Tire Safety Information ”
(US) or “Tire Safety Information ”(Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheels
See “Cleaning exterior ”in the “7. Appear-
ance and care ”section for details about
care of the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire)
Observe the following precautions if the T-
type spare tire must be used, otherwise
your vehicle could be damaged or involved in an accident.
WARNING
.
The T-type spare tire should be used for
emergency use. It should be replaced
with the standard tire at the first
opportunity to avoid possible tire or
differential damage.
. Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
. Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire at
60 psi (420 kPa, 4.2 bar). Always keep
the pressure of the full size spare tire (if
so equipped) at the recommended pres-
sure for standard tires, as indicated on
the Tire and Loading Information label.
For Tire and Loading Information label
location, see “Tire and Loading Informa-
tion label ”in the index of this manual.
. With the TEMPORARY USE ONLY spare
tire installed do not drive your vehicle at
speeds faster than 50 MPH (80 km/h). .
When driving on roads covered with
snow or ice, the TEMPORARY USE ONLY
spare tire should be used on the front
wheels and original tire used on the rear
wheels (drive wheels). Use tire chains
only on the two rear original tires.
. Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than
the standard tire. Replace the spare tire
as soon as the tread wear indicators
appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire at
the same time.
CAUTION
.Do not use tire chains on a TEMPORARY
USE ONLY spare tire. Tire chains will not
fit properly and may cause damage to
the vehicle.
. Because the TEMPORARY USE ONLY
spare tire is smaller than the original
tire, ground clearance is reduced. To
avoid damage to the vehicle, do not
drive over obstacles. Also do not drive
Maintenance and do-it-yourself8-41

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 252 B
9-8Technical and consumer information
WHEELS AND TIRES
Road wheel
TypeSizeOffset in (mm)
Conventional 18
68J 1.69 (43)
Spare 17
64T 1.18 (30)
Tire
Type Size Pressure PSI
(kPa) [Cold]
Conventional P245/50R18
99V
36 (250)
Spare (T-type) T165/80R17
104M
T165/80D17
104M
60 (420)
DIMENSIONS
in (mm)
Overall length (with front li-
cense plate) 194.7 (4,945)
Overall length (without front
license plate) 194.5 (4,940)
Overall width 72.6 (1,845)
Overall height 59.1 (1,500)
Front tread 62.0 (1,575)
Rear tread 61.8 (1,570)
Wheelbase 114.2 (2,900)
If you plan to travel in another country,
you should first find out if the fuel
available is suitable for your vehicle ’s
engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your
vehicle to areas where appropriate fuel is
not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify
the vehicle to meet local laws and regula-
tions.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications
may differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, trans-
portation, and registration are the respon-
sibility of the user. INFINITI is not
responsible for any inconvenience that
may result.
STI0716
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used
in the vehicle registration.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
9-8Technical and consumer information
WHEELS AND TIRES
Road wheel
Type
SizeOffset in (mm)
Conventional 18
68J 1.69 (43)
Spare 17
64T 1.18 (30)
Tire
Type Size Pressure PSI
(kPa) [Cold]
Conventional P245/50R18
99V
36 (250)
Spare (T-type) T165/80R17
104M
T165/80D17
104M
60 (420)
DIMENSIONS
in (mm)
Overall length (with front li-
cense plate) 194.7 (4,945)
Overall length (without front
license plate) 194.5 (4,940)
Overall width 72.6 (1,845)
Overall height 59.1 (1,500)
Front tread 62.0 (1,575)
Rear tread 61.8 (1,570)
Wheelbase 114.2 (2,900)
If you plan to travel in another country,
you should first find out if the fuel
available is suitable for your vehicle ’s
engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your
vehicle to areas where appropriate fuel is
not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify
the vehicle to meet local laws and regula-
tions.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications
may differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, trans-
portation, and registration are the respon-
sibility of the user. INFINITI is not
responsible for any inconvenience that
may result.
STI0716
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used
in the vehicle registration.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY VEHICLE IDENTIFICATION

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 263 A
Readiness for inspection/maintenance (I/M) test
(US only) .......................................................... 9-19
Rear door lockChild safety rear door lock ............................. 3-6
Rear pocket ...................................................... 2-54
Rear sunshade .................................................. 2-59
Rear window and outside mirror
defroster switch ................................................ 2-36
Rearview monitor .............................................. 4-26
Recorders Event data ................................................... 9-20
Regenerative brake ......................... Hybrid System-8
Registering your vehicle in another country ........ 9-8
Remote keyless entry system ............................ 3-14
Reporting safety defects ................................... 9-18
Rise-up and build-up ........................................ 5-96
Road accident cautions ................... Hybrid System-3
Roadside assistance program ............................. 6-2
Rollover .............................................................. 5-7
Roof Moonroof ..................................................... 2-58
S
Safety
Child seat belts ........................................... 1-18
Reporting safety defects .............................. 9-18
Satellite radio operation ................................... 4-61
Seat adjustment Front power seat adjustment .......................... 1-3
Front seats..................................................... 1-3 Seat belt(s)
Child safety ................................................. 1-18
Infants ......................................................... 1-19
Injured persons ........................................... 1-13
Larger children ............................................. 1-19
Precautions on seat belt usage .................... 1-11
Pre-crash seat belts with comfort function ... 1-13
Pregnant women .......................................... 1-13
Seat belt cleaning .......................................... 7-7
Seat belt extenders ...................................... 1-17
Seat belt maintenance ................................. 1-17
Seat belt warning light and chime ............... 2-15
Seat belts .................................................... 1-11
Seat belts with pretensioners ...................... 1-50
Shoulder belt height adjustment .................. 1-17
Small children ............................................. 1-19
Three-point type .......................................... 1-14
Seat synchronization function ........................... 3-29
Seat(s)
Climate controlled seats .............................. 2-45
Driver-side memory ...................................... 3-28
Heated seats ............................................... 2-44
Seats ............................................................. 1-2
Security system
Vehicle security system ................................ 2-31
Security system
(INFINITI Vehicle Immobilizer System) Engine start ................................................. 2-33
Selector lever Shift lock release ......................................... 5-16 Servicing air conditioner (See automatic
climate control) ................................................. 4-33
Servicing climate control ................................... 4-47
SETTING button ................................................. 4-16
Shift lock release, Transmission ........................ 5-16
SHIFT
“P ” warning ............................................ 2-22
Shifting ............................................................. 5-14
Automatic transmission ............................... 5-13
Shoulder belt height adjustment ....................... 1-17
SNOW mode ..................................................... 5-18
Spare tire ........................................................... 9-8
Spark plugs ...................................................... 8-19
Speedometer ...................................................... 2-6
SPORT mode ..................................................... 5-18
STANDARD mode ............................................... 5-18
Starting
Before starting the INFINITI Direct Response
Hybrid
TMSystem .......................................... 5-12
Jump starting ............................................... 8-19
Precautions when starting and driving ........... 5-3
Push starting ............................................... 6-11
Starting the INFINITI Direct Response
Hybrid
TMSystem .......................................... 5-12
Starting the INFINITI Direct Response
Hybrid
TMSystem ............................................... 5-12
Starting the vehicle ........................................... 5-13
STATUS button .................................................. 4-10
Status light, Front passenger air bag ................ 1-45
Steering Heated steering wheel ................................. 2-43
Power steering fluid ..................................... 8-15
10-7
Readiness for inspection/maintenance (I/M) test
(US only) .......................................................... 9-19
Rear door lockChild safety rear door lock ............................. 3-6
Rear pocket ...................................................... 2-54
Rear sunshade .................................................. 2-59
Rear window and outside mirror
defroster switch ................................................ 2-36
Rearview monitor .............................................. 4-26
Recorders Event data ................................................... 9-20
Regenerative brake ......................... Hybrid System-8
Registering your vehicle in another country ........ 9-8
Remote keyless entry system ............................ 3-14
Reporting safety defects ................................... 9-18
Rise-up and build-up ........................................ 5-96
Road accident cautions ................... Hybrid System-3
Roadside assistance program ............................. 6-2
Rollover .............................................................. 5-7
Roof Moonroof ..................................................... 2-58
S
Safety
Child seat belts ........................................... 1-18
Reporting safety defects .............................. 9-18
Satellite radio operation ................................... 4-61
Seat adjustment Front power seat adjustment .......................... 1-3
Front seats..................................................... 1-3 Seat belt(s)
Child safety ................................................. 1-18
Infants ......................................................... 1-19
Injured persons ........................................... 1-13
Larger children ............................................. 1-19
Precautions on seat belt usage .................... 1-11
Pre-crash seat belts with comfort function ... 1-13
Pregnant women .......................................... 1-13
Seat belt cleaning .......................................... 7-7
Seat belt extenders ...................................... 1-17
Seat belt maintenance ................................. 1-17
Seat belt warning light and chime ............... 2-15
Seat belts .................................................... 1-11
Seat belts with pretensioners ...................... 1-50
Shoulder belt height adjustment .................. 1-17
Small children ............................................. 1-19
Three-point type .......................................... 1-14
Seat synchronization function ........................... 3-29
Seat(s)
Climate controlled seats .............................. 2-45
Driver-side memory ...................................... 3-28
Heated seats ............................................... 2-44
Seats ............................................................. 1-2
Security system
Vehicle security system ................................ 2-31
Security system
(INFINITI Vehicle Immobilizer System) Engine start ................................................. 2-33
Selector lever Shift lock release ......................................... 5-16 Servicing air conditioner (See automatic
climate control) ................................................. 4-33
Servicing climate control ................................... 4-47
SETTING button ................................................. 4-16
Shift lock release, Transmission ........................ 5-16
SHIFT
“P ” warning ............................................ 2-22
Shifting ............................................................. 5-14
Automatic transmission ............................... 5-13
Shoulder belt height adjustment ....................... 1-17
SNOW mode ..................................................... 5-18
Spare tire ........................................................... 9-8
Spark plugs ...................................................... 8-19
Speedometer ...................................................... 2-6
SPORT mode ..................................................... 5-18
STANDARD mode ............................................... 5-18
Starting
Before starting the INFINITI Direct Response
Hybrid
TMSystem .......................................... 5-12
Jump starting ............................................... 8-19
Precautions when starting and driving ........... 5-3
Push starting ............................................... 6-11
Starting the INFINITI Direct Response
Hybrid
TMSystem .......................................... 5-12
Starting the INFINITI Direct Response
Hybrid
TMSystem ............................................... 5-12
Starting the vehicle ........................................... 5-13
STATUS button .................................................. 4-10
Status light, Front passenger air bag ................ 1-45
Steering Heated steering wheel ................................. 2-43
Power steering fluid ..................................... 8-15
10-7
