Illustrated table of contents0-11
INSTRUMENT PANEL

Black plate (19,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-E8D7EED7-37CE-4B5F-8ECB-479CB10AB8D6
SIC4288
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer
(P.2-20)
6. Fuel gauge (P.2-9)
Illustrated table of contents0-13
METERS AND GAUGES

Black plate (77,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-0B65E0E3-218A-4A06-925F-DDB783835748Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.
SRS air bagGUID-E4E32938-35BA-448F-83FA-D791212BFB56The warning labels*1are located on the
surface of the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-FC2CCCAD-ABA5-4075-9F93-F2472626804EThe supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits of the supplemental
front-impact air bag, front seat-mounted
side-impact supplemental air bag, roof-
mounted curtain side-impact supplemental
air bag, and seat belt pretensioner sys-
tems. The monitored circuits include the Air
bag Control Unit (ACU), satellite sensors,
crash zone sensor, occupant classification
system, front air bag modules, side air bag
modules, curtain air bag modules, preten-
sioner, front passenger air bag status light and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:
.
The supplemental air bag warning light
remains on approximately 7 seconds
after the ignition switch is pushed to
the ON position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. Take your
vehicle to the nearest INFINITI retailer.
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
Safety —Seats, seat belts and supplemental restraint system1-55

Black plate (79,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2 Instruments and controls
Cockpit...
................................................................ 2-3
Instrument panel ...
................................................. 2-4
Meters and gauges ...
.............................................. 2-6
Speedometer and odometer ...
............................ 2-7
Tachometer ...
...................................................... 2-8
Engine coolant temperature gauge ...
.................. 2-8
Fuel gauge ...
...................................................... 2-9
Compass (if so equipped) ...
.................................... 2-9
Zone variation change procedure ...
................... 2-11
Warning/indicator lights and
audible reminders ...
............................................. 2-12
Checking bulbs ...
.............................................. 2-12
Warning lights ...
............................................... 2-12
Indicator lights ...
.............................................. 2-18
Audible reminders ...
......................................... 2-19
Dot matrix liquid crystal display ...
........................ 2-20
Indicators for operation ...
................................. 2-22
Indicators for maintenance ...
............................ 2-24
Trip computer ...
................................................ 2-26
Security systems ...
............................................... 2-28
Vehicle Security System ...
................................ 2-28
INFINITI Vehicle Immobilizer System ...
.............. 2-30
Windshield wiper and washer switch ...
................. 2-31
Rain-sensing auto wiper system
(if so equipped) ...
............................................. 2-33 Rear window and outside mirror
defroster switch
...
................................................ 2-34
Headlight and turn signal switch ...
....................... 2-34
Xenon headlights ...
......................................... 2-34
Headlight switch ...
.......................................... 2-35
Turn signal switch ...
........................................ 2-38
Fog light switch ...
........................................... 2-39
Hazard warning flasher switch ...
.......................... 2-39
Horn ...
................................................................. 2-40
Heated seats (if so equipped) ...
........................... 2-40
SNOW mode switch (if so equipped) ...
................. 2-41
Vehicle Dynamic Control (VDC) OFF switch ...
......... 2-42
Clock ...
................................................................. 2-42
Adjusting the time ...
....................................... 2-42
Power outlet ...
..................................................... 2-43
Cigarette lighter and ashtrays (if so equipped) ...
.... 2-44
Front ...
............................................................ 2-44
Rear ...
............................................................. 2-44
Storage ...
............................................................. 2-45
Cup holders ...
................................................. 2-45
Sunglasses holder ...
...................................... 2-47
Glove box ...
.................................................... 2-47
Console box ...
................................................. 2-48
Card holder (if so equipped) ...
........................ 2-49
Storage box (if so equipped) ...
........................ 2-50>

Black plate (82,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-4Instruments and controls
GUID-F966D69B-15F8-48D0-A86B-A60F682B16E9
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel—
Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) —
Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
18. Rear window and outside mirror (if so equipped) defroster switch (P.2-34)
INSTRUMENT PANEL

Black plate (84,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-6Instruments and controls
GUID-50C93020-C345-4E0C-9F52-C7AB04736560
SIC4288

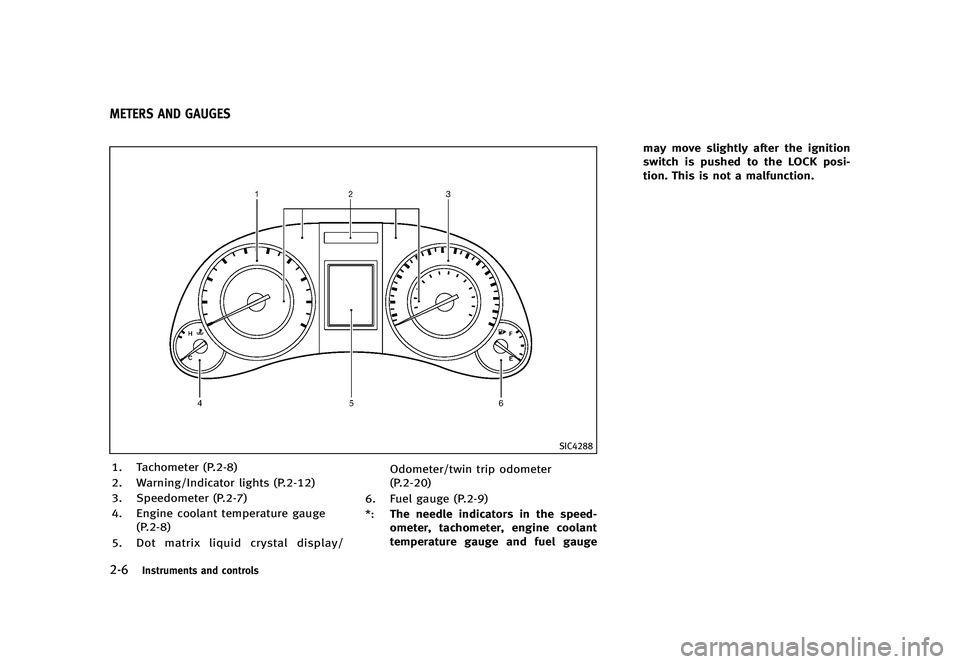

1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer
(P.2-20)
6. Fuel gauge (P.2-9)
*: The needle indicators in the speed-
ometer, tachometer, engine coolant
temperature gauge and fuel gauge may move slightly after the ignition
switch is pushed to the LOCK posi-
tion. This is not a malfunction.
METERS AND GAUGES

Black plate (85,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SIC4289
Speedometer
SPEEDOMETER AND ODOMETERGUID-88FF886D-55BB-496B-8011-CC5C82ACF75E
SpeedometerGUID-87976F68-0541-4C72-B0C4-146B04F072C8The speedometer indicates vehicle speed
in miles per hour (MPH) and kilometers per
hour (km/h).
SIC3259
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-5C08B138-E7A9-4EA6-BB29-75239C1D6187The odometer*1and twin trip odometer
*2are displayed on the dot matrix crystal
display when the ignition switch is in the
ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET switch*3at
the bottom left of the combination meter
panel changes the display as follows: TRIP A
?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET switch*3for
more than 1 second resets the trip
odometer to zero.
Average fuel economy and distance to
empty information is also available. (See
“Dot matrix liquid crystal display” (P.2-20)
and “How to use STATUS button” (P.4-9).)
Instruments and controls2-7

Black plate (87,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SIC4292

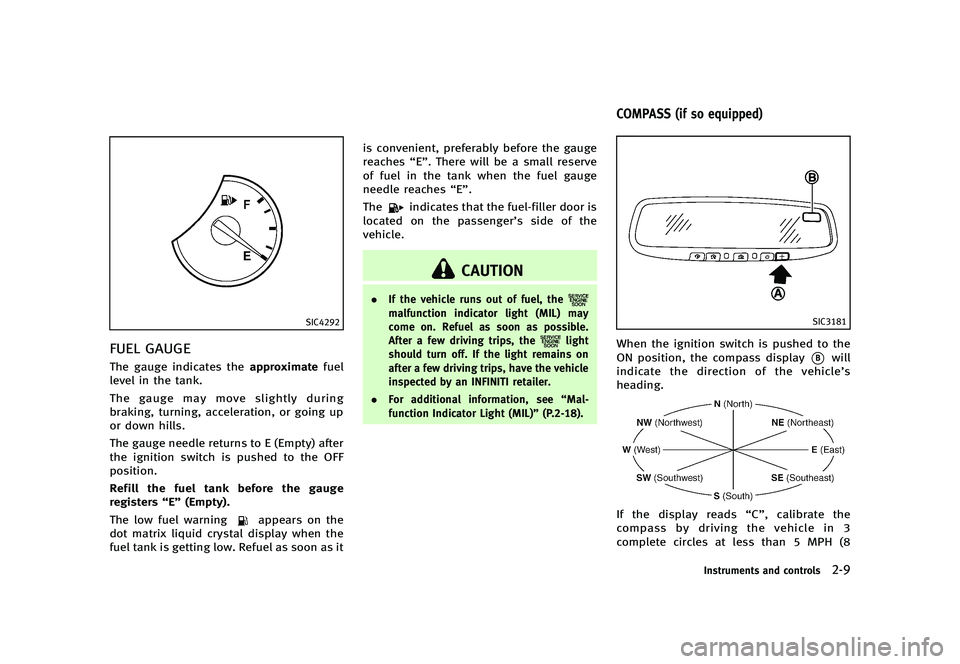

FUEL GAUGEGUID-A6CE9D87-1196-4EDB-BE07-B0479D286BC3The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during
braking, turning, acceleration, or going up
or down hills.
The gauge needle returns to E (Empty) after
the ignition switch is pushed to the OFF
position.
Refill the fuel tank before the gauge
registers “E”(Empty).
The low fuel warning
appears on the
dot matrix liquid crystal display when the
fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge
reaches
“E”. There will be a small reserve
of fuel in the tank when the fuel gauge
needle reaches “E”.
The
indicates that the fuel-filler door is
located on the passenger’s side of the
vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-18).
GUID-263D42A7-AD19-460F-8531-86F714066C53
SIC3181
When the ignition switch is pushed to the
ON position, the compass display
*Bwill
indicate the direction of the vehicle’s
heading.
NOS1741
If the display reads “C”, calibrate the
compass by driving the vehicle in 3
complete circles at less than 5 MPH (8
Instruments and controls2-9
COMPASS (if so equipped)
