2012 INFINITI G stop start

Black plate (388,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
6-8In case of emergency
5. Securely store the flat tire and jackingequipment in the vehicle.
6. Place the spare tire cover and the trunk floor carpeting over the damaged tire.
7. Close the trunk.
WARNING
. Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The T-type spare tire and small size
spare tire are designed for emergency
use. See specific instructions under the
heading “Wheels and tires” (P.8-33).
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).
GUID-AB535234-DC9B-4E72-BAB2-7645DFBFC702To start your engine with a booster battery,
the instructions and precautions below
must be followed.
WARNING
.If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also
damage your vehicle.
. Explosive hydrogen gas is always pre-
sent in the vicinity of the battery. Keep
all sparks and flames away from the
battery.
. Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulphuric acid solution which
can cause severe burns. If the fluid
should come into contact with anything,
immediately flush the contacted area
with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle. .
Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
. Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.
. Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).
JUMP STARTING

Black plate (390,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
6-10In case of emergency
the positive cable (*4?*3?*2?
*1).
8. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to
cover the vent holes as it may be
contaminated with corrosive acid.
9. Put the battery cover on.
GUID-14A00CCC-06C0-406E-A0D2-AA920BF7ACC8Do not attempt to start the engine by
pushing.
CAUTION
. Automatic transmission models cannot
be push-started or tow-started. Attempt-
ing to do so may cause transmission
damage.
. Three way catalyst equipped models
should not be started by pushing since
the three way catalyst may be damaged.
. Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
GUID-4F097083-26E2-4D86-B572-AFD615B83F6E
CAUTION
.Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
. To avoid the danger of being scalded,
never remove the radiator cap while the
engine is still hot. When the radiator cap
is removed, pressurized hot water will
spurt out, possibly causing serious
injury.
. Do not open the hood if steam is coming
out.
If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc., take
the following steps:
1. Move the vehicle safely off the road,
apply the parking brake and move the
selector lever to the P (Park) position
(Automatic transmission models). Move
the shift lever to the N (Neutral)
position (Manual transmission models).
Do not stop the engine.
2. Turn off the climate control. Open all
PUSH STARTING IF YOUR VEHICLE OVERHEATS

Black plate (391,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
the windows, move the heater or air
conditioner temperature control to
maximum hot and fan control to high
speed.
3. If engine overheating is caused by
climbing a long hill on a hot day, run
the engine at a fast idle (approximately
1,500 rpm) until the temperature gauge
indication returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the engine.) Do not open the hood
further until no steam or coolant can be
seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan
is running. The radiator hoses and
radiator should not leak water. If cool-
ant is leaking or the cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
7. After the engine cools down, check the
coolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired at the nearest INFINITI
retailer.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
GUID-EFD3ED0D-F0D8-4E16-A86F-75D73E7484FAWhen towing your vehicle, all State (Pro-
vincial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from an
INFINITI retailer. Local service operators are
familiar with the applicable laws and
procedures for towing. To assure proper
towing and to prevent accidental damage
to your vehicle, INFINITI recommends that
you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions.
WARNING
. Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION
.When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any unit is damaged, dollies must be
In case of emergency6-11
TOWING YOUR VEHICLE

Black plate (411,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

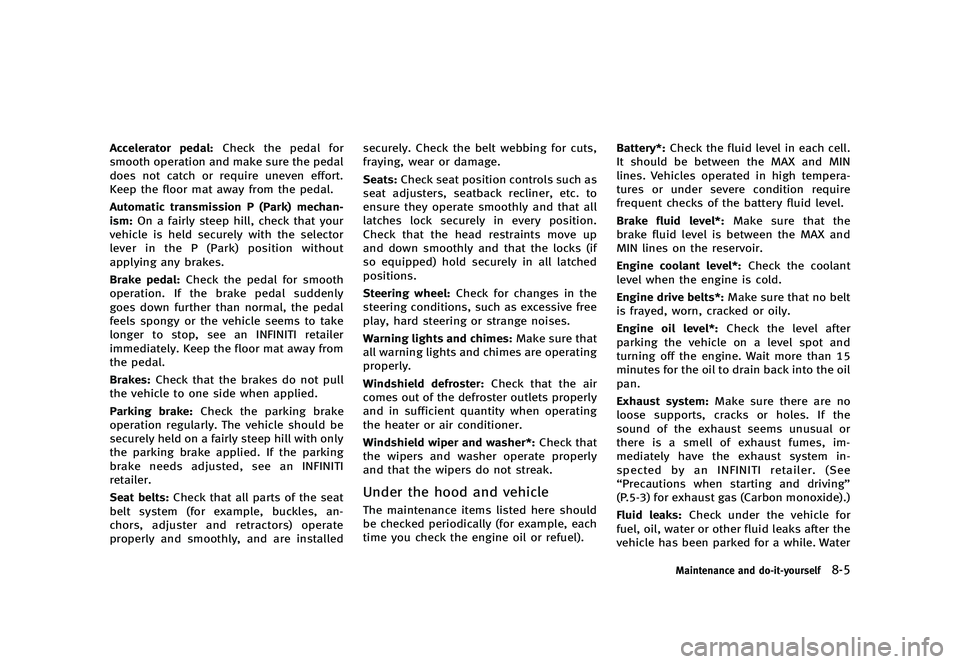

Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the selector
lever in the P (Park) position without
applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly
goes down further than normal, the pedal
feels spongy or the vehicle seems to take
longer to stop, see an INFINITI retailer
immediately. Keep the floor mat away from
the pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, see an INFINITI
retailer.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, an-
chors, adjuster and retractors) operate
properly and smoothly, and are installed securely. Check the belt webbing for cuts,
fraying, wear or damage.
Seats:
Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position.
Check that the head restraints move up
and down smoothly and that the locks (if
so equipped) hold securely in all latched
positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free
play, hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly
and that the wipers do not streak.
Under the hood and vehicleGUID-29B64B94-E77F-40DC-A4B2-6B5D542860EDThe maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel). Battery*:
Check the fluid level in each cell.
It should be between the MAX and MIN
lines. Vehicles operated in high tempera-
tures or under severe condition require
frequent checks of the battery fluid level.
Brake fluid level*: Make sure that the
brake fluid level is between the MAX and
MIN lines on the reservoir.
Engine coolant level*: Check the coolant
level when the engine is cold.
Engine drive belts*: Make sure that no belt
is frayed, worn, cracked or oily.
Engine oil level*: Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, im-
mediately have the exhaust system in-
spected by an INFINITI retailer. (See
“Precautions when starting and driving”
(P.5-3) for exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for
fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
Maintenance and do-it-yourself8-5

Black plate (427,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Always replace spark plugs with recom-
mended or equivalent ones.
GUID-FC3BF8A1-4ABE-43E9-86D6-8E1A682A1F74
SDI2033
Remove the retainers*1as illustrated and
pull out the filter element
*2.
The filter element should not be cleaned
and reused. Replace it according to the
maintenance intervals. See “INFINITI Ser-
vice and Maintenance Guide” for mainte-
nance intervals. When replacing the filter, wipe the inside of the air cleaner housing
and the cover with a damp cloth.
WARNING
.
Operating the engine with the air
cleaner removed can cause you or others
to be burned. The air cleaner not only
cleans the air, it stops flame if the
engine backfires. If it isn’t there, and the
engine backfires, you could be burned.
Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
. Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
Maintenance and do-it-yourself8-21
AIR CLEANER

Black plate (474,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
9-24Technical and consumer information
dollyMUST be placed under the towed
vehicle’s drive wheels. Alwaysfollow the
dolly manufacturer’s recommendations
when using their product.
Manual transmissionGUID-B30ED557-E6C5-4E25-B21C-5F9B6B9B165D. Always tow with the manual transmis-
sion in Neutral.
. Your vehicle speed should never exceed
70 MPH (112 km/h) when flat towing
your vehicle.
. After towing 500 miles, start and idle
the engine with the transmission in
Neutral for two minutes. Failure to idle
the engine after every 500 miles of
towing may cause damage to the
transmission’s internal parts.
GUID-3E088555-DC3D-4483-A05A-8DA986F1D29DDOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where applic-
able on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-499F0B52-9319-4A2F-9811-B95040CBA836The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course. For
example, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon actual conditions of their use, how-
ever, and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
TRACTION AA, A, B AND CGUID-06FD06F1-0BA4-4FE2-98C0-CCD1E9E9D435The traction grades, from highest to low-
est, are AA, A, B and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND CGUID-D08B43D7-C76A-4659-BF4F-9C199B188B10The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material of the
tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden
UNIFORM TIRE QUALITY GRADING

Black plate (479,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
10 Index
Number
4 Wheel Active Steer (4WAS) system...
................. 5-57
4 Wheel Active Steer (4WAS) warning light ...
....... 2-14
A
ABS (Anti-lock Braking System) ...
......................... 5-54
Advanced air bag system ...
.................................. 1-46
Air bag system Advanced air bag system ...
............................. 1-46
Front passenger air bag and status light ...
...... 1-49
Front-seat mounted side-impact supplemental
air bag system ...
............................................. 1-52
Roof-mounted curtain side-impact
supplemental air bag system ...
....................... 1-52
Air bag warning labels ...
...................................... 1-55
Air bag warning light ...
............................... 1-55, 2-17
Air cleaner housing filter ...
................................... 8-21
Air conditioner Air conditioner service ...
................................. 4-41
Air conditioner specification label ...
................ 9-14
Air conditioning system refrigerant and
lubricant recommendations ...
.................. 4-41, 9-7
Automatic climate control ...
............................ 4-31
In-cabin microfilter ...
....................................... 4-40
Alarm, How to stop alarm (see vehicle
security system) ...
................................................ 2-29
Alcohol, drugs and driving ...
.................................. 5-8
All-wheel drive (AWD) ...
........................................ 5-45 All-wheel drive (AWD) driving
safety precautions
...
.............................................. 5-8
All-wheel drive (AWD) warning light ...
.................. 2-12
Antenna ...
............................................................ 4-89
Anti-lock Braking System (ABS) ...
......................... 5-54
Anti-lock braking system (ABS) warning light ...
.... 2-13
Appearance care Exterior appearance care ...
................................ 7-2
Interior appearance care ...
................................ 7-4
Armrest ...
............................................................. 1-13
Ashtrays (See cigarette lighter and ashtrays) ...
.... 2-44
Audible reminders ...
............................................ 2-19
Audio operation precautions ...
............................. 4-41
Audio system ...
.................................................... 4-41
Steering wheel audio controls ...
...................... 4-87
Autolight system ...
............................................... 2-35
Automatic
Automatic adjusting function
(front windows) ...
............................................ 2-54
Automatic climate control ...
.................. 4-32, 4-34
Automatic transmission fluid (ATF) ...
............... 8-14
Climate control ...
............................................ 4-31
Door locks ...
..................................................... 3-6
Drive positioner ...
........................................... 3-31
Driving with automatic transmission ...
............ 5-14
Moonroof ...
..................................................... 2-55
Seat positioner ...
............................................ 3-31
Average fuel consumption and speed ...
................ 2-26
Avoiding collision and rollover ...
............................ 5-6
B
Battery ...
.............................................................. 8-17
Battery saver system ...
................................... 2-37
Intelligent Key ...
.............................................. 8-26
Variable voltage control system ...
................... 8-19
Before starting the engine ...
................................ 5-12
Belts (See drive belts) ...
....................................... 8-19
Bluetooth
®hands-free phone system
(models with navigation system) ...
....................... 4-90
Bluetooth
®hands-free phone system
(models without navigation system) ...
................ 4-100
Bluetooth
®streaming audio ...
............................. 4-70
Brake Anti-lock Braking System (ABS) ...
.................... 5-54
Brake and clutch fluid ...
.................................. 8-15
Brake fluid ...
................................................... 8-15
Brake system ...
............................................... 5-51
Parking brake operation ...
............................... 5-20
Warning light ...
............................................... 2-13
Break-in schedule ...
............................................. 5-45
Brightness control Display ON/OFF button ...
.................................. 4-9
Instrument panel ...
......................................... 2-38
Bulb check/instrument panel ...
............................ 2-12
Bulb replacement ...
.............................................. 8-28
