2012 INFINITI G buttons

Black plate (158,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
3-16Pre-driving checks and adjustments
.Any of the buttons on the IntelligentKey are pushed. (Note: Panic button
should be pushed for more than 1
second.)
Setting hazard indicator and horn
mode
GUID-9A144FFD-F5E1-4E09-8D59-8443995F117DThis vehicle is set in hazard indicator and
horn mode when you first receive the
vehicle.
In hazard indicator and horn mode, when
the LOCK
button*1is pushed, the
hazard indicator flashes twice and the horn
chirps once. When the UNLOCK
button
*2is pushed, the hazard indicator flashes
once.
If horns are not necessary, the system can
be switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button is pushed, neither the hazard
indicator nor the horn operates.

Black plate (159,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Hazard indicator and horn mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCKDOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - onceHAZARD - none
OUTSIDE CHIME -
4
times
Remote keyless entry system
(Using
,orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none HAZARD - none
HORN - none
Hazard indicator mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK
DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - noneHAZARD - none
OUTSIDE CHIME - none
Remote keyless entry system
(Using
,orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - noneHAZARD - none
HORN - none
Switching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To switch the hazard indicator and horn
(chime) operation, push the LOCK
*1
and UNLOCK*2buttons on the In-
telligent Key simultaneously for more than
2 seconds.
. When the hazard indicator mode is set,
the hazard indicator flashes 3 times.
. When the hazard indicator and horn
mode is set, the hazard indicator
flashes once and the horn chirps once.
NOS1695
Pre-driving checks and adjustments3-17

Black plate (180,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Voice commands...
........................................... 4-91
Control buttons ...
............................................. 4-92
Connecting procedure ...
.................................... 4-92
Phone selection ...
............................................. 4-93
Vehicle phonebook ...
........................................ 4-93
Making a call ...
................................................ 4-95
Receiving a call ...
............................................. 4-96
During a call ...
................................................. 4-97
Phone setting ...
................................................ 4-98
Troubleshooting guide ...
................................... 4-99
Bluetooth
®Hands-Free Phone System
(models without navigation system)
(if so equipped) ...
............................................... 4-100
Regulatory information ...
................................ 4-101
Control buttons ...
........................................... 4-102
Voice Recognition System ...
............................ 4-102 Pairing procedure
...
...................................... 4-107
Phonebook registration ...
.............................. 4-108
Making a call ...
............................................. 4-109
Receiving a call ...
.......................................... 4-109
During a call ...
.............................................. 4-109
Phone settings ...
........................................... 4-110
Voice adaptation mode ...
.............................. 4-113
INFINITI Voice Recognition system
(models with navigation system) ...
..................... 4-114
INFINITI Voice Recognition
STANDARD mode ...
........................................ 4-115
Using the system ...
....................................... 4-118
INFINITI Voice Recognition alternate
command mode ...
......................................... 4-127
Using the system ...
....................................... 4-136
Troubleshooting guide ...
............................... 4-142

Black plate (181,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-7F90DABA-37C8-4571-9C5A-2974CEC5AA7A
SAA1523
Models with navigation system
1. “STATUS” status display button
(P.4-9)
2, 6, 7, 10, 11. For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)
3. INFINITI controller (P.4-5)
4. “PHONE” Bluetooth
®Hands-Free
Phone System button (P.4-90)
5. “
OFF” brightness control and
display ON/OFF button (P.4-9)
8. “AM·FM·SAT” band selector button
(P.4-41) 9.
“DISC·AUX” selector button (P.4-41)
12. “INFO” vehicle and navigation infor-
mation button (P.4-9)
13. “SETTING” button (P.4-14)
Monitor, climate, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL

Black plate (183,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
HOW TO USE INFINITI CONTROLLERGUID-7A498997-935F-4751-B393-57B01CF46DDFChoose an item on the display using the
main directional buttons
*2(or additional
directional buttons
*6with navigation
system) or center dial
*3, and push the
ENTER button
*1for operation.
If you push the BACKbutton
*4before the
setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.
After the setup is completed, push the
BACK button
*4and return to the previous
screen.
For the VOICEbutton
*5functions, refer to
the separate Navigation System Owner’s
Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-6611C03E-CDBF-4D30-B540-4F9F66BCB2C5
CAUTION
. The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. Do not touch the glass if
it breaks. Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that could distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Touch screen operationGUID-9E906F90-D180-4427-8288-7815C56B83FBWith this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.
Monitor, climate, audio, phone and voice recognition systems4-5

Black plate (211,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4. To turn off the climate control system,push the “OFF”button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the
air is cooled rapidly. This does not indicate
a malfunction.
Heating (A/C OFF):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The air conditioner does not activate in this
mode. When you need to heat only, use
this mode.
1. Push the “AUTO”button on.
2. Push the “A/C”button. (The A/C
indicator will turn off.)
3. Turn the temperature control dial to set the desired temperature.
. The temperature of the passenger
compartment will be maintained auto-
matically. Air flow distribution and fan
speed are also controlled automati-
cally.
. Do not set the temperature lower than
the outside air temperature. Otherwise
the system may not work properly.
. Not recommended if windows fog up.
Dehumidified defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the “”front defroster button.
(The indicator light on the button will come on.)
2. Turn the temperature control dial to set the desired temperature.
. To quickly remove ice from the outside
of the windows, push the fan speed
increase button “
”and set it to the
maximum position.
. As soon as possible after the wind-
shield is clean, push the “AUTO”button
to return to the auto mode.
. When the “
”front defroster button
is pushed, the air conditioner will
automatically be turned on at outside
temperatures above 238F (−58C) to
defog the windshield, and the air
recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
Manual operationGUID-229B673E-2AED-4344-9C09-630604A66426
Fan speed control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed increase “”or
decrease “
”buttons to manually con-
trol the fan speed.
Push the “AUTO”button to return to
automatic control of the fan speed. Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the intake air control button
“
”to recirculate interior air inside the
vehicle. The indicator light on the “
”
side will come on.
The air recirculation mode cannot be
activated when the air conditioner is in
the front defrosting mode “
”.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the intake air control button “
”to draw outside air into the passen-
ger compartment. The indicator light on the
“
” side will come on.
Automatic intake air control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407In the AUTO mode, the intake air will be
controlled automatically. To manually con-
trol the intake air, push the intake air
control button “
”. To return to the
automatic control mode, push the intake
air control button “
”for about 2
seconds. The indicator lights (both air
recirculation and outside air circulation
sides) will flash twice, and then the intake
air will be controlled automatically.
Monitor, climate, audio, phone and voice recognition systems4-33

Black plate (233,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

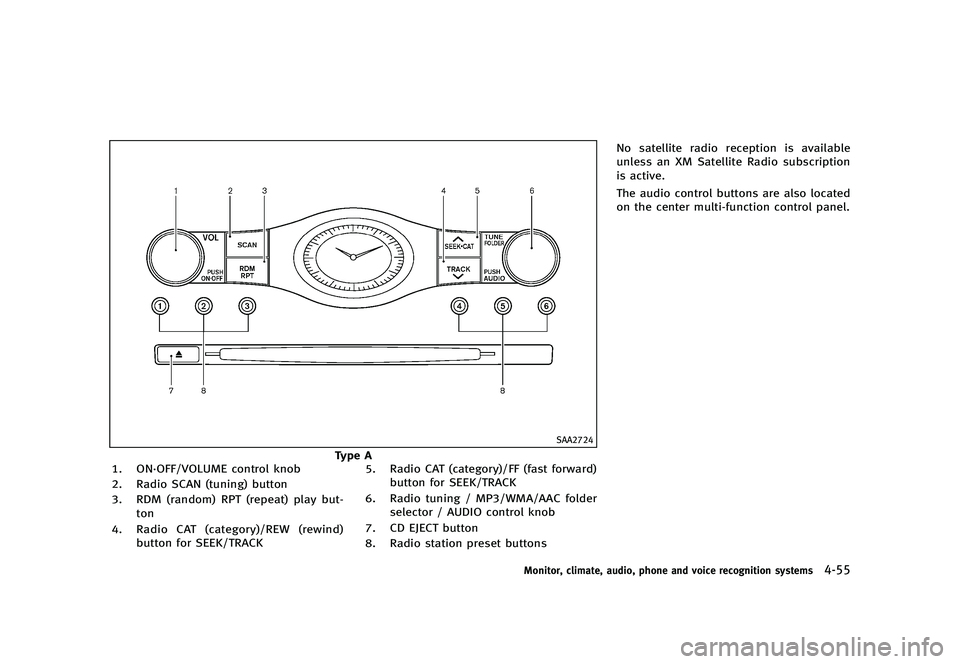

SAA2724
Type A
1. ON·OFF/VOLUME control knob
2. Radio SCAN (tuning) button
3. RDM (random) RPT (repeat) play but-
ton
4. Radio CAT (category)/REW (rewind)
button for SEEK/TRACK 5. Radio CAT (category)/FF (fast forward)
button for SEEK/TRACK
6. Radio tuning / MP3/WMA/AAC folder selector / AUDIO control knob
7. CD EJECT button
8. Radio station preset buttons No satellite radio reception is available
unless an XM Satellite Radio subscription
is active.
The audio control buttons are also located
on the center multi-function control panel.
Monitor, climate, audio, phone and voice recognition systems4-55

Black plate (234,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-56Monitor, climate, audio, phone and voice recognition systems
SAA2921
Type B
1. ON·OFF/VOLUME control knob
2. Radio PRESET A-B-C selector button
3. Radio SCAN (tuning)/CD RPT (repeat)
play button
4. Radio CAT (category)/REW (rewind)
button for SEEK/TRACK 5. Radio CAT (category)/FF (fast forward)
button for SEEK/TRACK
6. Radio tuning / MP3/WMA folder
selector / AUDIO control knob
7. CD EJECT button
8. Radio station preset buttons No satellite radio reception is available
unless an XM
®satellite radio service
subscription is active.
