2012 INFINITI G-COUPE mirror controls

2 Instruments and controls
Cockpit................................................................ 2-3
Instrument panel ................................................. 2-4
Meters and gauges .............................................. 2-6
Speedometer and odometer ............................ 2-7
Tachometer...................................................... 2-8
Engine coolant temperature gauge .................. 2-8
Fuel gauge ...................................................... 2-9
Compass (if so equipped) .................................... 2-9 Zone variation change procedure ................... 2-11
Warning/indicator lights and
audible reminders ............................................. 2-12 Checking bulbs.............................................. 2-12
Warning lights ............................................... 2-12
Indicator lights .............................................. 2-18
Audible reminders ......................................... 2-19
Dot matrix liquid crystal display ........................ 2-20
Indicators for operation ................................. 2-22
Indicators for maintenance ............................ 2-24
Trip computer ................................................ 2-26
Security systems ............................................... 2-28
Vehicle Security System ................................ 2-28
INFINITI Vehicle Immobilizer System .............. 2-30
Windshield wiper and washer switch ................. 2-31
Rain-sensing auto wiper system
(if so equipped)............................................. 2-33 Rear window and outside mirror
defroster switch ................................................ 2-34
Headlight and turn signal switch ....................... 2-34
Xenon headlights......................................... 2-34
Headlight switch .......................................... 2-35
Turn signal switch........................................ 2-38
Fog light switch ........................................... 2-39
Hazard warning flasher switch .......................... 2-39
Horn ................................................................. 2-40
Heated seats (if so equipped) ........................... 2-40
SNOW mode switch (if so equipped) ................. 2-41
Vehicle Dynamic Control (VDC) OFF switch ......... 2-42
Clock................................................................. 2-42
Adjusting the time ....................................... 2-42
Power outlet ..................................................... 2-43
Cigarette lighter and ashtrays (if so equipped).... 2-44
Front............................................................ 2-44
Rear............................................................. 2-44
Storage ............................................................. 2-45 Cup holders ................................................. 2-45
Sunglasses holder ...................................... 2-47
Glove box .................................................... 2-47
Console box................................................. 2-48
Card holder (if so equipped) ........................ 2-49
Storage box (if so equipped)........................ 2-50>

2-4Instruments and controls
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel—
Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) —
Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
18. Rear window and outside mirror (if so equipped) defroster switch (P.2-34)

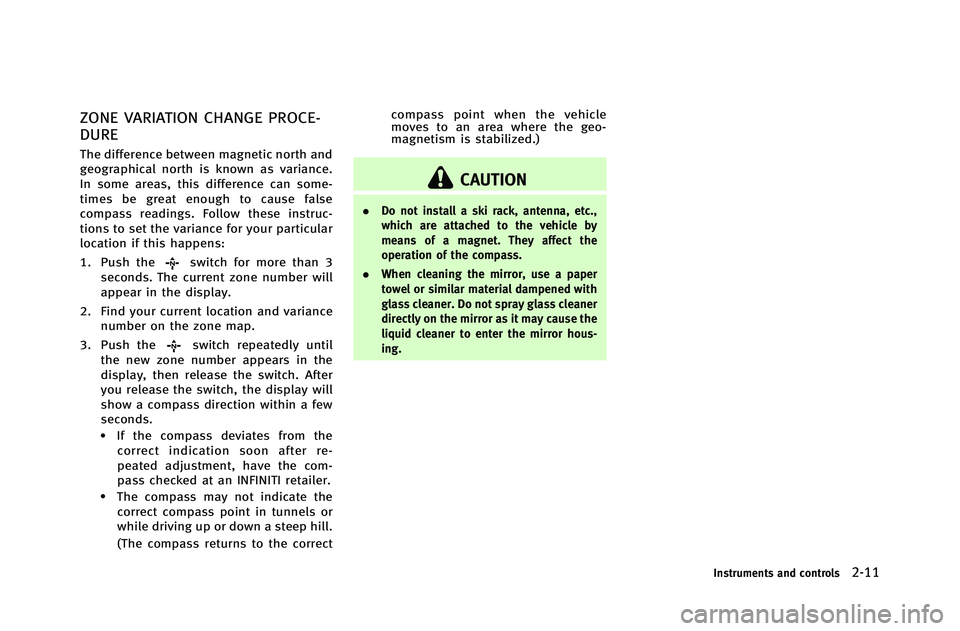

INSTRUMENT PANEL

ZONE VARIATION CHANGE PROCE-
DURE
The difference between magnetic north and
geographical north is known as variance.
In some areas, this difference can some-
times be great enough to cause false
compass readings. Follow these instruc-
tions to set the variance for your particular
location if this happens:
1. Push the
switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance number on the zone map.
3. Push the
switch repeatedly until
the new zone number appears in the
display, then release the switch. After
you release the switch, the display will
show a compass direction within a few
seconds.
.If the compass deviates from the correct indication soon after re-
peated adjustment, have the com-
pass checked at an INFINITI retailer.
.The compass may not indicate thecorrect compass point in tunnels or
while driving up or down a steep hill.
(The compass returns to the correct compass point when the vehicle
moves to an area where the geo-
magnetism is stabilized.)
CAUTION
.
Do not install a ski rack, antenna, etc.,
which are attached to the vehicle by
means of a magnet. They affect the
operation of the compass.
. When cleaning the mirror, use a paper
towel or similar material dampened with
glass cleaner. Do not spray glass cleaner
directly on the mirror as it may cause the
liquid cleaner to enter the mirror hous-
ing.
Instruments and controls2-11

2-34Instruments and controls
SIC3239
Type A
SIC3278
Type BTo defog/defrost the rear window glass
and outside mirrors (if so equipped), start
the engine and push the switch
*1on. The
indicator light
*2will come on. Push the
switch again to turn the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xenon
headlights replaced at an INFINITI retai-
ler.
. Xenon headlights provide considerably
more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights
are not aimed correctly, immediately
take your vehicle to an INFINITI retailer
and have the headlights adjusted cor-
rectly.
When the xenon headlight is initially
turned on, its brightness or color varies
slightly. However, the color and brightness
will soon stabilize.
.The life of xenon headlights will be
shortened by frequent on-off operation.
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH

2-58Instruments and controls
.any door is opened with the ignition
switch in any position
— remain on while the door is opened.
When the door is closed, the lights
go off.
OFF position
When the switch is in the OFF position*3,
the lights will not illuminate, regardless of
the condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a
discharged battery.
SIC2064
Type A
SIC3869
Type B The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after 15
minutes when the lights remain illumi-
nated to prevent the battery from becom-
ing discharged.
VANITY MIRROR LIGHTS

4-36Monitor, climate, audio, phone and voice recognition systems
trol the intake air, push the intake air
control button“”. To return to the
automatic control mode, push the intake
air control button “
”for about 2
seconds. The indicator lights (both air
recirculation and outside air circulation
sides) will flash twice, and then the intake
air will be controlled automatically.
Air flow control:
Pushing an air flow control button manu-
ally controls the air flow and selects the air
outlet to the following settings.
: Air flows from center and side ventilators.
: Air flows from center and side ventilators and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
To turn the system off
Push the OFF button.
SAA2972
Type C
1. “AUTO” automatic operation button/
Temperature control dial (driver side)
2. “A/C” air conditioner ON/OFF button
3. “
”fan speed increase button
4. “
”front defroster button
5. “MODE” manual air flow control but-
ton
6. “DUAL” zone control ON/OFF button/
Temperature control dial (passenger
side)
7. “OFF” button for climate control sys-
tem
8. “
”fan speed decrease button 9.
“
”rear window defroster button
(See “Rear window and outside mirror
defroster switch” (P.2-34).)
10. “
”auto-recirculation button/
intake air control button

10-2
C
Cabin air filter ................................................... 4-40
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-89
Card holder ....................................................... 2-49
Cargo net retainers ........................................... 2-51
Catalytic converter, Three way catalyst ................ 5-4
CD/CF/USB memory care and cleaning ............. 4-86
Center multi-function control panel ..................... 4-3
Child restraints ................................................. 1-23LATCH system .............................................. 1-25
Precautions on child restraints ..................... 1-23
Child safety ...................................................... 1-21
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-19
Seat belt warning light and chime ............... 2-17
Cigarette lighter and ashtrays ........................... 2-44
Circuit breaker, Fusible link............................... 8-24
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control, Automatic climate control ........ 4-31
Clock ................................................................ 2-42
Clutch fluid ....................................................... 8-15
Coat hooks ....................................................... 2-50
Cockpit ............................................................... 2-3
Cold weather driving ......................................... 5-58
Compact Disc (CD) player (See audio system) ... 4-60
Compact spare tire ........................................... 8-43
Compass ............................................................. 2-9
Console box ...................................................... 2-48 Controller, Center multi-function control panel .... 4-5
Controls
Control panel button ...................................... 4-3
INFINITI Controller .......................................... 4-5
Coolant Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-10
Checking engine coolant level ...................... 8-10
Corrosion protection ........................................... 7-6
Cruise control ................................................... 5-21 Fixed speed cruise control (on ICC system) ... 5-41
Intelligent cruise control (ICC) system .......... 5-23
Cup holders ...................................................... 2-45
Current fuel consumption .................................. 2-26
D
Daytime running light system ........................... 2-37
Defroster switch, Rear window and outside mirror
defroster switch ................................................ 2-34
Dimensions ....................................................... 9-11
Distance to empty ............................................. 2-26
Door/trunk open warning .................................. 2-23
Dot matrix liquid crystal display ....................... 2-20
Drive belts ........................................................ 8-19
Drive positioner ................................................ 3-31
Driving All-wheel drive (AWD) ................................... 5-45
Cold weather driving .................................... 5-58
Driving with automatic transmission ............ 5-14
Driving with manual transmission ................ 5-18 Precautions when starting and driving ........... 5-3
DS (Drive Sport) mode ...................................... 5-16
DVD player operation ........................................ 4-62
E
Economy, Fuel ................................................... 5-45
Elapsed time ..................................................... 2-26
Elapsed time and trip odometer ........................ 2-26
Emission control information label .................... 9-13
Emission control system warranty ..................... 9-25
Engine Before starting the engine ........................... 5-12
Break-in schedule ........................................ 5-45
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-10
Changing engine oil and filter ...................... 8-11
Checking engine coolant level ...................... 8-10
Checking engine oil level ............................. 8-11
Coolant temperature gauge ............................ 2-8
Emergency engine shut off ........................... 5-11
Engine compartment check locations ............. 8-8
Engine cooling system ................................... 8-9
Engine oil .................................................... 8-11
Engine oil and oil filter recommendation ........ 9-6
Engine oil replacement indicator .................. 2-24
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
Engine start operation indicator (Automatic
Transmission models) .................................. 2-22

10-6
Reporting safety defects ................................... 9-26
Roadside assistance program ............................. 6-2
Rollover .............................................................. 5-6
Roof, Moonroof ................................................. 2-55
S
SafetyChild seat belts ........................................... 1-21
Satellite radio operation ................................... 4-58
Seat adjustment Front power seat adjustment .......................... 1-3
Front seats ..................................................... 1-3
Seat belt(s) Child safety ................................................. 1-21
Infants ......................................................... 1-22
Injured persons ........................................... 1-16Larger children ............................................. 1-22
Precautions on seat belt usage .................... 1-14
Pre-crash seat belts ..................................... 1-16
Pregnant women .......................................... 1-16
Seat belt cleaning .......................................... 7-6
Seat belt extenders ...................................... 1-20
Seat belt maintenance ................................. 1-21
Seat belt warning light and chime ............... 2-17
Seat belts .................................................... 1-14
Seat belts with pretensioners ...................... 1-54
Shoulder belt height adjustment .................. 1-19
Small children ............................................. 1-22
Three-point type .......................................... 1-16
Seat synchronization function ........................... 3-32 Seat(s)
Driver-side memory ...................................... 3-31
Heated seats ............................................... 2-40
Seats ............................................................. 1-2
Security system
(INFINITI Vehicle Immobilizer System),
Engine start ...................................................... 2-30
Security system, Vehicle security system .......... 2-28
Selector lever, Shift lock release ....................... 5-17
Servicing climate control ................................... 4-41
SETTING button ................................................. 4-14
Shift lock release, Transmission ........................ 5-17
Shift “P”warning (Automatic
Transmission models) ....................................... 2-22
Shifting Automatic transmission ............................... 5-14
Manual transmission ................................... 5-18
Shoulder belt height adjustment ....................... 1-19
Sliding front passenger’s seat ............................. 1-5
Snow mode switch ............................................ 2-41
Sonar system .................................................... 5-48
Sonar system off switch .................................... 5-50
Spare tire ........................................................... 9-9
Spark plugs ...................................................... 8-20
Speedometer ...................................................... 2-7
Starting Before starting the engine ........................... 5-12
Jump starting ................................................. 6-8
Precautions when starting and driving ........... 5-3
Push starting ............................................... 6-10
Starting the engine ...................................... 5-13 STATUS button .................................................... 4-9
Status light, Front passenger air bag ................ 1-49
Steering
Power steering fluid ..................................... 8-14
Power steering system ................................. 5-50
Steering-wheel-mounted controls
for audio ...................................................... 4-87
Tilt/telescopic steering ................................. 3-26
Storage ............................................................. 2-45
Storage box ...................................................... 2-50
Stowing golf bags ............................................. 2-51
Sun visors ........................................................ 3-27
Sunglasses holder ............................................ 2-47
Supplemental air bag warning labels ................ 1-55
Supplemental air bag warning light ......... 1-55, 2-17
Supplemental restraint system .......................... 1-41
Precautions on supplemental
restraint system ........................................... 1-41
Switch
Autolight switch ........................................... 2-35
Fog light switch ........................................... 2-39
Hazard warning flasher switch ..................... 2-39
Headlight switch .......................................... 2-35
Ignition switch ............................................. 5-14
Ignition switch manual
transmission models .................................... 5-18
Power door lock switch .................................. 3-5
Rear window and outside mirror
defroster switch ........................................... 2-34
Snow mode switch ....................................... 2-41
Turn signal switch ........................................ 2-38
