Page 434 of 474

INFINITI G-CONVERTIBLE 2012 Owners Manual Replacing wheels and tiresGUID-9715A1ED-EE7A-41C8-9DA9-0A2EB272D8BAWhen replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“Spe

Replacing wheels and tiresGUID-9715A1ED-EE7A-41C8-9DA9-0A2EB272D8BAWhen replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“Specifications”(P.9-8) for recommended
types and sizes of tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of tires
of different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-tire
clearance, tire chain clearance, speed-
ometer calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result in
serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer-
ence with the brake discs/drums. Such
interference can lead to decreased brak- ing efficiency and/or early brake pad/
shoe wear. See
“Wheels and tires” (P.9-
9) of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.
Wheel balanceGUID-B04D94A2-8C9A-4662-A08E-3F7335A6B729Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheelsGUID-700A8910-ACB9-4129-951B-D744E6E71328. Wash the wheels when washing the
vehicle to maintain their appearance.
. Clean the inner side of the wheels when
the wheel is changed or the underside
of the vehicle is washed.
. Do not use abrasive cleaners when
washing the wheels.
. Inspect wheel rims regularly for dents
or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead.
Maintenance and do-it-yourself8-37

Page 467 of 474

INFINITI G-CONVERTIBLE 2012 Owners Manual 10-4
Intelligent Key battery discharge indicator...
........ 2-19
Intelligent Key insertion indicator ...
...................... 2-19
Intelligent Key removal indicator ...
....................... 2-19

10-4
Intelligent Key battery discharge indicator...
........ 2-19
Intelligent Key insertion indicator ...
...................... 2-19
Intelligent Key removal indicator ...
....................... 2-19
Intelligent Key system ...
......................................... 3-7
Battery replacement ...
..................................... 8-24
Key operating range ...
....................................... 3-9
Key operation ...
.............................................. 3-10
Warning light ...
............................................... 2-12
Warning signals ...
........................................... 3-12
Intelligent Key warning light ...
............................. 2-12
Interior light control switch ...
............................... 2-51
Interior light replacement ...
.................................. 8-27
Interior lights ...
.................................................... 2-51
Interior trunk lid release ...
................................... 3-31
iPod
®player operation ...
..................................... 4-71
ISOFIX child restraint ...
........................................ 1-21
J
Jump starting ...
.................................................... 6-13
K
Keyless entry (See remote keyless
entry system) ...
.................................................... 3-14
Keys ...
................................................................... 3-3
For Intelligent Key system ...
.............................. 3-7
L
Labels
Air bag warning labels ...
................................. 1-48 Air conditioner specification label
...
................ 9-13
Emission control information label ...
............... 9-12
Engine serial number ...
................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-12
Tire and Loading information label ...
...... 8-30, 9-13
Vehicle identification number (VIN) ...
.............. 9-11
License plate, Installing front license plate ...
....... 9-13
Light Air bag warning light ...
................................... 1-48
Bulb replacement ...
......................................... 8-26
Fog light switch ...
........................................... 2-37
Headlight switch ...
.......................................... 2-34
Headlights bulb replacement ...
....................... 8-26
Indicator lights ...
............................................ 2-15
Interior light control switch ...
.......................... 2-51
Interior lights ...
............................................... 2-51
Map lights ...
................................................... 2-51
Replacement ...
................................................ 8-26
Trunk light ...
................................................... 2-52
Vanity mirror lights ...
...................................... 2-52
Warning/indicator lights and
audible reminders ...
........................................ 2-10
Xenon headlights ...
......................................... 2-33
Lights, Exterior and interior light replacement ...
... 8-27
Loading information (See vehicle
loading information) ...
......................................... 9-17
Lock Automatic door locks ...
..................................... 3-6
Door locks ...
..................................................... 3-5
Power door lock ...
............................................. 3-5
Trunk lid ...
...................................................... 3-29 Locking with mechanical key
...
............................... 3-5
Low fuel warning ...
.............................................. 2-20
Low tire pressure warning light ...
......................... 2-12
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
..... 5-4
Low washer fluid warning ...
................................. 2-20
M
Maintenance
Battery ...
......................................................... 8-15
General maintenance ...
............................. 8-2, 8-3
Indicators for maintenance ...
........................... 2-23
Inside the vehicle ...
.......................................... 8-3
Maintenance precautions ...
............................... 8-5
Maintenance requirements ...
............................. 8-2
Outside the vehicle ...
........................................ 8-3
Seat belt maintenance ...
................................. 1-17
Malfunction indicator light (MIL) ...
....................... 2-15
Map lights ...
........................................................ 2-51
Master warning light ...
......................................... 2-13
Mechanical key (Intelligent Key system) ...
.............. 3-4
Memory storage, Automatic drive positioner ...
..... 3-39
Meter Trip computer ...
.............................................. 2-25
Meters and gauges ...
............................................. 2-6
Instrument brightness control ...
...................... 2-37
Mirror
Inside mirror ...
................................................ 3-35
Outside mirrors ...
............................................ 3-36
Vanity mirror ...
................................................ 3-37
Monitor, Rearview monitor ...
................................ 4-23

Page 470 of 474

INFINITI G-CONVERTIBLE 2012 Owners Manual Theft (INFINITI Vehicle Immobilizer
System), Engine start...
........................................ 2-29
Thigh extension ...
.................................................. 1-5
Three-way catalyst

Theft (INFINITI Vehicle Immobilizer
System), Engine start...
........................................ 2-29
Thigh extension ...
.................................................. 1-5
Three-way catalyst ...
.............................................. 5-4
Tilt/telescopic steering ...
...................................... 3-34
Tire Pressure, Low tire pressure warning light ...
.... 2-12
Sealant ...
.......................................................... 6-8
Tire replacement indicator ...
............................ 2-23
Tires
Emergency tire puncture repair kit ...
................. 6-8
Flat tire ...
.......................................................... 6-2
Low tire pressure warning system ...
.................. 5-4
Spare tire ...
.................................................... 8-38
Tire and Loading information label ...
...... 8-30, 9-13
Tire chains ...
................................................... 8-35
Tire dressing ...
.................................................. 7-4
Tire pressure ...
................................................ 8-29
Tire pressure monitoring
system (TPMS) ...
....................................... 5-4, 6-2
Tire rotation ...
................................................. 8-35
Types of tires ...
............................................... 8-34
Uniform tire quality grading ...
......................... 9-21
Wheel/tire size ...
.............................................. 9-9
Wheels and tires ...
.......................................... 8-29
Top, Retractable hard top ...
.................................. 3-19
Touch screen system ...
........................................... 4-5
Towing
Flat towing ...
................................................... 9-20
Tow truck towing ...
.......................................... 6-17
Towing a trailer ...
............................................ 9-20 TPMS, Tire pressure monitoring system
...
.............. 5-4
TPMS, Tire pressure warning system ...
................... 6-2
Trailer towing ...
.................................................... 9-20
Transceiver, HomeLink
®Universal Transceiver ...
... 2-53
Transmission Automatic transmission fluid (ATF) ...
............... 8-12
Driving with automatic transmission ...
............ 5-13
Driving with manual transmission ...
................ 5-18
Transmission selector lever lock release ... ...... 5-17
Transmitter (See remote keyless entry system) ...
... 3-14
Traveling or registering your vehicle in
another country ...
................................................ 9-11
Trip computer ...
................................................... 2-25
Trip odometer ...
................................................... 2-25
Trunk Interior trunk lid release ...
.............................. 3-31
Light ...
............................................................ 2-52
Trunk lid ...
...................................................... 3-29
Trunk lid release switch ...
............................... 3-29
Trunk open request switch ...
........................... 3-29
Trunk release power cancel switch ...
............... 3-30
Turn signal switch ...
............................................. 2-37
U
Underbody cleaning ...
............................................ 7-3
Uniform tire quality grading ...
.............................. 9-21
USB memory operation ...
..................................... 4-61
V
Vanity mirror ...
..................................................... 3-37
Vanity mirror lights ...
........................................... 2-52
Variable voltage control system ...
........................ 8-17
Vehicle
Dimensions ...
.................................................. 9-10
Identification number (VIN) ...
.......................... 9-11
Loading information ...
..................................... 9-17
Recovery (freeing a stuck vehicle) ...
................ 6-19
Security system ...
........................................... 2-27
Vehicle dynamic control (VDC) off switch ...
...... 2-41
Vehicle dynamic control (VDC) system ...
.......... 5-54
Vehicle dynamic control (VDC)
warning light ...
............................................... 2-14
Vehicle information and settings (display) ...
...... 4-9
Ventilators ...
........................................................ 4-29
Voice command (Bluetooth
®Hands-Free
Phone System) ...
................................................ 4-101
Voice command (INFINITI voice
recognition system) ...
............................. 4-116, 4-126
Voice recognition system ...
................................ 4-109
Voice recognition, Alternate command mode ...
... 4-123
Voice recognition, Standard mode ...
................... 4-109
W
Walk-in mechanism ...
............................................. 1-6
Warning Dot matrix display ...
....................................... 2-17
Hazard warning flasher switch ...
..................... 2-38
10-7

Page 471 of 474

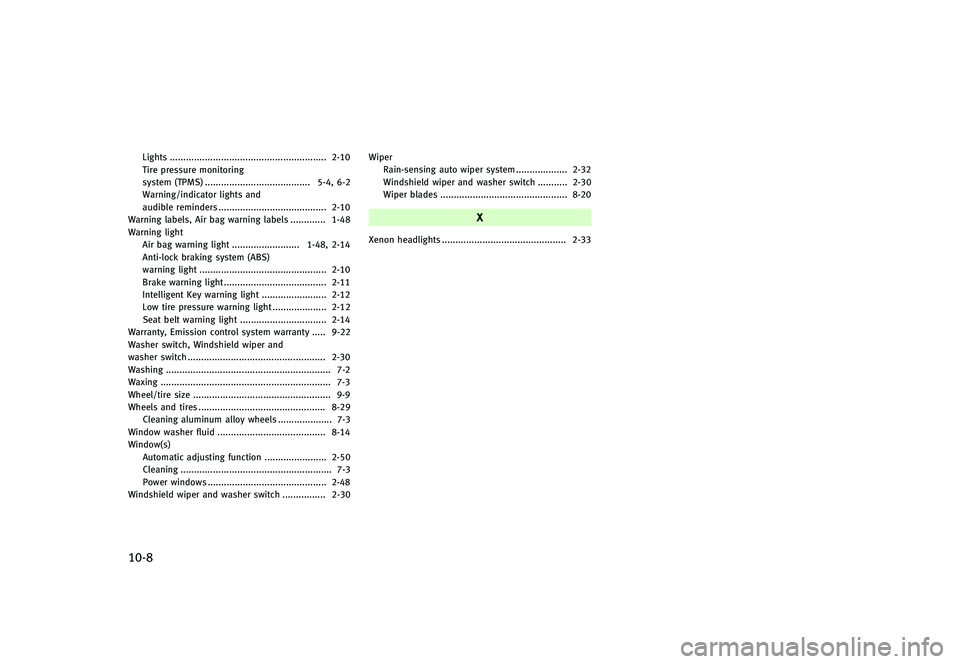

INFINITI G-CONVERTIBLE 2012 Owners Manual 10-8
Lights...
.......................................................... 2-10
Tire pressure monitoring
system (TPMS) ...
....................................... 5-4, 6-2
Warning/indicator lights and

Page: < prev 1-8 9-16 17-24

oil temperature remote control lights key fob change wheel buttons
