2012 INFINITI FX keyless

SSI0445
1. Hood (P.3-18)
2. Headlight and turn signal (P.2-36)—Bulb replacement (P.8-29)
— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-40)
3. Windshield wiper and washer (P.2-33) —
Maintenance (P.8-22)
4. Moonroof (P.2-60)
5. Roof rack (if so equipped) (P.2-57)
6. Power windows (P.2-58)
7. Outside mirrors (P.3-30) —
Side view camera (if so equipped)
(P.4-31)
— Welcome light (P.2-62)
8. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
9. Recovery hook (P.6-15)
10. Front view camera (if so equipped) (P.4-31)
11. Fog light (P.2-42)
12. Sonar sensor —Around View Monitor (if so
equipped) (P.4-31)
13. Tires —Wheel and tires (P.8-32, P.9-9)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
SSI0446
1. Rear view camera (if so equipped)(P.4-24, P.4-31)
2. Lift gate (P.3-18) —Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14) 3. Rear window defroster (P.2-36)
4. High-mounted stop light (Bulb repla-
cement) (P.8-29)
5. Rear window wiper and washer (P.2-36)
—Maintenance (P.8-24) 6. Antenna (P.4-92)
7. Sonar sensor
—Around View Monitor (if so
equipped) (P.4-31)
8. Rear combination light (Bulb replace- ment) (P.8-29)
9. Fuel-filler door (P.3-24) —Fuel recommendation (P.9-4)
10. Child safety rear door locks (P.3-6)
EXTERIOR REAR

3 Pre-driving checks and adjustments
Keys .................................................................... 3-2Intelligent Key ................................................. 3-2
Valet hand-off.................................................. 3-4
Doors .................................................................. 3-4 Locking with mechanical key ........................... 3-4
Opening and closing windows with the
mechanical key................................................ 3-5
Locking with inside lock knob ......................... 3-5
Locking with power door lock switch ............... 3-5
Automatic door locks....................................... 3-6
Child safety rear door lock .............................. 3-6
Intelligent Key system ......................................... 3-7 Intelligent Key operating range ........................ 3-9
Door locks/unlocks precaution ........................ 3-9
Intelligent Key operation ............................... 3-10
Battery saver system ..................................... 3-12
Warning signals............................................. 3-12 Troubleshooting guide ................................... 3-13
Remote keyless entry system............................. 3-14 How to use remote keyless entry system....... 3-15
Hood ................................................................. 3-18 Lift gate ............................................................ 3-18
Operating manual lift gate ........................... 3-19
Operating power lift gate (if so equipped).... 3-19
Auto closure ................................................ 3-24
Lift gate release lever .................................. 3-24
Fuel-filler door................................................... 3-24
Opening the fuel-filler door.......................... 3-24Fuel-filler cap............................................... 3-25
Tilt/telescopic steering ...................................... 3-27 Manual operation (if so equipped) ............... 3-27
Electric operation (if so equipped) ............... 3-28
Sun visors......................................................... 3-28 Mirrors .............................................................. 3-29
Inside mirror................................................ 3-29
Outside mirrors............................................ 3-30
Vanity mirror................................................ 3-32
Automatic drive positioner (if so equipped) ....... 3-32 Entry/exit function ....................................... 3-32
Seat synchronization function ...................... 3-33
Memory storage........................................... 3-34
System operation......................................... 3-35

.You can switch the lock system to the
mode that allows you to open all the
doors when the key is turned once.
(See “How to use SETTING button” (P.4-
15).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-58)).
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while
turning the key.
This function can also be performed by
pushing and holding the door UNLOCK
button of the Intelligent Key. (See “Remote
keyless entry system” (P.3-14).)
To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked
and the window keeps closing while turn-
ing the key.
SPA1814
LOCKING WITH INSIDE LOCK KNOB
To lock the door individually, move the
inside lock knob to the lock position
*1.
To unlock, move the inside lock knob to the
unlock position
*2.
Be sure not to leave the Intelligent Key
inside the vehicle.
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
Operating the power door lock switch will
lock or unlock all the doors. The switches
are located on the driver’ s and front
passenger’s door armrests.
To lock the doors, push the power door
lock switch to the lock position
*1.
Be sure not to leave the Intelligent Key
inside the vehicle.
To unlock the doors including the fuel-filler
door, push the power door lock switch to
the unlock position
*2.
Pre-driving checks and adjustments3-5

3-14Pre-driving checks and adjustments
WARNING
The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA
advises that radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not
operated unintentionally when the unit is
stored for a flight.
It is possible to lock/unlock all doors, the
lift gate, fuel-filler door, activate the panic
alarm and open the windows by pushing
the buttons on the Intelligent Key from
outside the vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelli-
gent Key can operate at a distance of
approximately 33 ft (10 m) from the
vehicle. (The effective distance depends
upon the conditions around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concern-
ing the purchase and use of additional
Intelligent Keys, contact an INFINITI retai-
ler.The lock and unlock buttons on the
Intelligent Key will not operate when:
.
the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
. the Intelligent Key battery runs down.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons,
approach the vehicle to about 3 ft (1 m)
from the door.SPA2252A
Type A
SPA2436
Type B

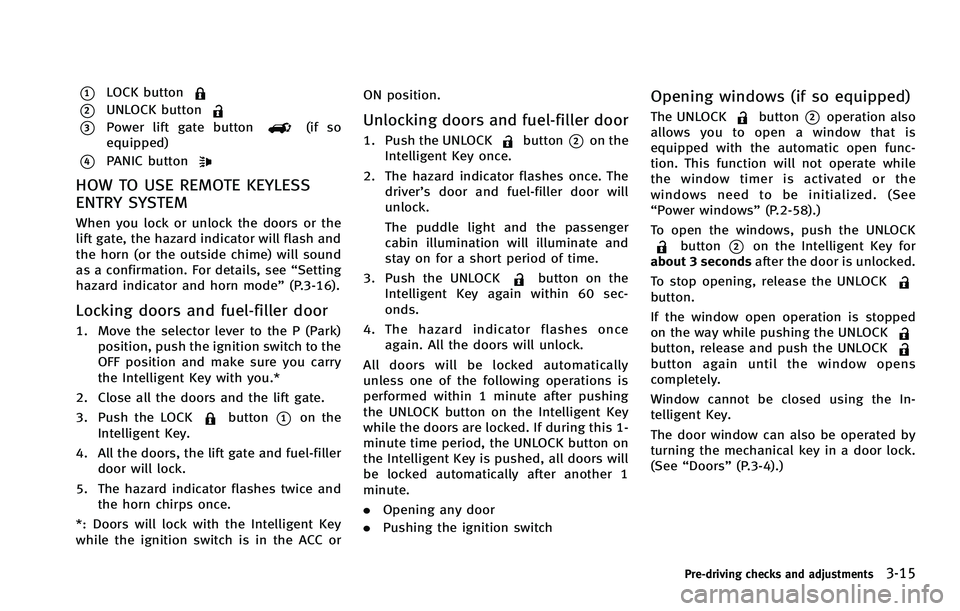

REMOTE KEYLESS ENTRY SYSTEM

*1LOCK button
*2UNLOCK button
*3Power lift gate button(if so
equipped)
*4PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
When you lock or unlock the doors or the
lift gate, the hazard indicator will flash and
the horn (or the outside chime) will sound
as a confirmation. For details, see “Setting
hazard indicator and horn mode” (P.3-16).
Locking doors and fuel-filler door
1. Move the selector lever to the P (Park)
position, push the ignition switch to the
OFF position and make sure you carry
the Intelligent Key with you.*
2. Close all the doors and the lift gate.
3. Push the LOCK
button*1on the
Intelligent Key.
4. All the doors, the lift gate and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*: Doors will lock with the Intelligent Key
while the ignition switch is in the ACC or ON position.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton*2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will
unlock.
The puddle light and the passenger
cabin illumination will illuminate and
stay on for a short period of time.
3. Push the UNLOCK
button on the
Intelligent Key again within 60 sec-
onds.
4. The hazard indicator flashes once again. All the doors will unlock.
All doors will be locked automatically
unless one of the following operations is
performed within 1 minute after pushing
the UNLOCK button on the Intelligent Key
while the doors are locked. If during this 1-
minute time period, the UNLOCK button on
the Intelligent Key is pushed, all doors will
be locked automatically after another 1
minute.
. Opening any door
. Pushing the ignition switch
Opening windows (if so equipped)
The UNLOCKbutton*2operation also
allows you to open a window that is
equipped with the automatic open func-
tion. This function will not operate while
the window timer is activated or the
windows need to be initialized. (See
“Power windows” (P.2-58).)
To open the windows, push the UNLOCK
button*2on the Intelligent Key for
about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped
on the way while pushing the UNLOCK
button, release and push the UNLOCKbutton again until the window opens
completely.
Window cannot be closed using the In-
telligent Key.
The door window can also be operated by
turning the mechanical key in a door lock.
(See “Doors” (P.3-4).)
Pre-driving checks and adjustments3-15

Hazard indicator and horn mode:
DOOR LOCKDOOR UNLOCK
Intelligent Key system
(Using door handle or lift gate request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Remote keyless entry system
(Using
,orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
DOOR LOCK DOOR UNLOCK
Intelligent Key system
(Using door handle or lift gate request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD - none
OUTSIDE CHIME -
once
Remote keyless entry system
(Using
,orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - none
Switching procedure:
To switch the hazard indicator and horn
(chime) operation, push the LOCK
*1and UNLOCK*2buttons on the In-
telligent Key simultaneously for more than
2 seconds.
. When the hazard indicator mode is set,
the hazard indicator flashes 3 times.
. When the hazard indicator and horn
mode is set, the hazard indicator
flashes once and the horn chirps once.
Pre-driving checks and adjustments3-17

10-4
IndicatorDot matrix display ....................................... 2-21
Lights .......................................................... 2-18
INFINITI Vehicle Immobilizer System .................. 2-32
INFINITI voice recognition system .................... 4-120
INFO button ........................................................ 4-9
Inside mirror ..................................................... 3-29
Inspection/maintenance (I/M) test .................... 9-31
Instrument brightness control ........................... 2-41
Instrument panel ................................................ 2-5
Intelligent Brake Assist (IBA) off indicator light ... 2-19
Intelligent Brake Assist (IBA) system ................. 5-70
Intelligent Cruise Control (ICC) system (Full
Speed Range) ................................................... 5-31
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-15
Intelligent cruise control (ICC) system,
Preview function ............................................... 5-54
Intelligent Key ..................................................... 3-2 Intelligent Key battery discharge indicator ........ 2-24
Intelligent Key insertion indicator ...................... 2-24
Intelligent Key removal indicator ....................... 2-24
Intelligent Key system ......................................... 3-7 Battery replacement ..................................... 8-27
Intelligent Key system warning light ............ 2-15
Key operating range ....................................... 3-9
Key operation .............................................. 3-10
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-63 Interior light replacement .................................. 8-30Interior lights .................................................... 2-63 iPod®player operation ..................................... 4-80
ISOFIX child restraint ........................................ 1-21
J
Jump starting ...................................................... 6-8
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-7
L
LabelsAir bag warning labels ................................. 1-50
Air conditioner specification label ................ 9-13
Emission control information label ............... 9-13
Engine serial number ................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-12
Tire and Loading information label ...... 8-34, 9-13
Vehicle identification number (VIN) .............. 9-11
Lane Departure Prevention (LDP) ON
indicator light ................................................... 2-19
Lane Departure Prevention (LDP) system ........... 5-24
Lane departure warning (LDW) system .............. 5-22
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ................... 5-21
Lane departure warning chime .......................... 2-21
Lane departure warning light ............................ 2-15 LATCH system ................................................... 1-21
License plate, Installing front license plate ....... 9-14
Lift gate ............................................................ 3-18
Light
Air bag warning light ................................... 1-50
Bulb replacement ......................................... 8-29
Cargo light ................................................... 2-65
Fog light switch ........................................... 2-42
Headlight switch .......................................... 2-37
Headlights bulb replacement ....................... 8-30Indicator lights ............................................ 2-18Interior light control switch .......................... 2-63Interior lights ............................................... 2-63
Map lights ................................................... 2-63
Personal lights ............................................. 2-63
Replacement ................................................ 8-29
Vanity mirror lights ...................................... 2-64
Warning/indicator lights and
audible reminders ........................................ 2-13
Xenon headlights ......................................... 2-36
Lights, Exterior and interior light replacement ... 8-30
Loading information (See vehicle
loading information) ......................................... 9-15 Lock Automatic door locks ..................................... 3-6
Door locks ..................................................... 3-4
Lift gate lock ................................................ 3-18
Power door lock ............................................. 3-4
Locking with mechanical key ............................... 3-4
Low fuel warning .............................................. 2-25
Low tire pressure warning light ......................... 2-15
