2012 INFINITI EX display

5-48Starting and driving

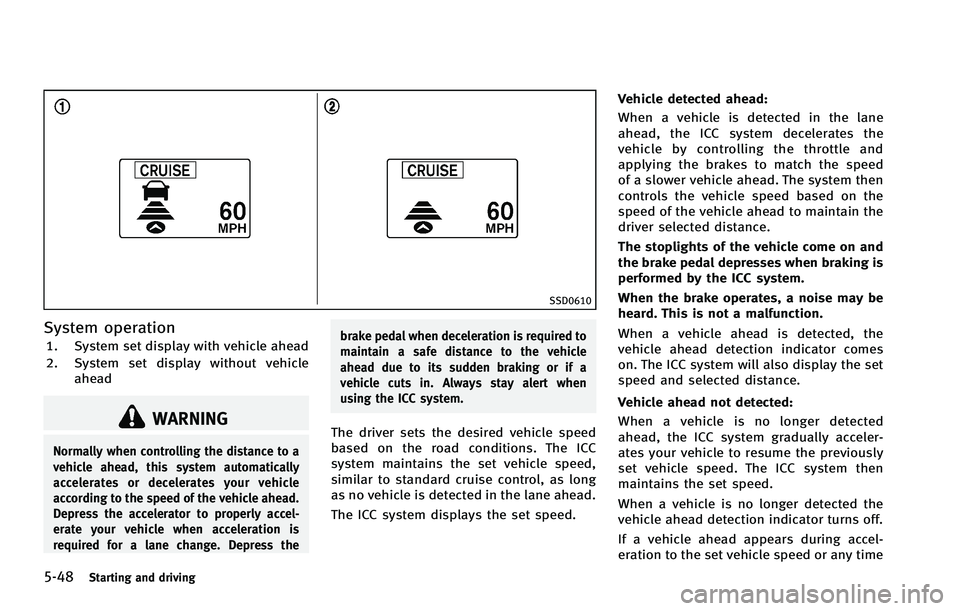

SSD0610
System operationGUID-9C870ACF-61D9-4C86-B24D-AD665A778C99
WARNING
Normally when controlling the distance to a
vehicle ahead, this system automatically
accelerates or decelerates your vehicle
according to the speed of the vehicle ahead.
Depress the accelerator to properly accel-
erate your vehicle when acceleration is
required for a lane change. Depress thebrake pedal when deceleration is required to
maintain a safe distance to the vehicle
ahead due to its sudden braking or if a
vehicle cuts in. Always stay alert when
using the ICC system.
The driver sets the desired vehicle speed
based on the road conditions. The ICC
system maintains the set vehicle speed,
similar to standard cruise control, as long
as no vehicle is detected in the lane ahead.
The ICC system displays the set speed.Vehicle detected ahead:
GUID-4D508F5D-FA8E-49D6-A9E2-6F8E76C17033

5-52Starting and driving
SSD0284A
NOTE:
The approach warning chime may sound
and the system display may blink when
the ICC sensor detects some reflectors
*Awhich are fitted on vehicles in other lanes
or on the side of the road. This may cause
the ICC system to decelerate or accelerate
the vehicle. The ICC sensor may detect
these reflectors when the vehicle is driven
on winding roads, hilly roads or when
entering or exiting a curve. The ICC sensor
may also detect reflectors on narrow roads
or in road construction zones. In these
cases you will have to manually control
the proper distance ahead of your vehicle.Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or
vehicle condition (for example, if a vehicle
is being driven with some damage).
Automatic cancellationGUID-15069D6C-9D6B-4E7F-BCA5-B2475A344694

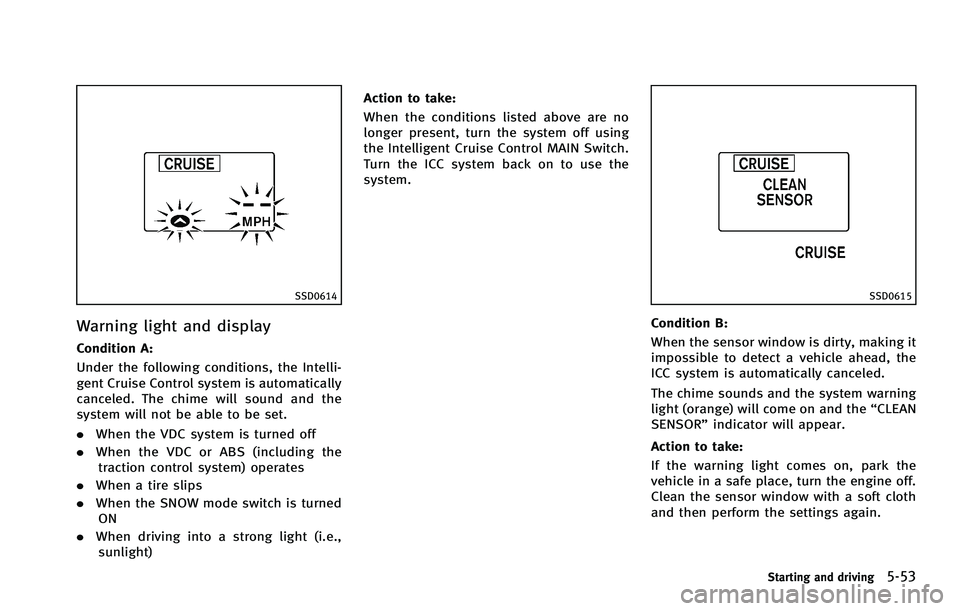

SSD0614
Warning light and displayGUID-BC93B583-B1B9-4039-891F-BBC2F0CB26EC
SSD0615
Condition B:GUID-4D508F5D-FA8E-49D6-A9E2-6F8E76C17033

WARNING
.In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the pre-
sence of the vehicle ahead nor the
vehicle-to-vehicle distance is detected.
. Pay special attention to the distance
between your vehicle and the vehicle
ahead of you or a collision could occur.
. Always confirm the setting in the In-
telligent Cruise Control system display.
. Do not use the conventional (fixed
speed) cruise control mode when driving under the following conditions:
—when it is not possible to keep the
vehicle at a set speed
—in heavy traffic or in traffic thatvaries in speed
—on winding or hilly roads
—on slippery roads (rain, snow, ice,etc.)
—in very windy areas
. Doing so could cause a loss of vehicle
control and result in an accident.
SSD0904
Conventional (fixed speed) cruise
control switch
GUID-D62DE7D2-8B6F-4B4E-8E41-91100C332695

5-56Starting and driving
SSD0618
Conventional (fixed speed) cruise
control mode display and indica-
tors
GUID-DE3519A1-927C-4526-B47E-A711C9291352
SSD0905
Operating conventional (fixed
speed) cruise control mode
GUID-CBF1298E-4C7D-4D61-8E07-5B69CA9FD99B

CAUTION
To avoid accidentally engaging cruise con-
trol, make sure to turn the ON/OFF switch off
when not using the Intelligent Cruise Con-
trol.
SSD0906
To set cruising speed,accelerate your
vehicle to the desired speed, push the
SET/COAST switch and release it. (The SET
indicator will come on in the display.) Take
your foot off the accelerator pedal. Your
vehicle will maintain the set speed.
. To pass another vehicle, depress the
accelerator pedal. When you release
the pedal, the vehicle will return to the
previously set speed.
. The vehicle may not maintain the set
speed when going up or down steep
hills. If this happens, manually main-
tain vehicle speed.
To cancel the preset speed, use any of thefollowing methods:
.
Push the CANCEL button. The SET
indicator will go out.
. Tap the brake pedal. The SET indicator
will go out.
. Turn the MAIN switch off. Both the
CRUISE indicator and SET indicator will
go out.
To reset at a faster cruising speed, use one
of the following three methods:
. Depress the accelerator pedal. When
the vehicle attains the desired speed,
push and release the SET/COAST
switch.
. Push and hold the RESUME/ACCELER-
ATE set switch. When the vehicle attains
the speed you desire, release the
switch.
. Push, then quickly release the RESUME/
ACCELERATE switch. Each time you do
this, the set speed will increase by
about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use
one of the following three methods:
. Lightly tap the brake pedal. When the
vehicle attains the desired speed, push
the SET/COAST switch and release it.
Starting and driving5-57

SSD0253
When driving on some roads, such as
winding, hilly, curved, narrow roads, or
roads which are under construction, the
sensor may detect vehicles in a different
lane, or may temporarily not detect a
vehicle traveling ahead. This may cause
the system to work inappropriately.
The detection of vehicles may also be
affected by vehicle operation (steering
maneuver or traveling position in the lane,
etc.) or vehicle condition.If this occurs, the
system may warn you by blinking the
system indicator and sounding the chime
unexpectedly. You will have to manually
control the proper distance away from the vehicle traveling ahead.
SSD0770
Distance Control Assist system
display and indicators
GUID-2FC442E3-419B-494D-83CA-6759EAFB12DB

5-64Starting and driving
SSD0907
Operating Distance Control Assist
(DCA) system
GUID-2A3B16C5-21B7-4211-80BC-FB23940D7397
WARNING
When the DCA system is not necessary, be
sure to turn off the DCA switch. Using the
system when it is not necessary may result
in an accident.
The dynamic driver assistance switch is
used for both the LDP and DCA systems.
When the dynamic driver assistance switch
is pushed, the LDP system will also turn on
or off simultaneously. The DCA system can
be individually set to on or off on the
display. If the system is set to off, the
system will not turn on even if the dynamic
driver assistance switch is pushed to on. To
set the system to on or off on the display,
see“Setting DCA system to ON/OFF” later
in this section.
