2012 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

Maintenance
66
7

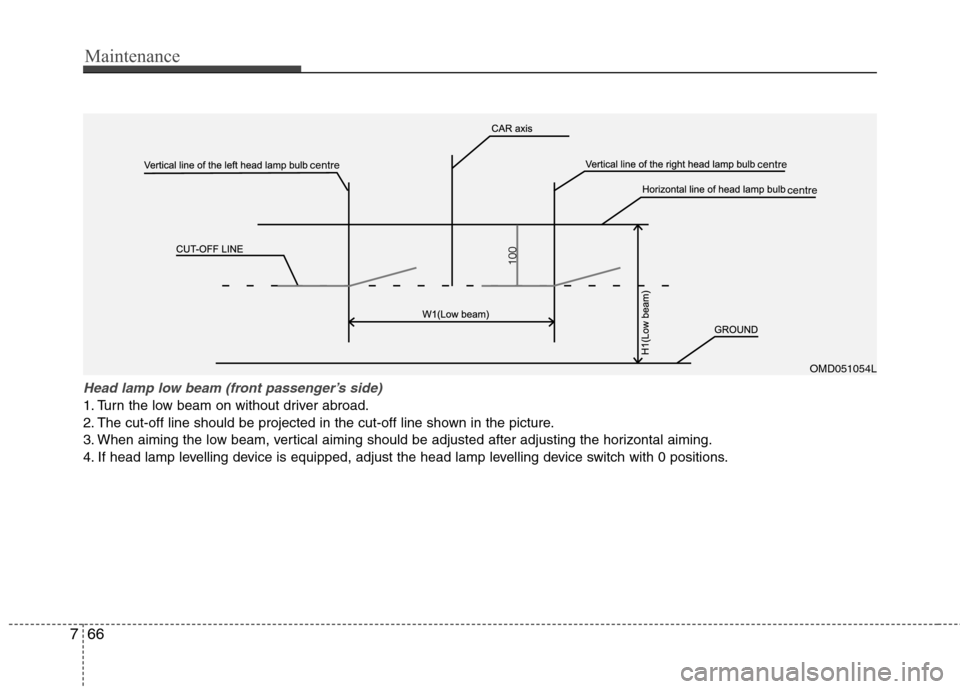

Head lamp low beam (front passenger’s side)
1. Turn the low beam on without driver abroad.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OMD051054L
centrecentre
centre

767
Maintenance
Front fog light
1. Turn the front fog lamp on without the driver abroad.
2. The cut-off line should be projected in the allowable range (shaded region).
OMD051056L
centre
centre
centre

Maintenance
68
7
Side repeater light bulb replace- ment (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorised
HYUNDAI dealer. Rear combination light bulb replacement
(1) Rear fog light (if equipped)
(2) Back-up light
(3) Tail light
(4) Rear turn signal light(5) Stop / tail lightOutside light
1. Open the boot lid.
2. Remove the service cover by pulling out
the service cover.
OMD070032OMD071031LOMD070030

769
Maintenance
3. Loosen the assembly retaining nuts.
4. Remove the rear combination lightassembly from the body of the vehicle. Stop/Tail light and turn signal light
5. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise. Tail light
5. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
6. Remove the bulb by pulling it out.
7. Inset a new bulb by insetring it into the socket.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
OMD070033
OMD070034
OMD070035N
Turn signal Stop/Tail
Tail light

Maintenance
70
7
Inside light
1. Open the boot.
2. Loosen the retaining screw of the boot
lid cover and then remove the cover.
3. Disconnect the connector and then remove the nuts by turning the nuts
counter clockwise. Back up light
1. Take the light assembly out.
2. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
3. Remove the bulb by pulling it out. 4. Insert a new bulb by inserting it into the
socket.
5. Install the light assembly to the boot.
6. Reinstall the nuts and connector and then the boot lid cover by pushing in
the screw.
Rear fog light (if equipped)
4. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
OMD070037
OMD070038
OMD070039
OMD070040
Rear fog light (if equipped)
Back up light

771
Maintenance
High mounted stop light replace- ment
1. Open the boot.
2. Remove the socket by turning it coun-terclockwise until the tabs on the sock-
et align with the slots. 3. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
4. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
5. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
License plate light bulb replace- ment
1. Remove the cover by pressing it asdirection of the arrows.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
OMD070041
OMD070042
OMD070046

Maintenance
72
7
Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.Luggage lamp (if equipped)Map lamp
Sunvisor lamp Room lamp
OMD070044/OMD070043 OMD070045/OTD079035/H
WARNING
Prior to working on the Interior
Lights, ensure that the “OFF” but-
ton is depressed to avoid burning
your fingers or receiving an electric
shock.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.

773
Maintenance
APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning andcaution statements that appear on thelabel.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughlyand frequently at least once a month with
lukewarm or cold water.
If you use your vehicle for off-road driv-
ing, you should wash it after each off-
road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges of
the doors and rocker panels are keptclear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water. Do
not allow soap to dry on the finish.
WARNING - Wet brakes
After washing the vehicle, test the
brakes whilst driving slowly to see
if they have been affected by water.
If braking performance is impaired,
dry the brakes by applying them
lightly whilst maintaining a slow
forward speed.
CAUTION
Do not use strong soap, chemical detergents or hot water, and do
not wash the vehicle in direct sunlight or when the body of thevehicle is warm.
Be careful when washing the side windows of your vehicle.Especially, with high-pressurewater, water may leak through the windows and wet the interior.
To prevent damage to the plastic parts and lamps, do not cleanwith chemical solvents or strongdetergents.
