2012 Hyundai Accent lock

761
Maintenance
Front fog light bulbs (if equipped)
1. Remove the front bumper under cover.
2. Reach your hand into the back of thefront bumper.
3. Disconnect the power connector from the socket. 4. Remove the bulb-socket from the
housing by turning the socket counter
clockwise until the tabs on the socket
align with the slots on the housing.
5. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover.
Side repeater light bulb replace-
ment (if equipped)
Type A
1. Remove the light assembly from the vehicle by prying the lens and pulling
the assembly out.
2. Disconnect the bulb electrical connec- tor.
3. Separate the socket and the lens parts by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the lens part.
ORB070068
ORBC070030
ORBC070031

763
Maintenance
1. Open the trunk lid.
2. Remove the service cover by pullingout the service cover. 3. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it into the service hole.Rear combination light bulb
replacement (5 Door)
(1) Tail light
(2) Rear turn signal light
(3) Back-up light
(4) Stop and tail light
(5) Side marker
ORBC070034ORB071051NORB071033

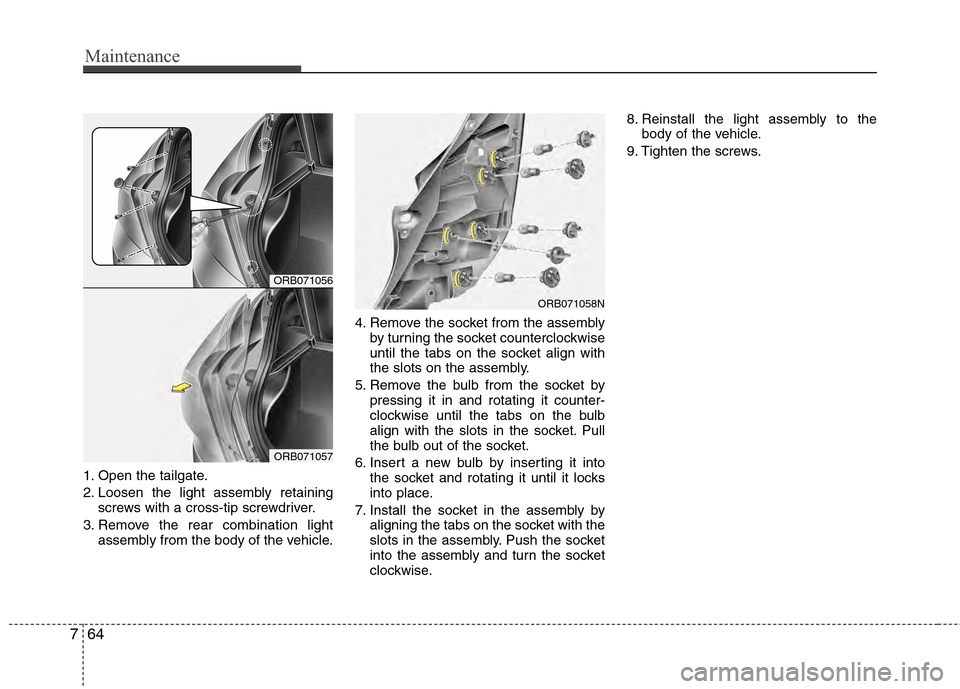

Maintenance
64
7
1. Open the tailgate.
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise. 8. Reinstall the light assembly to the
body of the vehicle.
9. Tighten the screws.
ORB071056
ORB071057
ORB071058N

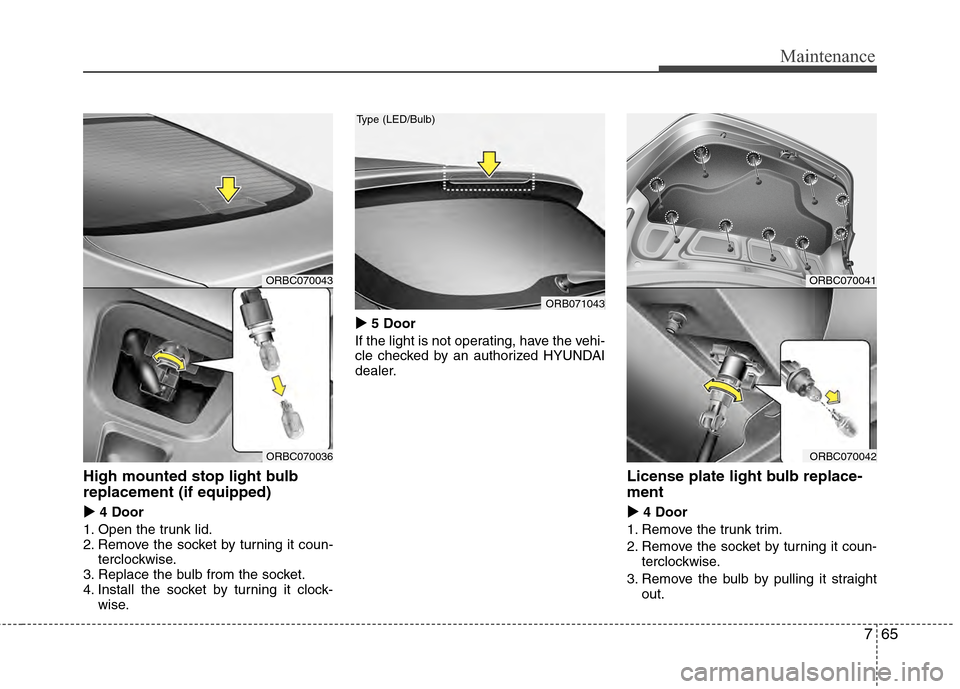

765
Maintenance
High mounted stop light bulb
replacement (if equipped)
 4 Door
1. Open the trunk lid.
2. Remove the socket by turning it coun- terclockwise.
3. Replace the bulb from the socket.
4. Install the socket by turning it clock- wise.
5 Door
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer.
License plate light bulb replace-
ment
  4 Door
1. Remove the trunk trim.
2. Remove the socket by turning it coun- terclockwise.
3. Remove the bulb by pulling it straight out.
ORBC070043
ORBC070036
ORBC070041
ORBC070042
ORB071043
Type (LED/Bulb)

Maintenance
66
7
4. Install a new bulb.
5. Install the socket by turning it clock-
wise.
6. Install the trunk trim.
 5 Door
1. Using a flat-blade screwdriver, remove the light assembly from the vehicle by
prying the lens gently.
2. Remove the socket from the lens.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb in the socket and install the socket to the lens.
5. Reinstall the lens securely.
Interior light bulb replacement
1. Using a flat-blade screwdriver, gently pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight out.
ORB070065
ORB070064
Front map lamp
Room lampORB071055
CAUTION
Use care not to dirty or damagelens, lens tab, and plastic housings.

87
Specifications, Consumer information, Reporting safety defeccts
TIRE SPECIFICATION AND
PRESSURE LABEL
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
ENGINE NUMBER
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
The refrigerant label is located on the
underside of the hood.
ORB071070NORB070017ORBC080004

Index
2I
Active eco system ............................................................5-31
Air bag warning label ......................................................3-60
Air bag warning light ......................................................3-37
Air bags ........................................................................\
....3-34Air bag warning label ..................................................3-60
Air bag warning light ..................................................3-37
Curtain air bag ............................................................3-51
Driver's and passenger's front air bag ..........................3-46
Occupant detection system ..........................................3-41
Side impact air bag ......................................................3-50
SRS components and functions ..................................3-37
Air cleaner ........................................................................\
7-28
Antenna (Roof) ................................................................4-88
Anti-lock brake system (ABS) ........................................5-19
Appearance care ..............................................................7-68 Exterior care ................................................................7-68
Interior care ..................................................................7-72
Armrest(front) ..................................................................3-6
Audio system ....................................................................4-88\
Roof antenna ................................................................4-88
Steering wheel audio control ......................................4-89
Automatic climate control system ....................................4-70 Air conditioning ..........................................................4-75
Automatic heating and air conditioning ......................4-71
Manual heating and air conditioning ..........................4-72
Automatic transaxle Sports mode ....................................5-12
Automatic transaxle ..........................................................5-10 Aux, USB and iPod port ..................................................4-87
Base curb weight ..............................................................5-47
Battery ........................................................................\
......7-34
Battery saver function ......................................................4-51
Before driving ..................................................................5-3
Bottle holders, see cup holders ........................................4-83
Brake system ....................................................................5-16\
Anti-lock brake system (ABS) ....................................5-19
Electronic stability program (ESP) ..............................5-21
Hill-start assist control ................................................5-26
Parking brake ..............................................................5-17
Power brakes ................................................................5-16
Vehicle stability management ......................................5-25
Brakes/clutch fluid............................................................7-26
Bulb replacement ..............................................................7-59
Bulb wattage ....................................................................8-2
California perchlorate notice ............................................7-77
Capacities (Lubricants) ....................................................8-4
Care Exterior care ................................................................7-68
Interior care ..................................................................7-72
Tire care ......................................................................7-\
37
A
B
C

I3
Index
Cargo capacity ..................................................................5-43
Cargo weight ....................................................................5-47\
Center console storage......................................................4-80
Central door lock switch ..................................................4-9
Certification label ............................................................5-45
Certification label ............................................................8-6
ChainsTire chains ....................................................................5-39\
Changing tires ..................................................................6-13
Checking tire inflation pressure ......................................7-38
Child restraint system ......................................................3-26 Lower anchor ..............................................................3-32
Seat belt........................................................................\
3-27
Tether anchor system ..................................................3-30
Child-protector rear door lock ..........................................4-11
Climate control air filter ..................................................4-69
Climate control air filter ..................................................7-28
Clock (Digital) ..................................................................4-85
Clothes hanger ..................................................................4-85
Combined instrument, see instrument cluster ..................4-34
Compact spare tire ............................................................6-18
Compact spare tire replacement ......................................7-42
Coolant........................................................................\
......7-23
Cooling fluid, see engine coolant ....................................7-23
Crankcase emission control system..................................7-74
Cruise control system ......................................................5-27
Cup holder ........................................................................\
4-83
Curtain air bag ..................................................................3-51 Dashboard illumination,
see instrument panel illumination ................................4-35
Dashboard, see instrument cluster....................................4-34
Defogging (Windshield) ..................................................4-77
Defogging logic (Windshield) ..........................................4-79
Defroster (Rear window) ..................................................4-60
Defrosting (Windshield) ..................................................4-77
Digital clock ....................................................................4-85\
Dimensions ......................................................................8-\
2
Display illumination, see instrument panel illumination ....4-35
Displays, see instrument cluster ......................................4-34
Door locks ........................................................................\
4-7 Central door lock switch ..............................................4-9
Child-protector rear door lock ....................................4-11
Drinks holders, see cup holders ......................................4-83
Driver's 3-point seat belt ..................................................3-15
Driver's and passenger's front air bag ..............................3-46
Driving at night ................................................................5-35
Driving in flooded areas ..................................................5-36
Driving in the rain ............................................................5-36
Economical operation ......................................................5-32
Electric power steering ....................................................4-29
Electronic stability program (ESP) ..................................5-21D
E
