2012 HONDA RIDGELINE climate control

Navigation System3
Table of Contents
RIDGELINE KA 31SJC850
System Initialization .................101
System Initialization .................... 101
Entering the Security Code.......... 101
GPS Initialization ........................ 102
Map Matching ............................. 102
System Limitations ...................103
Database Limitations ...............105
Customer Assistance ................107
Reporting Errors .......................... 107
Honda Automobile Customer
Service ...................................... 107
Visiting Your Dealer ................... 108
Obtaining a Navigation Update
DVD ......................................... 108
Changing the DVD ...................... 109
PC Card ....................................... 109
Coverage Areas .........................110
Map Coverage ............................. 110U.S. Detailed Coverage Areas....... 110
Canada Detailed Coverage
Areas .......................................... 115Operation in Alaska and Hawaii ...................................... 124Alaska ............................................ 124
Hawaii ........................................... 124 Shipping a Vehicle To or From
Hawaii ........................................ 125
Frequently Asked Questions... 126
Troubleshooting ....................... 133
Glossary .................................... 135
Glossary .......................................135
Voice Command Index ............ 138
Global Commands .......................138
Navigation General Commands ................................138
Navigation Display
Commands ................................139
Find Place Commands .................140
Climate Control Commands ........141
Temperature Voice Commands ................................142
Radio Voice Commands ..............142
CD Voice Commands ..................143
Information Screen Voice
Commands ................................143
Setup Screen (first) Commands ...143
On-Screen Commands .................144On-Screen Commands Assist ......... 144
Index ......................................... 146
00_RIDGELINE_KA.book 3 ページ ２０１１年９月１４日　水曜日　午前９時３８分

12
Navigation System
RIDGELINE KA 31SJC850

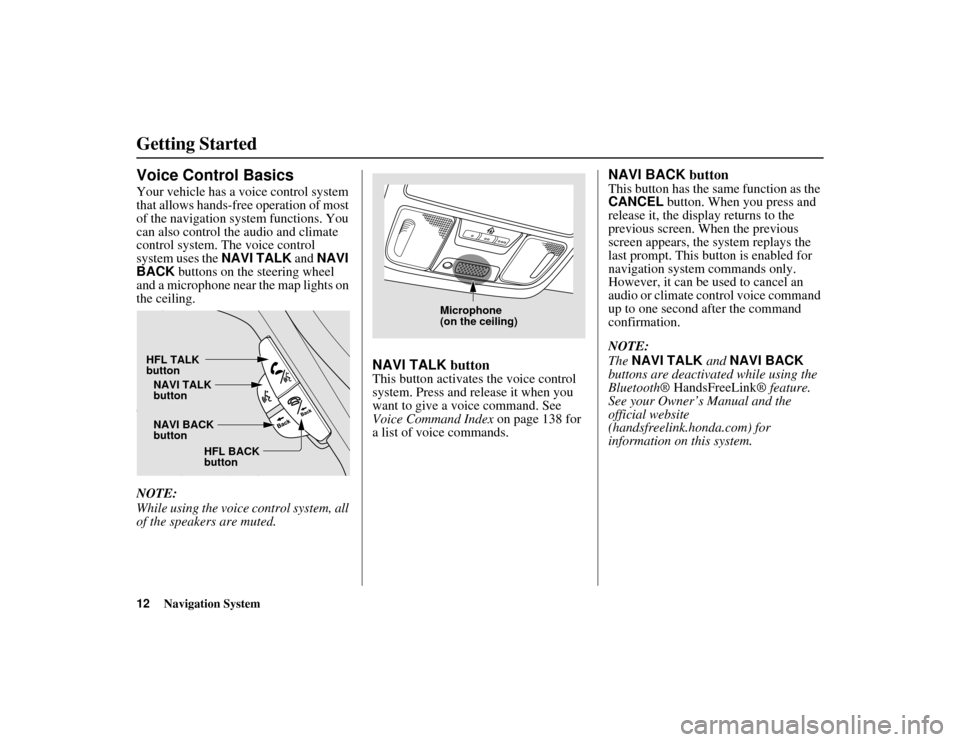

Getting StartedVoice Control BasicsYour vehicle has a voice control system
that allows hands-free operation of most
of the navigation system functions. You
can also control the audio and climate
control system. The voice control
system uses the NAVI TALK and NAVI
BACK buttons on the steering wheel
and a microphone near the map lights on
the ceiling.
NOTE:
While using the voice control system, all
of the speakers are muted.
NAVI TALK buttonThis button activates the voice control
system. Press and release it when you
want to give a vo ice command. See
Voice Command Index on page 138 for
a list of voice commands.
NAVI BACK buttonThis button has the same function as the
CANCEL button. When you press and
release it, the display returns to the
previous screen. When the previous
screen appears, the system replays the
last prompt. This button is enabled for
navigation system commands only.
However, it can be used to cancel an
audio or climate control voice command
up to one second after the command
confirmation.
NOTE:
The NAVI TALK and NAVI BACK
buttons are deactivat ed while using the
Bluetooth® HandsFreeLink ® feature.
See your Owner’s Manual and the
official website
(handsfreelink.honda.com) for
information on this system.
HFL TALK
button
NAVI BACK
button NAVI TALK
button
HFL BACK
button
Microphone
(on the ceiling)
00_RIDGELINE_KA.book 12 ページ ２０１１年９月１４日　水曜日　午前９時３８分

Navigation System21
RIDGELINE KA 31SJC850
Getting Started
System Function DiagramThis diagram shows the navigation
system features, starting at the center
and working outward in layers. The
navigation program starts at “Key ON,”
and then displays the globe screen
(blue). If OK is selected on the
Disclaimer screen, the functions in the
yellow segments of the diagram become
available in the Setup and Information
screens.The white segments of the
diagram are available anytime, even if
you do not select OK.
The items above the map screen show
various methods to begin driving to
your destination (orange). You are
provided with map/voice guidance,
routing cautions, an d a direction list.
While driving to your destination, use
the voice control system as much as
possible to interact with the navigation,
audio, and climat e control systems
(green).
KEY ON
GLOBESCREEN
PRESS
OK
OKNOT
PRESSEDTHEDISCLAIMERSCREEN(pg.16)
CALENDAR
REMINDERS(pg.17)
-THEMAPSCREEN(pg.19)-
AUDIO
BUTTON (pg. 10)
INFO
BUTTON (pg. 71)
Formoreinformation,see
yourOwner’sManual
VOICECOMMANDS
NAVI AUDIO
CLIMATE (pg. 74)
NUMERIC RATING (pg. 76)COST (pg. 76)ENTER (pg. 72)LIST (pg. 72)MATH (pg. 73)CONVERT ( pg. 74)
LIST (pg. 75)
KEY TO ZAGAT
RATINGSCALENDARCALCULATORMAP LEGEND
VOICE: "FIND NEAREST..." ATM, ETC.(pg. 140)
SELEC T A
DESTINATION WITH
JOYSTICK (pg. 68)
VOICE:
"GO HOME" (pg. 46)
VOICE:
"MENU" FOR ENTER
DESTINATION SCREEN(pg. 22)
CONTINUE TO THE
DESTINATION (RESUME)
AFTER RESTART
(pg. 69)
VOICE HELP
SELECTBAND/
FREQUENCY
VOL
BALANCE
CD
FUNCTIONS
OTHER AUDIO
VOICE:
"ZOOM IN/ZOO M OUT"
(pg. 56, 139)VOICE:
"HIDE/DISPLAY ICONS" (pg. 59, 139)
INFORMATION SCREEN
(pg. 143)AUDIO (pg. 142 - 143)CLIMATE CONTROL(pg.
141 - 142
)-DRIVING
TO
YOUR
DESTINATION-
(MAP/VOICEGUIDANCE,ROUTINGCAUTIONS,DIRECTIONLIST)
VOICE:"HELP" (ALL)
(pg. 138)
VOICE:
"INFORMATION SCREEN"(pg. 71)
VOICE:
"MENU" (to
change route) (pg. 65)
VOICE:
"HOW FAR TO THE DESTINATION?" (pg. 138)
VOICE:
"DISPLAY (OR SAVE)
CURRENT LOCA TION"
(pg.63)
VOICE:
"SET WAYPOINT" (pg. 66)
VOICE:
"WHAT TIM E
IS IT?"
(pg. 138)
VOICE:
AUDIO
(pg. 142 - 143)
VOICE:
CLIMATE
FAN, TEMP
(pg.141 - 142)
ADD BOOK (pg. 80)PINs (pg. 84)
UNITS MI/KM (pg. 96)
PERSONALBASIC
UNVERIFIED (pg. 87)AVOID AREAS (pg. 91)TIME ZONE (pg. 98)ADJ. TIME (p g. 98)DAYLIGHT SAV. (pg. 98)
ROUTING
GUIDANCECLOCK
ADJUSTMENT
OFF-ROAD TRA CKING
(pg. 62, 94)CORRECT VEHICLE
POSITION (pg. 95)MAP COLOR (pg. 99)MENU COLOR (pg. 99)VEHICLECOLORGUIDE. PROMPTS (pg. 79)
SETUP
SCREE N
(FIRST)
OKNOTPRESSED
VERSION (pg. 96)
SYSTEM INF O.
BRIGHTNESS (pg. 77)
VOLUME (pg. 77)
DISPLAY (pg. 78)CONTRAST (pg. 79)
INFOBUTTON(pg.71)
SETUP(pg.77)
IMPORT, SEARCH,
DELETE (pg. 71)
PHONEBOOK
BRIGHTNESS
ZOOM IN/OUT REAR CAMERA
(REVERSE)
00_RIDGELINE_KA.book 21 ページ ２０１１年９月１４日　水曜日　午前９時３８分

Navigation System141
RIDGELINE KA 31SJC850Voice Command Index
shoe store
sporting goods store
toy store
airport
automobile club
bus station
camping
commuter rail station
ferry terminal
named place
park & ride
rental car agency
resort
rest area
ski area
tourist information
train station
travel agency
truck stop
Climate Control CommandsThe system accepts these commands on
most screens.
Climate control automatic (controls temperature to your
selection)
Climate control on*
Climate control off*
Air conditioner on*
Air conditioner off*
Climate control defrost on*
Climate control defrost off*
Climate control fresh air
Climate control recirculate
Climate control vent
Climate control bi-level (vent and
floor)
Climate control floor
Climate control floor and defrost
Fan speed up
Fan speed down
Fan speed # (#: 1-7) (for best voice control, lower the fan
speed) * Repeating these commands switches
(toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
00_RIDGELINE_KA.book 141 ページ ２０１１年９月１４日　水曜日　午前９時３８分

146
Navigation System
RIDGELINE KA 31SJC850
IndexA
Accessing the Address Book List
.....81
ADD TO Today’s Destinations
...........................44, 47
Adding Destinatio ns to the List
........44
Address
..............................22, 23, 82
Address Book
.....................22, 45, 80
Address Book PIN
..........................84
Advanced
.......................................34
Alaska (Operation)
........................124
Auto Daylight Saving Time
.............97
Auto Service
...................................34
Auto Time Zone by GPS
.................98
Avoid Streets
..................................67
B
Back to Current Route
.....................68
Banking
..........................................34
Basic Settings
.................................96
Bluetooth ® HandsFreeLink®
...........18
Breadcrumbs
.......................19, 62, 94
Brightness
......................................77
By Address
.....................................23
By Address Book
............................45
By Go Home
...................................46
By Intersection
................................27
By Map Input
.................................38
By Places
....................................... 32
By Previous Destinations
................ 42
By Today’s Destinations
................. 43
C
Calculator
...................................... 73
Calendar
.................................. 17, 72
CALL
...................................... 18, 47
CANCEL button
............................ 11
Cancel Current Route
..................... 68
Category
...................... 32, 33, 45, 83
CD Voice Commands
................... 143
Cellular Phonebook
........................ 71
Change Method
.............................. 48
Change State
............................ 23, 28
Changing the DVD
....................... 109
Changing the Route
........................ 65
Changing the Routing Method
........ 48
Changing Your Destination
............. 68
City
................................... 23, 28, 40
City Vicinity
............................ 33, 37
Climate Control Commands
.......... 141
Clock Adjustment
.......................... 97
Clock Screen
........................... 17, 79
Clock Settings
.......................... 17, 79
Clock Type
.............................. 17, 79
Color
............................................. 99
Community
.................................... 34
Continental USA
............................ 41
Contrast
......................................... 79
Convert (Unit)
................................ 74
Correct Vehicle Position
................. 95
Coverage Areas
............................ 110
Current Location
...................... 20, 63
Current Position
....................... 39, 82
Current Street
................................... 6
Customer Assistance
.................... 107
D
Database Limitations
.................... 105
Daylight Saving Time (DST) Selection
..................................... 98
Delete Previous Destination
............ 85
Destination
........................ 22, 47, 68
Destination Icon
............................. 57
Destination Map
............................. 50
Detailed Coverage Areas
.............. 110
Detour
........................................... 67
Direct Route
.................................. 48
Direction List
................................. 54
Display
.......................................... 78
Driving to Your Destination
............ 47
E
Easy Route
.................................... 48
00_RIDGELINE_KA.book 146 ページ ２０１１年９月１４日　水曜日　午前９時３８分
