2012 HONDA ACCORD engine

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See pagef or more inf ormation on the
Maintenance Minder .
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
255
255
74335
79
350
If equipped Canadian models only
Immobilizer System
Indicator
Maintenance Minder
Indicator
Cruise Control Indicator Washer Level Indicator
Cruise Control Main
Indicator
Fog L ight Indicator
Instrument Panel Indicators
64
TM
Main MenuTable of Contents

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
f ederal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.
The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
and maintenance item code(s). To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed.
Gauges
Odometer
Inf ormation Display
66
INFORMATION DISPLAY TRIP METER A
TRIP METER B
ENGINE OIL LIFE
OUTSIDE
TEMPERATURE
INDICATOR
: Press the select/reset knob.
U.S. model with outside temperature indicator is shown. ODOMETER
Main MenuTable of Contents

¶¶µ
µµµµ µµµIf equipped
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If the outside temperature is incorrectly displayed, you can adjust
it up to 5

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine cooling system.This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears on the inf ormation
display af ter you start the engine.
For more inf ormation, see page .
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation. 291
335 395
Gauges
Temperature Gauge Fuel Gauge
Check Fuel Cap Message
Maintenance Minder
68
TM
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main MenuTable of Contents

µEven with the automatic lighting
f eature turned on, we recommend
thatyouturnonthelightsmanually
when driving at night or in a dense
f og, or when you enter dark areas
such as long tunnels or parking
f acilities.
Do not leave the light switch in
AUTO if you will not be driving the
vehicle f or an extended period (a
weekormore).Youshouldalsoturn
of f the lights if you plan to leave the
engine idling or of f f or a long time.
The automatic lighting
f eature turns on the headlights and
all other exterior lights, when it
senses low ambient light.
The lights will remain on when you
turn of f the ignition switch. They will
turn of f automatically when you
remove the key and open the driver’s
door. To turn them on again, either
turn the ignition switch to the ON
(II) position or turn the light switch
to the position.
To turn on automatic lighting, turn
the light switch to AUTO. The lights
will come on automatically when the
outside light level becomes low (at
dusk, f or example). The lights on
indicator comes on as a reminder.
The lights and indicator will turn of f
automatically when the system
senses high ambient light.
The automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it.
If equipped
AUTO
Turn Signals and Headlights
72
LIGHT SENSOR
Main MenuTable of Contents

The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the driver’s
door lock. You can keep the trunk
release handle, rear seat trunk
access, and glove box locked when
you leave your vehicle and the valet
key at a parking f acility.Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The valet key does not contain a
battery. Do not try to take it apart.
Keys and Locks
78
VALET KEY
(Light Grey)
KEY
NUMBERTAG MASTER
KEY WITH
REMOTE
TRANSMITTER
Main MenuTable of Contents

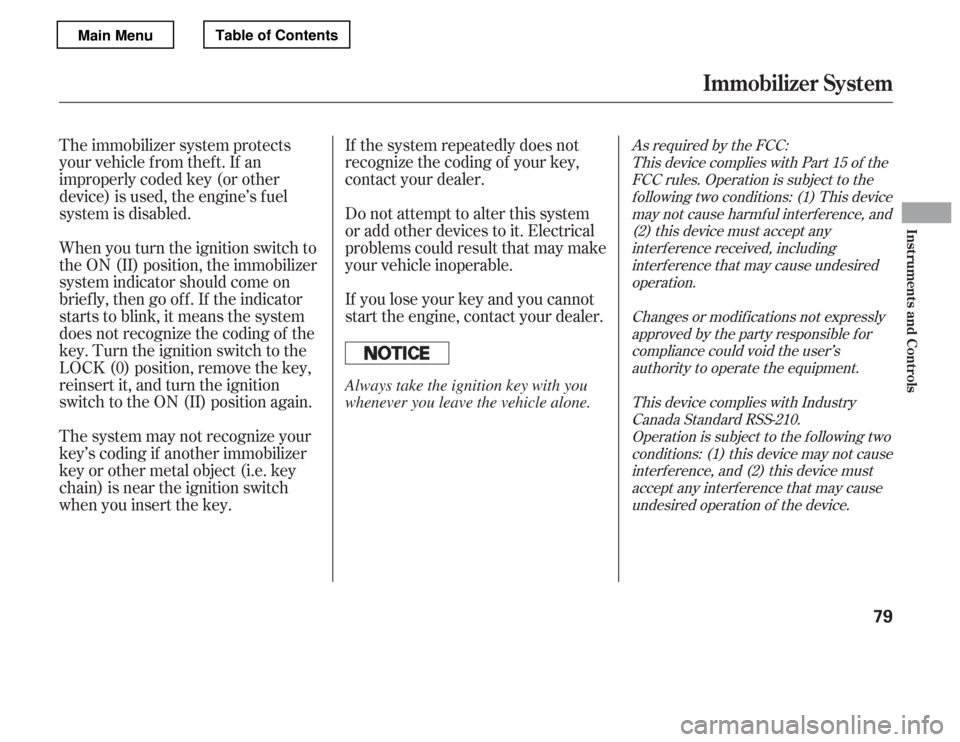

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
If you lose your key and you cannot
start the engine, contact your dealer.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled. Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to thef ollowing two conditions: (1) This device may not cause harmf ul interf erence, and(2) this device must accept any
interf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.
Operation is subject to the f ollowing two conditions: (1) this device may not cause
interf erence, and (2) this device mustaccept any interf erence that may cause undesired operation of the device.
Immobilizer System
Inst rument s and Cont rols
79
Always take the ignition key with you
whenever you leave the vehicle alone.
Main MenuTable of Contents

µµ
µ
µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), START (III) You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shif t lever must
also be in Park. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn of f the beeper.
If your vehicle has an automatic
transmission, the shif t lever must be
in Park bef ore you can remove the
key f rom the ignition switch.
If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key. This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position. You can
operate the audio system and the
accessory power sockets in this
position.
Ignition Switch
LOCK (0)
ST A RT (III)
ON (II)
A CCESSORY (I)
80
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the vehicle.
Remove the key from the
ignition switch only whenparked.
