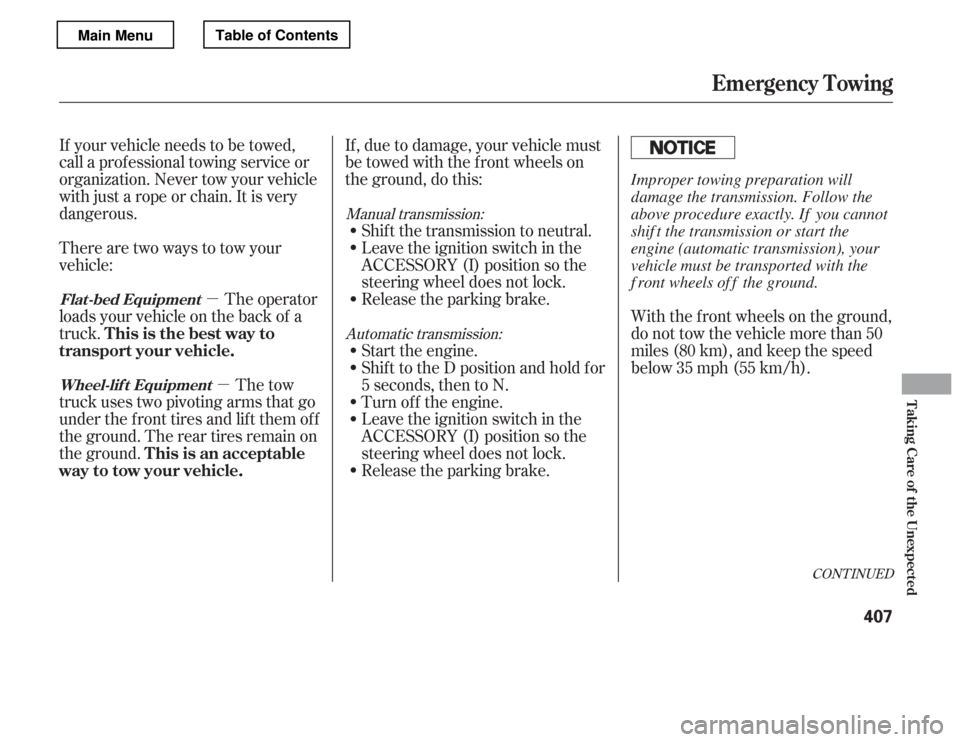

If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your vehicle on the back of a
truck.
Therearetwowaystotowyour
vehicle: If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
With the f ront wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below35mph(55km/h).
The tow
truck uses two pivoting arms that go
under the f ront tires and lif t them of f
the ground. The rear tires remain on
the ground. Release the parking brake.
Start the engine.
Shif t the transmission to neutral.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Release the parking brake.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Manual transmission:
Automatic transmission:
CONT INUED
Flat -bed EquipmentWheel-lif t Equipment
T his is the best way to
transport your vehicle.
This is an acceptable
way to tow your vehicle.
Emergency T owing
T aking Care of the Unexpected
407
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
Main MenuTable of Contents

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
410
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
Main MenuTable of Contents

The transmission number is on a
label on top of the transmission.
The engine number is stamped on
the f ront of the engine block.
Identif ication Numbers
T echnical Inf ormat ion
411
ENGINE NUMBER
V6 models
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
AUTOMATIC
TRANSMISSION
NUMBER
MANUAL TRANSMISSION NUMBER
4-cylinder models
Main MenuTable of Contents

µµÎ Î
ÎÎ
Î
Î Î
Î
Specif ications (4-cylinder models)
412
Dimensions Seating Capacities
Weights
Air Conditioning
Engine Capacities
110.2 in (2,800 mm)
62.6 in (1,590 mm)
Length
Width
Height
Wheelbase
Track
194.9 in (4,950 mm)
72.7 in (1,847 mm)
58.1 in (1,475 mm)
2.1 US qt (2.0
)
2.0 US qt (1.9
)
5.4 US qt (5.1
)
4.0 US qt (3.8
)
4.2 US qt (4.0
)
1.96 US gal (7.4
)
1.90 US gal (7.2
)
1.64 US gal (6.2
)
1.59 US gal (6.0
)
5 23
62.2 in (1,580 mm) Total
FrontRear
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) ND-OIL8
Water cooled 4-stroke
DOHC i-VTEC 4-cylinder gasoline engine
3.43 x 3.9 in (87.0 x 99.0 mm) 144 cu-in (2,354 cm
)
10.5 : 1
ILZKR7B11S SXU22HCR11S
Type
BorexStroke
Displacement
Compression ratio
Spark plugs (U.S.)
Spark plugs (Canada)
SXU22HCR11S
ILZKR7B11S
DILZKR7B11GS 18.5 US gal (70.0
)
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.180 US gal (0.68
)
Fuel tank
Engine
coolant
Engine oil Manual
transmission
fluidAutomatic
transmission
fluid
Windshield
washer
reservoir
4.8 US qt (4.5
)
2.6 US qt (2.5
)
6.50 US qt (6.15
)
2.6 US qt (2.5
)
Approx.
Change Manual Automatic
Total ManualAutomatic
1: 2:
NGK:
DENSO:
Front/Rear
ULEV PZEV
1: 2: EX,EX-L
NGK:NGK:
DENSO:
LX, LX-P, SE
ChangeIncluding filter
Without filter
Total
ChangeTotal
Change Total U.S.
Canada
1
12
2
Main MenuTable of Contents

µµÎ Î
Î
Î
Specif ications (V6 models)
414
Dimensions
Seating Capacities
Weights
Air Conditioning
Engine Capacities
110.2 in (2,800 mm)
Length
Width
Height
Wheelbase
Track 194.9 in (4,950 mm)
72.7 in (1,847 mm)
58.1 in (1,475 mm)
62.2 in (1,580 mm)Total
FrontRear
523
1.74 US gal (6.6
)
2.27 US gal (8.6
)
4.5 US qt (4.3
)
5.3 US qt (5.0
)
3.5 US qt (3.3
)
7.9 US qt (7.5
)
2.6 US qt (2.5
)
4.8 US qt (4.5
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
Excluding the oil remaining in the engine 0.180 US gal (0.68
)
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) ND-OIL8
3.50 x 3.66 in (89.0 x 93.0 mm) 212 cu-in (3,471 cm
)
10.5 : 1
ILZKR7B11 SXU22HCR11 18.5 US gal (70.0
)
Water cooled 4-stroke
SOHC i-VTEC 6-cylinder (V6) gasoline engine 4.2 US qt (4.0
)
Type
BorexStroke
Displacement
Compression ratio
Spark plugs (U.S.)
Spark plugs (Canada) ILZKR7B11 SXU22HCR11Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid
Windshield
washer
reservoir
Approx.
1: 2: Change
Including filter
Without filter
Total
ChangeTotal U.S.
Canada
ChangeTotal
Front/Rear
NGK:
DENSO:NGK:
DENSO:
2
1
Main MenuTable of Contents

Î
ÎThe burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to f orm photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas. The United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specif ied in an
agreement with Environment
Canada, at the time they are
manuf actured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the intake manif old. They are then
drawn into the engine and burned.
As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard ref ueling vapor
recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Ref ueling Vapor
Recovery
Emissions Cont rols
422
Main MenuTable of Contents

The exhaust emissions controls
includethreeorfoursystems:
PGM-FI, ignition timing control,
exhaust gas recirculation (6-cylinder
models), and three way catalytic
converter. These systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual f or more informa-
tion.
The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The PGM-FI system uses sequential
multiport f uel injection. It has three
subsystems: air intake, engine
control, and f uel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how much air is going into the engine. It
then controls how much f uel to inject
under all operating conditions.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
V6 models
Exhaust Emissions Controls
Replacement Parts
Emissions Cont rols
Three Way Catalytic Converter
PGM-FI Syst em Exhaust Gas Recirculat ion (EGR)
Syst em
Ignit ion T iming Cont rol Syst em
T echnical Inf ormat ion
423
Main MenuTable of Contents

Keep the engine well maintained.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
The three way catalytic converters
contain precious metals that serve as
catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converters are ref erred
to as three-way catalysts, since they
act on HC, CO, and NOx.
Replacement units must be original
Honda parts or their equivalent.
The three way catalytic converters
must operate at a high temperature
for the chemical reactions to take
place. They can set on f ire any
combustible materials that come
near them. Park your vehicle away
f rom high grass, dry leaves, or other
f lammables.
Defectivethreewaycatalytic
converters contribute to air pollution,
and can impair your engine’s
perf ormance. Follow these
guidelines to protect your vehicle’s
three way catalytic converters.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converters
inef f ective.
Three Way Catalytic Converters
424
4-cylinder models V6 modelsTHREE WAY CATALYTIC CONVERTERS
THREE WAY CATALYTIC CONVERTERS
Main MenuTable of Contents
