WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer as soon as possible.
ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM
The AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
•Electronic stability control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracwith RSCsystem. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTracwith RSCsystem. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTracwith RSCsensors. Reducing the effectiveness
of the AdvanceTracwith RSCsystem could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracwith RSCsystem is an indication that
at least some of the tires have exceeded their ability to grip the road;
this could reduce the operator’s ability to control the vehicle,
potentially resulting in a loss of vehicle control, vehicle rollover,
personal injury and death. If your AdvanceTracwith RSCsystem
activates, SLOW DOWN.
Driving
177
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:177JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
156 7.5A Right parking lamp/tail lamps
157 7.5A License plate lamps
158 10A Light switch
159 20A Rear heater blower fan (modified
vehicle)
160 — Not used
161 7.5A Anti-lock brake system
(ABS)/RSC, Steering angle sensor
162 7.5A Airbag module, Passenger airbag
off indicator
163 20A Locks
164 20A TPMS module
165 — Not used
166 25A Front power windows
167 7.5A Rear window defroster/heated
mirror switch
168 — Not used
169 20A Second power point
170 — Not used
171 — Not used
172 10A Right rear turn signal (modified
vehicle)
173 10A Left rear turn signal (modified
vehicle)
174 20A Rear power point, Rear center
console power point (modified
vehicle)
175 7.5A Left park lamps/tail lamps
176 — Not used
177 — Not used
178 25A Rear window defroster
Roadside Emergencies
198
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:198JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

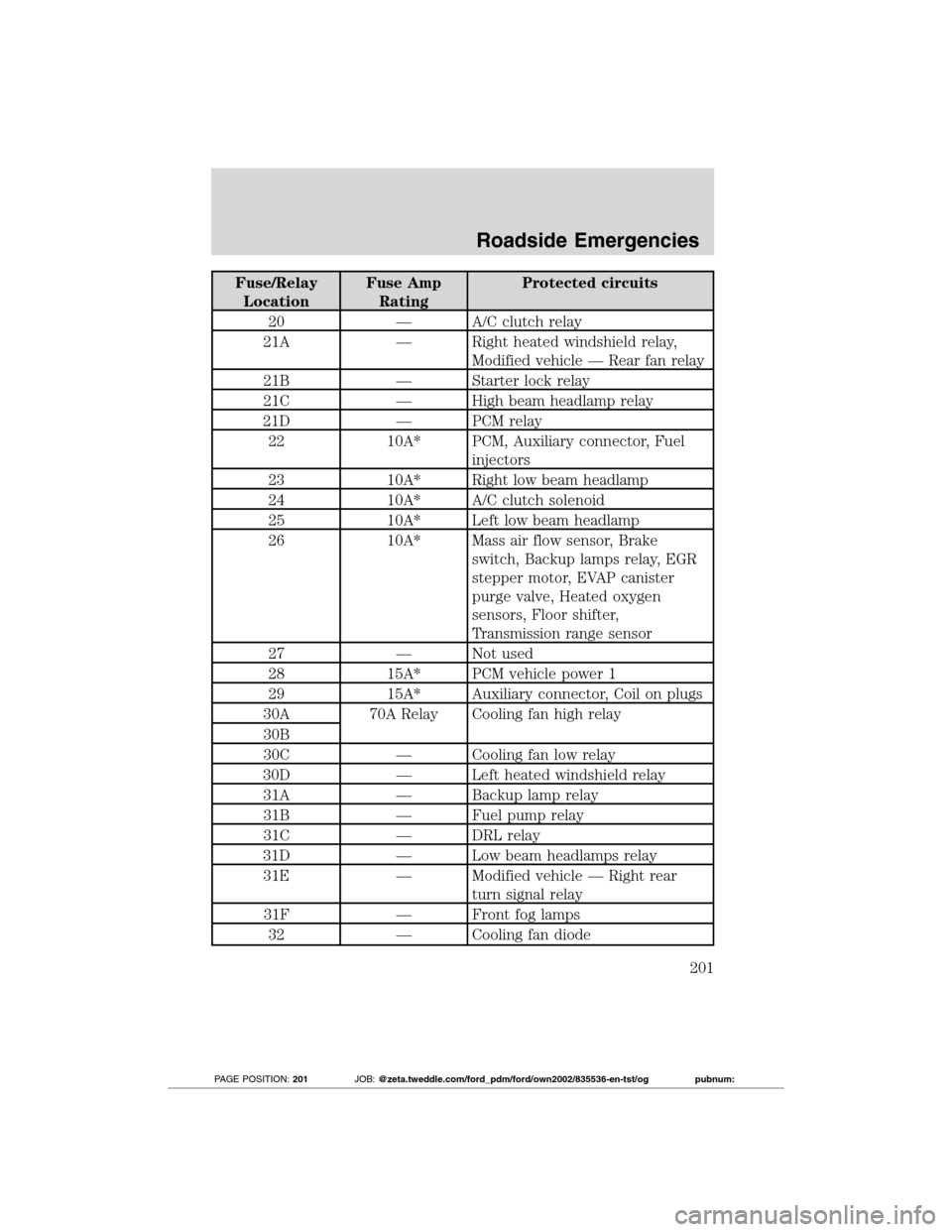

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
20 — A/C clutch relay
21A — Right heated windshield relay,
Modified vehicle — Rear fan relay
21B — Starter lock relay
21C — High beam headlamp relay
21D — PCM relay
22 10A* PCM, Auxiliary connector, Fuel
injectors
23 10A* Right low beam headlamp
24 10A* A/C clutch solenoid
25 10A* Left low beam headlamp
26 10A* Mass air flow sensor, Brake
switch, Backup lamps relay, EGR
stepper motor, EVAP canister
purge valve, Heated oxygen
sensors, Floor shifter,
Transmission range sensor
27 — Not used
28 15A* PCM vehicle power 1
29 15A* Auxiliary connector, Coil on plugs
30A 70A Relay Cooling fan high relay
30B
30C — Cooling fan low relay
30D — Left heated windshield relay
31A — Backup lamp relay
31B — Fuel pump relay
31C — DRL relay
31D — Low beam headlamps relay
31E — Modified vehicle — Right rear
turn signal relay
31F — Front fog lamps
32 — Cooling fan diode
Roadside Emergencies
201
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:201JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
33 — Fuel pump relay diode
34 — Gear shifter diode
35 30A* Start lock relay
36 — Modified vehicle — Left rear turn
signal relay
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
Roadside Emergencies
202
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:202JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

interior lamps .....................55, 57
replacing bulbs .........................58
LATCH anchors .........................128
Liftgate ........................................74
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........175
Loading instructions .................168
Load limits .................................163
Locks
childproof ..................................76
Lubricant specifications ...........262
Lug nuts ....................................209
Lumbar support, seats ...............89
M
Manual transaxle
lubricant specifications ..........262
Mirrors ...................................68–69
automatic dimming rearview
mirror ........................................68
fold away ...................................69
heated ........................................69
side view mirrors (power) .......69
Motorcraftparts ..............229, 261
O
Octane rating ............................247
Oil (see Engine oil) ..................234
P
Parking brake ............................176
Parts
(see Motorcraftparts) ...........261Passenger Occupant
Classification Sensor ...................97
Power distribution box
(see Fuses) ...............................199
Power mirrors .............................69
Power point .................................66
Power steering ..........................180
fluid, checking and adding ....255
fluid, refill capacity ................262
fluid, specifications .................262
Power Windows ...........................67
Preparing to drive your
vehicle ........................................181
R
Radio ..........................23–24, 26, 29
Rear-view camera system .........188
Recommendations for
attaching safety restraints for
children ......................................122
Relays ........................................194
Remote entry system .................77
illuminated entry ......................81
locking/unlocking
doors ..............................76, 78–79
opening the trunk .....................79
replacement/additional
transmitters ...............................80
replacing the batteries .............79
Reverse sensing system ...........186
Roadside assistance ..................192
S
Safety belts (see Safety
restraints) ....................99–101, 103
Safety defects, reporting ..........222
Index
297
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:297JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Safety restraints ..........99–101, 103
Belt-Minder...........................104
extension assembly ................103
for adults .........................100–101
for children .............................120
Occupant Classification
Sensor ........................................97
warning light and chime ........104
Safety restraints - LATCH
anchors ......................................128
Safety seats for children ..........124
Safety Compliance
Certification Label ....................265
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............279
Seats ............................................85
child safety seats ....................124
front seats .................................88
SecuriLock passive anti-theft
system ..........................................82
Servicing your vehicle ..............230
Setting the clock .......23, 26–27, 30
Spark plugs,
specifications .............261, 264–265
Special notice
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................262
Speed control ..............................69
Starting your vehicle ........170–172
jump starting ..........................210
Steering wheel
controls ......................................71
tilting .........................................65
SYNC..........................................46T
Tilt steering wheel ......................65
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....156
Tires ...........................141–142, 202
alignment ................................149
care ..........................................145
changing ..........................202, 206
checking the pressure ............145
inflating ...................................143
label .........................................155
replacing ..................................147
rotating ....................................149
safety practices .......................148
sidewall information ...............150
snow tires and chains ............162
spare tire .................................202
terminology .............................142
tire grades ...............................142
treadwear ........................141, 146
Towing .......................................169
recreational towing .................169
trailer towing ..........................169
wrecker ....................................213
Transaxle
lubricant specifications ..........262
Transmission .............................184
brake-shift interlock (BSI) ....183
fluid, checking and adding
(automatic) .............................256
fluid, refill capacities ..............262
Trunk
remote release ..........................79
Turn signal ..................................54
U
USB port ......................................35
Index
298
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:298JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:
