FORD MUSTANG 2012 5.G Shelby GT500 Supplement Manual Introduction
3
Welcome 3
Breaking-in your vehicle 4
ShelbyGT500Unique Features
5
Driving your ShelbyGT500
10
AdvanceTrac11
Driving through water 11
Ground clearance 12
Washing your vehicle 12
Cha

Page 5 of 53

FORD MUSTANG 2012 5.G Shelby GT500 Supplement Manual •5.4L DOHC 32V Supercharged V-8 engine with intercooler — 550
horsepower @ 6,200 rpm, 510 lb-ft torque @ 4,250 rpm SAE certified
•Low-restriction, cold air intake system
•SVT tuned 2.75” exh

Page 14 of 53

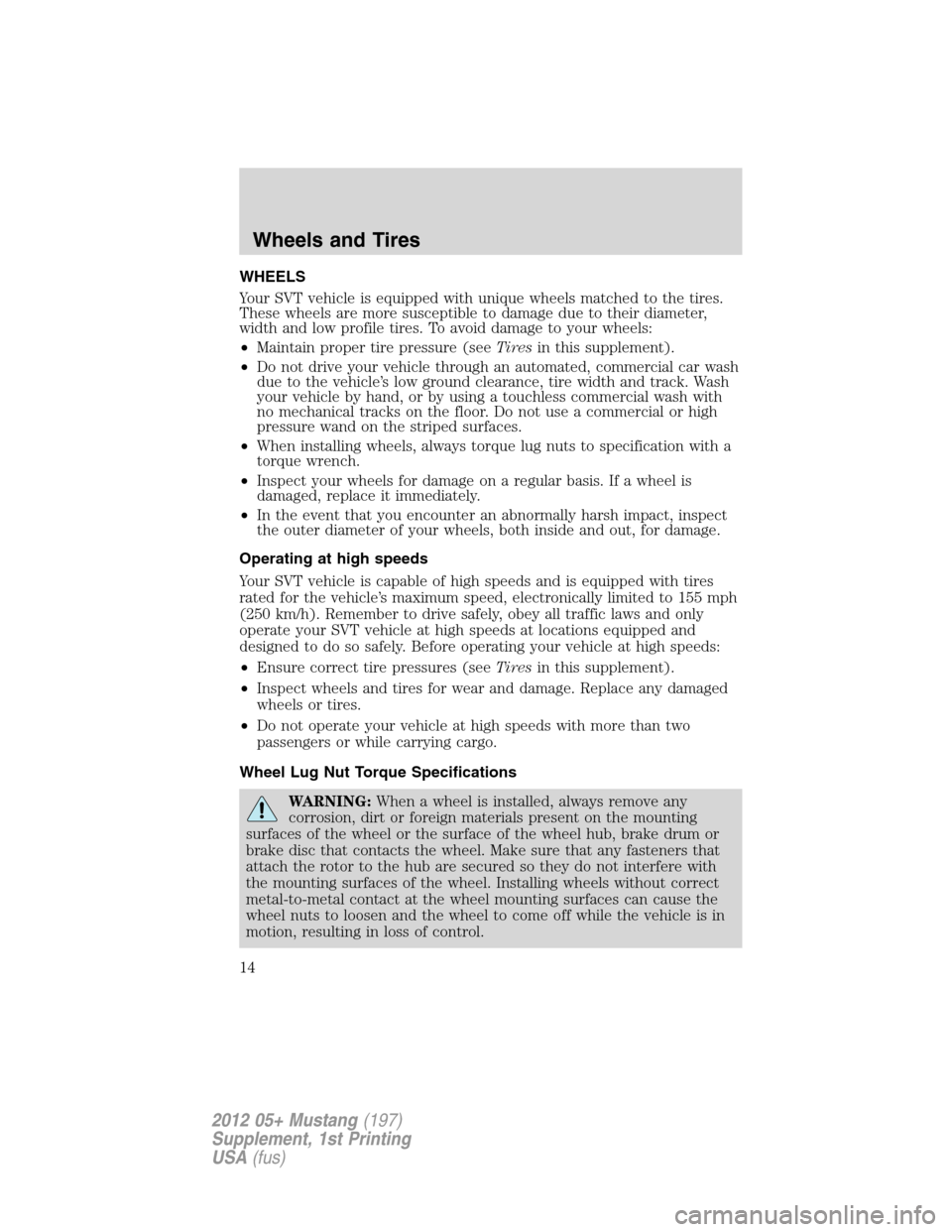

WHEELS
Your SVT vehicle is equipped with unique wheels matched to the tires.
These wheels are more susceptible to damage due to their diameter,
width and low profile tires. To avoid damage to your wheels:
•Maintain proper tire pressure (seeTiresin this supplement).
•Do not drive your vehicle through an automated, commercial car wash
due to the vehicle’s low ground clearance, tire width and track. Wash
your vehicle by hand, or by using a touchless commercial wash with
no mechanical tracks on the floor. Do not use a commercial or high
pressure wand on the striped surfaces.
•When installing wheels, always torque lug nuts to specification with a
torque wrench.
•Inspect your wheels for damage on a regular basis. If a wheel is
damaged, replace it immediately.
•In the event that you encounter an abnormally harsh impact, inspect
the outer diameter of your wheels, both inside and out, for damage.
Operating at high speeds
Your SVT vehicle is capable of high speeds and is equipped with tires
rated for the vehicle’s maximum speed, electronically limited to 155 mph
(250 km/h). Remember to drive safely, obey all traffic laws and only
operate your SVT vehicle at high speeds at locations equipped and
designed to do so safely. Before operating your vehicle at high speeds:
•Ensure correct tire pressures (seeTiresin this supplement).
•Inspect wheels and tires for wear and damage. Replace any damaged
wheels or tires.
•Do not operate your vehicle at high speeds with more than two
passengers or while carrying cargo.
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Wheels and Tires
14
2012 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Page 15 of 53

FORD MUSTANG 2012 5.G Shelby GT500 Supplement Manual Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*
ft-lb N•m

Page 34 of 53

FORD MUSTANG 2012 5.G Shelby GT500 Supplement Manual ENGINE INFORMATION
Item Description
ConfigurationLongitudinally mounted, 90-degree V8, cast
aluminum cylinder block and cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.165 in.)
Displacement5410
