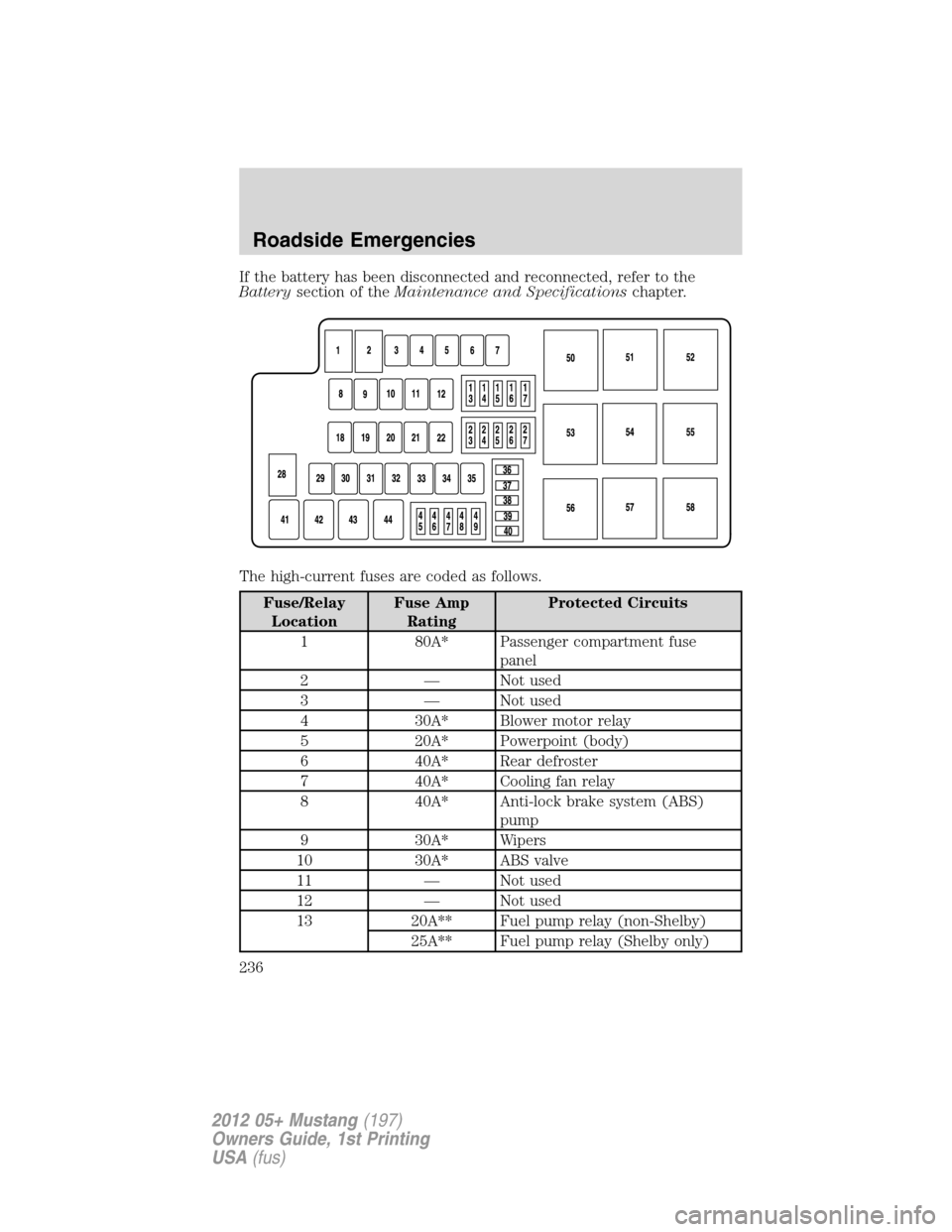

If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 80A* Passenger compartment fuse
panel
2 — Not used
3 — Not used
4 30A* Blower motor relay
5 20A* Powerpoint (body)
6 40A* Rear defroster
7 40A* Cooling fan relay
8 40A* Anti-lock brake system (ABS)
pump
9 30A* Wipers
10 30A* ABS valve
11 — Not used
12 — Not used
13 20A** Fuel pump relay (non-Shelby)
25A** Fuel pump relay (Shelby only)
Roadside Emergencies
236
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
14 — Not used
15 10A** Intercooler pump relay (Shelby
only)
16 20A** Heated seats
17 10A** Alternator sense
18 20A* Auxiliary body module (ABM)
19 30A* Starter relay
20 30A* Rear amplifier (Shaker 1000
radio)
21 30A* Powertrain relay
22 20A* Powerpoint (instrument panel)
23 10A** Powertrain control module (PCM)
keep-alive power
24 10A** Brake on/off (BOO) power
25 10A** A/C compressor relay
26 20A** Left high intensity discharge
headlamp relay
27 20A** Right high intensity discharge
headlamp relay
28 — Not used
29 30A* Passenger front window
30 — Not used
31 30A* Passenger power seat
32 30A* Driver power seat
33 30A* Front amplifier (Shaker 500
radio)
34 30A* Driver front window motor
35 40A* Convertible top motor
36 Diode Fuel diode
37 — Not used
38 15A** Fuel injectors (Shelby only)
39 5A** Rear defroster coil (run/start)
Roadside Emergencies
237
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
40 15A** PCM vehicle power4–ignition
coil
41 G8VA relay Fuel pump relay
42 G8VA relay Intercooler pump relay (Shelby
only)
43 G8VA relay A/C compressor relay
44 — Not used (spare)
45 5A** PCM run/start
46 5A** PCM vehicle power 3 – general
powertrain components
47 15A** PCM vehicle power 1
48 15A** Mass air flow sensor
49 15A** PCM vehicle power 2 – emissions
related powertrain components
50 Full ISO relay Cooling fan relay (high)
51 Full ISO relay Blower motor relay
52 Full ISO relay Starter relay
53 Full ISO relay Rear defroster relay
54 Full ISO relay Front wiper relay
55 Full ISO relay Cooling fan relay (low)
56 High current
relayFuel pump sensor (Shelby only)
57 Full ISO relay PCM relay
58 High current
relayNot used (Spare)
* Cartridge Fuses ** Mini Fuses
Auxiliary relay with heated seats (if equipped)
On heated seat equipped vehicles, there is a relay box located under the
driver seat containing two relays for the driver and passenger heated
seats.
