2012 FORD FUSION HYBRID ECO mode

5.Power/:Press to activate/deactivate the climate control
system. When the system is off, outside air is prevented from entering
the vehicle through the vents. Press +
or –to select the desired
fan speed manually. To return to full automatic control, press AUTO.
6.
:Distributes air through the instrument panel vents. To return to
full automatic control, press AUTO.
7.
:Distributes air through the instrument panel vents, demister
vents, floor vents and rear seat floor vents. To return to full automatic
control, press AUTO.
8.
:Distributes air through the demister vents, floor vents and rear
seat floor vents. To return to full automatic control, press AUTO.
9.PASS TEMP (passenger temperature):Press to engage/disengage
separate passenger side temperature control. Turn to increase/decrease
the temperature on the passenger side of the vehicle. The recommended
initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for
comfort. The passenger side temperature setting will appear in the upper
right corner of the display.
Each time the vehicle is started and driven without an occupant in the
front passenger seat, the climate control system may default to single
zone operation to improve fuel economy. This smart-zone feature will
turn off the passenger temperature display and the temperature control
will be based on the driver’s temperature setting. If dual zone operation
is desired without a front passenger present, press PASS TEMP or adjust
the passenger temperature normally. The system will remain in dual zone
mode.
To disable the smart-zone feature:Press and hold PASS TEMP for
more than four seconds. Both temperature displays will begin flashing to
signify that the feature has been disabled. The system will return to the
previous mode after PASS TEMP is release.
To re-enable the smart-zone feature:Press and hold PASS TEMP for
more than four seconds. The driver’s temperature display will begin
flashing to signify that the feature has been re-enabled. The system will
return to the previous mode after PASS TEMP is released.
10.
Passenger heated seat control (if equipped):Press to
activate/deactivate the passenger heated seat. SeeHeated seatsin the
Seating and Safety Restraintschapter.
Climate Controls
69
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

6.Recirculated air:Press to activate/deactivate air recirculation in
the vehicle. Recirculated air may reduce the amount of time needed to
cool down the interior of the vehicle and, when used with A/C, may also
help reduce undesired odors from reaching the interior of the vehicle.
Recirculated air engages automatically when MAX A/C is selected or can
be engaged manually in any airflow mode except
(defrost).
Recirculated air may turn off automatically in all airflow selections
except MAX A/C. When the ignition switch is turned off and back on, the
climate system will return to the recirculated air mode only if the A/C
button LED is illuminated and the air distribution selection is
either
(panel) or(floor/panel).
7. –
+Fan speed control:Press to increase/decrease the fan speed.
Manual fan speed will appear in the touch screen. To return to full
automatic control, press AUTO.
8.AUTO:Press to engage full automatic operation. The system will
automatically determine fan speed, airflow distribution, A/C on or off,
and outside or recirculated air, to heat or cool the vehicle to reach the
desired temperature.
9.Driver temperature:Press to increase/decrease the air temperature
for the driver side of the vehicle. This control also adjusts the passenger
side temperature when DUAL is disengaged. The recommended initial
setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort.
The driver side temperature setting will appear in the display.
10.
Driver heated seat (if equipped):Press to activate/deactivate
the driver heated seat. Refer toHeated seatsin theSeating and Safety
Restraintschapter for more information.
11.
Power:Press to activate/deactivate the climate control system.
When the system is off, outside air is prevented from entering the
vehicle. The climate status in the touchscreen will also be turned off.
12.
Defrost:Distributes outside air through the windshield
defroster vents and demister vents. Can be used to clear the windshield
of fog and thin ice. The system will automatically provide outside air to
reduce window fogging. Press this button again to return to the previous
air flow selection. To return to full automatic mode, press AUTO.
Outside temperature:The outside temperature will appear in the
display as EXT XX.
Temperature conversion:To switch between Fahrenheit and Celsius,
refer toMessage centerin theInstrument Clusterchapter.
Climate Controls
72
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

TOUCHSCREEN FUNCTIONS
Temperature conversion:To switch between Fahrenheit and Celsius,
refer toMessage centerin theInstrument Clusterchapter.
Temperature:Press the up and down arrows on the left side of the
screen to increase/decrease the airflow temperature for the driver side of
the vehicle. This control also adjusts the passenger side temperature
when dual zone operation is disengaged. Press the up and down arrows
on the right side of the screen to increase/decrease the airflow
temperature for the passenger side of the vehicle.
•
:Distributes air through the instrument panel vents.
•
:Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
•
:Distributes air through the floor vents, rear seat floor vents.
•
:Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
To return to full automatic control, press AUTO on the main bezel.
Fan Speed:Press to decrease/increase the fan speed.
Dual:Press to activate/deactivate separate driver and passenger
temperature controls.
Each time the vehicle is started and driven without an occupant in the
front passenger seat, the climate control system may default to single
zone operation to improve fuel economy. This smart-zone feature will
turn off the passenger temperature display and the temperature control
will be based on the driver’s temperature setting. If dual zone operation
is desired without a front passenger present, pressDualor adjust the
passenger temperature normally. The system will remain in dual zone
mode.
Climate Controls
73
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

To disable the smart-zone feature:Press and holdDualfor more
than four seconds. Both temperature displays will begin flashing to
signify that the feature has been disabled. The system will return to the
previous mode afterDualis release.
To re-enable the smart-zone feature:Press and holdDualfor more
than four seconds. The driver’s temperature display will begin flashing to
signify that the feature has been re-enabled. The system will return to
the previous mode afterDualis released.
Max A/C:Activates air conditioning and distributes recirculated,
conditioned air through the instrument panel vents to provide maximum
cooling performance. Maximum cooling performance, however, may
decrease fuel efficiency in order to fully maintain interior cabin comfort.
VOICE COMMANDS IN CLIMATE MODE
Please refer to theVoice commands in climate modesection of the
Navigation supplementfor more information on using voice commands
with the climate control system.
Operating tips
•To reduce fog build-up on the windshield during humid weather,
select
(defrost) or(floor/defrost).
•To reduce humidity build-up inside the vehicle, do not drive with the
system OFF or with
(recirculated air) engaged and A/C off.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the A/C cool down, drive with the windows slightly open
for 2-3 minutes after start up or until the vehicle has been “aired out.”
•A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
the MAX A/C position, reduce blower fan speed from the highest setting
and put the vehicle’s transmission into the P (Park) gear position (for
automatic transmissions) to continue to receive cool air from your A/C
system.
Climate Controls
74
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

Power point (110V AC)
The 110V AC power point outlet,
located on the rear of the floor
console, is used for powering
electrical devices that require up to
150W. Exceeding the 150W limit will
cause the power point to cut off the
power temporarily to provide
overload protection.
Note:The 110V AC power point is equipped with a safety cap and a
safety twist tab. They both provide protection from inserting any object
into the power point other than the 110V AC electrical device plug. The
safety cap should always be in a closed position whenever the power
point outlet is not in use.
The power outlet is not designed for the following electric appliances;
they may not work properly:
•Cathode ray tube type televisions.
•Motor loads, such as vacuum cleaners, electric saws and other electric
power tools, compressor-driven refrigerators, etc.
•Measuring devices, which process precise data, such as medical
equipment, measuring equipment, etc.
•Other appliances requiring an extremely stable power supply:
microcomputer-controlled electric blankets, touch sensor lamps, etc.
Do not keep electrical devices plugged in the power point
whenever the device is not in use. It is not recommended to use
any extension cord with the 110V AC power point, since it will
defeat the safety protection design provided by the cap and twist
tab. It will also cause the power point to overload due to
powering multiple devices that can reach beyond the 150W load
limit.
The power point can switch to a fault mode when it is overloaded,
overheated, or shorted. For overloading and shorting conditions, unplug
your device and turn the ignition key off then on. For an overheating
condition, let the system cool off, then turn the ignition key off then on.
The 110V AC power point can provide power whenever the vehicle
ignition is in the run position and the power point green indicator light
Driver Controls
94
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

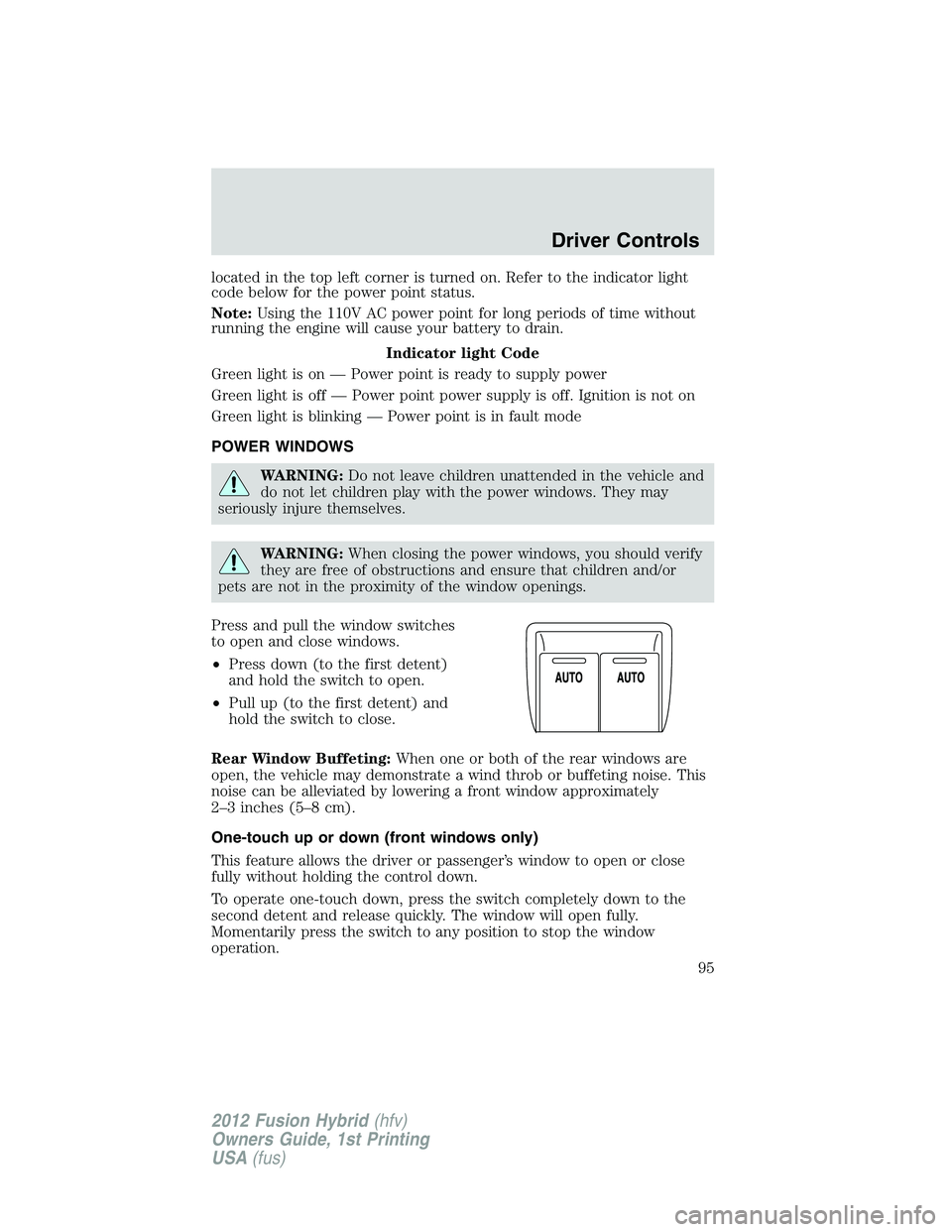

located in the top left corner is turned on. Refer to the indicator light
code below for the power point status.
Note:Using the 110V AC power point for long periods of time without
running the engine will cause your battery to drain.
Indicator light Code
Green light is on — Power point is ready to supply power
Green light is off — Power point power supply is off. Ignition is not on
Green light is blinking — Power point is in fault mode
POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press and pull the window switches
to open and close windows.
•Press down (to the first detent)
and hold the switch to open.
•Pull up (to the first detent) and
hold the switch to close.
Rear Window Buffeting:When one or both of the rear windows are
open, the vehicle may demonstrate a wind throb or buffeting noise. This
noise can be alleviated by lowering a front window approximately
2–3 inches (5–8 cm).
One-touch up or down (front windows only)
This feature allows the driver or passenger’s window to open or close
fully without holding the control down.
To operate one-touch down, press the switch completely down to the
second detent and release quickly. The window will open fully.
Momentarily press the switch to any position to stop the window
operation.
Driver Controls
95
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

Be sure to keep the original remote control transmitter for use in other
vehicles as well as for future Car2Usystem programming. It is also
recommended that upon the sale or lease termination of the vehicle, the
programmed Car2Usystem buttons should be erased for security
reasons. Refer toErasing the Car2UHome Automation System
buttonslater in this section.
Read the instructions completely before attempting to program the
Car2Usystem. Because of the steps involved, it may be helpful to have
another person assist you in programming the transmitter.
Additional Car2Usystem information can be found on-line at
www.learcar2U.com or by calling the toll-free Car2Usystem help line at
1-866-572-2728.
Types of garage door openers (rolling code and fixed code)
The Car2UHome Automation System may be programmed to operate
rolling code and fixed code garage door openers.
•Rolling code garage door openers were produced after 1996 and are
code protected. Rolling code means the coded signal is changed every
time your remote control garage door opener is used.
•Fixed code garage door openers were produced prior to 1996. Fixed
code uses the same coded signal every time. It is manually
programmed by setting DIP switches for a unique personal code.
If you do not know if your garage
door opener is a rolling code or
fixed code device, open your garage
door opener’s remote control battery
cover. If a panel of DIP switches is
present your garage door opener is
a fixed code device. If not, your
garage door opener is a rolling code
device.
Note:Programming the Car2Usystem to a community gate will require
a unique set of instructions depending on the gate system model.
Contact the Car2Uhelp line at 1-866-572-2728 to program your Car2U
system.
Note:Accidentally entering the program mode may override previously
programmed buttons. This can happen by pressing and releasing the
outer two buttons, or all three buttons, simultaneously. If this happens,
12
34
5
6789
1
01
1
1
2
C
T
S
206
-12 T
124
O
N
Driver Controls
104
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)

do not press any button until the module times out after approximately
2.5 seconds and resets to normal mode. When time-out occurs, all three
LEDs will flash rapidly for a few seconds then turn off. Any settings
should remain as previously set.
Rolling code programming
Note:Programming the rolling code garage door opener involves
time-sensitive actions. Read the entire procedure prior to beginning so
you will know which actions are time-sensitive. If you do not follow the
time-sensitive actions, the device will time out and you will have to
repeat the procedure.
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. Firmly press the two outer
Car2Usystem buttons for
1–2 seconds, then release.
2. Go to the garage to locate the
garage door opener motor and its
“learn” button. You may need a
ladder to reach the unit and you
may need to remove the unit’s cover
or light lens to locate the “learn”
button. Press the “learn” button,
after which you will have
10–30 seconds to return to your
vehicle and complete the following
steps. If you cannot locate the
“learn” button, refer to the Owner’s Guide of your garage door opener or
call the toll-free Car2Usystem help line at 1-866-57Car2U
(1-866-572-2728).
Driver Controls
105
2012 Fusion Hybrid(hfv)
Owners Guide, 1st Printing
USA(fus)
