2012 FORD FOCUS alarm

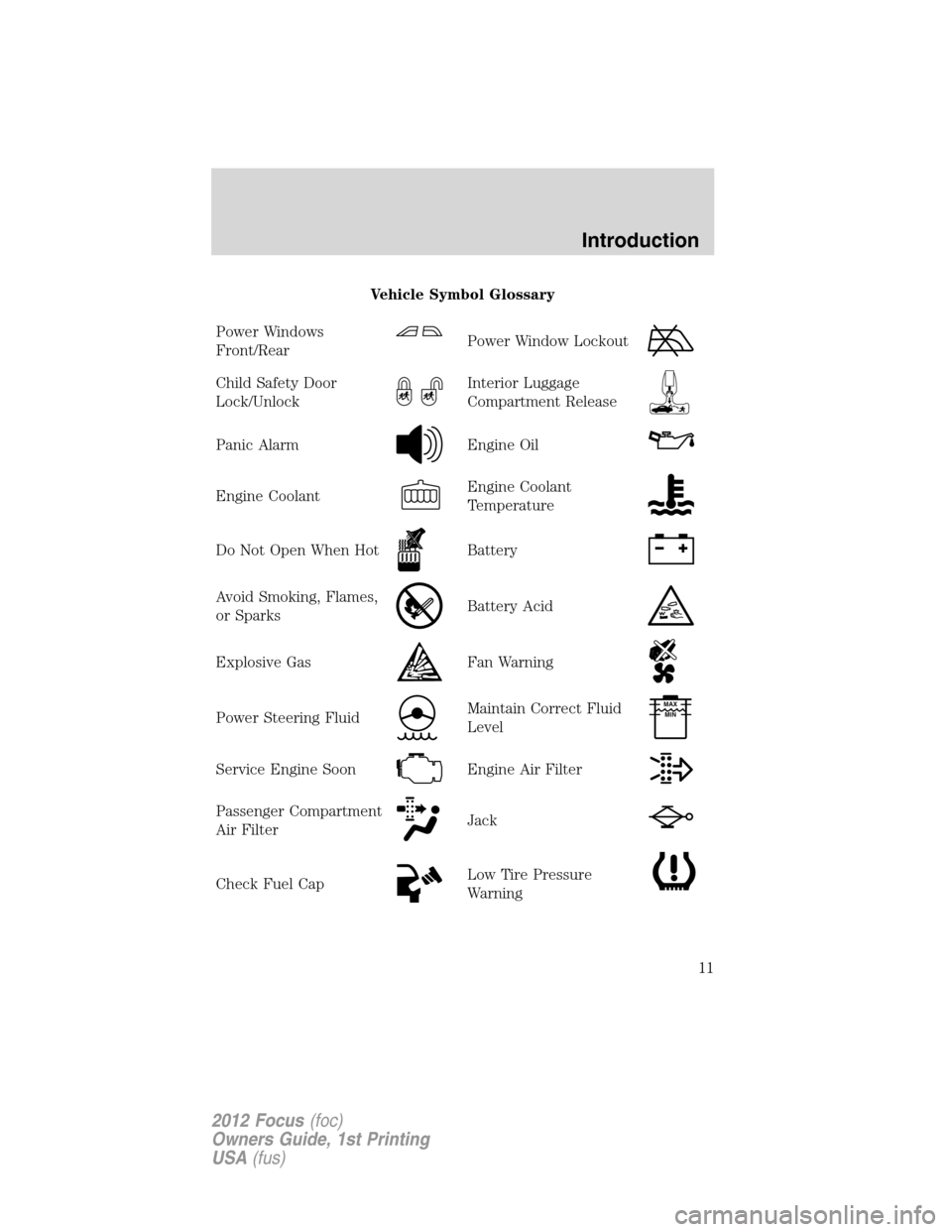

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

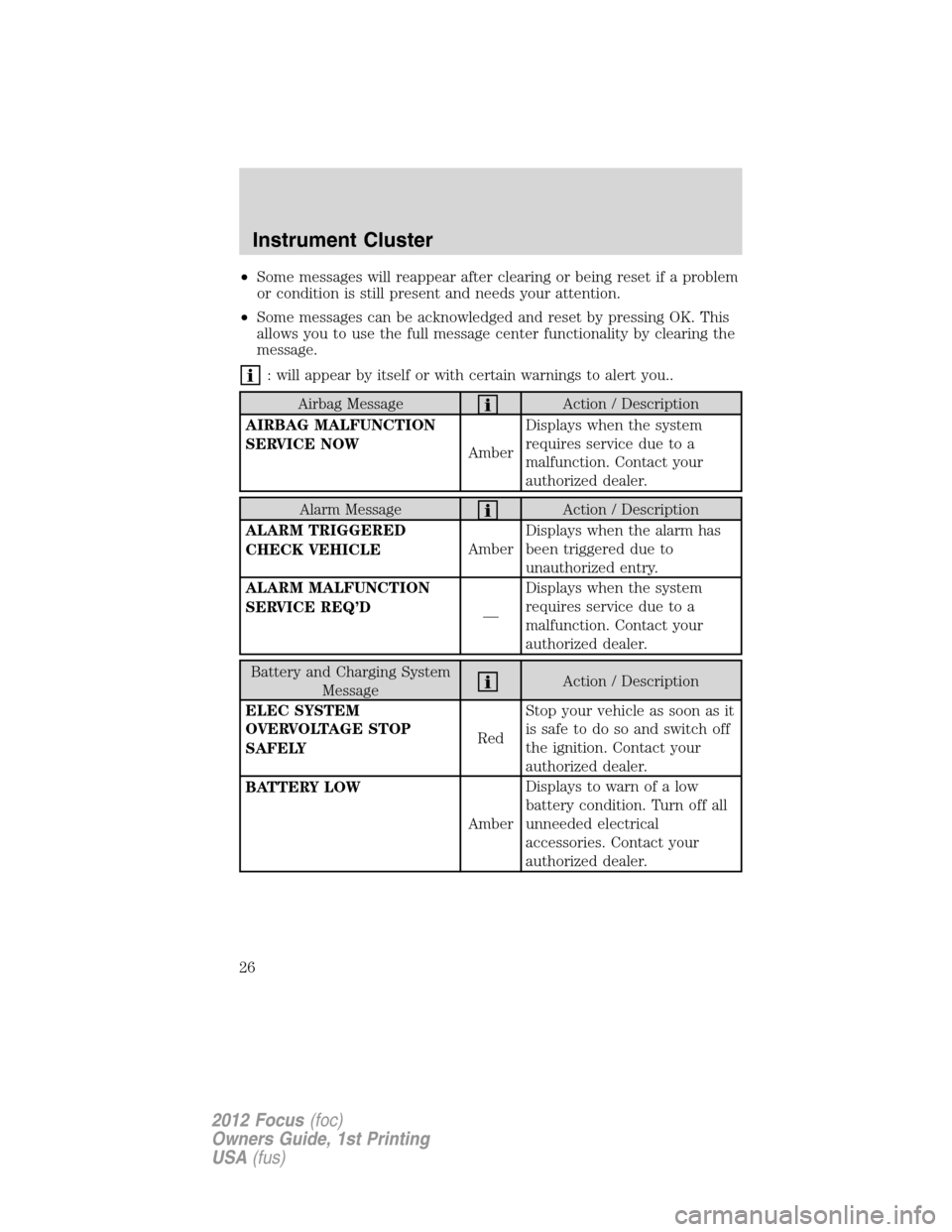

•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
: will appear by itself or with certain warnings to alert you..
Airbag MessageAction / Description
AIRBAG MALFUNCTION
SERVICE NOW
AmberDisplays when the system
requires service due to a
malfunction. Contact your
authorized dealer.
Alarm MessageAction / Description
ALARM TRIGGERED
CHECK VEHICLEAmberDisplays when the alarm has
been triggered due to
unauthorized entry.
ALARM MALFUNCTION
SERVICE REQ’D
—Displays when the system
requires service due to a
malfunction. Contact your
authorized dealer.
Battery and Charging System
MessageAction / Description
ELEC SYSTEM
OVERVOLTAGE STOP
SAFELYRedStop your vehicle as soon as it
issafetodosoandswitchoff
the ignition. Contact your
authorized dealer.
BATTERY LOW
AmberDisplays to warn of a low
battery condition. Turn off all
unneeded electrical
accessories. Contact your
authorized dealer.
Instrument Cluster
26
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

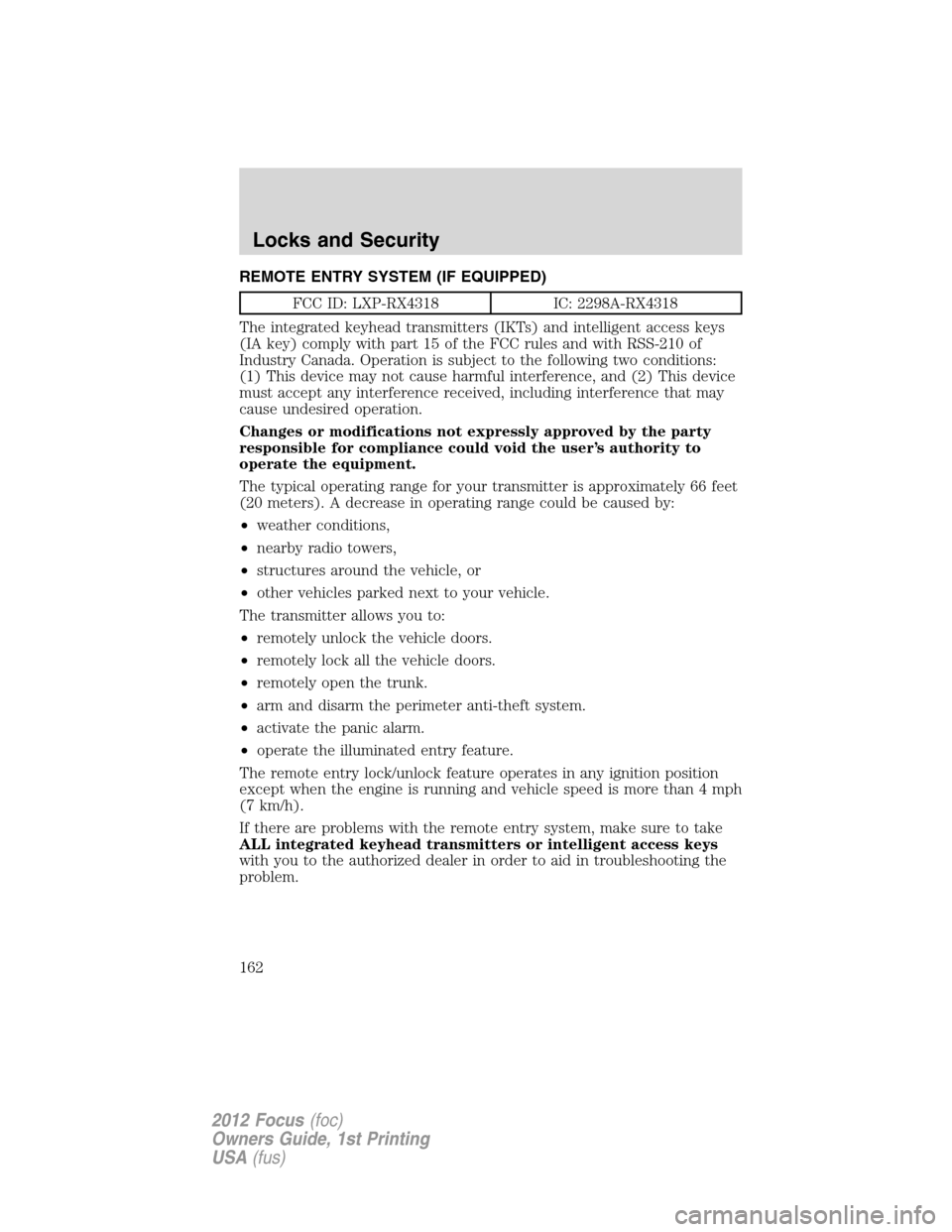

REMOTE ENTRY SYSTEM (IF EQUIPPED)
FCC ID: LXP-RX4318 IC: 2298A-RX4318
The integrated keyhead transmitters (IKTs) and intelligent access keys
(IA key) comply with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 66 feet
(20 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The transmitter allows you to:
•remotely unlock the vehicle doors.
•remotely lock all the vehicle doors.
•remotely open the trunk.
•arm and disarm the perimeter anti-theft system.
•activate the panic alarm.
•operate the illuminated entry feature.
The remote entry lock/unlock feature operates in any ignition position
except when the engine is running and vehicle speed is more than 4 mph
(7 km/h).
If there are problems with the remote entry system, make sure to take
ALL integrated keyhead transmitters or intelligent access keys
with you to the authorized dealer in order to aid in troubleshooting the
problem.
Locks and Security
162
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

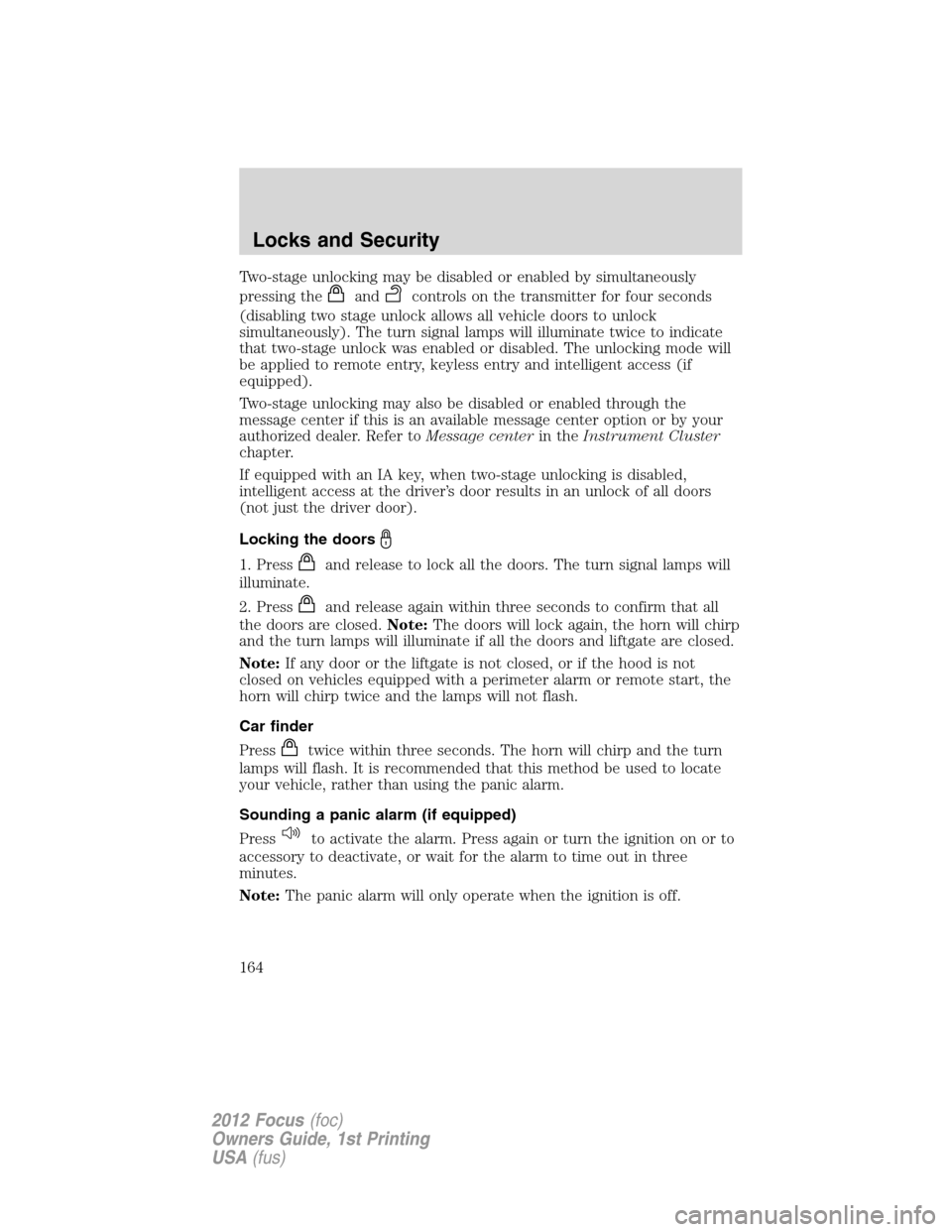

Two-stage unlocking may be disabled or enabled by simultaneously
pressing the
andcontrols on the transmitter for four seconds
(disabling two stage unlock allows all vehicle doors to unlock
simultaneously). The turn signal lamps will illuminate twice to indicate
that two-stage unlock was enabled or disabled. The unlocking mode will
be applied to remote entry, keyless entry and intelligent access (if
equipped).
Two-stage unlocking may also be disabled or enabled through the
message center if this is an available message center option or by your
authorized dealer. Refer toMessage centerin theInstrument Cluster
chapter.
If equipped with an IA key, when two-stage unlocking is disabled,
intelligent access at the driver’s door results in an unlock of all doors
(not just the driver door).
Locking the doors
1. Pressand release to lock all the doors. The turn signal lamps will
illuminate.
2. Press
and release again within three seconds to confirm that all
the doors are closed.Note:The doors will lock again, the horn will chirp
and the turn lamps will illuminate if all the doors and liftgate are closed.
Note:If any door or the liftgate is not closed, or if the hood is not
closed on vehicles equipped with a perimeter alarm or remote start, the
horn will chirp twice and the lamps will not flash.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm (if equipped)
Press
to activate the alarm. Press again or turn the ignition on or to
accessory to deactivate, or wait for the alarm to time out in three
minutes.
Note:The panic alarm will only operate when the ignition is off.
Locks and Security
164
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
message center will display: NO KEY DETECTED. Wait 10 seconds and
you may repeat Steps 1 through 8. If failure repeats, bring your vehicle
to your authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
Programming spare intelligent access keys (if equipped)
If you have integrated keyhead transmitters (IKT) or standard
SecuriLockcoded keys, refer toProgramming spare integrated
keyhead transmitter (IKT) keysin this section.
If you would like to have additional intelligent access keys programmed
to your vehicle, please contact your authorized dealer.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
•Press the lock control on the remote entry transmitter.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
Locks and Security
171
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Turn the ignition on or start the vehicle.
•If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 11 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door, trunk or the hood is
opened without using the key or the remote entry transmitter.
Locks and Security
172
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

If the vehicle is equipped with a
forward and reverse sensing system,
the driver can disable the entire
system (front and rear sensors) by
pressing the parking aid off switch
located on the lower portion of the
center console.
The message center will indicate a
failure in the forward or reverse
system and will not allow the driver
to switch the faulted system on.
Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
The system defaults toenabledevery time the ignition is switched on.
Press the control or parking aid off switch (for forward and reverse
sensing systems) to disable or enable the system.
Keep the sensors (located on the front and rear bumper/fascia)
free from snow, ice and large accumulations of dirt (do not clean
the sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the sensing system.
If your vehicle sustains damage to the front or rear
bumper/fascia, leaving it misaligned or bent, the sensing zone may
be altered causing inaccurate measurement of obstacles or false
alarms.
REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rear video camera system,
located on the liftgate above the
license plate, provides a video image
of the area behind the vehicle.
Note:The camera can be found in
either location as shown by the
arrows in the graphic. It adds
assistance to the driver while
reversing or reverse parking the
vehicle. To use the rear video
camera system, place the
transmission in R (Reverse). An image will display on the touchscreen
display. The area displayed on the screen may vary according to the
vehicle orientation and/or road condition.
Driving
284
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

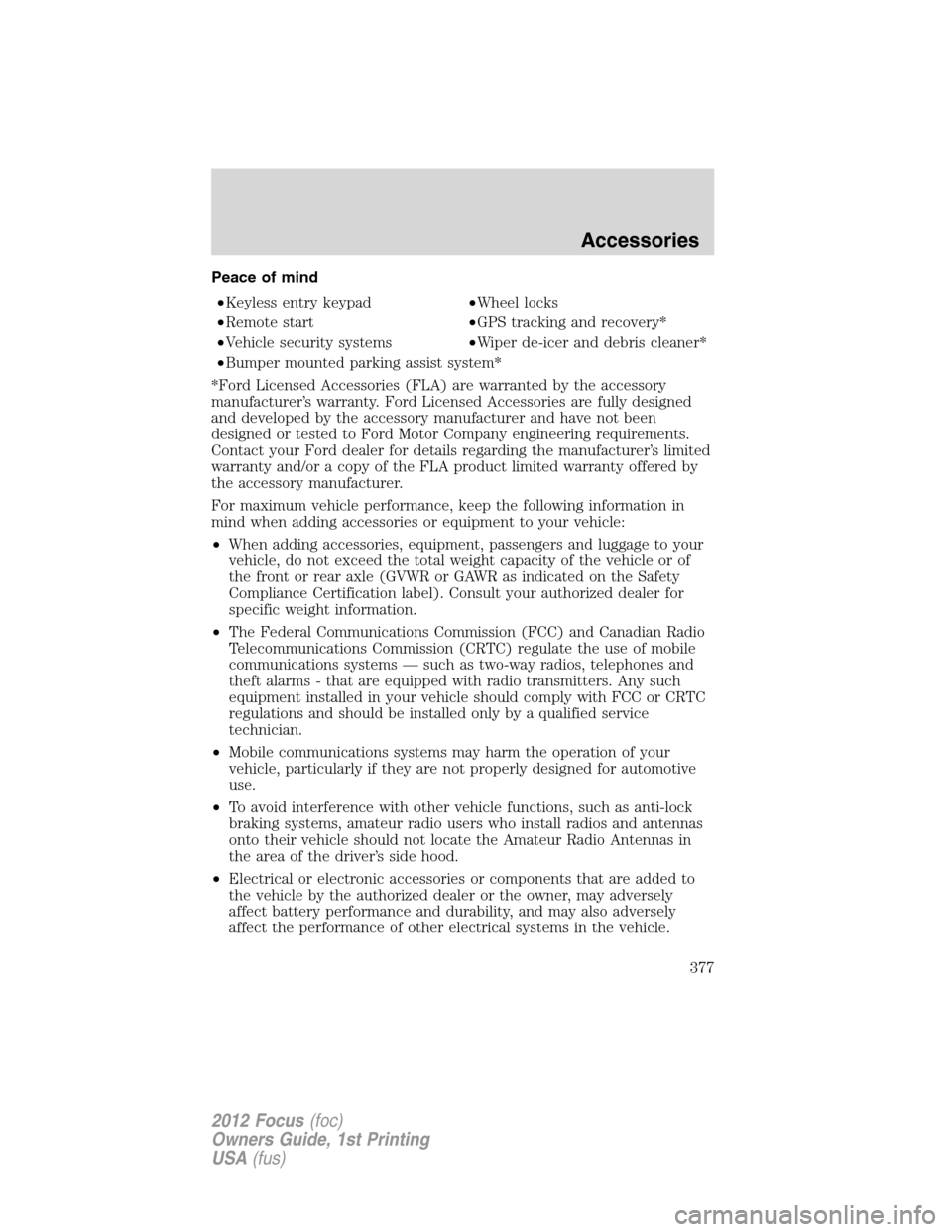

Peace of mind
•Keyless entry keypad•Wheel locks
•Remote start•GPS tracking and recovery*
•Vehicle security systems•Wiper de-icer and debris cleaner*
•Bumper mounted parking assist system*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner, may adversely
affect battery performance and durability, and may also adversely
affect the performance of other electrical systems in the vehicle.
Accessories
377
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
