Accessing and using your SYNC applications and Services
(if equipped)
In addition to the standard phone and media options which SYNC offers,
your system also includes advanced features such as:
•911 Assist™:Can alert 911 in the event of an emergency.
•Vehicle Health Report (if equipped, U.S. only):Provides a
diagnostic and maintenance report card of your vehicle.
•Traffic, Directions and Information (if equipped, U.S.
only):Provides access to Traffic, Directions and information such
as travel, horoscopes, stock prices and more.
In order for these features to work, your cellular phone must be
compatible with SYNC. To check your phone’s compatibility, please visit
www.SyncMyRide.com or www.syncmaroute.ca.
Refer to the following sections for more information on each feature.
SYNCServices: Traffic, Directions & Information (TDI), if
equipped, U.S. only
Note: SYNCwith Traffic, Directions & Information Services
requires activation prior to use. Visit www.SyncMyRide.com to
registeras youmustregister to use the service. You must also have a
paired and connectedBluetoothenabled cellular phone in order to
connect to SYNCTraffic, Directions & Information Services. Refer to
thePhone Featureschapter for pairing instructions.
SYNCServices uses advanced vehicle sensors, integrated GPS
technology and comprehensive map and traffic data, to give you
personalized traffic reports, precise turn-by-turn directions, business
search, news, sports, weather and more. For a complete list of services,
or to learn more, please visit www.SyncMyRide.com.
To connect to SYNCTraffic, Directions & Information Services
using voice commands:
1. Press
.
2. When prompted, say, “Services”. This initiates an outgoing call to
SYNCTDI Services using your paired and connectedBluetoothenabled
cellular phone.
3. Once connected, follow the voice prompts to request your desired service
such as “Traffic” or “Directions”. You can also say, “What are my choices?”
to receive a complete list of available services from which to choose.
4. To return to the services main menu, say “Services” or for help, simply
say, “Help”.
Entertainment Systems
65
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Portable:Your SYNC TDI Services subscription is associated with your
Bluetoothenabled cellular phone number, not your VIN (Vehicle
Identification Number). Thus, you can use your SYNC TDI Service with
any vehicle equipped with Traffic, Directions and Information. Simply
pair and connect your phone to any vehicle equipped with Traffic,
Directions and Information and continue enjoying your personalized
services.
Note:The driver is ultimately responsible for the safe operation of the
vehicle, and therefore, must evaluate whether it is safe to follow the
suggested directions. Any navigation features are provided only as an aid.
Make your driving decisions based on your observations of local
conditions and existing traffic regulations. Do not follow the route
suggestions if doing so would result in an unsafe or illegal maneuver, if
you would be placed in an unsafe situation, or if you would be directed
into an area that you consider unsafe. Maps used by this system may be
inaccurate because of errors, changes in roads, traffic conditions or
driving conditions.
Note:When you connect to Traffic, Directions and Information, the
service uses GPS technology and advanced vehicle sensors to collect the
vehicle’s current location, travel direction and speed to help provide you
with the directions, traffic reports, or business searches you request.
Further, to provide the services you request and for continuous
improvement, the service may collect and record call details and voice
communications. For more information, see Traffic, Directions and
Information, Terms and Conditions at www.SyncMyRide.com. If you do
not want Ford or its service providers to collect the vehicle travel
information or other information identified in the Terms and Conditions,
do not activate or use the service.
Note: SYNCwith Traffic, Directions & Information Services
requires activation prior to use. Visit www.SyncMyRide.com to
register.Standard phone and message rates may apply. Subscription
may be required. To register and check your eligibility for free services,
log onto www.SyncMyRide.com.
Note: Traffic, Directions & Information Services will not function
properly if you have enabled caller ID blocking on your mobile
phone. Prior to using SYNC TDI Services, ensure that your mobile
phone is not blocking caller ID.
Entertainment Systems
67
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

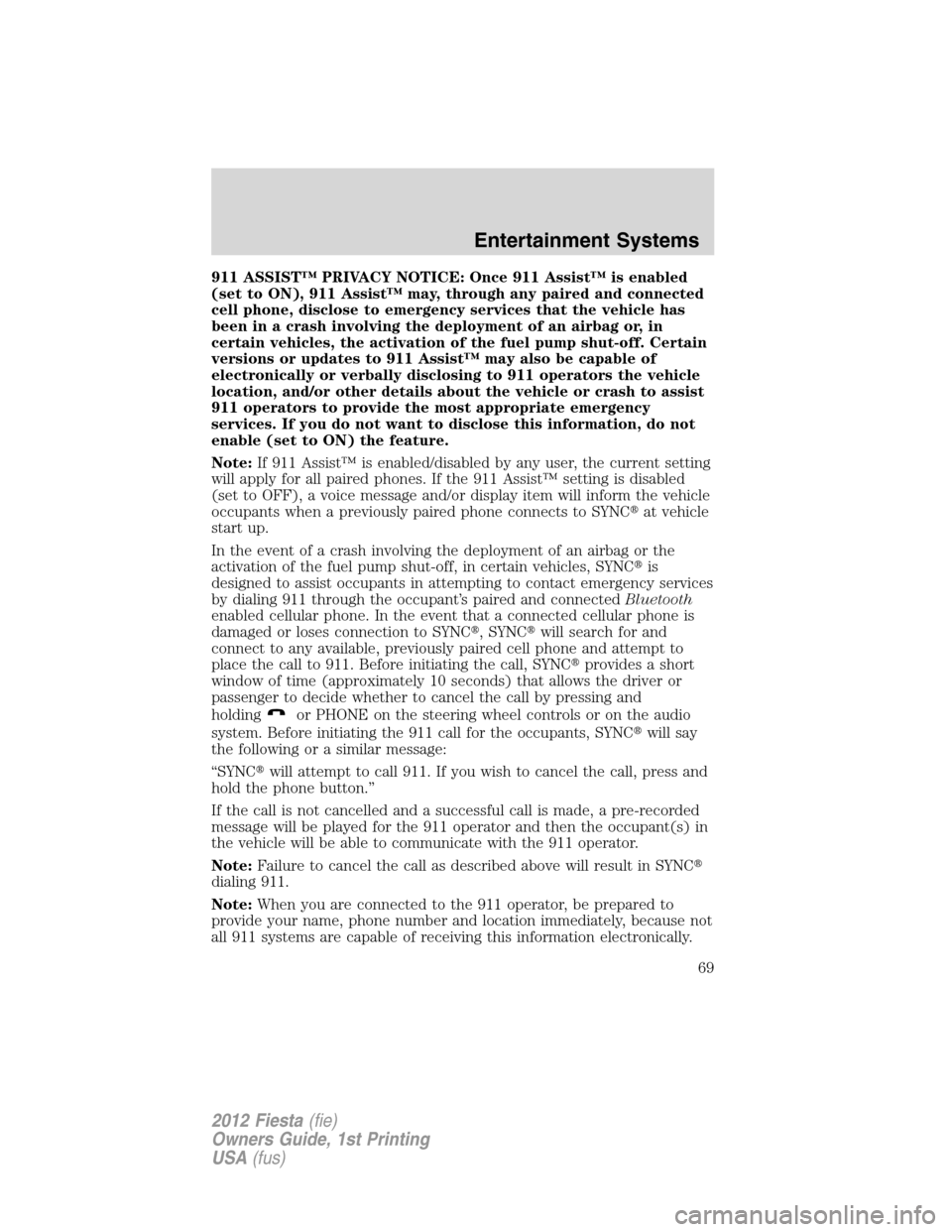

911 ASSIST™ PRIVACY NOTICE: Once 911 Assist™ is enabled
(set to ON), 911 Assist™ may, through any paired and connected
cell phone, disclose to emergency services that the vehicle has
been in a crash involving the deployment of an airbag or, in
certain vehicles, the activation of the fuel pump shut-off. Certain
versions or updates to 911 Assist™ may also be capable of
electronically or verbally disclosing to 911 operators the vehicle
location, and/or other details about the vehicle or crash to assist
911 operators to provide the most appropriate emergency
services. If you do not want to disclose this information, do not
enable (set to ON) the feature.
Note:If 911 Assist™ is enabled/disabled by any user, the current setting
will apply for all paired phones. If the 911 Assist™ setting is disabled
(set to OFF), a voice message and/or display item will inform the vehicle
occupants when a previously paired phone connects to SYNCat vehicle
start up.
In the event of a crash involving the deployment of an airbag or the
activation of the fuel pump shut-off, in certain vehicles, SYNCis
designed to assist occupants in attempting to contact emergency services
by dialing 911 through the occupant’s paired and connectedBluetooth
enabled cellular phone. In the event that a connected cellular phone is
damaged or loses connection to SYNC, SYNCwill search for and
connect to any available, previously paired cell phone and attempt to
place the call to 911. Before initiating the call, SYNCprovides a short
window of time (approximately 10 seconds) that allows the driver or
passenger to decide whether to cancel the call by pressing and
holding
or PHONE on the steering wheel controls or on the audio
system. Before initiating the 911 call for the occupants, SYNCwill say
the following or a similar message:
“SYNCwill attempt to call 911. If you wish to cancel the call, press and
hold the phone button.”
If the call is not cancelled and a successful call is made, a pre-recorded
message will be played for the 911 operator and then the occupant(s) in
the vehicle will be able to communicate with the 911 operator.
Note:Failure to cancel the call as described above will result in SYNC
dialing 911.
Note:When you are connected to the 911 operator, be prepared to
provide your name, phone number and location immediately, because not
all 911 systems are capable of receiving this information electronically.
Entertainment Systems
69
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

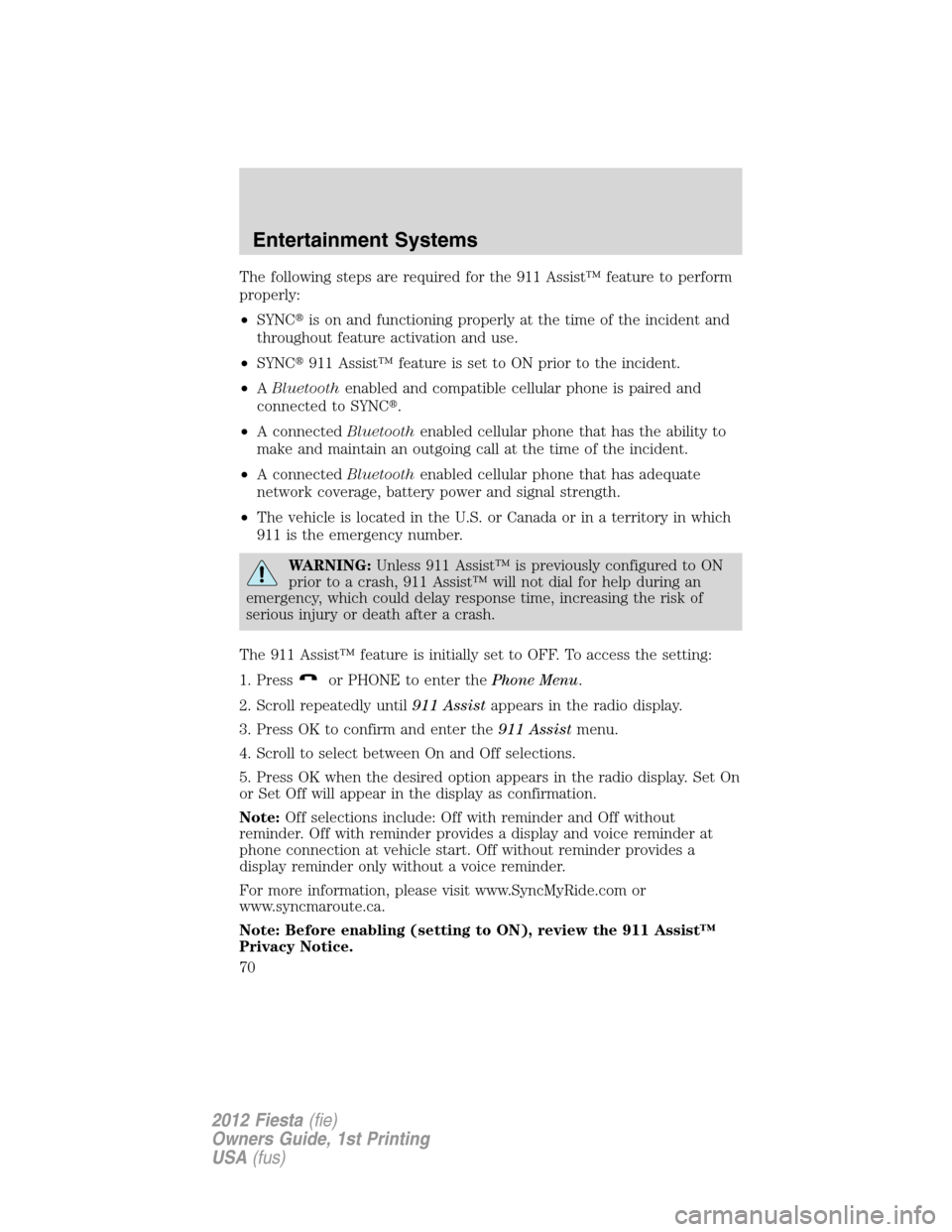

The following steps are required for the 911 Assist™ feature to perform
properly:
•SYNCis on and functioning properly at the time of the incident and
throughout feature activation and use.
•SYNC911 Assist™ feature is set to ON prior to the incident.
•ABluetoothenabled and compatible cellular phone is paired and
connected to SYNC.
•A connectedBluetoothenabled cellular phone that has the ability to
make and maintain an outgoing call at the time of the incident.
•A connectedBluetoothenabled cellular phone that has adequate
network coverage, battery power and signal strength.
•The vehicle is located in the U.S. or Canada or in a territory in which
911 is the emergency number.
WARNING:Unless 911 Assist™ is previously configured to ON
prior to a crash, 911 Assist™ will not dial for help during an
emergency, which could delay response time, increasing the risk of
serious injury or death after a crash.
The 911 Assist™ feature is initially set to OFF. To access the setting:
1. Press
or PHONE to enter thePhone Menu.
2. Scroll repeatedly until911 Assistappears in the radio display.
3. Press OK to confirm and enter the911 Assistmenu.
4. Scroll to select between On and Off selections.
5. Press OK when the desired option appears in the radio display. Set On
or Set Off will appear in the display as confirmation.
Note:Off selections include: Off with reminder and Off without
reminder. Off with reminder provides a display and voice reminder at
phone connection at vehicle start. Off without reminder provides a
display reminder only without a voice reminder.
For more information, please visit www.SyncMyRide.com or
www.syncmaroute.ca.
Note: Before enabling (setting to ON), review the 911 Assist™
Privacy Notice.
Entertainment Systems
70
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Search/Play Genre:You can search for and play a specific genre (type)
of music. SYNCwill search all the data from your indexed music and, if
available, will begin to play that type of music.
Note:You can only play genres of music which are present in the
GENRE metadata tags that you have on your digital media player.
Similar music:You can tell the system to play music ‘similar’ to what
you are currently playing from the USB port. SYNCwill use the
metadata information of each indexed song to compile a playlist for you.
Search/play artist/track/album:You can search for a specific
artist/track or album from the music SYNChas indexed through the
USB port.
Refine:This allows you to ‘refine’ your previous commands. For
example, if you told SYNCto search and play all music by a certain
artist, you could then tell SYNCto “refine album” and choose a specific
album from the list to view. If you then select ‘Play’, the system will only
play music from that specific album.
Press
and when prompted, say, “Bluetooth Audio”. You may then say
any of the following:
•Play•Connections
•Pause•Play next track
•Play previous track
Entertainment Systems
77
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

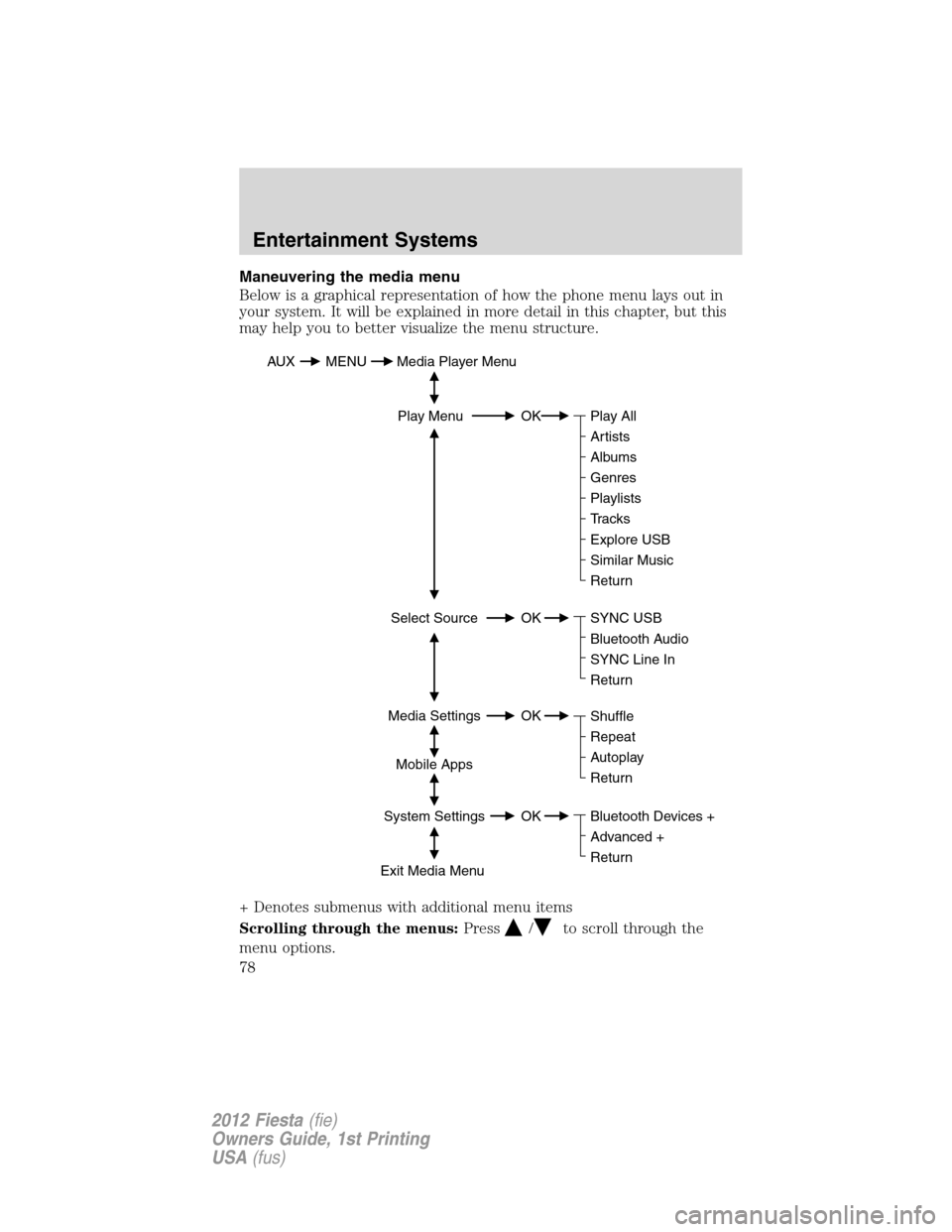

Maneuvering the media menu
Below is a graphical representation of how the phone menu lays out in
your system. It will be explained in more detail in this chapter, but this
may help you to better visualize the menu structure.
+ Denotes submenus with additional menu items
Scrolling through the menus:Press
/to scroll through the
menu options.
AUX MENU Media Player Menu
Play Menu OK
Select Source OK
Media Settings
Mobile AppsOK
System Settings OK
Exit Media Menu Play All
Artists
Albums
Genres
Playlists
Tracks
Explore USB
Similar Music
Return
Bluetooth Devices +
Advanced +
Return Shuffle
Repeat
Autoplay
Return SYNC USB
Bluetooth Audio
SYNC Line In
Return
Entertainment Systems
78
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

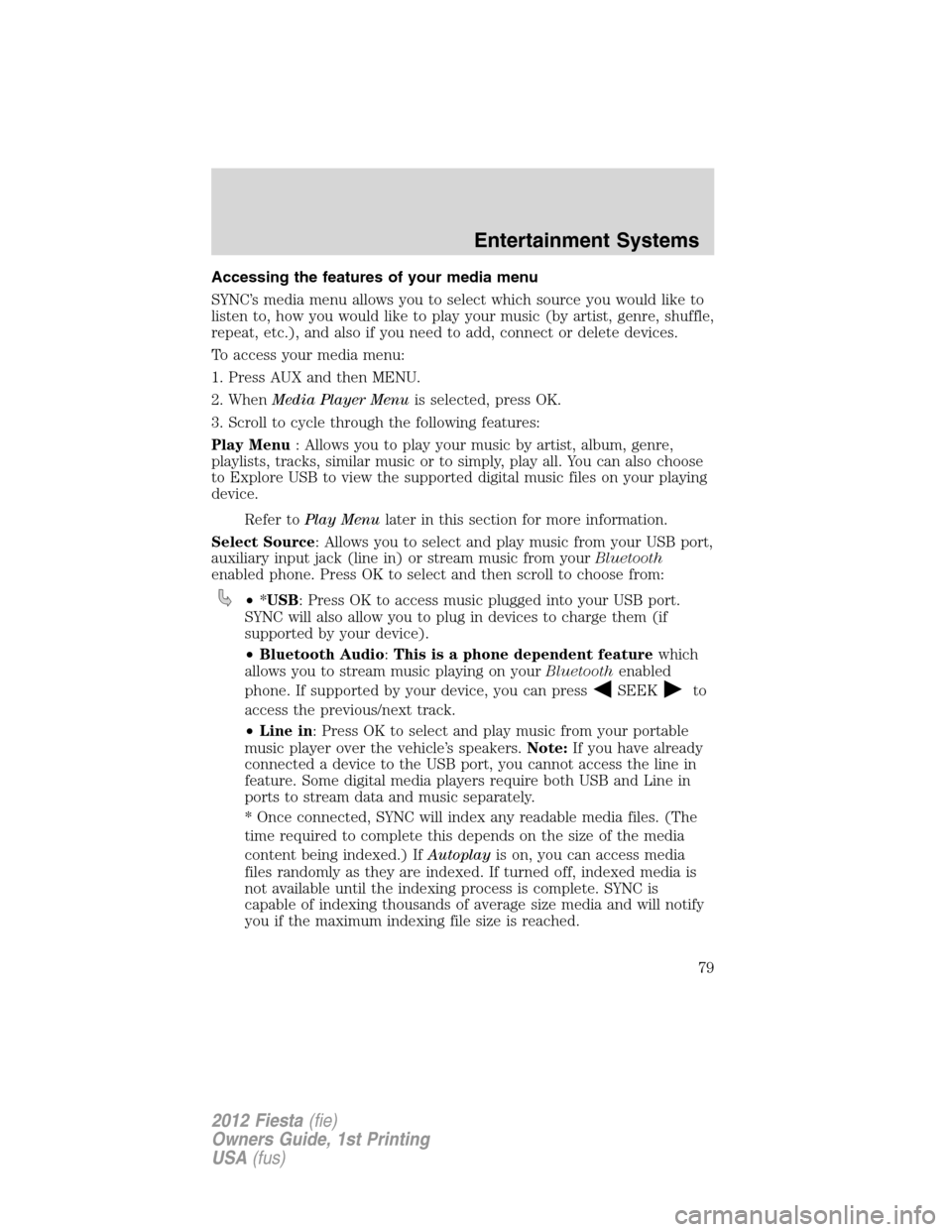

Accessing the features of your media menu
SYNC’s media menu allows you to select which source you would like to
listen to, how you would like to play your music (by artist, genre, shuffle,
repeat, etc.), and also if you need to add, connect or delete devices.
To access your media menu:
1. Press AUX and then MENU.
2. WhenMedia Player Menuis selected, press OK.
3. Scroll to cycle through the following features:
Play Menu: Allows you to play your music by artist, album, genre,
playlists, tracks, similar music or to simply, play all. You can also choose
to Explore USB to view the supported digital music files on your playing
device.
Refer toPlay Menulater in this section for more information.
Select Source: Allows you to select and play music from your USB port,
auxiliary input jack (line in) or stream music from yourBluetooth
enabled phone. Press OK to select and then scroll to choose from:
•*USB: Press OK to access music plugged into your USB port.
SYNC will also allow you to plug in devices to charge them (if
supported by your device).
•Bluetooth Audio:This is a phone dependent featurewhich
allows you to stream music playing on yourBluetoothenabled
phone. If supported by your device, you can press
SEEKto
access the previous/next track.
•Line in: Press OK to select and play music from your portable
music player over the vehicle’s speakers.Note:If you have already
connected a device to the USB port, you cannot access the line in
feature. Some digital media players require both USB and Line in
ports to stream data and music separately.
* Once connected, SYNC will index any readable media files. (The
time required to complete this depends on the size of the media
content being indexed.) IfAutoplayis on, you can access media
files randomly as they are indexed. If turned off, indexed media is
not available until the indexing process is complete. SYNC is
capable of indexing thousands of average size media and will notify
you if the maximum indexing file size is reached.
Entertainment Systems
79
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Media Settings: Allows you to choose to shuffle or repeat your music in
addition to setting your Autoplay settings. Press OK to select and then
scroll to choose from:
•Shuffle: Press OK to shuffle available media files in the current
playlist.Note:To shuffle all media tracks, you must selectPlay All
in the Play Menu and then select Shuffle.
•Repeat: Press OK to repeat any song.
•Autoplay: Press OK to listen to music which has already been
randomly indexed during the indexing process.
* You may also press you can press
SEEKto access the
previous/next track.
Note:Once these selections are turned on, they will remain on
until turned off. Some digital media players require both USB and
Line in ports to stream data and music separately.
Mobile Apps(if equipped): Enables you to interact with SYNCcapable
mobile applications on your smartphone. Refer to SYNCAppLink™
earlier in this chapter for more information.
System Settings: Allows you to accessBluetoothDevice menu listings
(add, connect, set as primary, on/off, delete) as well as Advanced menu
listings (prompts, languages, defaults, master reset, install application
and system information).
•Please refer toSystem Settingsin this chapter for complete
information.
Exit Media Menu: Press OK when this appears to exit the media menu.
Accessing your play menu
The Play menu allows you to select and play your media by artist, album,
genre, playlist, track, similar music or even to explore what is on your
USB device.
To access:
1. Press AUX and then MENU.
2. WhenMedia Player Menuis selected, press OK.
3. Scroll to select thePlay Menuand press OK.
Entertainment Systems
80
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
