Satellite Radio Electronic Serial Number (ESN):This 12-digit
Satellite Serial Number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in Satellite Radio mode, you can view this number on
the radio display by pressing the SIRIUS and Preset 1 buttons at the
same time.
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
SAT FAULT Internal module or
system failure
present.If this message does
not clear within a short
period of time, or with
an ignition key cycle,
your receiver may have
a fault. See your
authorized dealer for
service.
INVALID CHNL Channel no longer
available.This previously
available channel is no
longer available. Tune
to another channel. If
the channel was one of
your presets, you may
choose another channel
for that preset button.
UNSUBSCRIBED Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel or tune to
another channel.
Entertainment Systems
39
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

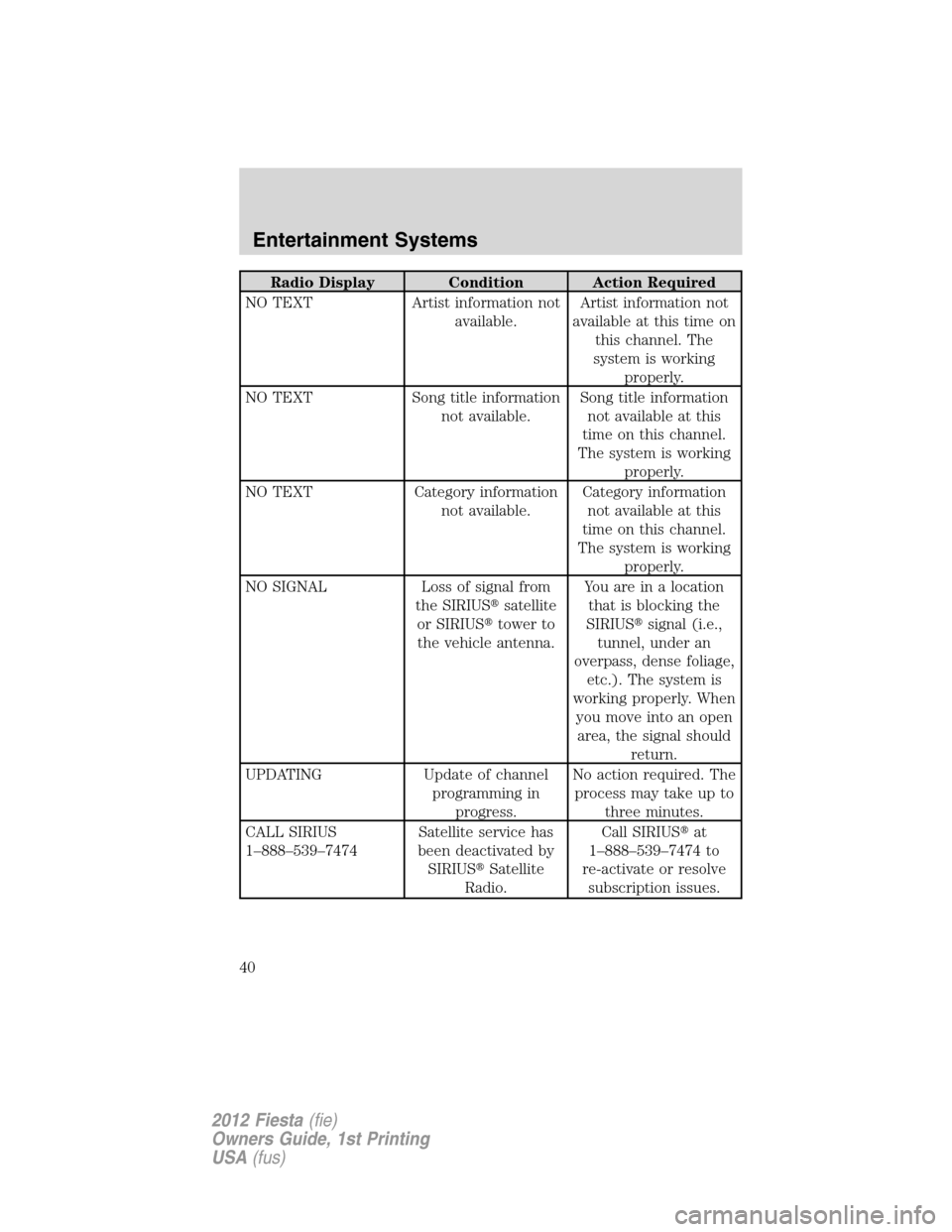

Radio Display Condition Action Required
NO TEXT Artist information not
available.Artist information not
available at this time on
this channel. The
system is working
properly.
NO TEXT Song title information
not available.Song title information
not available at this
time on this channel.
The system is working
properly.
NO TEXT Category information
not available.Category information
not available at this
time on this channel.
The system is working
properly.
NO SIGNAL Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.You are in a location
that is blocking the
SIRIUSsignal (i.e.,
tunnel, under an
overpass, dense foliage,
etc.). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
re-activate or resolve
subscription issues.
Entertainment Systems
40
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Safety information
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
•
Do not attempt to service or repair SYNC. See your authorized dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•
Ensure that you review your device’s user guide before using with SYNC.
Privacy information
When a cellular phone is connected to SYNC, SYNCcreates a profile
within your vehicle that is linked to that cellular phone. This profile is
created in order to offer you more cellular features and to operate more
efficiently. Among other things, this profile may contain data about your
cellular phone book, text messages (read and unread), and call history,
including history of calls when your cell phone was not connected to
SYNC. In addition, if you connect a media device, SYNCcreates and
retains an index of media content supported by SYNC. SYNCalso
records a short development log of approximately 10 minutes of all
recent SYNCactivity. The log profile and other SYNCdata may be
used to improve SYNCand help diagnose any problems that may occur.
The cellular profile, media device index, and development log will remain
in the vehicle unless you delete it and are generally accessible only in
the vehicle when the cellular phone or media player is connected. If you
no longer plan to use SYNCor the vehicle, we recommend you perform
a Master Reset to erase all information stored in SYNC.
SYNCdata cannot be accessed without special equipment and access to
the vehicle’s SYNCmodule. Ford Motor Company and Ford of Canada will
not access SYNCdata for any purpose other than as described absent
Entertainment Systems
43
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

consent, a court order, or where required by law enforcement, other
government authorities, or other third parties acting with lawful authority.
Other parties may seek to access the information independently of Ford
Motor Company and Ford of Canada. For further privacy information, see
the sections on 911 Assist™ (if equipped), Vehicle Health Report (if
equipped), and Traffic, Directions and Information (if equipped).
Using your voice recognition system
Your SYNCsystem comes equipped with an advanced voice recognition
(VR) system. This system is easy to use and helps you control many
features via voice commands, thereby allowing you to keep your hands
on the wheel and focus on what is in front of you.
Here we’ll cover the basics of how the system works and some global
voice commands. The majority of the voice commands will be covered
later in the supplement with their respective modes (phone, media, etc.)
and will also be indicated with the voice icon shown below.
Initiating a voice session
To initiate a voice session with your SYNC system:
1. Press
.
2. Wait until you hear a tone prompt and Listening appears in the display.
3. Say any of the following global commands:
•“Phone”: Say to make calls.
•“USB”: Say to access the device connected to your USB port.
•“Bluetooth Audio”: Say to stream audio from your phone.
•“Line in” : Say to access the device connected to the auxiliary
input jack.
•“Cancel”: Say to cancel the requested action.
•“SYNC”: Say to return to the main menu.
•“Voice settings”: Say to adjust the level of voice interaction and
feedback.
•“Help”: Say for an audible list of voice commands available in the
current mode.
•“Vehicle Health Report” (if equipped, U.S. only): Say to run a
health report.
•“ Services” (if equipped, U.S. only): Say to access the SYNC
Services portal.
Entertainment Systems
44
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

** If you have said, “Menu”, you can then say any of the following
commands:
•[Phone] settings [message]
notification on•[Phone] settings [message]
notification off
•[Phone] connections•Phone name
•Signal•Battery
•[Phone] settings [set] phone
ringer•[Phone] settings [set] ringer 1
•[Phone] settings [set] ringer 2•[Phone] settings [set] ringer 3
•Text message inbox•[Phone] settings [set] ringer off
Note:With the above commands, words in [ ] are optional and do not
have to be spoken for the system to understand the command.
At any time, you can say the following global commands:
•SYNC•USB
•Line in•Bluetooth Audio
•Phone•Voice settings
•Cancel•Vehicle Health Report (if
equipped, U.S. only)
•Services (if equipped, U.S. only)•Mobile Apps (if equipped, U.S.
only)
•Help
Making a call
To make a call, press
and when prompted say:
•“Call ” or
•“Dial” and the desired number. When the system confirms the
number, say “Dial” again to initiate the call.
Note:To erase the last spoken digit, say “Delete” or press
. To erase
all spoken digits, say “Clear” or press and hold
.
To end a call:
•Select ‘End’ on-screen using the system’s soft keys beneath the audio
system
•Press and hold PHONE on the audio system
•Press and hold
on the steering wheel controls
Entertainment Systems
50
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Maneuvering the phone menu
Below is a graphical representation of how the phone menu lays out in
your system. It will be explained in more detail in this chapter, but this
may help you to better visualize the menu structure.
+ Denotes submenus with additional menu items
PHONE or Phone Redial
Call History OK
Phonebook
Text Message OK
Phone Settings OK
SYNC Services
911 Assist
Vehicle Health Report OK User Preferences +
Run Report?
Return
Mobile Apps
System Settings OK
Exit Phone Menu
Call History Incoming
Call History Outgoing
Call History Missed
Return
Send Text Message?
Download Unread Msgs
Delete All Messages?
Return
Phone Status
Set Ringer
Message Notification
Modify Phonebook
Auto Download
Return
Bluetooth Devices +
Advanced +
Return
Entertainment Systems
54
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Scrolling through the menus:Press/on your audio system to
scroll through the menu options.
Accessing features through the phone menu
SYNC’s phone menu allows you to redial a number, access your call
history and phone book and send text messages as well as accessing
phone and system settings. You can also access advanced features such
as 911 Assist™, Vehicle Health Report and SYNC Services.
To access your phone menu:
1. Press PHONE or
to enter thePhone Menu.
2. Scroll to cycle through the following features:
Phone Redial: Redials the last number called (if available).
•Press OK to select and press OK again to confirm. The display
will indicateRedialingas it is placing the call.
Call History:This is a phone dependent featurewhich allows you to
access any previously dialed, received or missed calls while your phone
has been connected to SYNC.
1. Press OK to select.
2. Scroll to select fromCall History Incoming,Call History
OutgoingorCall History Missed. Press OK to enter the chosen
menu and scroll to cycle through your calls.
3. Press OK, PHONE or
to call the desired selection.
Note:SYNC will attempt to automatically re-download your phone
book / call history each time your phone connects to SYNC (if the
auto download feature is on and yourBluetoothenabled cellular
phone supports this feature).
Phonebook:This is a phone and speed dependent featurewhich
allows you to access your downloaded phonebook.
1. Press OK to confirm and enter.Note:If your phonebook has less
than 255 listings, they will appear alphabetically in flat file mode. If
there are more, they will be organized into alphabetical categories.
2. Scroll until the desired contact appears and press OK.
3. Press OK or PHONE or
to call the contact.
Note:SYNC can support downloading up to approximately 2,000
entries perBluetoothenabled cellular phone .
Entertainment Systems
55
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Text Message:This is a phone dependent featurewhich enables you
to send, download and delete text messages.
•Please refer toText Messagingin the following section for
complete information.
Phone Settings:These are phone dependent featureswhich allow
you to view your phone’s status, set a ring tone, select your message
notification, change phone book entries and also to automatically
download your cellular phone among other features.
•Please refer toPhone Settingsin the following section for
complete information.
SYNC Services(if equipped, U.S. only): Select to access the SYNC
services portal where you can request various types of information,
traffic reports and directions.
•Refer toSYNC Serviceslater in this chapter.
911 Assist(if equipped): When used properly, this can place an
emergency call to a 911 operator for you after an accident.
•Refer to911 Assistlater in this chapter.
Vehicle Health Report(if equipped, U.S. only): Enables you to run and
receive a diagnostic report card on your vehicle.
•Refer toVehicle Health Reportlater in this chapter.
Mobile Apps(if equipped, U.S. only): Enables you to interact with
SYNCcapable mobile applications on your smartphone. Refer to SYNC
AppLink™ section later in this chapter.
System Settings: Press OK to accessBluetooth Devicesmenu listings
(add, connect, set as primary, on/off, delete) as well as Advanced menu
listings (prompts, languages, defaults, master reset, install application
and system information).
•Refer toBluetooth Devicesmenu andAdvancedmenu options in
the following sections for more information.
Exit Phone Menu: Press OK when this appears in the display to exit
the phone menu.
Entertainment Systems
56
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
