2012 FORD FIESTA automatic transmission fluid

SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty Guideto
find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraftparts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
Be especially careful when inspecting or servicing your vehicle.
•Do not work on a hot engine.
•When the engine is running, make sure that loose clothing, jewelry or
long hair does not get caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other burning (cigarettes) material away
from the battery and all fuel related parts.
If you disconnect the battery, the engine must “relearn” its idle condition
before your vehicle will drive properly, as explained inBatteryin this
section.
Working with the engine off
1. For vehicles equipped with an automatic transmission, set the parking
brake and shift to P (Park). For vehicles equipped with a manual
transmission, set the parking brake, press and hold the clutch pedal,
place the gearshift in 1 (First), and release the clutch pedal.
2. Turn off the engine and remove the key.
3. Block the wheels.
Working with the engine on
1. For vehicles equipped with an automatic transmission, set the parking
brake and shift to P (Park). For vehicles equipped with a manual
transmission, set the parking brake, press and hold the clutch pedal,
place the gearshift in N (Neutral), and release the clutch pedal.
2. Block the wheels.
Maintenance and Specifications
291
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

BRAKE/CLUTCH FLUID
Brake and clutch (if equipped) systems are supplied from the same
reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid.
If the fluid levels are outside of the normal operating range, the
performance of the system could be compromised; seek service from
your authorized dealer immediately.
TRANSMISSION FLUID
Checking 6-speed automatic transmission fluid
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
Transmission fluid should be checked by an authorized dealer. If
required, fluid should be added by an authorized dealer.
Maintenance and Specifications
316
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

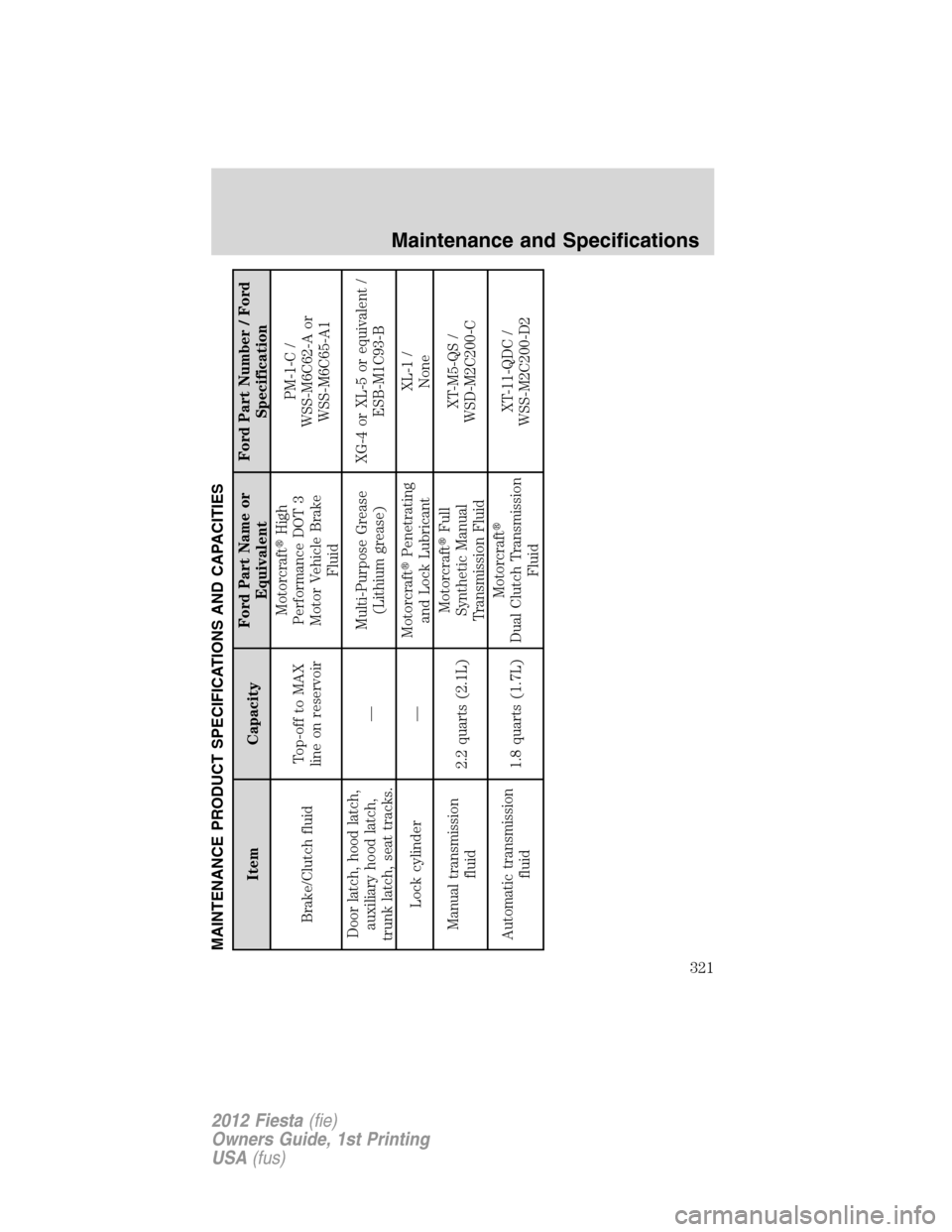

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Brake/Clutch fluidTop-off to MAX
line on reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch,
trunk latch, seat tracks.—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Manual transmission
fluid2.2 quarts (2.1L)MotorcraftFull
Synthetic Manual
Transmission FluidXT-M5-QS /
WSD-M2C200-C
Automatic transmission
fluid1.8 quarts (1.7L)Motorcraft
Dual Clutch Transmission
FluidXT-11-QDC /
WSS-M2C200-D2
Maintenance and Specifications
321
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and
window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
Scheduled Maintenance
337
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

NORMAL SCHEDULED MAINTENANCE AND LOG
Your vehicle is equipped with a oil minder system that indicates when
the engine oil should be changed under normal operating conditions.
This means you won’t have to remember to change the oil on a
mileage-based schedule; the vehicle lets you know when an oil change is
due by displaying ENGINE OIL CHANGE DUE NEXT SERVICE or OIL
CHANGE REQUIRED in the message center.
Normal Scheduled Maintenance
Every 10,000 miles
(16,000 km) or
12 monthsChange engine oil and filter
Rotate tires, inspect tire wear and measure tread
depth
Perform multi-point inspection (recommended)
Inspect automatic transmission fluid level (if
equipped with dipstick); consult dealer for
requirements
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake
Inspect cabin air filter (if equipped)
Inspect engine cooling system strength and hoses
(non-hybrid vehicles)
Inspect engine cooling system and
motor/electronics cooling system strength and
hoses (hybrid vehicles)
Inspect exhaust system and heat shields
Inspect half-shaft boots (if equipped)
Inspect rear axle and U-joints; lubricate if
equipped with grease fittings (AWD vehicles)
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate if
equipped with grease fittings
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Reset your oil minder system after each engine oil and filter change;
refer to theInstrument Clusterchapter
Do not exceed one year or 10,000 miles (16,000 km) between
service intervals
Scheduled Maintenance
339
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

911 Assist™ ................................68
A
Accessing call history/phone
book during active call ...............51
Accessing your media menu
features ........................................79
Accessing your phone menu
features ........................................55
Active call menu options ...........51
Advanced menu options .......63, 85
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ................................63
AdvanceTrac ..............................240
Airbag supplemental restraint
system ........................168, 177, 180
and child safety seats ............170
description ..............168, 177, 180
disposal ....................................183
driver airbag ............170, 178, 181
indicator light .................177, 183
operation .................170, 178, 181
passenger airbag .....170, 178, 181
side airbag ...............................177
Air cleaner filter .......317–318, 320
Ambient mood/lighting .............108
Antifreeze
(see Engine coolant) ................299
Anti-lock brake system
(see Brakes) ..............................238
Anti-theft system ..............143, 145
arming the system ..........144–145disarming a triggered
system .....................................145
triggering .................................145
AppLink™ ...................................73
Armrests ....................................150
Audio system (see Radio) ...23, 28
Automatic transmission ............246
driving an automatic
overdrive .................................246
fluid, adding ............................316
fluid, checking ........................316
Auxiliary input jack (Line in) ....33
Auxiliary power point ...............120
B
Battery .......................................297
acid, treating emergencies .....297
jumping a disabled battery ....271
maintenance-free ....................297
replacement, specifications ...320
servicing ..................................297
Belt-Minder.............................163
Blind spot mirror ......................253
Booster seats .............................198
Brakes ................................237–238
anti-lock ...................................238
anti-lock brake system (ABS)
warning light ...........................238
fluid, checking and adding ....316
fluid, refill capacities ..............321
fluid, specifications .................321
lubricant specifications ..........321
parking ....................................239
shift interlock ..........................244
Break-in period .............................5
Bulbs ..........................................109
Index
350
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

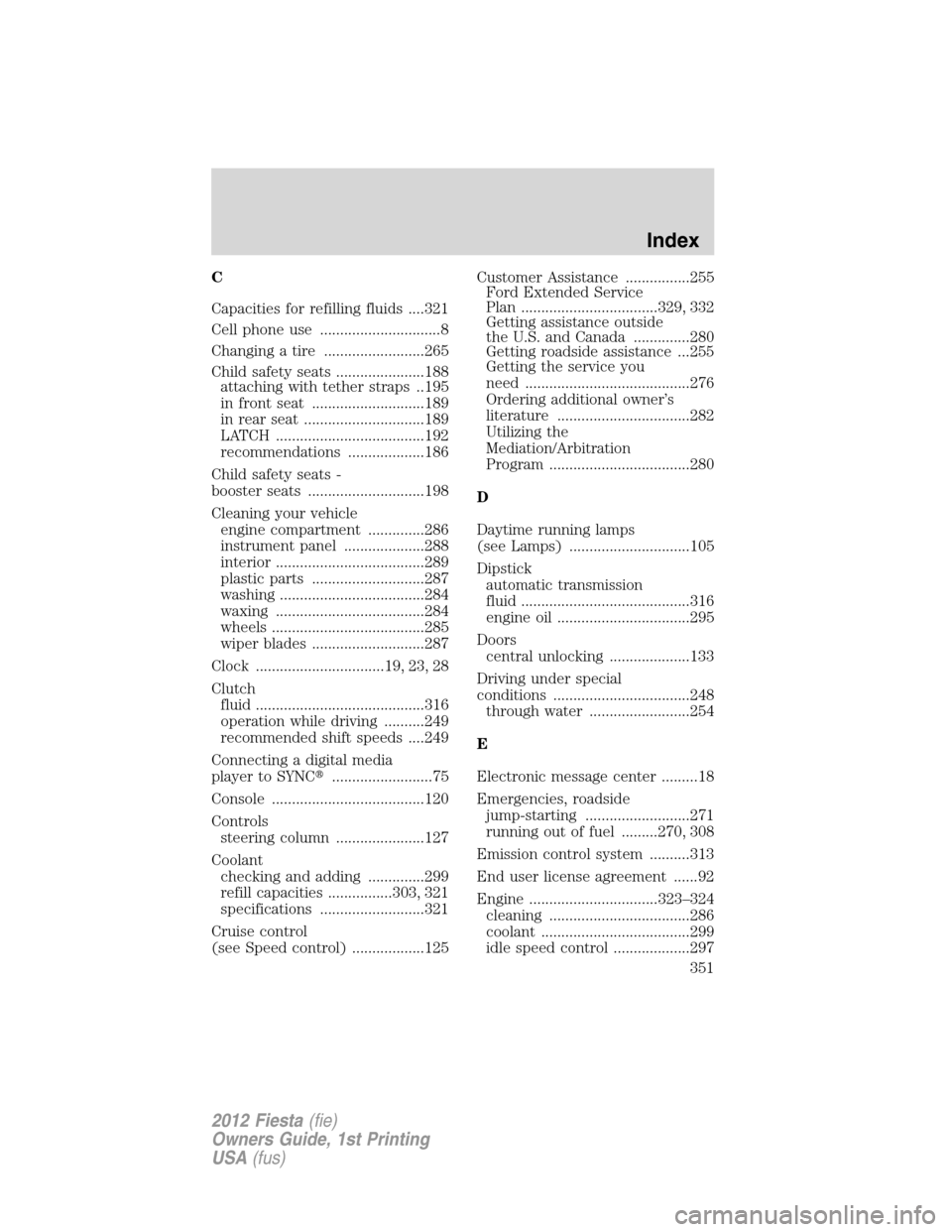

C
Capacities for refilling fluids ....321
Cell phone use ..............................8
Changing a tire .........................265
Child safety seats ......................188
attaching with tether straps ..195
in front seat ............................189
in rear seat ..............................189
LATCH .....................................192
recommendations ...................186
Child safety seats -
booster seats .............................198
Cleaning your vehicle
engine compartment ..............286
instrument panel ....................288
interior .....................................289
plastic parts ............................287
washing ....................................284
waxing .....................................284
wheels ......................................285
wiper blades ............................287
Clock ................................19, 23, 28
Clutch
fluid ..........................................316
operation while driving ..........249
recommended shift speeds ....249
Connecting a digital media
player to SYNC.........................75
Console ......................................120
Controls
steering column ......................127
Coolant
checking and adding ..............299
refill capacities ................303, 321
specifications ..........................321
Cruise control
(see Speed control) ..................125Customer Assistance ................255
Ford Extended Service
Plan ..................................329, 332
Getting assistance outside
the U.S. and Canada ..............280
Getting roadside assistance ...255
Getting the service you
need .........................................276
Ordering additional owner’s
literature .................................282
Utilizing the
Mediation/Arbitration
Program ...................................280
D
Daytime running lamps
(see Lamps) ..............................105
Dipstick
automatic transmission
fluid ..........................................316
engine oil .................................295
Doors
central unlocking ....................133
Driving under special
conditions ..................................248
through water .........................254
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................271
running out of fuel .........270, 308
Emission control system ..........313
End user license agreement ......92
Engine ................................323–324
cleaning ...................................286
coolant .....................................299
idle speed control ...................297
Index
351
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

J
Jack ............................................265
positioning ...............................265
storage .....................................265
Joining two calls
(multiparty/conference call) ......51
Jump-starting your vehicle ......271
K
Keyless entry system
autolock ...........................133–134
Keys ...................................130, 144
positions of the ignition .........230
L
Lamps
bulb replacement
specifications chart ................109
daytime running light .............105
headlamps ...............................104
instrument panel, dimming ...105
interior lamps .........107–108, 110
replacing bulbs .......................110
LATCH anchors .........................192
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........238
Load limits .................................221
Locks
autolock ...........................133–134
childproof ................................135
Lubricant specifications ...........321
Lug nuts ....................................270
M
Manual transmission .................249fluid capacities ........................321
lubricant specifications ..........321
reverse .....................................250
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ............................84
Media menu layout .....................78
Message center .....................17–18
warning messages .....................19
Mirrors ...............................123–124
automatic dimming rearview
mirror ......................................123
heated ......................................124
side view mirrors (power) .....124
signal .......................................125
Moon roof ..................................127
Motorcraftparts ..............290, 320
O
Octane rating ............................307
Oil (see Engine oil) ..................295
P
Pairing other phones ..................48
Pairing your phone for the first
time ..............................................47
Parking brake ............................239
Parts
(see Motorcraftparts) ...........320
Passenger Occupant
Classification Sensor .................156
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ............................62
Phone dependent features .........46
Phone menu layout ....................54
Index
353
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
