2012 FORD F650 set clock

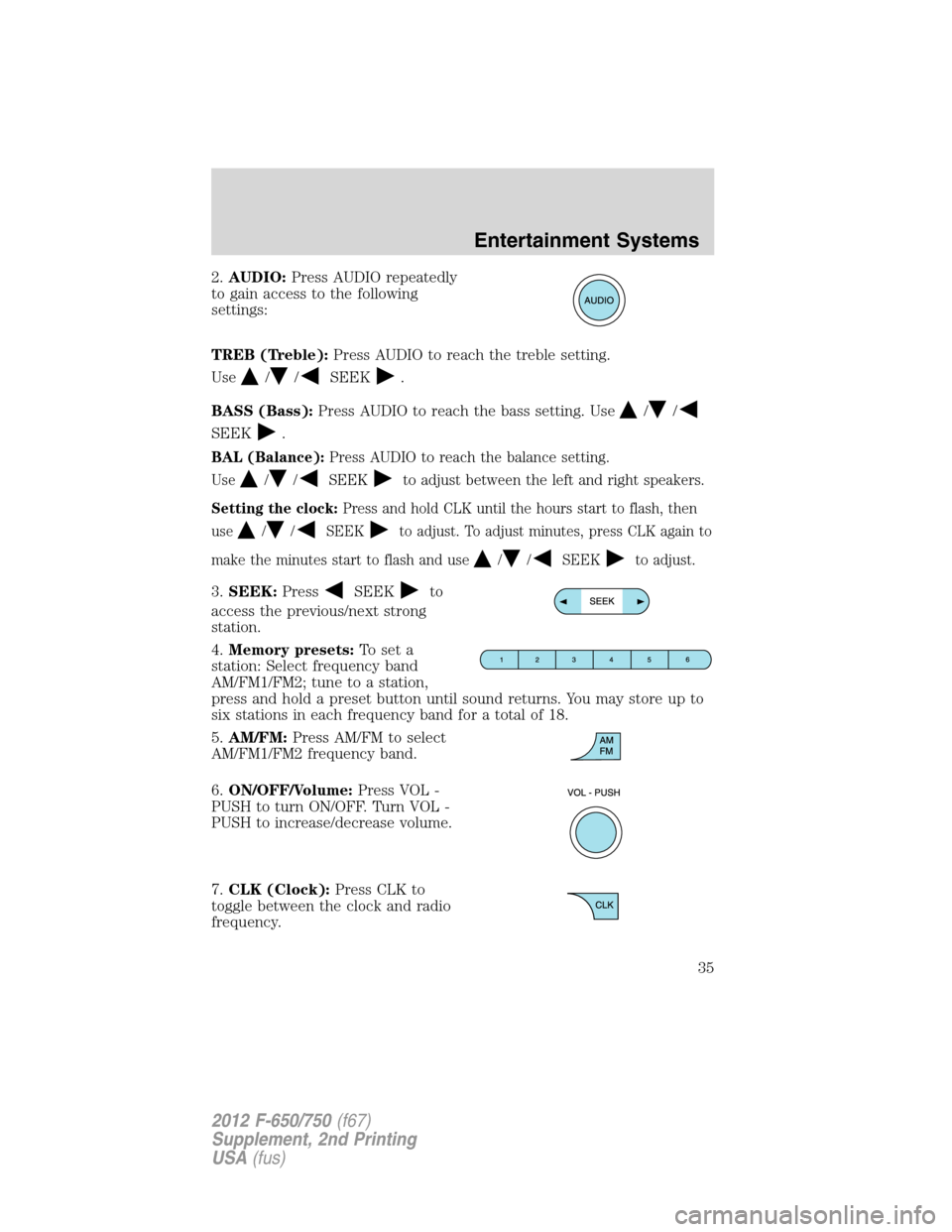

2.AUDIO:Press AUDIO repeatedly
to gain access to the following
settings:
TREB (Treble):Press AUDIO to reach the treble setting.
Use
//SEEK.
BASS (Bass):Press AUDIO to reach the bass setting. Use
//
SEEK.
BAL (Balance):Press AUDIO to reach the balance setting.
Use
//SEEKto adjust between the left and right speakers.
Setting the clock:Press and hold CLK until the hours start to flash, then
use
//SEEKto adjust. To adjust minutes, press CLK again to
make the minutes start to flash and use
//SEEKto adjust.
3.SEEK:PressSEEKto
access the previous/next strong
station.
4.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5.AM/FM:Press AM/FM to select
AM/FM1/FM2 frequency band.
6.ON/OFF/Volume:Press VOL -
PUSH to turn ON/OFF. Turn VOL -
PUSH to increase/decrease volume.
7.CLK (Clock):Press CLK to
toggle between the clock and radio
frequency.
Entertainment Systems
35
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

2.(Phone):If your vehicle is
equipped with SYNC, press to
access SYNC PHONE features. For
further information, please refer to yourSYNCsupplement.
If your vehicle is not equipped with SYNC, the display reads NO
PHONE.
3.MENU:Press MENU repeatedly
to access to the following settings:
Setting the clock:Press MENU until SET HOUR or SET MINUTES is
displayed. Use
//SEEK, SEEKto adjust the
hours/minutes.
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUSchannel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUScategories and channels.
Press OK to close and return to the main menu.
•SAVE SONG:Press OK to save the currently playing song title in the
system’s memory. (If you try to save something other than a song,
CANT SAVE appears in the display.) When the chosen song is playing
on any satellite radio channel, the system alerts you with an audible
prompt. Press OK while SONG ALERT is in the display and the
system takes you to the channel playing the desired song. You can
save up to 20 song titles. If you attempt to save a song when the
system is full, the display reads REPLACE SONG? Press OK to access
the saved songs and press
/to cycle through the saved songs.
When the song appears in the display that you want to replace, press
OK. SONG REPLACED appears in the display.
Entertainment Systems
37
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

ENGINE OIL (GASOLINE ENGINE ONLY)
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait 15 minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in
P (Park).
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the engine oil dipstick.
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it
again.
•If the oil level isbetween the two holes,the oil level is acceptable.
DO NOT ADD OIL.
•If the oil level is at or below the lower hole, add enough oil to raise
the level to within the two holes. Refer toAdding engine oilin the
following section.
•Oil levels above the upper hole may cause engine damage. Some oil
must be removed from the engine by a service technician.
When the oil level is in its proper operating range, put the dipstick back
in and ensure it is fully seated.
Adding engine oil
Check the engine oil. For instructions, refer toChecking the engine oil.
1. If the engine oil level is not within the normal range, add only
certified engine oil of the recommended viscosity. Remove the engine
oil filler cap and use a funnel to pour the engine oil into the opening.
2. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level dipstick.
3. Install the dipstick and ensure it is fully seated.
4. Fully install the engine oil filler cap by turning the filler cap
clockwise until three clicks are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil dipstick and/or the engine oil filler cap removed.
Maintenance and Specifications
193
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

A
Air conditioning ..........................47
manual heating and air
conditioning system .................47
Air suspension ...........................129
Antifreeze
(see Engine coolant) ................198
Anti-lock brake system
(see Brakes) ..............................127
Audio system (see Radio) ...34, 36
Automatic transmission ............132
fluid, adding ............................226
fluid, checking ........................226
fluid, refill capacities ..............261
fluid, specification ..................245
Auxiliary Input Jack ...................43
Auxiliary powerpoint ..................57
Axle ............................142, 183, 231
lubricant specifications ..........245
refill capacities ........................259
B
Battery .......................................195
charging system warning
light ............................................20
jumping a disabled battery ....162
voltage gauge ............................28
Belt-Minder...............................85
Booster seats ...............................99
Brakes ........................110, 115, 184
adjustment ..............................186
anti-lock ...................................127
anti-lock brake system (ABS)
warning light .....................20, 127
brake warning light ..................20
fluid, checking and adding ....224fluid, specifications .................245
parking ....................111, 118, 187
shift interlock ..........................131
Bulbs ............................................52
C
Cassette tape player ...................34
Catalytic converter
(see Emission control) .............187
Cell phone use ..............................6
Child safety seats ........................92
attaching with tether straps ....96
in front seat ..............................93
in rear seat ..........................93, 95
tether anchorage hardware .....96
Child safety seats -
booster seats ...............................99
Cleaning your vehicle
engine compartment ..............176
exterior ....................................179
instrument panel ....................178
interior .....................................179
plastic parts ............................177
safety belts ..............................179
washing ....................................175
waxing .....................................175
wheels ......................................176
wiper blades ............................177
Climate control (see Air
conditioning or Heating) ............47
Clock adjust
AM/FM/CD .................................43
Clutch ................................136, 225
adjusting ..................................225
fluid ..........................................225
operation while driving ..........137
specifications ..........................245
Index
302
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Lubricant specifications ...........245
Lumbar support, seats ...............75
M
Manual transmission .................138
lubricant specifications ..........245
Message center .....................30–31
Mirrors .........................................59
fold away .............................60, 62
side view mirrors (power) .......59
signal .........................................62
O
Octane rating ............................207
Odometer .....................................28
P
Parking brake ....................111, 118
warning light .............................20
Power door locks ........................67
Power mirrors .............................59
Powerpoint ..................................57
Power steering ..........................189
fluid, checking and adding ....223
fluid, refill capacity ................260
fluid, specifications .................245
Power Take-Off (PTO)
operation .................................140
Power Windows ...........................58
R
Radio ......................................34, 36
Relays ........................................154Remote entry system
locking/unlocking doors ...........67
Roadside assistance ..................152
S
Safety belts (see Safety
restraints) .................. 80–81, 83–84
Safety defects, reporting ..........174
Safety restraints ....................80–84
Belt-Minder.............................85
cleaning the safety belts ........102
extension assembly ..................84
for adults .............................81, 83
for children ...............................89
lap belt ......................................83
warning light and chime ....20, 85
Safety seats for children ............92
Seat belts
(see Safety restraints) ...............80
Seats ............................................69
child safety seats ......................92
heated ........................................76
Setting the clock
AM/FM/CD .................................43
Spark plugs,
specifications .....................262–263
Special notice ................................5
Specification chart,
lubricants ...................................245
Speed control ..............................63
Speedometer ...............................28
Starting your vehicle ................103
jump starting ..........................162
preparing to start your
vehicle .....................................103
Index
305
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
