BRAKE FLUID
• Vacuum boost system
• Hydroboost system
The fluid level will drop slowly as the brakes wear, and will rise when the
brake components are replaced. Fluid levels between the top of the MIN
and MAX lines are within the normal operating range; there is no need to
add fluid. If the fluid levels are outside of the normal operating range,
the performance of your brake system could be compromised; seek
service from your authorized dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to your scheduled maintenance information for scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). Verify that the
transmission fluid temperature gauge, located on the instrument cluster,
is within normal range. MINMAX
Maintenance and Specifications
400
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Item Capacity Ford part name Ford part number /
Ford specification
Windshield washer fluid Fill as required Motorcraft  Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada) ZC-32–A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16–A2 /- -
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118–A for complete refill of limited slip Ford axles. Ford design rear axles contain a
synthetic lubricant that does not require changing unless the axle has been submerged in water.
2Add the coolant type originally equipped in your vehicle.
3Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to your scheduled maintenance information to determine the
correct service interval.
Automatic transmissions that require MERCON  LV should only use MERCON  LV fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.
4Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.
5Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.
6Refer to Checking automatic transmission fluid in this chapter for the correct dipstick type.
Fill to the proper capacity according to dipstick Type A.
7Refer to Checking automatic transmission fluid in this chapter for the correct dipstick type.
Fill to the proper capacity according to dipstick Type B.Maintenance and Specifications
414
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

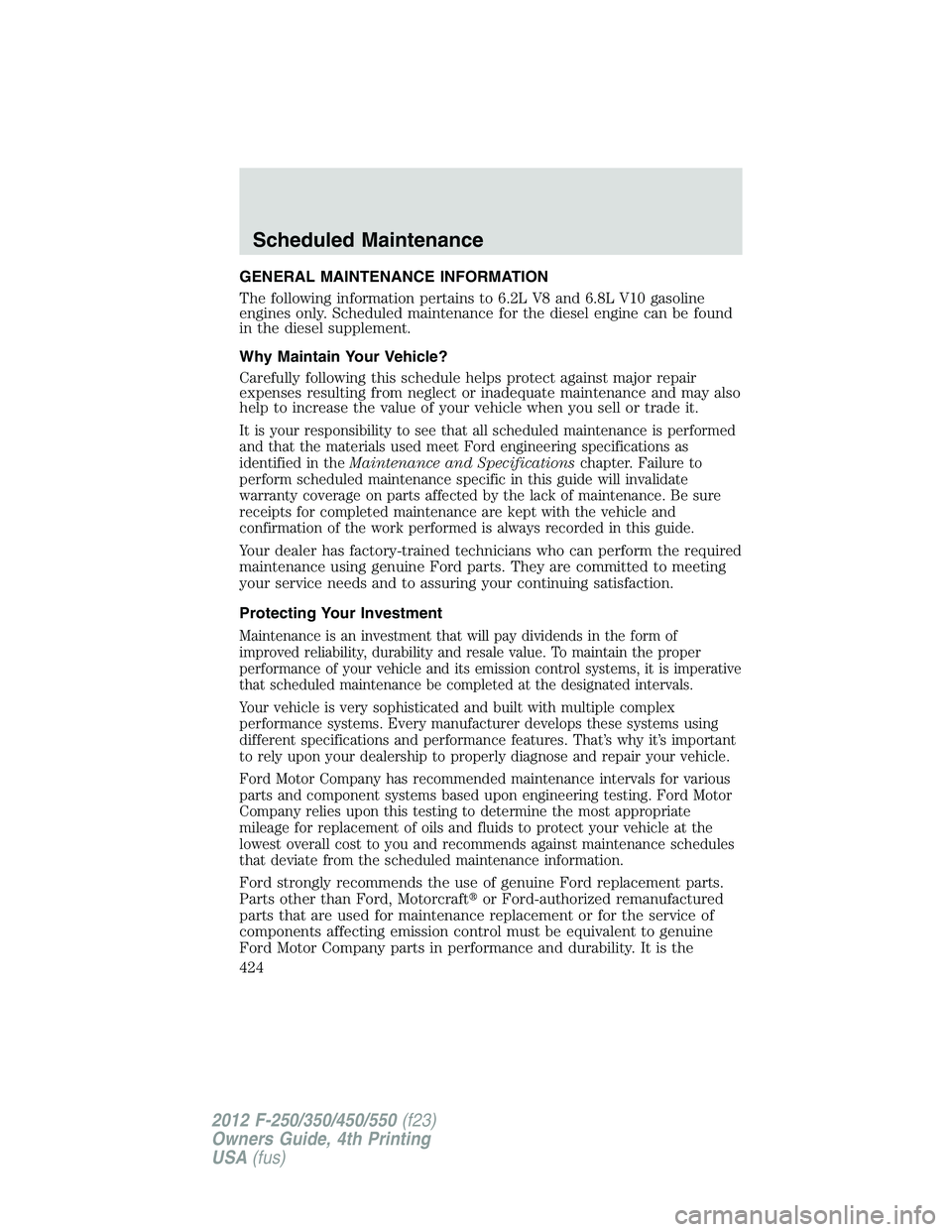

GENERAL MAINTENANCE INFORMATION
The following information pertains to 6.2L V8 and 6.8L V10 gasoline
engines only. Scheduled maintenance for the diesel engine can be found
in the diesel supplement.
Why Maintain Your Vehicle?
Carefully following this schedule helps protect against major repair
expenses resulting from neglect or inadequate maintenance and may also
help to increase the value of your vehicle when you sell or trade it.
It is your responsibility to see that all scheduled maintenance is performed
and that the materials used meet Ford engineering specifications as
identified in the Maintenance and Specifications chapter. Failure to
perform scheduled maintenance specific in this guide will invalidate
warranty coverage on parts affected by the lack of maintenance. Be sure
receipts for completed maintenance are kept with the vehicle and
confirmation of the work performed is always recorded in this guide.
Your dealer has factory-trained technicians who can perform the required
maintenance using genuine Ford parts. They are committed to meeting
your service needs and to assuring your continuing satisfaction.
Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is imperative
that scheduled maintenance be completed at the designated intervals.
Your vehicle is very sophisticated and built with multiple complex
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That’s why it’s important
to rely upon your dealership to properly diagnose and repair your vehicle.
Ford Motor Company has recommended maintenance intervals for various
parts and component systems based upon engineering testing. Ford Motor
Company relies upon this testing to determine the most appropriate
mileage for replacement of oils and fluids to protect your vehicle at the
lowest overall cost to you and recommends against maintenance schedules
that deviate from the scheduled maintenance information.
Ford strongly recommends the use of genuine Ford replacement parts.
Parts other than Ford, Motorcraft  or Ford-authorized remanufactured
parts that are used for maintenance replacement or for the service of
components affecting emission control must be equivalent to genuine
Ford Motor Company parts in performance and durability. It is theScheduled Maintenance
424
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

owner’s responsibility to determine the equivalency of such parts. Please
consult your Warranty Guide for complete warranty information.
Chemicals or additives not approved by Ford are not required for factory
recommended maintenance. In fact, Ford Motor Company recommends
against the use of such additive products unless specifically
recommended by Ford for a particular application.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and/or foreign material contamination should be inspected
immediately by a qualified expert such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Genuine Ford Parts and Service
When planning your maintenance services, consider your dealership for
all your vehicle’s needs.
There are a lot of reasons why visiting your dealership for all your
service needs is a great way to help keep your vehicle running great.
Convenience
Many dealerships have extended evening and Saturday hours to make
your service visit more convenient. How’s that for quality service?
Factory-trained Technicians
Service technicians participate in extensive factory-sponsored
certification training to help them become experts on the operation of
your vehicle. Ask your dealership about the training and certification
their technicians have received.
Genuine Ford and Motorcraft  Replacement Parts
Dealerships stock Ford and Motorcraft  branded remanufactured
replacement parts. These parts meet or exceed Ford Motor Company’s
specifications, and we stand behind them. Parts installed at your
dealership carry a nationwide, 12 month/12,000 mile (20,000 km) parts
and labor limited warranty. Your dealer can give you details. Scheduled Maintenance
425
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner checks and services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oil (6.2L/6.8L)* 6 months or 7,500 miles (12,000 km)
(whichever comes first)
Engine coolant, initial
change 6 years or 105,000 miles (168,000 km)
(whichever comes first)
Engine coolant, after
initial change Every 3 years or 45,000 miles (72,000 km)
*If your vehicle is equipped with a diesel engine, refer to the diesel
supplement for engine oil/coolant change schedules
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessaryScheduled Maintenance
426
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Check every six months
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operation Tires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation *
Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and window
washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great! Scheduled Maintenance
427
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

SPECIAL OPERATING CONDITIONS
The following information pertains to 6.2L V8 and 6.8L V10 gasoline
engines only. Scheduled maintenance for the diesel engine can be found
in the diesel supplement.
If you operate your vehicle primarily in one of the more demanding
conditions listed below, you will need to have some items maintained
more frequently. If you only occasionally operate your vehicle under
these conditions, it is not necessary to perform the additional
maintenance. For specific recommendations, see your dealership service
advisor or technician.
Towing a trailer or using a camper or car-top carrier
Inspect frequently,
service as required Inspect and lubricate U-joints
See axle maintenance items under Exceptions
Every 5,000 miles
(8,000 km) Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 months Change engine oil and filter
Inspect and lubricate U-joints
Every 30,000 miles
(48,000 km) Change automatic transmission fluid (except
6R80 and TorqShift  transmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km) Change transfer case fluid (4WD vehicles)
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted Scheduled Maintenance
435
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Extensive idling and/or low-speed driving for long distances as in
heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as required Replace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km) Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 months Inspect and lubricate U-joints
Every 5,000 miles
(8,000 km), 6 months
or 200 engine hours Change engine oil and filter
Every 30,000 miles
(48,000 km) Change automatic transmission fluid (except 6R80
and TorqShift  transmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km) Change transfer case fluid (4WD vehicles)
Replace spark plugs
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as required Replace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km) Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 months Change engine oil and filter
Inspect and lubricate U-jointsScheduled Maintenance
436
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
