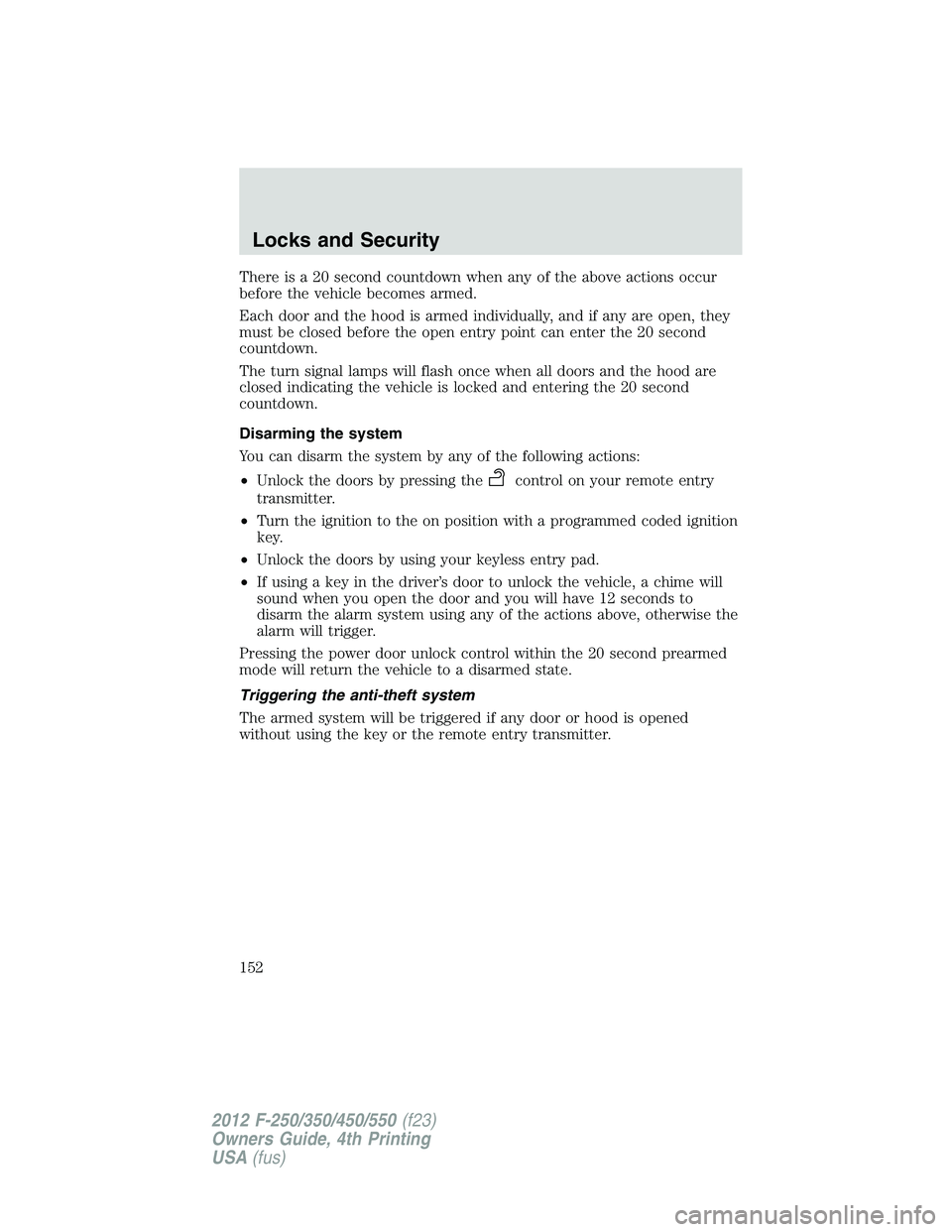

There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Each door and the hood is armed individually, and if any are open, they
must be closed before the open entry point can enter the 20 second
countdown.
The turn signal lamps will flash once when all doors and the hood are
closed indicating the vehicle is locked and entering the 20 second
countdown.
Disarming the system
You can disarm the system by any of the following actions:
• Unlock the doors by pressing the control on your remote entry
transmitter.
• Turn the ignition to the on position with a programmed coded ignition
key.
• Unlock the doors by using your keyless entry pad.
• If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door or hood is opened
without using the key or the remote entry transmitter.Locks and Security
152
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
12 15A Interior lighting, Lighted running
board lamps
13 15A Right turn signals and brake
lamps, Right trailer tow (TT) stop
turn relay
14 15A Left turn signals and brake lamps,
Left TT stop turn relay
15 15A High-mounted stop lamps, Backup
lamps, TT backup relay
16 10A Right low beam headlamp
17 10A Left low beam headlamp
18 10A Keypad illumination, Passive
anti-theft indicator (PATS),
Powertrain control module
(PCM), Brake shift interlock
19 20A Subwoofer
20 20A Power door locks
21 10A Brake on/off switch
22 20A Horn
23 15A Not used (spare)
24 15A Steering wheel control module,
Diagnostic connector, Power fold
mirror relay, Remote keyless entry
25 15A Not used (spare)
26 5A Steering wheel control module
27 20A Amplifier
28 15A Ignition switch
29 20A SYNC  , GPS module, Radio
faceplate
30 15A Parking lamp relay, TT parking
lamp relayRoadside Emergencies
325
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Peace of mind
• Keyless entry keypad • Back up alarm*
• Remote start • Cable lock*
• Vehicle security systems • Bed hooks*
• Wheel locks • Tool/Cargo boxes*
• Protective seat covers*
• Bumper and hitch mounted parking sensors*
Not all accessories are available for all models.
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
• Mobile communications systems may harm the operation of your vehicle,
particularly if they are not properly designed for automotive use.
• To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
• Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner may adversely affect battery performance and durability.Accessories
420
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Infant seats
(see Safety seats) .....................199
Inspection/maintenance (I/M)
testing ........................................398
Instrument panel
cleaning ...........................365–366
cluster ........................................14
lighting up panel and
interior .......................................89
J
Jack ............................................331
positioning ...............................331
storage .....................................331
Jump-starting your vehicle ......348
K
Keyless entry system
autolock ...................................137
keypad .....................................148
locking and unlocking doors ..149
programming entry code .......148
Keys ...................................129, 150
positions of the ignition .........265
L
Lamps
autolamp system .......................87
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........88
instrument panel, dimming .....89
interior lamps ...........................92
replacing bulbs ...................94–97
LATCH anchors .........................206
Lights, warning and indicator ....14 anti-lock brakes (ABS) ..........272
Loading instructions .................251
Load limits .................................244
Locks
autolock ...................................137
childproof ................................141
doors ........................................137
Lug nuts ....................................347
Lumbar support, seats .....160–161
M
Manual transmission
fluid capacities ........................411
Message center ...............22–23, 39
english/metric button ...............27
system check button ................27
warning messages ...............29, 48
Mirrors ...............................105–106
automatic dimming rearview
mirror ......................................105
fold away .........................107–109
heated ........................................81
programmable memory ..........143
side view mirrors (power) .....106
signal .......................................109
Moon roof ..................................115
Motorcraft  parts ......................410
MyKey ........................................129
N
Navigation system .......................77
O
Octane rating ............................391
Oil (see Engine oil) ..................375 Index
445
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

P
Parental MyKey
programming .............................129
Parking brake ............................273
Parts
(see Motorcraft  parts) ...........410
Pedals (see Power adjustable
foot pedals) ...............................110
Power adjustable foot pedals ...110
Power distribution box
(see Fuses) ...............................327
Power door locks ......................137
Power mirrors ...........................106
Powerpoint ................................101
Power steering ..........................282
fluid, checking and adding ....399
fluid, refill capacity ................411
Power Windows .........................103
Preparing to drive your
vehicle ........................................285
R
Radio ......................................60, 62
Rear-view camera system .........298
Recommendations for
attaching safety restraints
for children ................................197
Relays ........................................321
Remote entry system .......141–142
illuminated entry ....................145
locking/unlocking doors .........142
Remote start ...........................146
replacement/additional
transmitters .............................145
replacing the batteries ...........144 Remote start .............................146
Remote start climate
operation .....................................85
Reverse sensing system ...........296
Roadside assistance ..................319
S
Safety belts
(see Safety restraints) ...........168,
170, 172, 174–175
Safety Canopy ...................185–186
Safety defects, reporting ..359–360
Safety restraints ...............168, 170,
172, 174–175
Belt-Minder  ...........................176
extension assembly ................175
for adults .................170, 172, 174
for children .............................195
warning light and chime ........176
Safety restraints -
LATCH anchors .........................206
Safety seats for children ..........199
Safety Compliance
Certification Label ....................416
Satellite Radio Information ........74
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............428
Seats ..........................................153
child safety seats ....................199
cleaning ...................................368
climate control ..................81, 162
easy access/easyout feature ..164
memory seat ...................143, 163
SecuriCode keyless entry
system ........................................147Index
446
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
