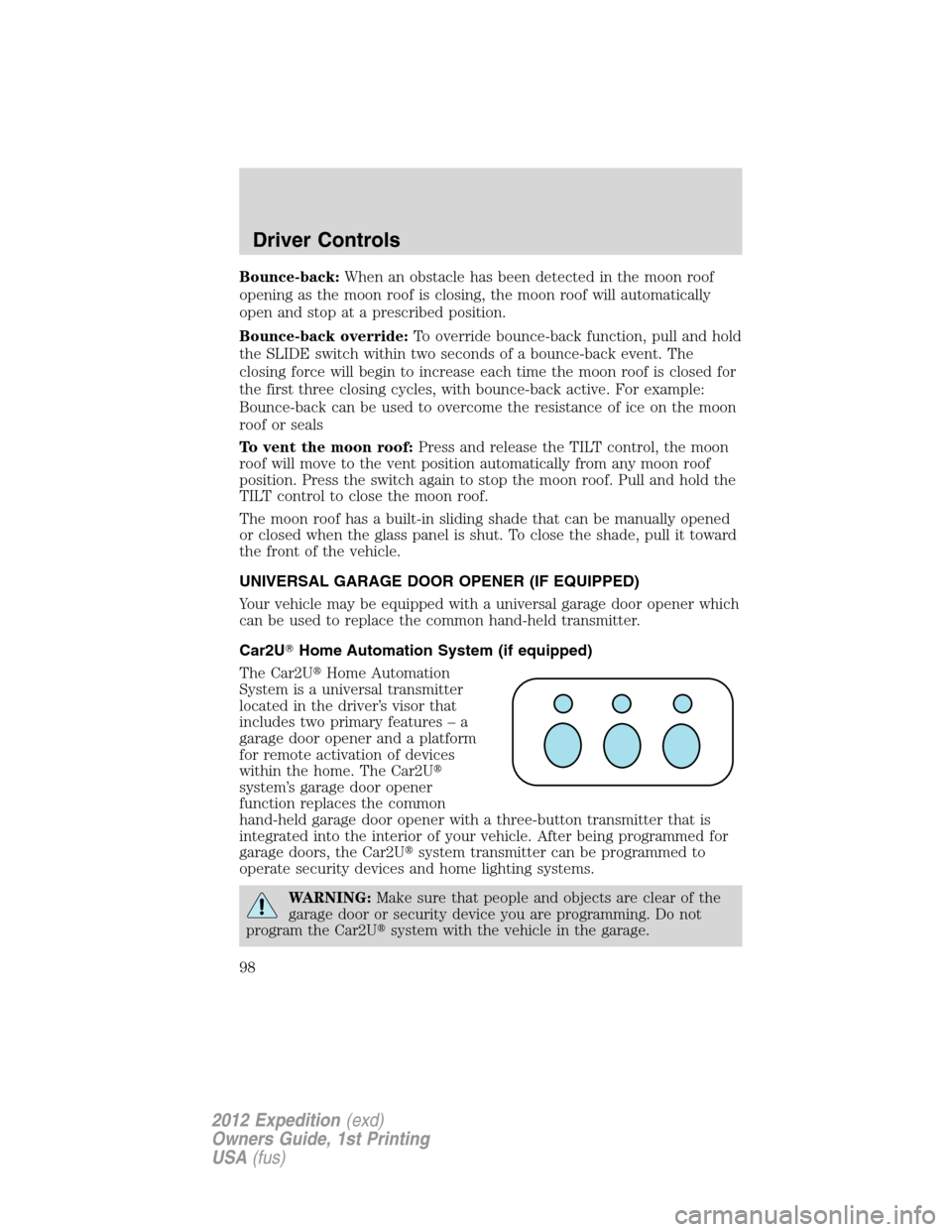

Bounce-back:When an obstacle has been detected in the moon roof
opening as the moon roof is closing, the moon roof will automatically
open and stop at a prescribed position.
Bounce-back override:To override bounce-back function, pull and hold
the SLIDE switch within two seconds of a bounce-back event. The
closing force will begin to increase each time the moon roof is closed for
the first three closing cycles, with bounce-back active. For example:
Bounce-back can be used to overcome the resistance of ice on the moon
roof or seals
To vent the moon roof:Press and release the TILT control, the moon
roof will move to the vent position automatically from any moon roof
position. Press the switch again to stop the moon roof. Pull and hold the
TILT control to close the moon roof.
The moon roof has a built-in sliding shade that can be manually opened
or closed when the glass panel is shut. To close the shade, pull it toward
the front of the vehicle.
UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.
Car2UHome Automation System (if equipped)
The Car2UHome Automation
System is a universal transmitter
located in the driver’s visor that
includes two primary features – a
garage door opener and a platform
for remote activation of devices
within the home. The Car2U
system’s garage door opener
function replaces the common
hand-held garage door opener with a three-button transmitter that is
integrated into the interior of your vehicle. After being programmed for
garage doors, the Car2Usystem transmitter can be programmed to
operate security devices and home lighting systems.
WARNING:Make sure that people and objects are clear of the
garage door or security device you are programming. Do not
program the Car2Usystem with the vehicle in the garage.
Driver Controls
98
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Note:Accidentally entering the program mode may override previously
programmed buttons. This can happen by pressing and releasing the
outer two buttons, or all three buttons, simultaneously. If this happens,
do not press any button until the module times out after approximately
2.5 seconds and resets to normal mode. When time-out occurs, all three
LEDs will flash rapidly for a few seconds then turn off. Any settings
should remain as previously set.
Rolling code programming
Note:Programming the rolling code garage door opener involves
time-sensitive actions. Read the entire procedure prior to beginning so
you will know which actions are time-sensitive. If you do not follow the
time-sensitive actions, the device will time out and you will have to
repeat the procedure.
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. Firmly press the two outer
Car2Usystem buttons for
1–2 seconds, then release.
2. Go to the garage to locate the
garage door opener motor and its
“learn” button. You may need a
ladder to reach the unit and you
may need to remove the unit’s cover
or light lens to locate the “learn”
button. Press the “learn” button,
after which you will have
10–30 seconds to return to your
vehicle and complete the following
steps. If you cannot locate the
“learn” button, refer to the Owner’s Guide of your garage door opener or
call the toll-free Car2Usystem help line at 1-866-57Car2U
(1-866-572-2728).
Driver Controls
100
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

3. Return to your vehicle. Press and
hold the Car2Usystem button you
would like to use to control the
garage door. You may need to hold
the button from 5–20 seconds,
during which time the selected
button indicator light will blink
slowly. Immediately (within
1 second) release the button once the garage door moves. When the
button is released, the indicator light will begin to blink rapidly until
programming is complete.
4. Press and release the button again. The garage door should move,
confirming that programming is successful. If your garage door does not
operate, repeat the previous steps in this section.
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
To program another rolling code device such as an additional garage door
opener, a security device or home lighting, repeat Steps 1 through 4
substituting a different function button in Step 3 than what you used for
the garage door opener. For example, you could assign the left-most
button to the garage door, the center button to a security device, and
the right-most button to another garage door opener.
Note:The Car2Usystem allows for three devices to be programmed. If
you need to change or replace any of the three devices after it has been
initially programmed, it is necessary to erase the current settings using
theErasing the Car2UHome Automation System buttonsprocedure
and then programming all of the devices being used.
Fixed code programming
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. To program units with fixed code DIP switches, you will need the
garage door hand-held transmitter, paper and a pen or pencil.
Driver Controls
101
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

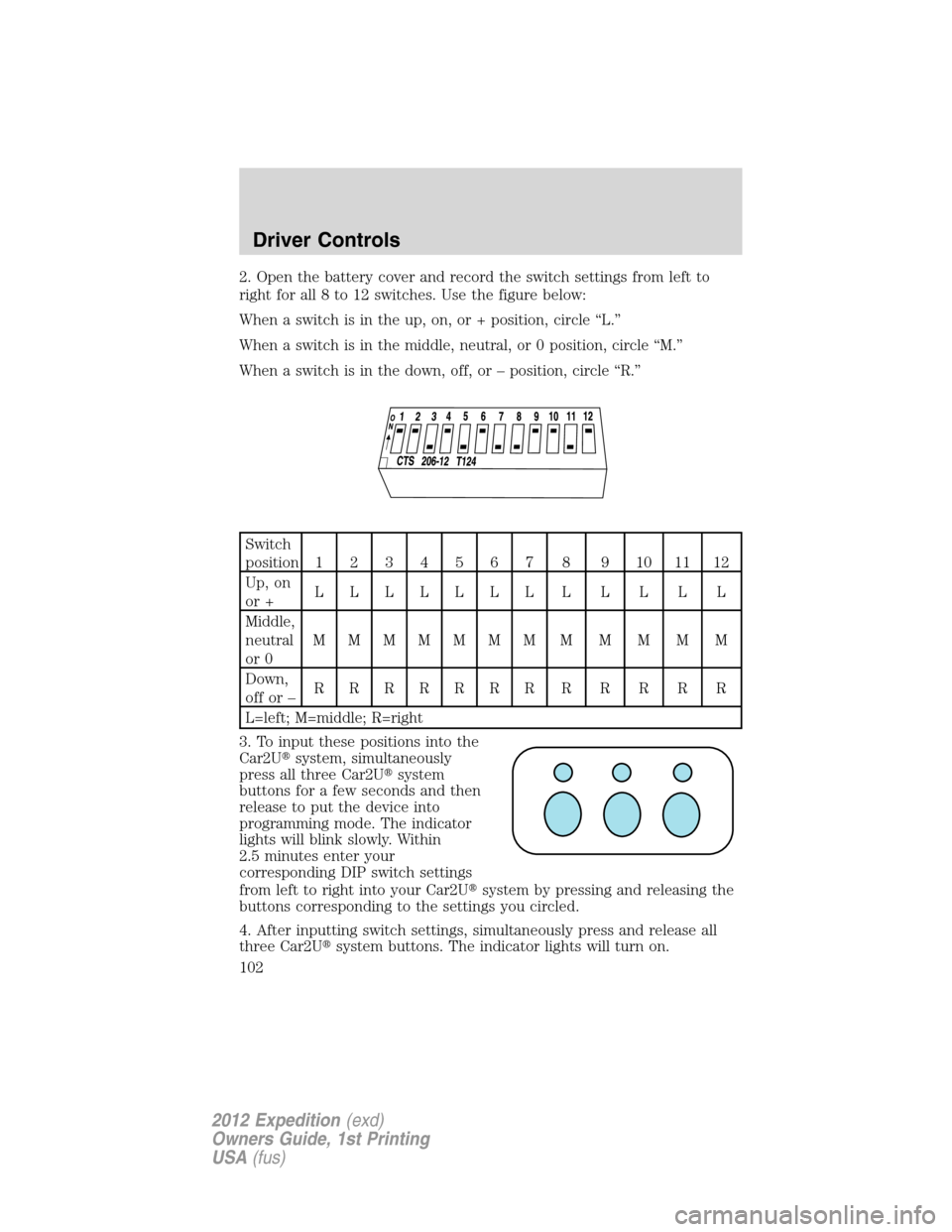

2. Open the battery cover and record the switch settings from left to
right for all 8 to 12 switches. Use the figure below:
When a switch is in the up, on, or + position, circle “L.”
When a switch is in the middle, neutral, or 0 position, circle “M.”
When a switch is in the down, off, or – position, circle “R.”
Switch
position1234567 8 9101112
Up, on
or +LLLLLLLLLLLL
Middle,
neutral
or 0MMMMMMMMMMMM
Down,
offor–RRRRRRRRRRRR
L=left; M=middle; R=right
3. To input these positions into the
Car2Usystem, simultaneously
press all three Car2Usystem
buttons for a few seconds and then
release to put the device into
programming mode. The indicator
lights will blink slowly. Within
2.5 minutes enter your
corresponding DIP switch settings
from left to right into your Car2Usystem by pressing and releasing the
buttons corresponding to the settings you circled.
4. After inputting switch settings, simultaneously press and release all
three Car2Usystem buttons. The indicator lights will turn on.
Driver Controls
102
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

5. Press and hold the Car2U
system button you would like to use
to control the garage door.
Immediately (within 1 second)
release the button once the garage
door moves. During this time the
selected button indicator light will
blink slowly. Do not release the
button until you see the garage door move. Most garage doors open
quickly. You may need to hold the button from 5–55 seconds before
observing movement of the garage door.
6. The indicator light will (begin to) blink rapidly until programming is
complete. If your garage door opener does not operate following these
steps, repeat Steps 2 through 6. Otherwise, call the toll-free Car2Uhelp
line at 1-866-57Car2U (1-866-572-2728).
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
Erasing the Car2UHome Automation System buttons
Note:The system allows for three devices to be programmed. If you need
to change or replace any of the three devices after it has been initially
programmed, it will be necessary to erase the current settings using the
procedure below and then reprogramming all of the devices being used.
To erase programming on the Car2Usystem (individual buttons cannot
be erased), use the following procedure:
1. Firmly press the two outside
Car2Usystem buttons
simultaneously for approximately
20 seconds until the indicator lights
begin to blink rapidly. The indicator
lights are located directly above the
buttons.
2. Once the indicator lights begin to
blink, release your fingers from the
buttons. The codes for all buttons
are erased.
If you sell your vehicle equipped with the Car2Usystem, it is
recommended that you erase the programming for security reasons.
Driver Controls
103
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyoptional settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith remote start systemssection.
Note:The MyKeycan be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKeyprogramming. To clear all MyKeysgo to Step 2 in the
Clear MyKeysection.
Programming MyKeyoptional settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKeysetup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional settings.
Clear MyKey
To reset all MyKeysas admin keys do the following:
1. Turn the vehicle on using the admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
Locks and Security
114
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

How to reprogram your integrated keyhead transmitters (IKTs)
To program a new integrated keyhead transmitter yourself, refer to
Programming spare keysin theSecuriLockpassive anti-theft system
section of this chapter.Note:At least two IKTs are required to perform
this procedure yourself.
Illuminated entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the integrated keyhead transmitter or the keyless entry
system keypad is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned to the on position, or
•the integrated keyhead transmitter lock control is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•after 25 seconds of illumination.
The inside will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
•When all vehicle doors are closed and the key is removed from the
ignition, the interior dome lamps, parking lamps and the puddle lamps
(if equipped) will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
Battery saver
The battery saver will shut off the lamps 10 minutes after the ignition
has been turned to the off position.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned to the off position.
•If the courtesy lamps were turned on because one of the vehicle doors
or the liftgate was opened, the battery saver will shut them off
10 minutes after the ignition has been turned to the off position.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
Locks and Security
127
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

4. After three seconds but within 10 seconds of turning the ignition to
the 1 (off) position, insert the second previouslycoded keyinto the
ignition.
5. Turn the ignition from the 1 (off) position to the 3 (on) position. Keep
the ignition in the 3 (on) position for at least three seconds, but no more
than 10 seconds.
6. Turn the ignition to the 1 (off) position and remove the second
previously programmedcoded keyfrom the ignition.
7. After three seconds but within 20 seconds of turning the ignition to
the 1 (off) position and removing the previously programmedcoded
key,insert the new unprogrammed key (new key/valet key) into the
ignition.
8. Turn the ignition from the 1 (off) position to the 3 (on) position. Keep
the ignition in the 3 (on) position for at least six seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and will operate the remote entry system (if the new key is an
integrated keyhead transmitter). The theft indicator light will illuminate
for three seconds and then go out to indicate successful programming.
If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
theft indicator light may flash on and off. Wait 20 seconds and you may
repeat Steps 1 through 8. If failure repeats, bring your vehicle to your
authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
PERIMETER ALARM SYSTEM
The perimeter anti-theft system will help protect your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL integrated keyhead transmittersare brought to the
authorized dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
Locks and Security
133
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
